Hersteller, Teltonika

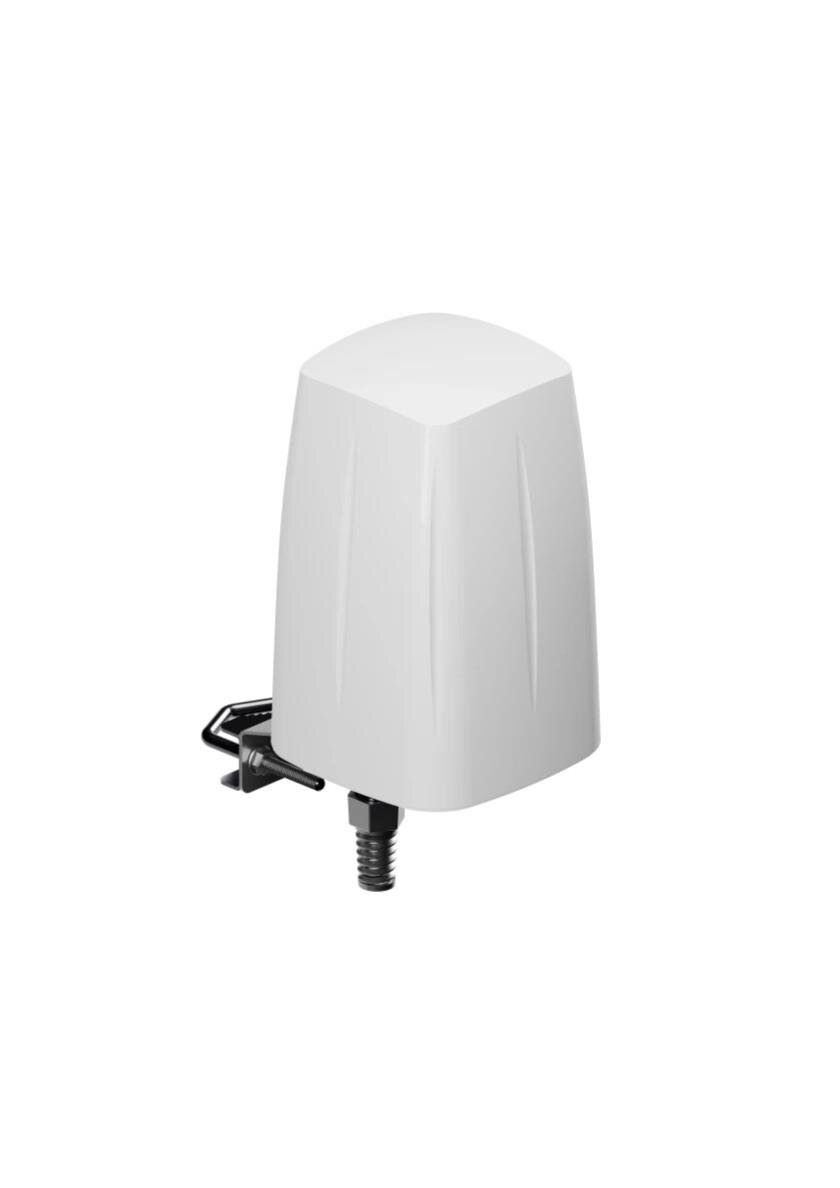

LTE/WI-FI/GPS-Außenantenne für Router der RUT9-Serie
Preis auf Anfrage
LTE Antenna:
- Frequency Range: 617 - 960, 1700 - 2700, 3300 - 4300 MHz
- Polarization: Vertical
- Main antenna: gain 4.5 dBi
- V.S.W.R:
Produkt-Beschreibung
Beschreibung
Dokumente
LTE Antenna:
- Frequency Range: 617 - 960, 1700 - 2700, 3300 - 4300 MHz
- Polarization: Vertical
- Main antenna: gain 4.5 dBi
- V.S.W.R: <2.5
- Impedance: 50 Ω
- Connector: 2x SMA Male
GNSS Antenna:
- Frequency Range: 1560 - 1610 MHz
- Polarization: RHCP
- Main antenna: gain 28 dBi
- V.S.W.R: <2.00
- Impedance: 50 Ω
- Connector: SMA Male
Wi-Fi-Antenna:
- Frequency Range: 2400 - 2500, 4700 - 6000 MHz
- Polarization: Vertical
- Radiation pattern type: Omnidirectional
- Main antenna: gain 7.5 dBi
- V.S.W.R: <2.00
- Impedance: 50 Ω
- Connector: 2x RP-SMA Male
Mechanical/Environmental:
- Mounting Method: Screw
- Radome Ingress Protection rating: IP67
- Weight: 1500g
- Housing Dimensions: Ø 80x15 mm
- Cable: 4x RG316, 1x RG174
- RoHS Compliant: Yes
