Hersteller, Teltonika

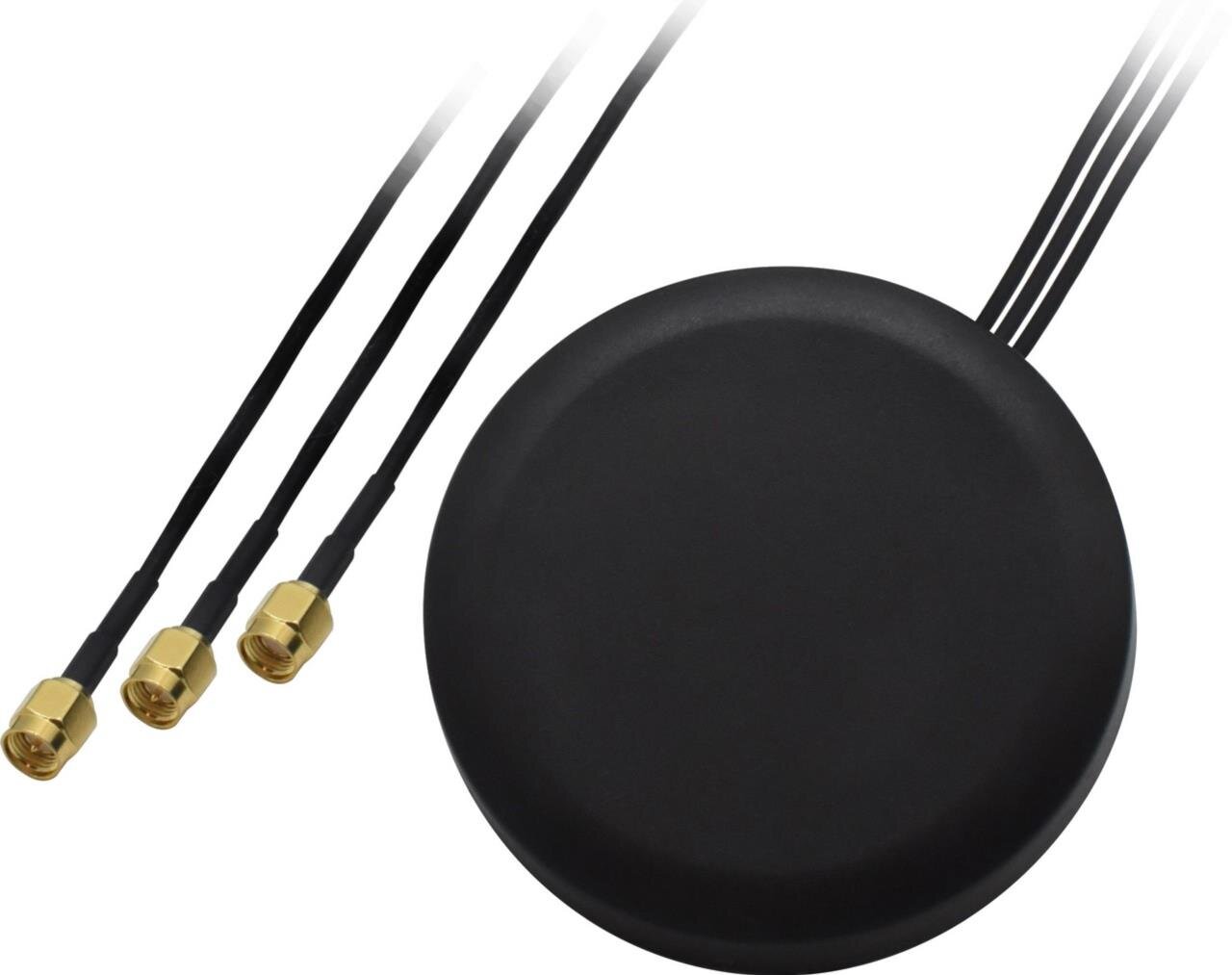

COMBO SISA Mobile, GNSS, WiFi SMA Dach-Antenne
Preis auf Anfrage
GNSS Antenna:
- Frequency Range: 1575.42-1610 MHz
- Polarization RHCP
- Impedance 50 Ω
- LNA Gain 28 dB
- LNA Noise Figure < 1.5 dB
- Supply Voltage 2. ... mehr
Sie haben Fragen?
Beratung & Verkauf
+43 3172 422 99 0
Produkt-Beschreibung
Beschreibung
Technische Daten
Dokumente
GNSS Antenna:
- Frequency Range: 1575.42-1610 MHz
- Polarization RHCP
- Impedance 50 Ω
- LNA Gain 28 dB
- LNA Noise Figure < 1.5 dB
- Supply Voltage 2.7-5 ±0.5 VDC
- Current Consumption < 15 mA
- LNA V.S.W.R <1.65
- Connector SMA Male
LTE Antenna:
- Frequency Range: 850/900/1800/1900/2170 MHz
- Bandwidth ±90/280 MHz
- Polarization Vertical
- Gain 3.5 dBi
- V.S.W.R: <1.5:1
- Impedance: 50 Ω
- Connector: SMA Male
WiFi Antenna:
- Frequency Range: 2350-2500 MHz
- Bandwidth ±100 MHz
- Polarization Vertical
- Gain 2.5 dBi
- V.S.W.R: <1.5:1
- Impedance: 50 Ω
- Connector: RP SMA Male
Mechanical/Environmental:
- Mounting Method: Screw
- Radome Ingress Protection rating: IP67
- Radome Material: ABS
- Weight: <250g
- Housing Dimensions: Ø 80x15 mm
- Cable: 3x RG174, 3000 mm
- RoHS Compliant: ✔
Standard
Abmessungen
Ø 80 x 15 mm
Anschlüsse
2x SMA Stecker, 1x RP SMA Stecker
Befestigung
Schraubbefestigung
Kabel Länge
3,0 m
Kabeltyp
RG174
Material
ABS
Schutzklasse
IP67
