• Frequency Range: 1575.42 MHz
• Polarization: RHCP
• Impedance: 50 Ω
• LNA Gain: 28±2 dB
• Supply Voltage: 3-5 VDC
• Current Consumption: < 15 mA
• V.S.W.R: <2.0
• Connector: SMA Male
• Cable: 1 x RG174, 3000 mm

LTE MIMO Antenna:

• Frequency range: 698-960 / 1710-2690 MHz
• Polarization: Linear
• Impedance: 50 Ω
• Gain: 3 dBi
• V.S.W.R: <3.0
• Connector: SMA Male
• Cable: 4 x RG174, 3000 mm

Mechanical / Environmental:

• Radome material: ABS
• Radome ingress protection rating: IP67

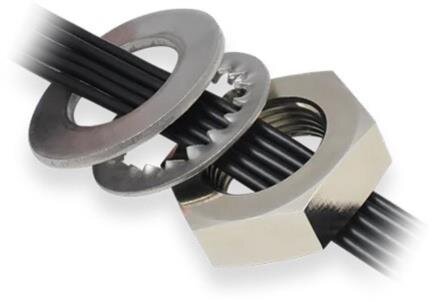

• Mounting method: Screw
• Operating temperature: -40 ⁰C to +85 ⁰C
• Operating relative humidity: < 95 %
• RoHS compliant: Yes
• Weight: 540 g
