Hersteller, Teltonika

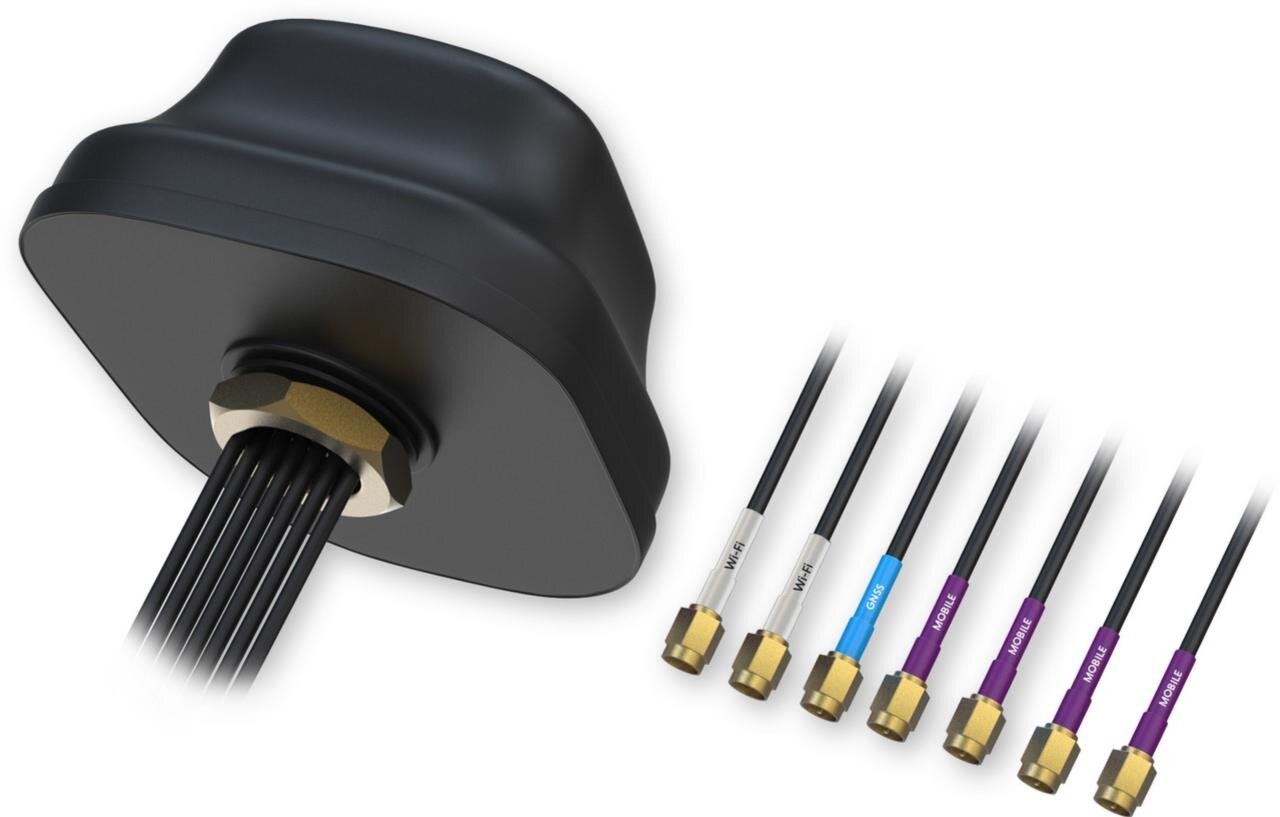

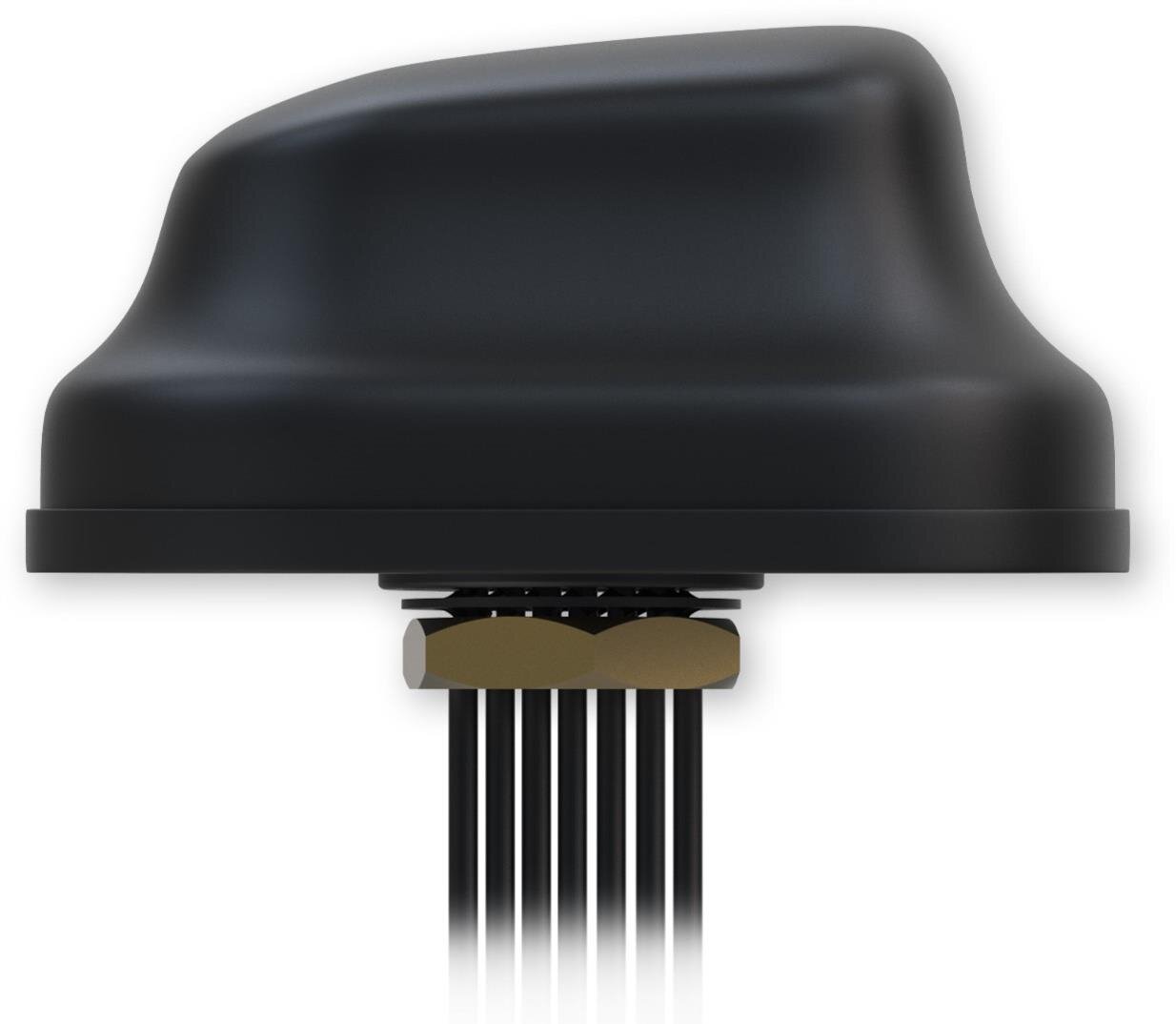

5G Combo MIMO Mobile/GNSS/WiFi Dach SMA Antenne
Preis auf Anfrage
5G mobile MIMO Antenna:
- Frequency Range: 617 - 960 / 1710 - 2690 / 2900 - 4200 MHz
- Polarization: Linear
- Gain: 4.0 dBi
- V.S.W.R: ≤3.0
- Impedance: 50 Ω
Produkt-Beschreibung
Beschreibung
Dokumente
5G mobile MIMO Antenna:
- Frequency Range: 617 - 960 / 1710 - 2690 / 2900 - 4200 MHz
- Polarization: Linear
- Gain: 4.0 dBi
- V.S.W.R: ≤3.0
- Impedance: 50 Ω
- Connector type and count: 4x SMA Male
- Frequency range: 1164 - 1300 / 1559 - 1610 MHz
- Polarization: RHCP
- Supply voltage: 3 - 12 VDC
- LNA Gain: 40 ± 2 dB
- V.S.W.R: ≤2.0
- Impedance: 50 Ω
- Current Consumption: ≤60 mA
- Connector type and count: SMA Male
- Frequency range: 2400 - 2483.5 / 4900 - 5925 MHz
- Polarization: Linear
- Gain: 4.0 dBi
- V.S.W.R: ≤2.5
- Impedance: 50 Ω
- Connector type and count: 2x RP SMA Male
- Mounting method: Screw
- Radome ingress projection rating: IP67 (exclude cable outlet)
- Radome material: UV-Resistant ABS/PC
- Weight: 960 ± 30 g
- Housing dimensions: 189 x 182 x 85 mm

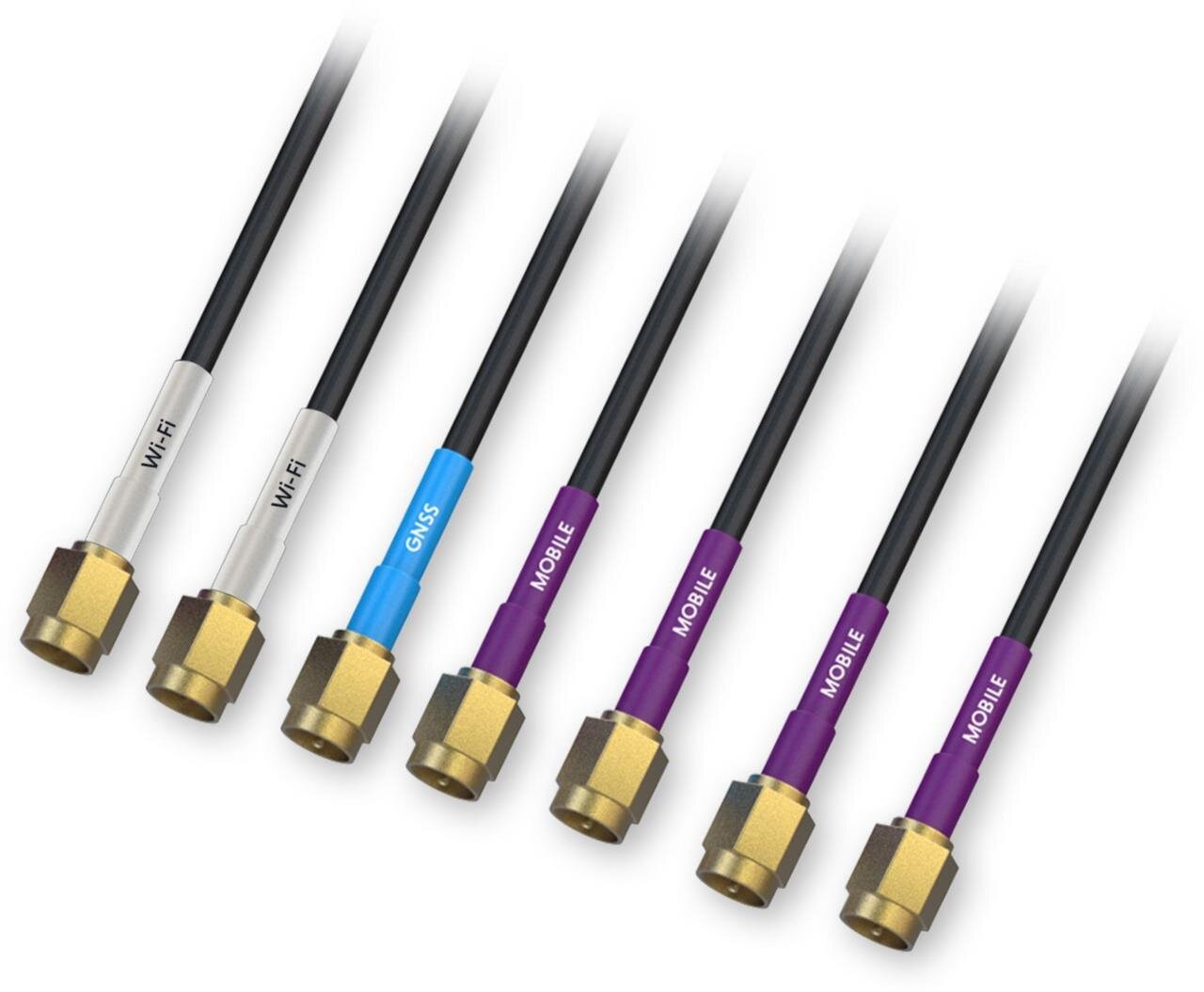

- Cable: 7 x LMR100, 3000 mm
- Recomended mounting dimensions: Hole ø28 mm, panel thickness MAX 8 mm
- Operating temperature: -40 °C - +85 °C
- RoHS Compliant: Yes
