• 2x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
• 2x USB 3.0 ports for configuration backup and restoration
• 1x audio line out (reserve)
• 1x HDMI interface
• 2x DB-9 COM1,COM2 (reserved)

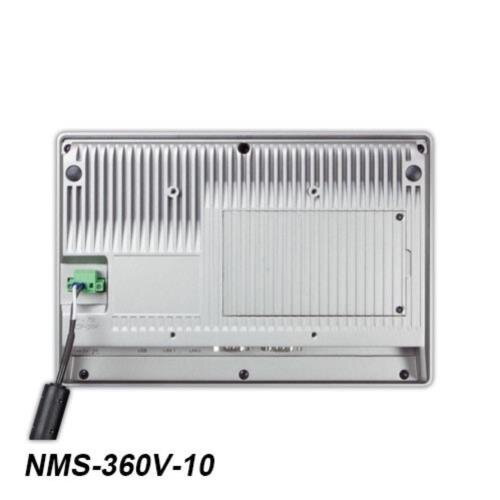

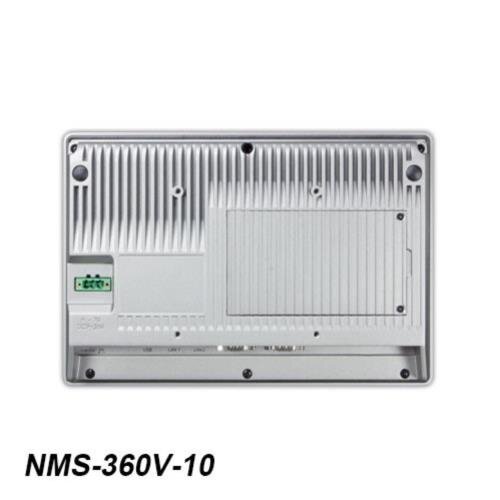

• 1x 3-pin DC power input terminal
• 1x 2-pin connector for power on/off button (reserved)
• VESA (100 x 100) panel mount

BSP-360s Management:

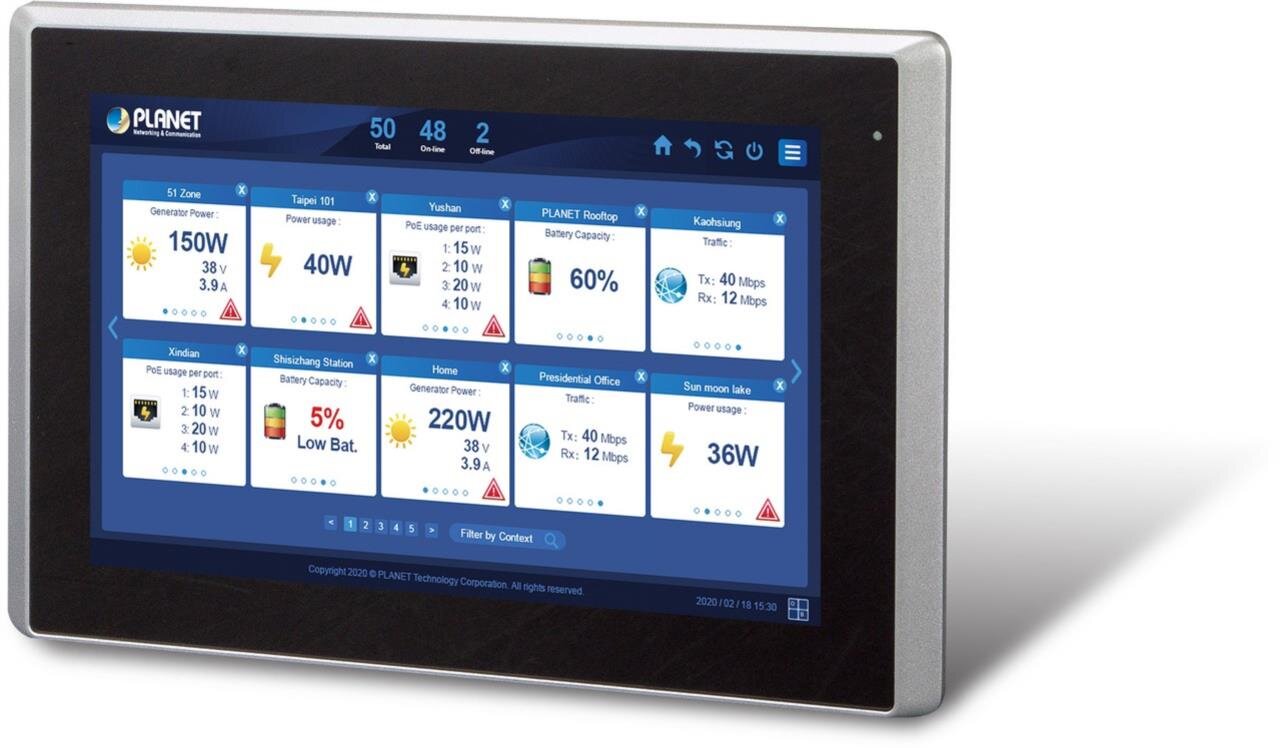

• Dashboard: Providing the at-a-glance view of system, power, traffic, and device event statuses
• Device List: Providing devices status overview and managed function
• Setup Wizard: Easy to use step-by-step guidance
• Node Discovery: Management is carried out once a BSP-360-powered device is detected.
• App-like Device Viewing: App-like devices that are compliant with SNMP, MQTT, and Smart Discovery
• Event Table: The status of system can be reported via event alarm
• Alarm System: E-mail alerts for the administrator via the SMTP server
• Device Provisioning: Enabling BSP-360 to be configured and upgraded at the same time
• Site Map: Real-time site map of BSP-360 and IP cams on the user-defined map to optimize energy deployment
• Remote PoE control: Real-time remote PoE on/off to reboot connected devices
• User Control: Allowing on-demand account creation and user-defined access policy
• Scalability: Free system upgrade and BSP-360 firmware bulk upgrade capability
• Maximum Scalability: 1 site map, 512 nodes, 2048 managed IP cameras.

Network Management Characteristics:

• Built-in DHCP Server
• SSL secure access
• Web-based GUI management interface
• SNMP v1, v2c, and v3 management
• Supports PLANET DDNS/Easy DDNS
