• Media conversion between 10/100/1000BASE-T and 100BASE-FX/1000BASE-SX/LX
• Copper RJ45 interface with Data + Power output
• Copper port supports 10/100/1000BASE-T auto-negotiation and auto-MDI/MDI-X.
• Fiber media allows

  • Multi-mode fiber using LC connector
  • Single-mode fiber using LC connector

Power over Ethernet:

• Compatible with IEEE 802.3bt Power over Ethernet plus plus end-span + mid-span PSE
• Backward Compatible with IEEE 802.3at Power over Ethernet plus end-span/mid-span PSE
• Provides DC 52V~55V power over RJ45 Ethernet cable to devices with Ethernet port
• RJ45 PoE++ port with built-in 802.3bt type-4 PoE 95W injector function
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m
• IEEE 802.3bt/IEEE 802.3at splitter devices compatibility

Layer 2 Features:

• Store-and-Forward mechanism
• Non-blocking full wire-speed forwarding rate
• IEEE 802.1Q Tag VLAN transparent, multicast pass through
• 9K jumbo frame
• IEEE 802.3x full-duplex and half-duplex back-pressure flow control to eliminate the loss of packets

Mechanical:

• Metal case

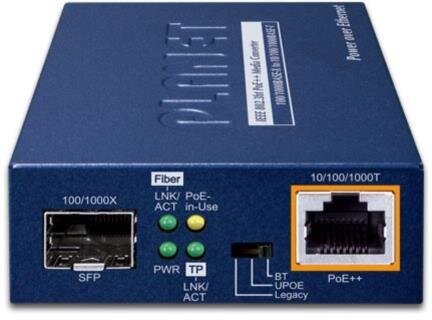

• LED indicators for easy network diagnostics
• DIP switch for PoE power feeding options (BT/UPOE/Legacy) selection

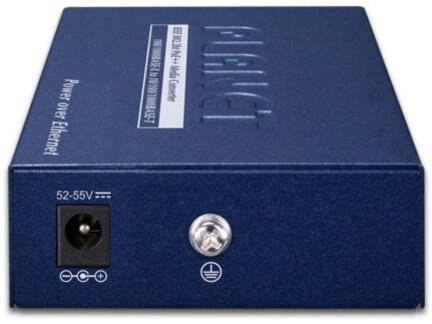

• DC 52V~55V power input socket
• Wall mounting or DIN-rail installation (optional)
• Compact in size, easy installation

Application:
Flexible and User-friendly PoE Deployment with Gigabit SFP Fiber Extension:
For the places difficult to find the power outlet, the GUP-805A-95W provides the easiest way to power network equipment such as PTZ (Pan, Tilt & Zoom) IP cameras, speed dome IP cameras, color touch-screen VoIP telephones, multi-channel (IEEE 802.11a/b/g/n/ac) wireless LAN access points and other network devices that need higher power to function normally. For instance, users can flexibly install security IP camera, wireless access point and other IEEE 802.3bt/at/af compliant network equipment in the public areas such as stations, freeways, airports and campuses for surveillance and wireless roaming needs. Gigabit 802.3bt PoE++ and PoE+ Network Deployment Solution:

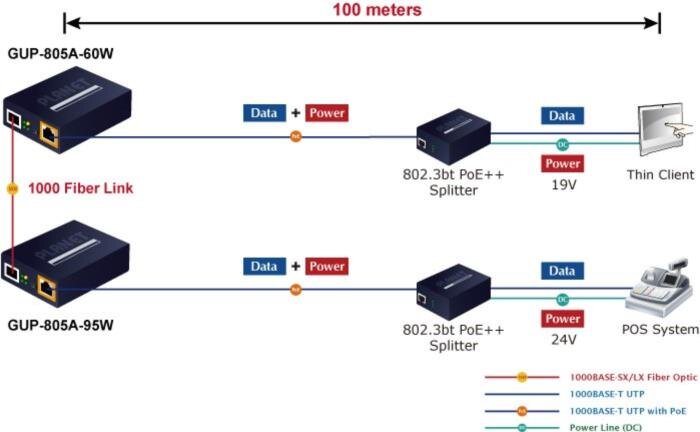

PLANET GUP-805A-95W can easily build an 802.3BT PoE++ networking solution for the enterprises. For instance, they can work with the POS system and thin client to perform comprehensive security protection for today’s businesses. The GUP-805A-95W and 802.3bt PoE++ Splitter-POE-173S operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. Receiving data and power from the GUP-805A-95W, the POE-173S separates digital data and power into three optional outputs (12V, 19V or 24V DC) to non-PoE devices such as laptops, Thin Client, POS System, PTZ (pan, tilt & zoom) network cameras, PTZ speed dome, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters.
