Hersteller, PLANET

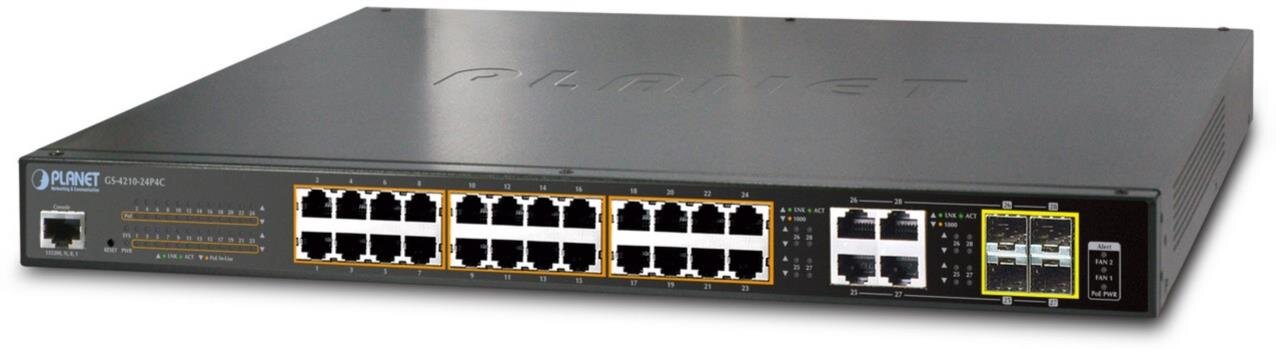

24-Port 10/100/1000T 802.3at PoE + 4Port Gbit SFP
- 28-port 10/100/1000BASE-T Gigabit RJ45 copper with 24-port IEEE 802.3at/af PoE injector
- 4x 100/1000BASE-X mini-GBIC/SFP slots, shared with port-25 to port-28 compatible with 100BASE- ... mehr
Sie haben Fragen?
Beratung & Verkauf
+43 3172 422 99 0
Wählen Sie Ihre Produkt-Ausführung
Produkt-Beschreibung
Beschreibung
Technische Daten
Dokumente
Produktvideo
- 28-port 10/100/1000BASE-T Gigabit RJ45 copper with 24-port IEEE 802.3at/af PoE injector
- 4x 100/1000BASE-X mini-GBIC/SFP slots, shared with port-25 to port-28 compatible with 100BASE-FX SFP
- RJ45 console interface for switch basic management and setup
- Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 24 ports of IEEE 802.3af / 802.3at devices powered
- Supports PoE power up to 30.8 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters
- PoE management
Standard
1GBit Ports
24 / 28
Abmessungen
440 x 300 x 44.5 mm, 1U height
Anzahl PDs, 15,4 Watt
14 / 24
Anzahl PDs, 30 Watt
14 / 7
Anzahl PDs, 9 Watt
24
Basic Management Schnittstelle
Web browser / Telnet / SNMP v1, v2c
Firmware upgrade by HTTP / TFTP protocol through Ethernet ne ...
Betriebstemperatur
0°C - +50°C
ESD/EMP Schutz
Contact Discharge 4KV DC
Air Discharge 8KV DC
Flow Control
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Gehäuse Material
Metal
IEEE 802.3at / 802.3af PoE Port
24
IGMP Snooping
IGMP (v2/v3) snooping
IGMP querier
Up to 256 multicast groups
Jumbo Frame
10K bytes
Lagertemperatur
-20°C bis 70°C
Layer2 Port Mirroring
TX / RX / both
Many-to-1 monitor
LEDs
PWR, SYS, LNK/ACT, PoE-in-Use, 1000, FAN 1 Alert, FAN 2 Alert, PoE PWR Alert
Leistungsaufnahme max.
GS-4210-24P4C: 275W / 938.3 BTU
GS-4210-24PL4C: 544W / 1856.2 BTU
Link Aggregation
IEEE 802.3ad LACP and static trunk
Supports 8 groups of 8-port trunk
Lüfter
2x Smart Lüfter / 3x Smart Lüfter
Luftfeuchtigkeit
5 - 95%, nicht kondensierend
Luftfeuchtigkeit Lagerung
5 - 95%, nicht kondensierend
MAC Adressen Table
8K entries
MLD Snooping
MLD (v1/v2) snooping, up to 256 multicast groups
Netzwerk Ports
24-Port
PoE Ausgangspannung / Leistung
Per port 52V DC, 30.8 watts (max.)
PoE Gesamtleistung
220 Watts (max.) @ 25 degrees C
190 Watts (max.) @ 50 degrees C / 440 Watts (max.) @ 25 degrees C
380 Watts (max.) @ 50 degrees C
PoE Netzteil
End-Span
PoE Standard
IEEE 802.3 af/at
Power Pin-Belegung
1/2(+), 3/6(-)
Produktfamilie
Switch managed, High Power PoE, IEEE802.3at
QoS
8 mapping ID to 8 level priority queues
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DS ...
Reset Button
> 5 sec: Factory default
Secure Management Schnittstelle
SSH, SSL, SNMP v3
Serieller Konsolen Port
1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
SFP 100/1000Mbps Ports
4 (Combo)
Shared Data Buffer
4.1 Mbits
Sicherheit Layer2
IEEE 802.1X port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RA ...
SNMP MIBs
RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 27 ...
Spanning Tree Protokoll
STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEE ...
Standards & Protokolle
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gig ...
Stromversorgung
100~240V AC, 50/60Hz, auto-sensing
Switch Architektur
Store-and-Forward
Switch Datendurchsatz
41.67Mpps
Switch Fabric
56Gbps / non-blocking
VLAN
802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
V ...
Zertifikate / Zulassungen
FCC Part 15 Class A, CE
Zugriffs Kontroll Liste
IPv4/IPv6 IP-based ACL / MAC-based ACL
