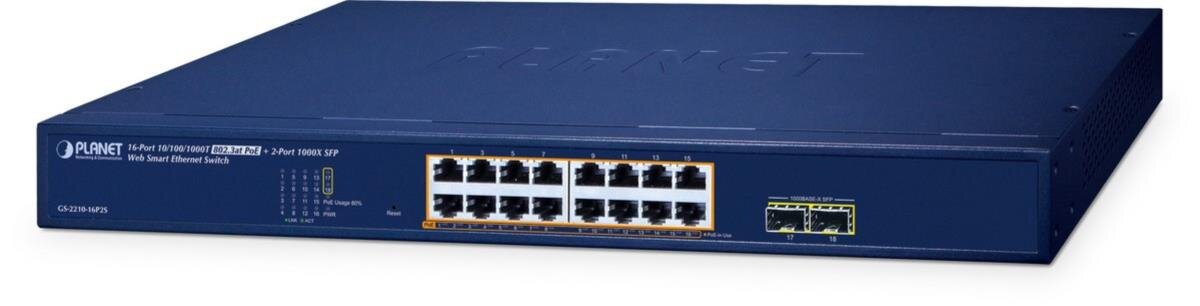

16x 10/100/1000BASE-T Gigabit RJ45 copper ports with 16-port IEEE 802.3at/af PoE injector function

2x 100/1000BASE-X mini-GBIC/SFP slots

Reset button for system factory default and reboot

Layer 2 Features:

• Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard

• Prevents packet loss flow control

  • IEEE 802.3x pause frame flow control in full-duplex mode

  • Back pressure flow control in half-duplex mode

• High performance Store-and-Forward architecture, broadcast storm control, port loopback detection

• 8K MAC address table, automatic source address learning and aging

• Supports VLAN

  • IEEE 802.1Q tag-based VLAN

• Supports Link Aggregation

  • Maximum 8 trunk groups, up to 8 ports per trunk group

  • Cisco ether-channel (static trunk)

• Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to 1)

• Provides port mirror (many-to-1)

Quality of Service:

• 8 priority queues on all switch ports

• Support for strict priority and WRR (Weighted Round Robin) CoS policies

• Traffic classification

  • IEEE 802.1p CoS/ToS

  • IPv4 DSCP

  • Port-based WRR

• Strict priority and WRR CoS policies

Multicast:

• Supports IPv4 IGMP snooping v1, v2

• IGMP snooping port filtering

• Flood/Drop

• DIP Mode

Security:

• Supports DHCP snooping

Management:

• Management IP for IPv4

• Switch Management Interface

  • Telnet Command Line Interface

  • Web switch management

• BOOTP and DHCP for IP address assignment

• Cable Diagnostics to detect the cable connection and the approximate location of the cable fault.

• Firmware upload/download via TFTP or HTTP Protocol for IPv4

• Supports ping test function for IP address or domain name

• NTP (Network Time Protocol)

• PLANET Smart Discovery Utility for deployment management

• PLANET NMS for deployment management

• PLANET NMSViewerPro for deployment management

Power over Ethernet:

• Complies with IEEE 802.3at/af Power over Ethernet Plus

• Up to 16 ports of IEEE 802.3af/802.3at devices powered

• Supports PoE power up to 32 watts for each PoE port

• Maximum 240-watt PoE budget

• Auto detects powered device (PD)

• Circuit protection prevents power interference between ports

• Remote power feeding up to 100 meters in standard mode and 250m in extend mode

• PoE management

  • Total PoE power budget control

  • Per port PoE function enable/disable

  • PoE port power feeding priority

  • Per PoE port power limitation

  • PD classification detection

• Intelligent PoE features

  • PD alive check

  • PoE schedule
