• 2-channel duplex or 4-channel simplex fiber connection with optical bypass function

• Supports 100Gbps/40Gbps/10Gbps/1Gbps and 100Mbps fiber connections

• Available in single mode or multimode

• Available in LC/SC connectors



Optical Fiber Bypass:

• Bypass switch time <8ms
• Low return loss
• Throughput not affected and no extra delay
• Increased reliability on critical network links

Industrial Case and Installation:

• IP30-rated metal housing

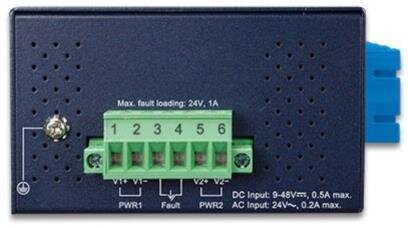

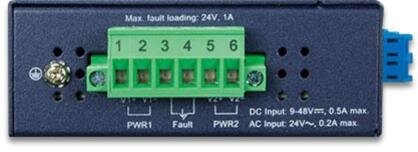

• Redundant dual 9~48V DC or 24V AC power inputs
• DIN-rail and wall-mount designs
• Connective removable terminal block
• Relay output for power failure warning
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
• Free fall, shock-proof and vibration-proof for industries
• Low power consumption with 0.54W

To protect the critical fiber optic network from power system failure, PLANET IFB-244 Series is an ultra-fast auto-recovering solution to prevent and maintain fiber network communication during power loss.

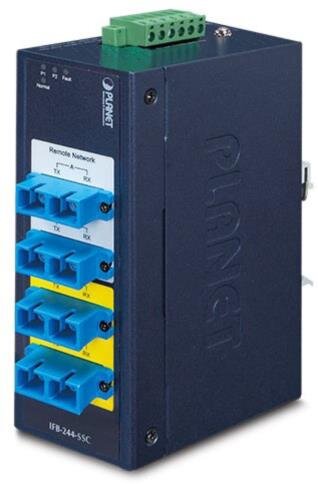

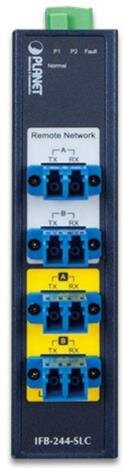

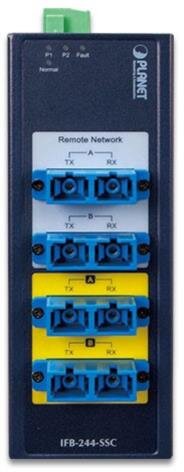

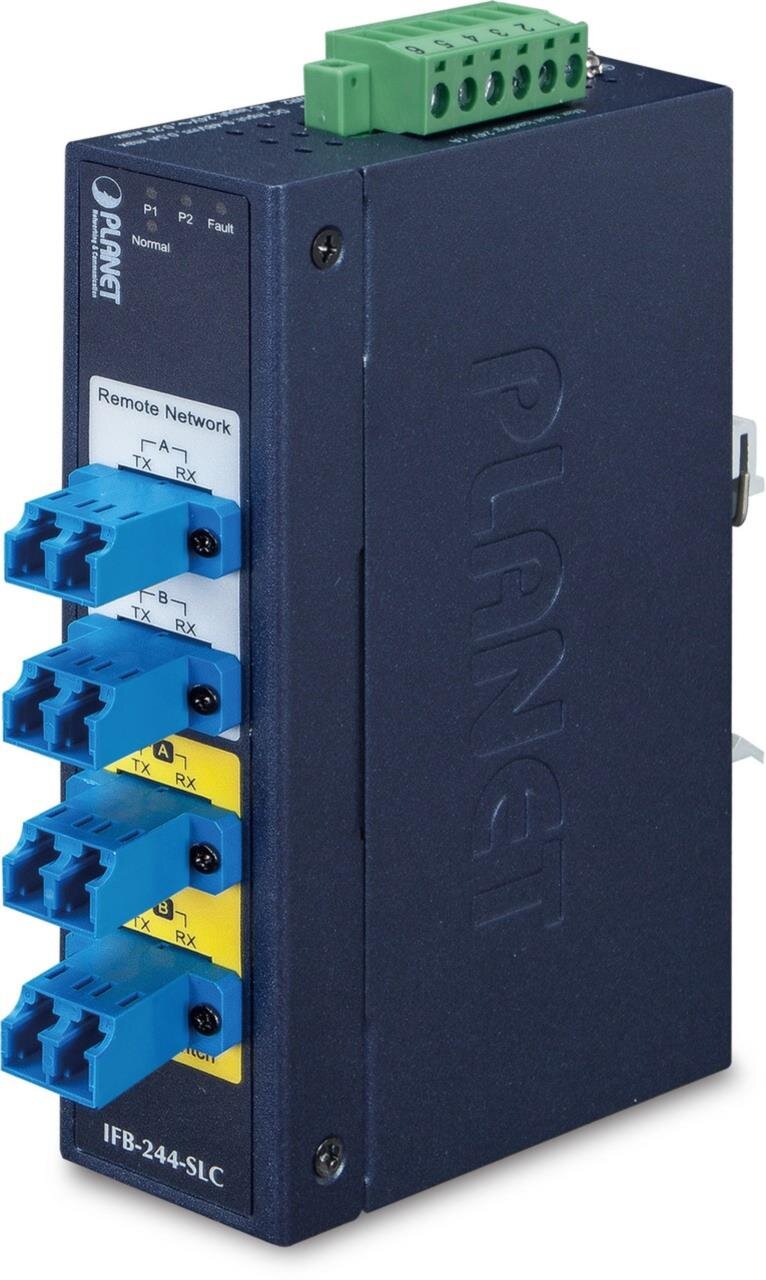

The IFB-244 Series is an industrial-grade optical fiber bypass switch with built-in 4 duplex LC or SC connectors featuring 2-channel duplex or 4-channel simplex fiber connection with optical bypass function. The optical fiber ports support 100Gbps/40Gbps/10Gbps/1Gbps/100Mbps fiber connections. It automatically switches optic network traffic to prevent link failure during power loss. It also allows the local network switch to be replaced or removed without network downtime.

Optical Fiber Bypass Mechanism

The IFB-244 Series applies fiber-to-fiber technology to achieve ultra-low losses and ultra-fast switching time. Two of the fiber ports are used to connect to two remote fiber switches and the other two fiber ports are used to connect to the local fiber switch. The IFB-244 Series and the local fiber Ethernet switch are powered from the same power source.

When the system power is on, the IFB-244 Series operates in the Normal mode and forwards Ethernet packets between two remote fiber switches and the local fiber switch.

When the system power failure occurs, the IFB-244 Series operates in the Bypass mode that directly forwards Ethernet packet between two remote fiber switches and bypass the local fiber switch.

Once the system power is recovered, the network traffic resumes operation between two remote fiber switches and local fiber switch.
