• 16x 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function
• 2x SFP slot interfaces, supporting 100/1000BASE-X SFP transceiver type auto detection
• 1-port RJ45 console interface for basic management and setup

Industrial Case and Installation:

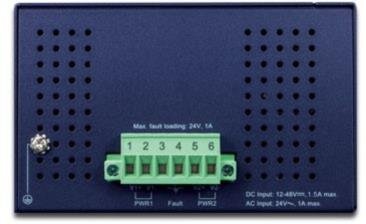

• Dual power input, redundant power with reverse polarity protection

  • DC 12 to 48V input or AC 24V input
  • Active-active redundant power failure protection
  • Backup of catastrophic power failure on one supply
  • Fault tolerance and resilience
• IP30 metal case
• DIN-rail and wall-mount designs
• Supports ESD 6KV DC Ethernet protection
• Supports -40 to 75 degrees C operating temperature
• Free fall, shock-proof and vibration-proof for industries

Switching:

• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 8K MAC address table size
• 10K jumbo frame
• Automatic address learning and address aging
• Supports CSMA/CD protocol

Layer 2 Features:

• Supports VLAN

  • IEEE 802.1Q tagged VLAN
  • Up to 256 VLAN groups, out of 4096 VLAN IDs
  • Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
  • Private VLAN (Protected port)
  • Protocol-based VLAN
  • Voice VLAN
  • GVRP
• Supports Spanning Tree Protocol

  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
  • BPDU Guard
• Supports Link Aggregation

  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • Cisco ether-channel (static trunk)
  • Up to 8 trunk groups
  • Up to 8 ports per trunk group with 16Gbps bandwidth
• Provides port mirror (many-to-1)
• IPv6 MAC/VLAN/Multicast Address Table
• Loop protection to avoid broadcast loops

Quality of Service:

• Ingress/Egress Rate Limit per port bandwidth control
• Support 8 priority queues on all switch ports
• Traffic classification

  • IEEE 802.1p CoS
  • IP TOS/DSCP/IP precedence of IPv4/IPv6 packets
  • IP TCP/UDP port number
  • Typical network application
• DSCP remarking

Multicast:

• Supports IPv4 IGMP snooping v1, v2, v3
• Supports IPv6 MLD snooping v1, v2
• Querier mode support
• IGMP snooping port filtering
• MLD snooping port filtering

Security:

• Storm Control support

  • Broadcast/Multicast/Unicast
    Authentication
  • IEEE 802.1X port-based network access authentication
  • Built-in RADIUS client to cooperate with the RADIUS servers
  • DHCP Relay and DHCP Option 82
  • RADIUS/TACACS+ users access authentication
• Access Control List

  • IPv4/IPv6 IP-based ACL
  • IPv4/IPv6 IP-based ACE
  • MAC-based ACL
  • MAC-based ACE
• MAC Security

  • Static MAC
  • MAC filtering
• Port security for source MAC address entries filtering
• DHCP snooping to filter distrusted DHCP messages
• Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
• IP source guard prevents IP spoofing attacks
• IP address access management to prevent unauthorized intruder

Management:

• IPv4 and IPv6 dual stack management
• Switch Management Interface

  • IPv4/IPv6 Web switch management
  • Console and telnet Command Line Interface
  • SNMP v1, v2c, v3
  • SSH, TLS and SSL secure access
• IPv6 IP address/NTP/DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• Static and DHCP for IP address assignment
• System Maintenance

  • Firmware upload/download via HTTP/TFTP
  • Hardware reset button for system reboot or reset to factory default
  • Dual images
• User Privilege levels control
• Network Time Protocol (NTP)
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• Syslog remote alarm
• SNMP Management

  • SNMP trap for interface link up and link down notification
  • Four RMON groups (history, statistics, alarms and events)
• PLANET Smart Discovery Utility for deployment management
• Network diagnostic

  • SFP-DDM (Digital Diagnostic Monitor)
  • Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
  • ICMPv6 / ICMPv4 remote pin

Cost-effective Full Solution Ideal for Hardened Environment:

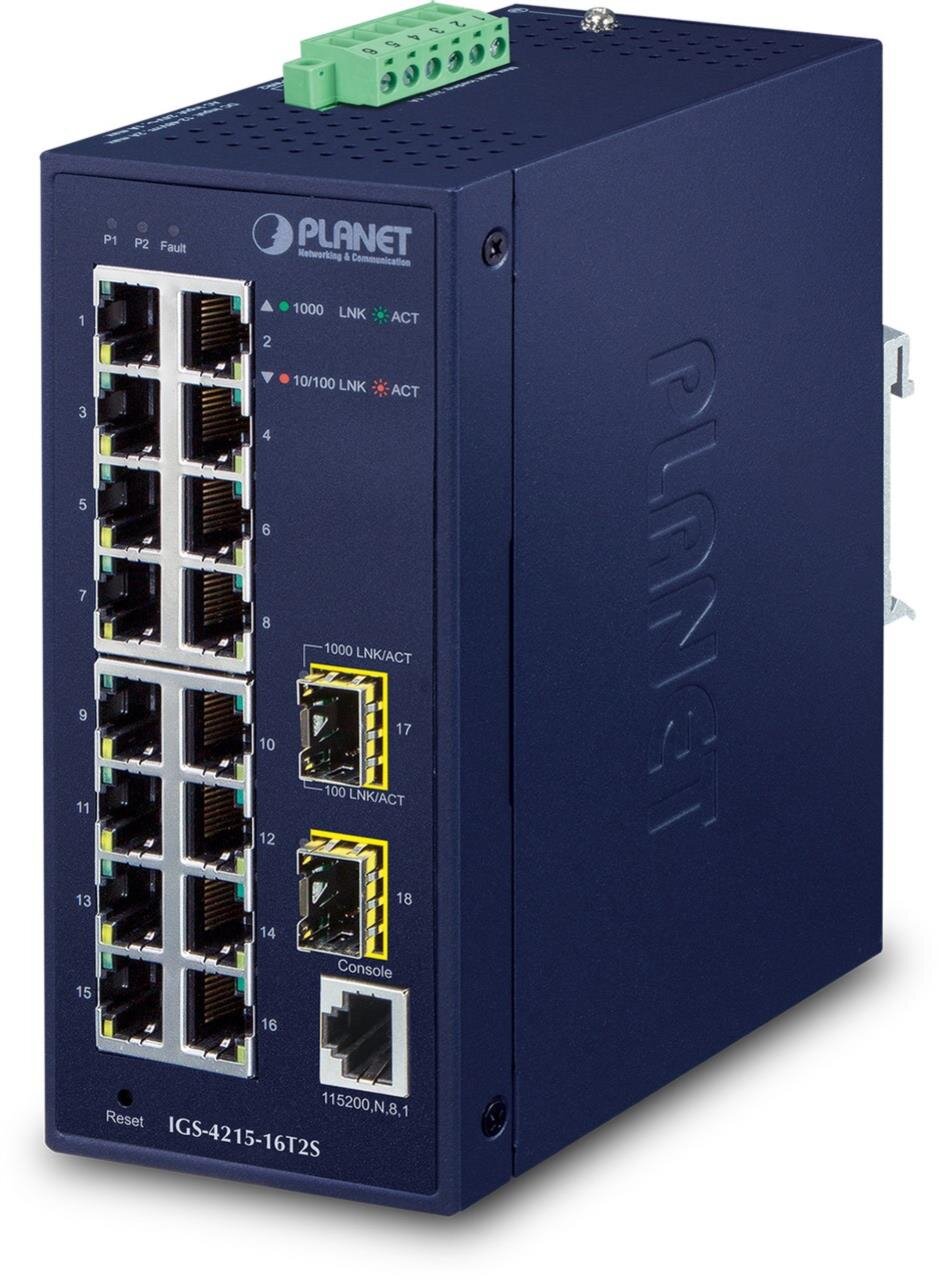

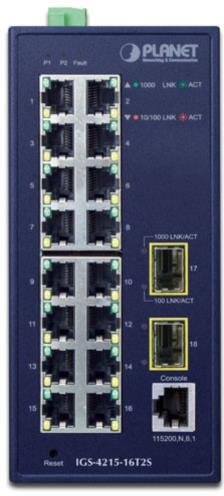

Designed to be installed in heavy industrial demanding environments, the IGS-4215-16T2S is the new member of PLANET Industrial-grade, DIN-rail type L2/L4 Managed Gigabit Switch family to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 16 10/100/1000BASE-T ports, 2 extra 100/1000BASE-X SFP fiber slots for data and video uplink. The IGS-4215-16T2S is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing. Environmentally Hardened Design:
With the IP30 industrial case, the IGS-4215-16T2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-4215-16T2S can be placed in almost any difficult environment. Robust Protection:
The IGS-4215-16T2S provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. Robust Layer 2 Features:
The IGS-4215-16T2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the IGS-4215-16T2S allows the operation of a high-speed trunk to combine with multiple ports such as an 8Gbps fat pipe, and supports fail-over as well.  Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain. IPv6/IPv4 Dual Stack Management:
Supporting both IPv6 and IPv4 protocols, the IGS-4215-16T2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up. Efficient Traffic Control:
The IGS-4215-16T2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources. User-friendly and Secure Management:
The IGS-4215-16T2S comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2, TLS and SSL protocols to provide strong protection against advanced threats. Served as a key point to transmit data, the cybersecurity feature of the IGS-4215-16T2S protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort. Powerful Security:
PLANET IGS-4215-16T2S offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the Protected Port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port Security function allows limiting the number of network devices on a given port.  Advanced Network Security:
The IGS-4215-16T2S also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before. Flexibility and Long-distance Extension Solution:
The two additional SFP slots built in the IGS-4215-16T2S support 100BASE-FX /1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to 120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. Intelligent SFP Diagnosis Mechanism:
The IGS-4215-16T2S supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for the network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
