• 1x DB9 interface that supports RS232

• 1x terminal block interface that supports 2-wire RS485 and 4-wire RS422/RS485 standards

• Asynchronous serial data rates up to 921600bps

• Data modes include VCOM, RFC2217, TCP Server, TCP Client, UDP, Remote Pair, Modbus converter server / client and Serial Telnet modes

Ethernet Interface:

• 1-port 10/100BASE-TX RJ45  with auto MDI/MDI-X function

Management:

• IPv4 and IPv6 dual stack management
• Remote Management Interfaces

  • IP-based Web management
  • Telnet console management- Windows-based VCOM utility supports searching, monitoring and configuration setting
• IP NTP (Network Time Protocol) and DNS management
• Standard TCP/IP interface and versatile operation modes
• Software Protocol supports ARP, ICMP, TCP/IP, UDP, HTTP server, DHCP client, Telnet server/client
• Serial Operation mode selected via management interface
• Pair Connection mode for connecting two serial devices over a network
• Allows a maximum of 4 hosts to be accessed as TCP client mode
• Firmware upgrade via HTTP protocol
• Accessible IP security control to prevent illegal users
• Event notification

  • Remote Syslog server
  • SNMP trap
  • Relay output alarm
• DHCP client for IP address assignment
• PLANET Smart Discovery utility automatically finds the client devices on the network

Industrial Case and Installation:

• IP30 metal case
• DIN-rail and wall-mount designs
• Redundant power design

  • 9 to 48V DC / 24V AC, redundant power with reverse polarity protection
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
• Free fall, shock-proof and vibration-proof for industries
• Supports extensive LED indicators for network diagnosis
• Reset button for resetting to factory default

Cost-effective Solution for RS232/422/485 Serial-to-Industrial Ethernet Application:

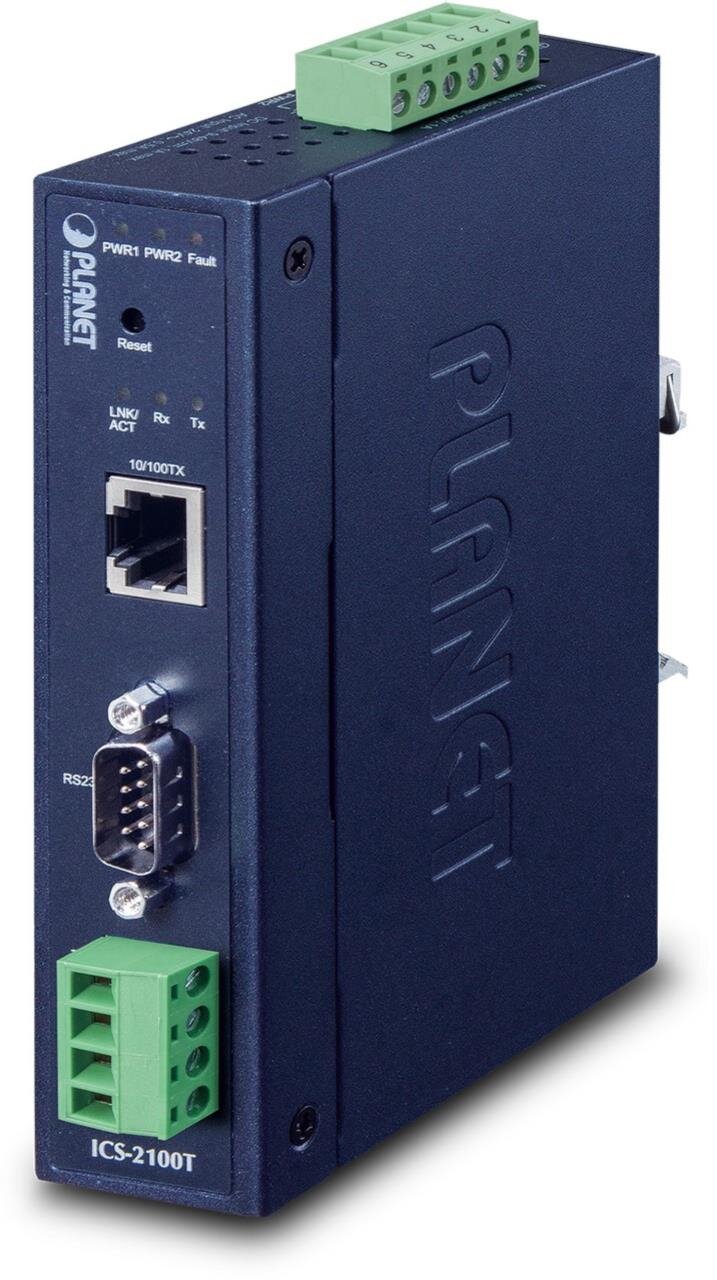

PLANET ICS-2100T Serial Device Server is specially designed to convert RS232, RS422 or RS485 serial communication to Industrial Fast Ethernet networking so as to extend the network distance efficiently and inexpensively. There is one 10/100BASE-TX RJ45 port in the ICS-2100T and its operating temperature ranges from -40 to 75 degrees C for your network needs. The ICS-2100T is a time-saving and cost-effective solution for users and system integrators to quickly transform their serial devices into the Ethernet network with no need of replacing the existing serial devices and software system.

Remote Management:
As the ICS-2100T provides easy serial-to-Ethernet connectivity and connection to a TCP/IP network, the remote network system can thus be managed efficiently via its Web, telnet, and VCOM management interfaces. It supports both application and serial operation modes for alarm or IP address connection, which saves the network administrator’s time in detecting and locating network problems without visual inspection of the cabling and devices.  Multiple connection options are available for a large networking environment as well.

Stable Performance under Difficult Environments:
The ICS-2100T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Its operating temperature ranging from -40 to 75 degrees C allows the ICS-2100T   to be placed in almost any difficult environment.

The ICS-2100T, equipped with compact IP30 standard metal case, allows either DIN-rail or wall mounting for efficient use of cabinet space.  The ICS-2100T   also provides an integrated power supply source with a wide range of voltages (9 to 48V DC / 24V AC) ideally suitable for worldwide operation with high availability applications requiring dual or backup power inputs.

Dual Power Input for High Availability Network System:
The ICS-2100T features a strong dual power input system with wide-ranging voltages (9V~48V DC / 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when Power Supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the ICS-2100T  via Power Supply 2 without any break of operation.
