Hersteller, PLANET

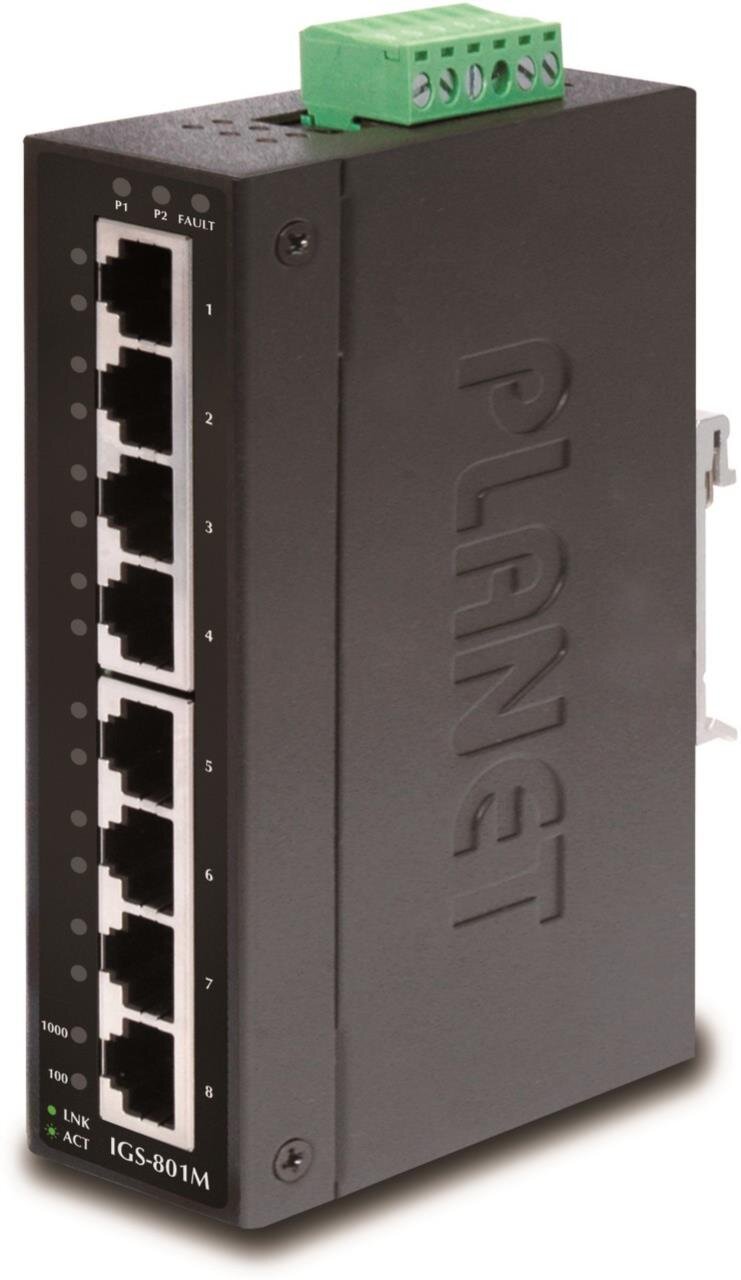

8-Port 10/100/1000Mbps Managed Industrial Ethernet Switch
Preis auf Anfrage
- 8-Port 10/100/1000BASE-T RJ45 copper
- IP30 metal case protection
- DIN-rail and wall mount design
- Redundant power des ... mehr
Sie haben Fragen?
Beratung & Verkauf
+43 3172 422 99 0
Produkt-Beschreibung
Beschreibung
Technische Daten
Dokumente
- 8-Port 10/100/1000BASE-T RJ45 copper
Industrial Case/Installation
- IP30 metal case protection
- DIN-rail and wall mount design
- Redundant power design
- 12 to 48V DC, redundant power with polarity reverse protect function- AC 24V power adapter acceptable
- Supports EFT 6000VDC protection for power line
- Supports 6000VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
Layer 2 Features
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Supports VLAN
- IEEE 802.1Q tagged VLAN- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Protocol VLAN- Voice VLAN- Private VLAN- Management VLAN- GVRP
- Supports Spanning Tree Protocol
- STP (Spanning Tree Protocol)- RSTP (Rapid Spanning Tree Protocol)- MSTP (Multiple Spanning Tree Protocol)- STP BPDU Guard, BPDU filtering and BPDU forwarding
- Supports Link Aggregation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)
- Provides port mirror (many-to-1)
- Loop protection to avoid broadcast loops
Quality of Service
- Ingress and egress rate limit per port bandwidth control
- Storm control support
- Broadcast/Unknown unicast/Unknown multicast
- Traffic classification
- IEEE 802.1p CoS- TOS/DSCP/IP precedence of IPv4/IPv6 packets
- Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
- Supports IPv4 IGMP snooping v2 and v3
- Supports IPv6 MLD snooping v1, v2
- IGMP querier mode support
- IGMP snooping port filtering
- MLD snooping port filtering
Security
- Authentication
- IEEE 802.1X port-based network access authentication- Built-in RADIUS client to co-operate with the RADIUS servers- RADIUS/TACACS+ login user access authentication
- Access control list
- IPv4/IPv6 IP-based ACL- MAC-based ACL
- MAC security
- Static MAC- MAC filtering
- Port security for source MAC address entries filtering
- DHCP snooping to filter distrusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- IP source guard prevents IP spoofing attacks
- DoS attack prevention
- SSH/SSL
Management
- IPv4 and IPv6 dual stack management
- Switch management interface
- Web switch management- Telnet command line interface- SNMP v1, v2c and v3- SSH and SSL secure access
- User privilege levels control
- Built-in Trivial File Transfer Protocol (TFTP) client
- BOOTP and DHCP for IP address assignment
- System maintenance
- Firmware upload/download via HTTP/TFTP- Configuration upload/download through web interface- Dual images- Hardware reset button for system reboot or reset to factory default
- SNTP Network Time Protocol
- Cable diagnostics
- Link Layer Discovery Protocol (LLDP) and LLDP-MED
- SNMP trap for interface link up and link down notification
- Event message logging to remote Syslog server
- Four RMON groups (history, statistics, alarms and events)
- PLANET smart discovery utility
Perfect, Slim-type Managed Switch with More Practicability and Convenience
PLANET IGS-801M is an Industrial 8-Port Full Gigabit Managed Ethernet Switch specially designed to transmit reliable but high-speed data in heavy industrial demanding environments. It provides 8-Port 10/100/1000BASE-T copper interfaces delivered in an IP30 rugged strong case with redundant power system. Besides support for 16Gbps switch fabric to handle extremely large amounts of video, voice and important data in a secure topology, the IGS-801M provides user-friendly but advanced IPv6/IPv4 management interfaces and abundant L2/L4 switching functions. It is the best investment for industrial business expanding or upgrading its network infrastructure.
Environmentally Hardened Design
With IP30 industrial case protection, the IGS-801M provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. It also possesses an integrated power supply source with wide range of voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-801M can be placed in almost any difficult environment.
Robust Layer 2 Features
The IGS-801M can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the IGS-801M allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.
Efficient Traffic Control
The IGS-801M is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice and video solutions. The functionality includes broadcast/multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.
Powerful Security
PLANET IGS-801M offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, port security function allows to limit the number of network devices on a given port.
Advanced Network Security
The IGS-801M also provides DHCP snooping, IP source guard and dynamic ARP inspection functions to prevent IP snooping from attack and discarded ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.
Friendly and Secure Management
For efficient management, the IGS-801M is equipped with web, Telnet and SNMP management interfaces. With the built-in web-based management interface, the IGS-801M offers an easy-to-use, platform-independent management and configuration facility. By supporting the standard SNMP, the switch can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet. Moreover, the IGS-801M offers secure remote management by supporting SSH, SSL and SNMP v3 connections which encrypt the packet content at each session.
Standard
1GBit Ports
8
Abmessungen
135 x 87 x 32 mm, 1U height
Alarm I/O
One relay output for power failure. Alarm relay current carry ability: 1A @ DC 24V
Basic Management Schnittstelle
Web browser/Telnet/SNMP v1, v2c
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
...
Befestigung
DIN rail kit and wall mount kit
Betriebstemperatur
-40°C - +75°C
ESD/EMP Schutz
6KV DC
Flow Control
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Gehäuse Material
metal case
IGMP Snooping
IGMP (v2/v3) snooping
IGMP querier
Up to 256 multicast groups
Jumbo Frame
10K bytes
Lagertemperatur
-40°C bis 75°C
Layer2 Port Mirroring
TX/RX/both
Many-to-1 monitor
LEDs
System:
Power 1, Power 2, Fault Alarm
Ports:
10/100 Link/Act
1000 Link/Act
Leistungsaufnahme
4.5W / 15BTU (System on)
10W / 34BTU (Full loading)
Link Aggregation
IEEE 802.3ad LACP and static trunk
Supports 8 trunk groups with 8 ports per trunk
Luftfeuchtigkeit
5 - 95%, nicht kondensierend
Luftfeuchtigkeit Lagerung
5 - 95%, nicht kondensierend
MAC Adressen Table
8K entries
MLD Snooping
MLD (v1/v2) snooping, up to 256 multicast groups
Netzwerk Ports
8-Port
Produktfamilie
Switch Industrial, Layer 2/4, 19" Mount
QoS
8 mapping ID to 8 level priority queues
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DS ...
Reset Button
> 5 sec: Factory default
Schutzklasse
IP30
Secure Management Schnittstelle
SSH, SSL, SNMP v3
Shared Data Buffer
4.1 Mbits
Sicherheit Layer2
IEEE 802.1X port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RA ...
SNMP MIBs
RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 27 ...
Spanning Tree Protokoll
STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEE ...
Stabilitäts Test
IEC60068-2-32 (Free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Standards & Protokolle
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x flow cont ...
Stromversorgung
DC 12 to 48V
AC 24V
Switch Architektur
Store-and-Forward
Switch Datendurchsatz
11.9Mpps
Switch Fabric
16Gbps / non-blocking
VLAN
802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Vo ...
Zertifikate / Zulassungen
FCC Part 15 Class A, CE
Zugriffs Kontroll Liste
IPv4/IPv6 IP-based ACL/MAC-based ACL
