Hersteller, Moxa
CP-102E/EL 2 Port RS-232 PCI Express Boards
  • PCI Express x1 compliant
  • 921.6 kbps maximum baudrate for super fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Low profile form factor
  • ... mehr
Hersteller
Moxa mehr
Bereits gekauft?
Ausführungen
2
Sie haben Fragen?
Beratung & Verkauf
+43 3172 422 99 0

Wählen Sie Ihre Produkt-Ausführung

Artikel
Artnr.
Ausführung
Verfügbarkeit Verfügbar?
Anzahl
Preis
CP-102E/EL 2 Port RS-232 PCI Express Boards
Artnr.: CP-102E
Variante:
Verfügbarkeit:
nicht lagernd
Login für mehr Info
Anzahl:
Preis: Preis auf Anfrage
CP-102E/EL 2 Port RS-232 PCI Express Boards 2 Port PCIe Board, RS-232
Artnr.: CP-102EL-DB9M
Variante: Low Profile, inklusive DB9M Kabel
Verfügbarkeit:
nicht lagernd
Login für mehr Info
Anzahl:
Preis: Preis auf Anfrage
Alle Preise zzgl. MwSt.
Die Lieferung erfolgt innerhalb von 1 bis 2 Werktagen

Produkt-Beschreibung

Beschreibung
Dokumente
  • PCI Express x1 compliant
  • 921.6 kbps maximum baudrate for super fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Low profile form factor fits small-sized PCs
  • Drivers provided for a broad selection of operating systems, including the latest Windows and Linux

Overview:

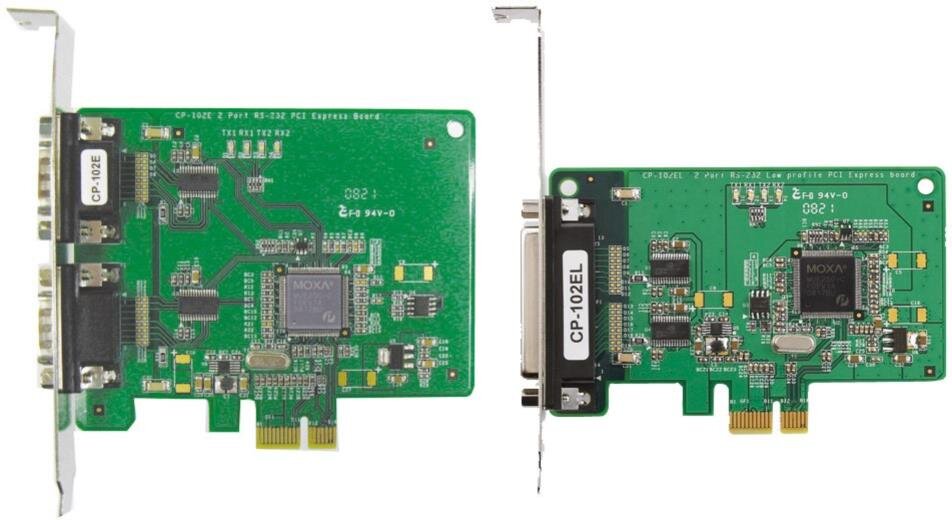

The CP-102E and low-profile CP-102EL are 2-port PCI Express boards designed for POS and ATM applications. Moxa’s PCI Express boards are a top choice of industrial automation engineers and system integrators, particularly since the boards support many different operating systems, including Windows and Linux. The CP-102E/EL’s 2 RS-232 serial ports support a superfast 921.6 kbps baudrate and
provide full modem control signals to ensure compatibility with a wide range of serial peripherals. In addition, the boards’ x1 classification allows them to be installed in any PCI Express slot.

Smaller Form Factor:
The CP-102EL is a low-profile board that is compatible with any PCI Express slot. The CP-102EL board only requires a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.

Drivers Provided for Windows, Linux, and Unix
Moxa continues to support a wide variety of operating systems, and the CP-102E/EL boards are no exception. Reliable Windows and Linux drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration applications.
