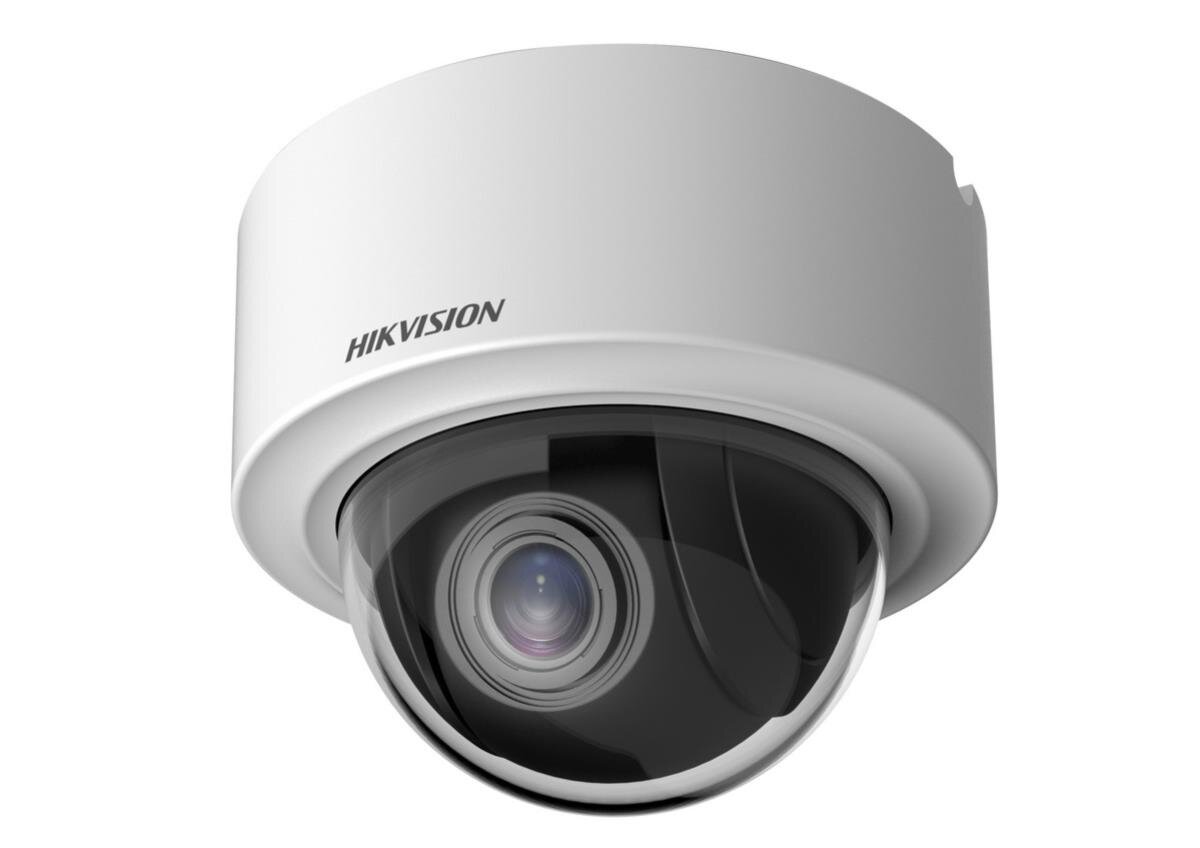

DS-2DE3404W-DE(T5) - 4 MP Network Mini PTZ Dome Kamera
Preis auf Anfrage
  • High quality imaging with 4 MP resolution
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of int
  • ... mehr
Verfügbarkeit
nicht lagernd
Login für mehr Info
Artnr
327000441
Hersteller
Hikvision mehr
Bereits gekauft?
Sie haben Fragen?
Beratung & Verkauf
+43 3172 422 99 0

Produkt-Beschreibung

Beschreibung
Technische Daten
Dokumente
  • High quality imaging with 4 MP resolution
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • 4x optical zoom allows for closer viewing of subjects in expansive areas
  • Water and dust resistant (IP66) and vandal resistant (IK10)

This Micro-designed 3" PTZ Mini Dome Camera shows the easiest installation, adjustment and maintenance that you have ever seen. It is a fantastic and practical camera for outdoor. In addition, DS-2DE3404W-DE(T5) support 4x optical zoom technology, PoE & 12 VDC power supply. Embedded with 1/2.8" progressive scan CMOS chip makes 120 dB WDR and 4 MP real-time resolution possible. With the pan/tilt and 4 × optical zoom Day/Night lens, the camera offers more details in the outdoor environments. Hikvision DS-2DE3404W-DE(T5) Mini PTZ Dome Cameras also features a wide range of functions, including intrusion detection, line crossing detection, motion detection and audio exception, benefitting users with great improvement on security efficiency, more importantly, with key events/objects being recorded for further forensic needs.

DORI:
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.

Standard

100MBit Ports
1
Abmessungen
Ø 140.7 x 107.2 mm
Alarmausgang
1
Alarmeingang
1
Anwendungsbereich
Outdoor
Audio
Ja
Audio Codec
G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio Input
1
Audio Output
1
Auflösung
4 MP
Auflösung max. Pixel
2560 x 1440
Betriebstemperatur
-30°C - +65°C
Bildsensor
1/2.8" CMOS
Blende
f/1.5
Blickwinkel Diagonal
36.1° - 110.3°
Blickwinkel Horizontal
31.7° - 93.8°
Blickwinkel Vertikal
17.9° - 50.9°
Brennweite
2.8 - 12.0 mm
DORI
D: 130.9 m, O: 59.9 m, R: 26.2 m, I: 13.1 m
Gegenlichtkompensation
Ja
Herstellernummer
DS-2DE3404W-DE(T5)
IP / Analog
IP
Kameratyp
PTZ, mini
Leistungsaufnahme
10 W
Lichtempfindlichkeit
0.001 Lux
Lichtempfindlichkeit erw.
Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON)
Luftfeuchtigkeit
<90%, nicht kondensierend
Material
ADC12, PC
Mikrofone
-
Objektiv Typ
vario
ONVIF
-
PoE Standard
IEEE 802.3 af
Rauschunterdrückung
3D DNR
Schutzklasse
IP66
Serielle Schnittstelle
RS-485
Speicherplatz / Kartentyp
microSD/microSDHC/microSDXC
Streaming
Triple Stream
Stromversorgung
12V DC, PoE
Tag/Nacht Umschaltung
IR Cut Filter
Vandalismusschutz
IK10
Verschlusszeit
1/1s - 1/30.000s
Videobildrate max.
30 fps
Videokomprimierung
H.265+, H.264+, H.265, H.264
WDR
120 dB
Zoom, digital
16x
Zoom, optisch
4x
