Hersteller, Hikvision

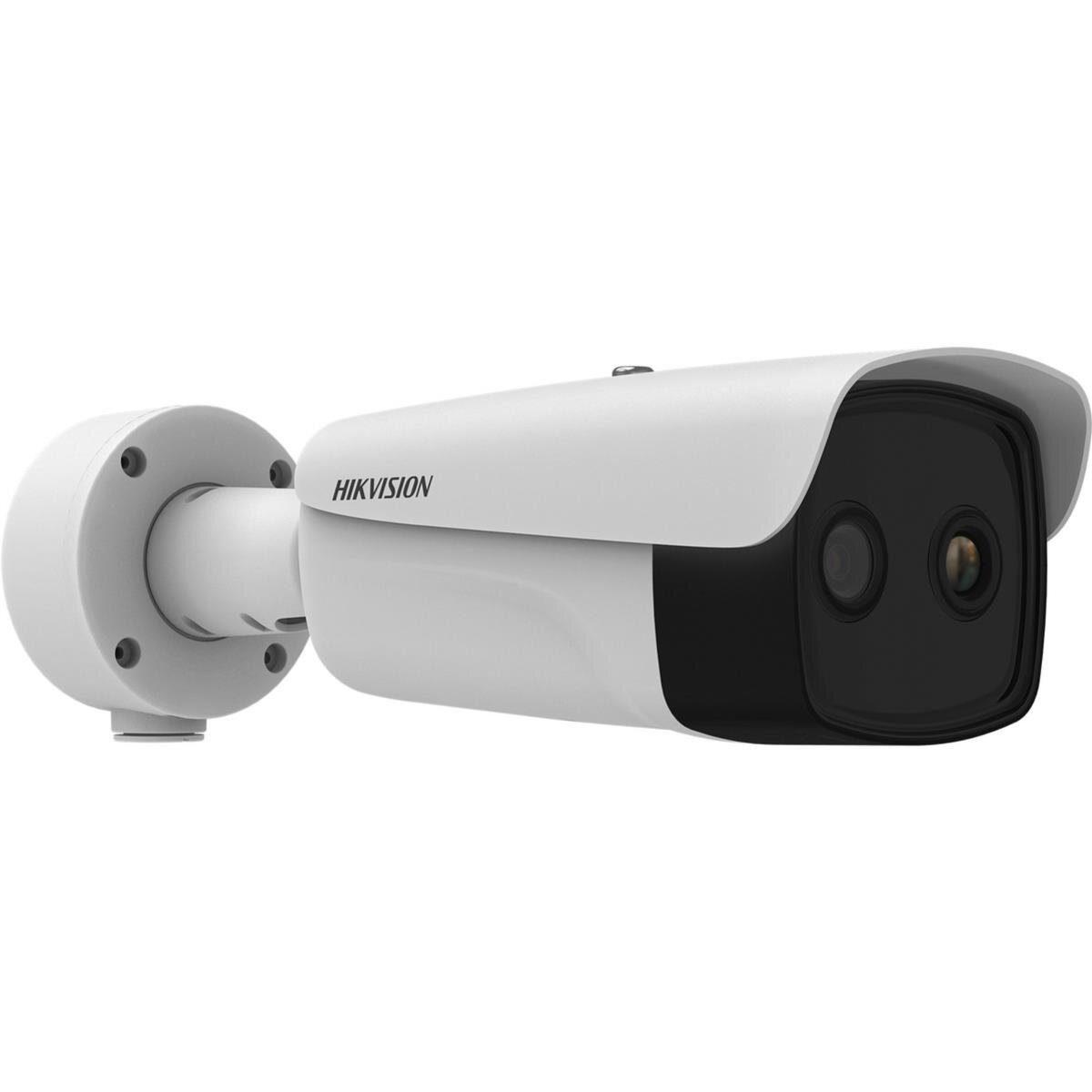

DS-2TD2637T-7/QY - 4MP IP fixed Thermal & Optical Bullet Kamera, IP66, PoE
Preis auf Anfrage
  • 384 × 288 resolution, 17 μm, VOx UFPA, NETD ≤ 35 mK (25°C, F1.0)
  • Video content analysis: vehicle/human classification
  • Temperature exception alarm for fire prevention, -20 °C
  • ... mehr
Verfügbarkeit
lagernd
Login für mehr Info
Artnr
305401879
Hersteller
Hikvision mehr
Bereits gekauft?
Sie haben Fragen?
Beratung & Verkauf
+43 3172 422 99 0

Produkt-Beschreibung

Beschreibung
Technische Daten
Dokumente
  • 384 × 288 resolution, 17 μm, VOx UFPA, NETD ≤ 35 mK (25°C, F1.0)
  • Video content analysis: vehicle/human classification
  • Temperature exception alarm for fire prevention, -20 °C to 550 °C (-4 °F to 1022 °F), Max. (± 2 °C, ± 2%)
  • Fire detection and smoking detection algorithm
  • Smoke detection algorithm
  • Support sun-reflection filter algorithm
  • Support forklift filter algorithm
  • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
  • High quality detector with 10 years guarantee

Hikvision DS-2TD2637T-7/QY Anti-corrosion Bi-spectrum Network Bullet Camera is applied to perimeter protection and fire-prevention purposes in critical infrastructures such as: airport, railway, prison, power station, 4S stores, and so on. With the vanadium oxide uncooled focal plane sensor, it enhances the thermal image quality. It adopts anti-corrosion coating to meet the requirements of used in anti-corrosion environment.

Standard

100MBit Ports
1
Abmessungen
376.1 x 119.1 x 118.1 mm
Alarmausgang
2
Alarmeingang
2
Anti-Korrosion
NEMA 4X (NEMA 250-2018)
Anwendungsbereich
Outdoor
Audio
Ja
Audio Codec
G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Audio Input
2
Audio Output
1
Auflösung
4 MP
Auflösung max. Pixel
2688 x 1520 + 384 x 288
Beleuchtung
IR
Beleuchtung Reichweite
bis zu 40 m
Betriebstemperatur
-40°C - +65°C
Bildsensor
1/2.7" CMOS + Vanadium Oxide Uncooled Focal Plane Arrays
Blende
f/1.6 + f/1.0
Blickwinkel Horizontal
84.4° + 60°
Blickwinkel Vertikal
51.1° + 44.1°
Brennweite
4.0 mm + 6.5 mm
Gegenlichtkompensation
Ja
Herstellernummer
DS-2TD2637T-7/QY
IP / Analog
IP
Kameratyp
Bullet
Leistungsaufnahme
9.0 W
Lichtempfindlichkeit
0.0089 Lux
Lichtempfindlichkeit erw.
0.0089 Lux @ (F1.6, AGC ON)
Luftfeuchtigkeit
<95%, nicht kondensierend
Mikrofone
-
Objektiv Typ
fix
PoE Standard
IEEE 802.3 af
Produktfamilie
Thermal Security, Bi-Spectrum
Rauschunterdrückung
3D DNR
Schutzklasse
IP67
Serielle Schnittstelle
RS-485
Speicherplatz / Kartentyp
microSD/SDHC/SDXC
Streaming
Dual Stream
Stromversorgung
12V DC / 24V AC, PoE
Tag/Nacht Umschaltung
IR Cut Filter
Temperatur Messung Bereich
-20°C - +550°C
Temperatur Messung Genauigkeit
Max (± 2°C, ±2%)
Vandalismusschutz
IK10
Verschlusszeit
1s - 1/100.000s
Videoausgang
Ja
Videobildrate max.
30 fps
Videokomprimierung
H.264, H.265
WDR
120 dB
Zoom, digital
2x, 4x
