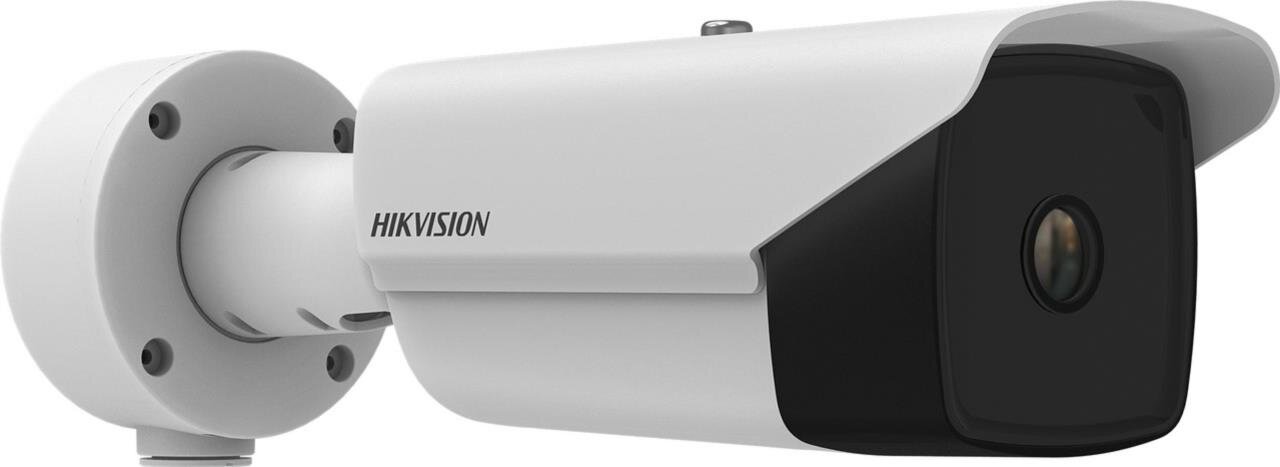

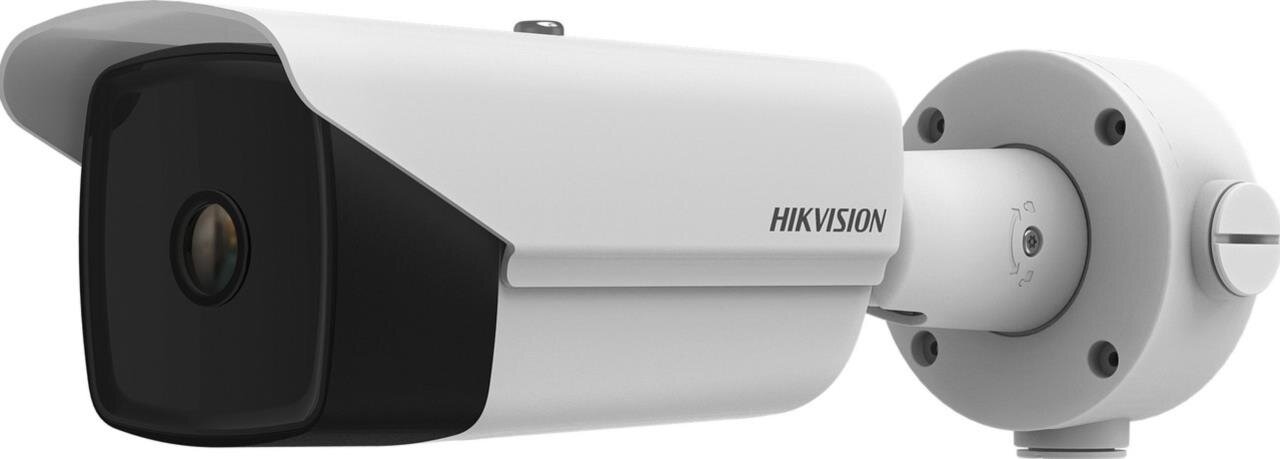

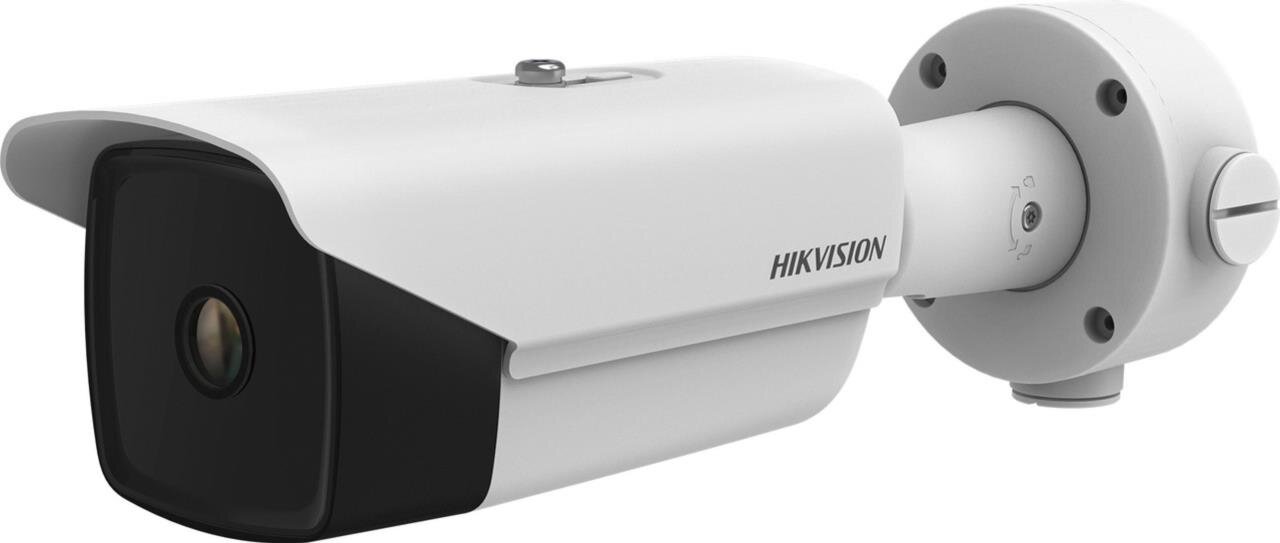

DS-2TD2137T-4/QY - IP fixed Thermal Bullet Kamera, IP66, PoE
Preis auf Anfrage
  • 384 × 288 resolution, 17 μm, VOx UFPA, NETD < 35 mK (25°C, F1.0)
  • Video content analysis: vehicle/human classification
  • Temperature exception alarm for fire prevention, -20°C
  • ... mehr
Verfügbarkeit
nicht lagernd
Login für mehr Info
Artnr
305401839
Hersteller
Hikvision mehr
Bereits gekauft?
Sie haben Fragen?
Beratung & Verkauf
+43 3172 422 99 0

Produkt-Beschreibung

Beschreibung
Technische Daten
Dokumente
  • 384 × 288 resolution, 17 μm, VOx UFPA, NETD < 35 mK (25°C, F1.0)
  • Video content analysis: vehicle/human classification
  • Temperature exception alarm for fire prevention, -20°C to 550°C (-4°F to 1,022°F), Max (± 2°C, ± 2%)
  • Smoking detection Algorithm
  • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
  • High quality detector with 10 years guarantee

Hikvision DS-2TD2137T-4/QY Anti-corrosion Network Thermography Bullet Camera can be applied to warehouses, construction sites, waste incineration plants, manufacturing workshops, etc. The accurate temperature measurement device sends temperature exception alarms for loss prevention.

Standard

100MBit Ports
1
Abmessungen
351.3 x 113.5 x 115.2 mm
Alarmausgang
2
Alarmeingang
2
Anwendungsbereich
Outdoor
Audio
Ja
Audio Codec
G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Audio Input
2
Audio Output
1
Auflösung max. Pixel
384 x 288
Bauform
Bullet
Betriebstemperatur
-40°C - +65°C
Bildrate max.
25 fps
Bildsensor
Vanadium Oxide Uncooled Focal Plane Arrays
Blende
f/1.0
Blickwinkel Horizontal
90°
Blickwinkel Vertikal
65.3°
Brennweite
4.4 mm
Herstellernummer
DS-2TD2137T-4/QY
IP / Analog
IP
Leistungsaufnahme
5.0 W
Luftfeuchtigkeit
<95%, nicht kondensierend
Mikrofone
-
Objektiv Typ
fix
PoE
IEEE 802.3 af
Produktfamilie
Thermal Security
Schutzklasse
IP67
Serielle Schnittstelle
RS-485
Speicher Slot Typ
microSD/SDHC/SDXC
Streaming
Dual Stream
Stromversorgung
12V DC / 24V AC, PoE
Temperatur Messung Bereich
-20°C - +550°C
Temperatur Messung Genauigkeit
Max (± 2°C, ±2%)
Vandalismusschutz
IK10
Videoausgang
Ja
Videokomprimierung
H.264, H.265
