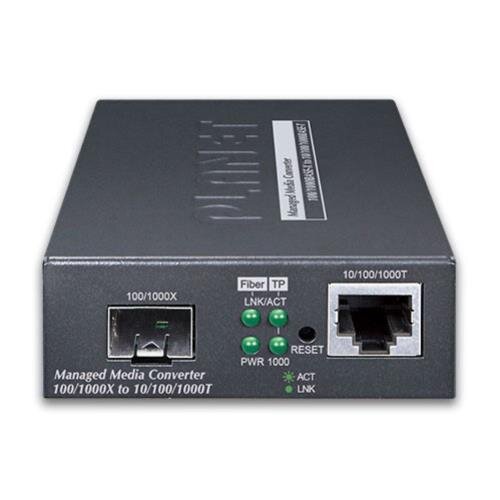

• 1x 1G/100/10BASE-T RJ45 interface with auto MDI/MDI-X function
• 1x 1G/100BASE-X SFP interface

Layer 2 Features:

• Supports VLAN

  • IEEE 802.1Q tagged VLAN
  • Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
  • VLAN transparent
• Storm Control support

  • Broadcast/Multicast/DLF (Destination Lookup Failure)/ARP/ICMP
• Store-and-Forward mechanism
• Non-blocking full wire-speed forwarding rate
• 16K jumbo frame size support
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• Automatic address learning and address aging
• Supports port status/Ethernet statistics on both TP and fiber interfaces
• Supports Link Fault Passthrough (LFP) and Link Layer Discovery Protocol (LLDP)

OAM Compliant:

• TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test

Quality of Service:

• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8 priority queues on all converter ports
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Traffic classification

  • IEEE 802.1p CoS
  • IP DSCP
  • IP Address

Management:

• IPv4 and IPv6 dual stack management
• Management Interfaces

  • Web HTTP management
  • Telnet Command Line Interface
  • SNMP v1, v2c monitoring
  • SSHv2, TLSv1.2 and SNMP v3 secure access
• System Maintenance

  • Firmware upload/download via HTTP
  • Reset button for system reboot or reset to factory default
• Network Time Protocol (NTP)
• SNMP Management

  • SNMP trap for interface link up and link down notification
  • Four RMON groups (history, statistics, alarms and events)
• Network Diagnostic

  • SFP-DDM (Digital Diagnostic Monitor)
• Syslog remote alarm

  • Local system Log
• PLANET Smart Discovery Utility for deploy management
• PLANET Remote Management

  • PLANET NMS Controller and CloudViewer for deployment management

Case and Installation:

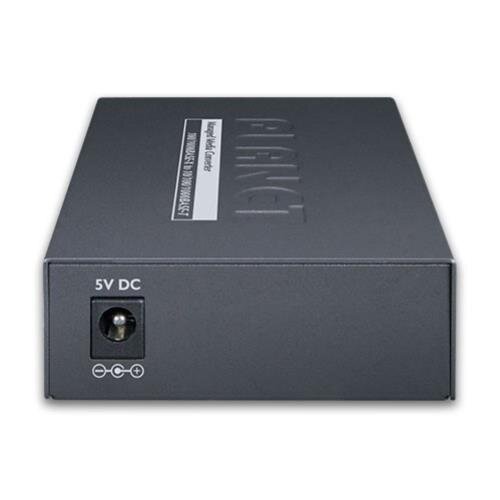

• External 5V DC, 2A power supply
• 0 to 50 degrees C operating temperature
• Supports 6000 VDC Ethernet ESD protection
• Wall mounting and DIN-rail installation supported
• Works with PLANET’s 10”/19” Media Converter Chassis

  • (MC-700/MC-1500/MC-1500R/MC-1500R48)
• Plug and Play installation
