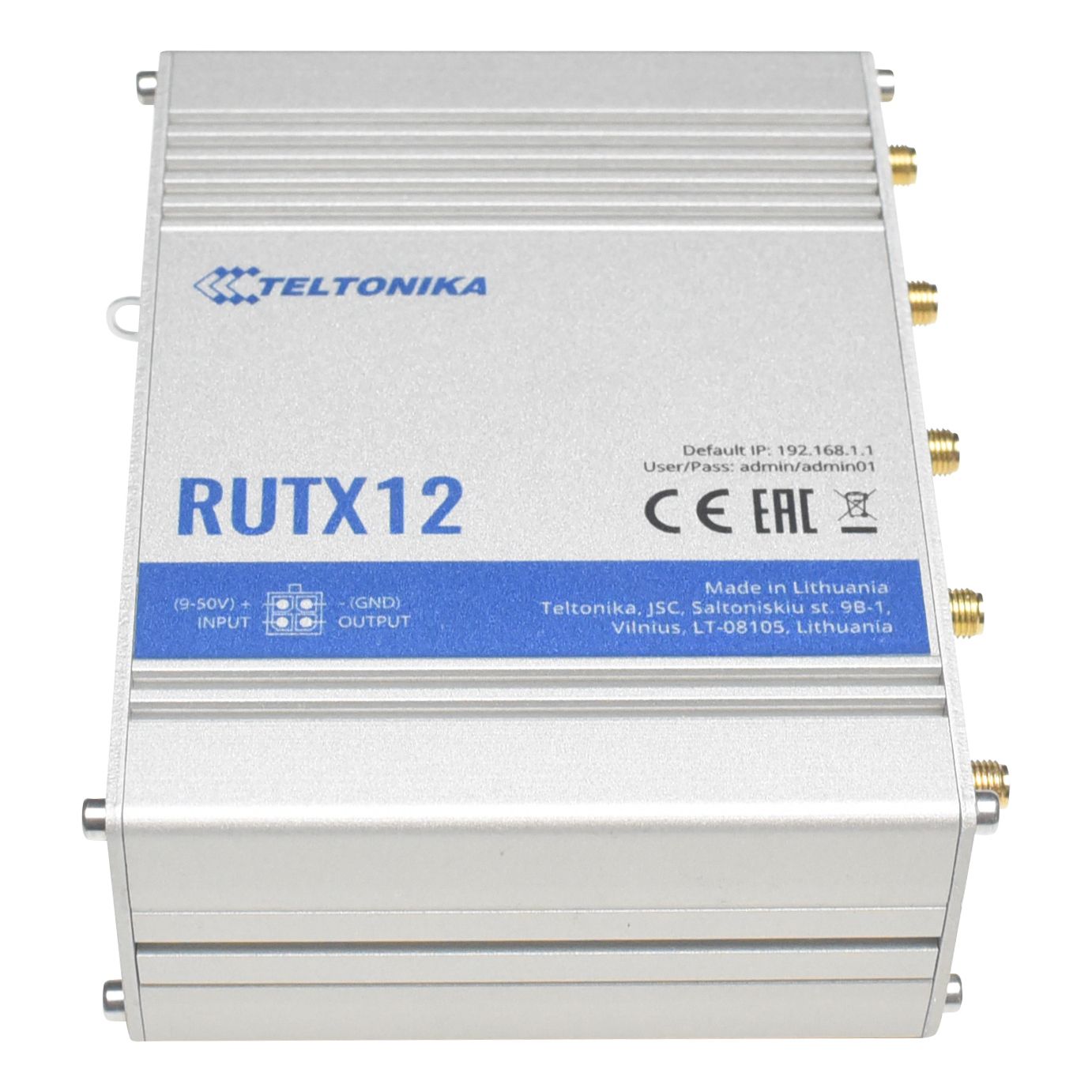

LTE Cat6 Dual LTE Module + SIM Router, 5x 1Gbit, Wave2 802.11ac, GPS, BT LE
- 2x 4G (LTE) Cat 6 modules working simultaneously can provide speeds up to 600 Mbps
- 5x Gigabit Ethernet with speeds up to 1000 Mbps
- Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
- Dual-SIM with auto Failover, Backup WAN and other SW features
- Teltonika Remote Management System compatible
- Easy to use, secure and feature rich OpenWrt based Operating System
Powerful Dual LTE Cat 6 router is designed for mission critical applications. Two simultaneously operational LTE CAT 6 modems can provide speeds up to 600 Mbps with load balancing feature. 5 x Gigabit Ethernet ports, Wave-2 802.11ac Dual Band WiFi, Bluetooth LE and USB interfaces with RutOS software and security features make this device irreplaceable in applications where loosing connection is not an option.
Available stock:
Article number:
RUTX12
Manufacturer number:
RUTX12200000
Manufacturer page:
TELTONIKA
EAN:
4779051843831
- 2x 4G (LTE) Cat 6 modules working simultaneously can provide speeds up to 600 Mbps
- 5x Gigabit Ethernet with speeds up to 1000 Mbps
- Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
- Dual-SIM with auto Failover, Backup WAN and other SW features
- Teltonika Remote Management System compatible
- Easy to use, secure and feature rich OpenWrt based Operating System
Powerful Dual LTE Cat 6 router is designed for mission critical applications. Two simultaneously operational LTE CAT 6 modems can provide speeds up to 600 Mbps with load balancing feature. 5 x Gigabit Ethernet ports, Wave-2 802.11ac Dual Band WiFi, Bluetooth LE and USB interfaces with RutOS software and security features make this device irreplaceable in applications where loosing connection is not an option.
Technical properties
1 GBit Ports:
5
Antenna Connector:
4x Mobile SMA, 2x WiFi RP-SMA, 1x BT RP-SMA, 1x GNNS SMA
Bluetooth:
4.0 LE
CPU:
Quad Core ARM Cortex A7 717 MHz CPU
Case material:
Aluminum Alloy
Design:
Desktop
Dimensions:
132 x 44 x 95 mm
Frequency:
2.4 GHz & 5 GHz
GPS:
Yes
LTE Category:
CAT 6
LTE Support:
Yes
Mobile Standard:
3G/4G
Network Ports:
5-Port
Number of Ports:
1 - 7
Operating Conditions:
-40°C - +75°C
Operating System:
RutOS
Port Speed, RJ45:
10 Mbit/100 Mbit/1 Gbit
Power Consumption max.:
22 W
Power Jack:
4 pin industrial DC power socket
Power Supply:
9 - 50V DC, 4-pin Connector
SFP Ports:
-
SIM Slots:
2
Storage Type internal:
256 MB Flash, 256 MB DDR3 RAM
WAN Connection Type:
LTE / 4G
WLAN:
Yes
WLAN Standard:
IEEE 802.11 ac Wave2 (WiFi5)
