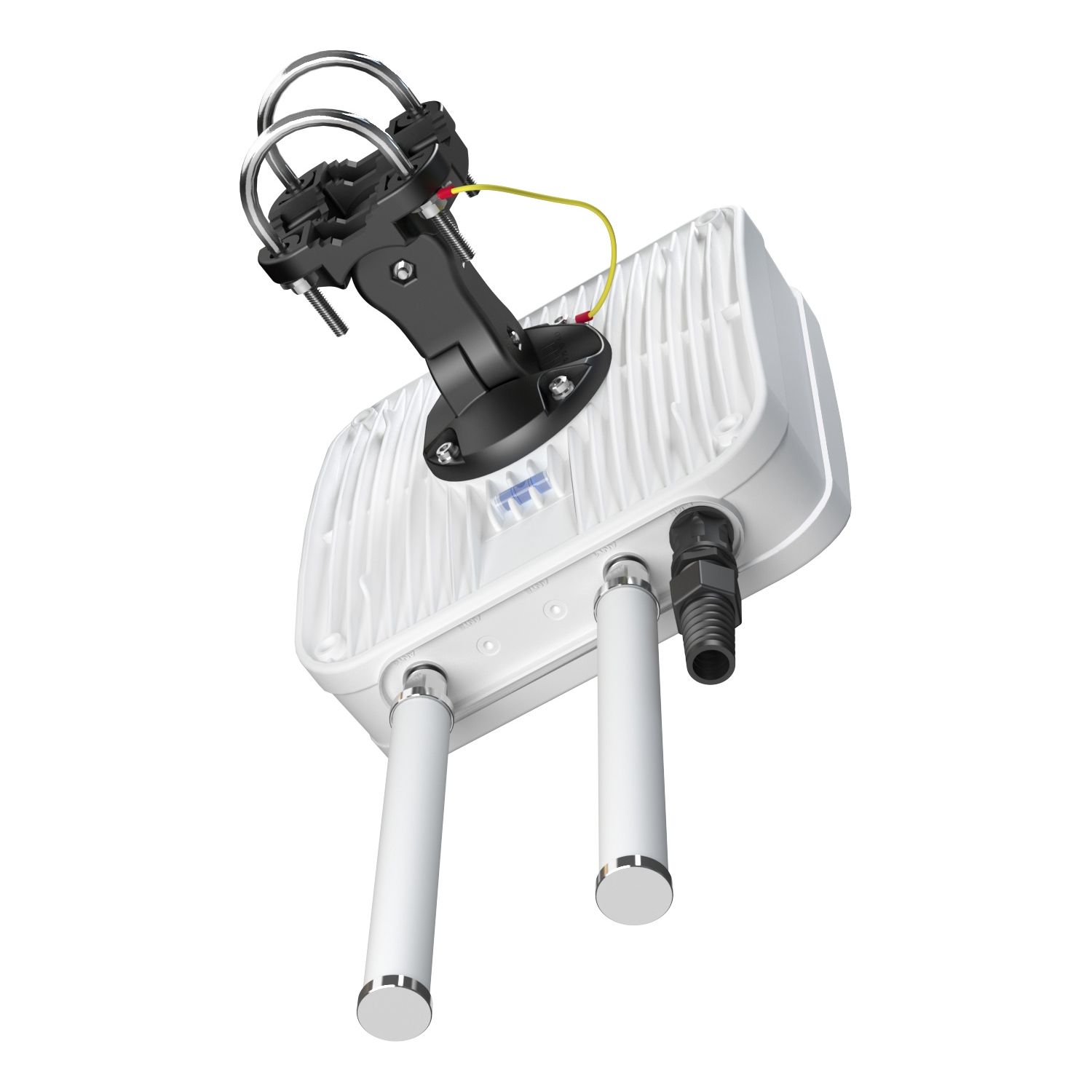

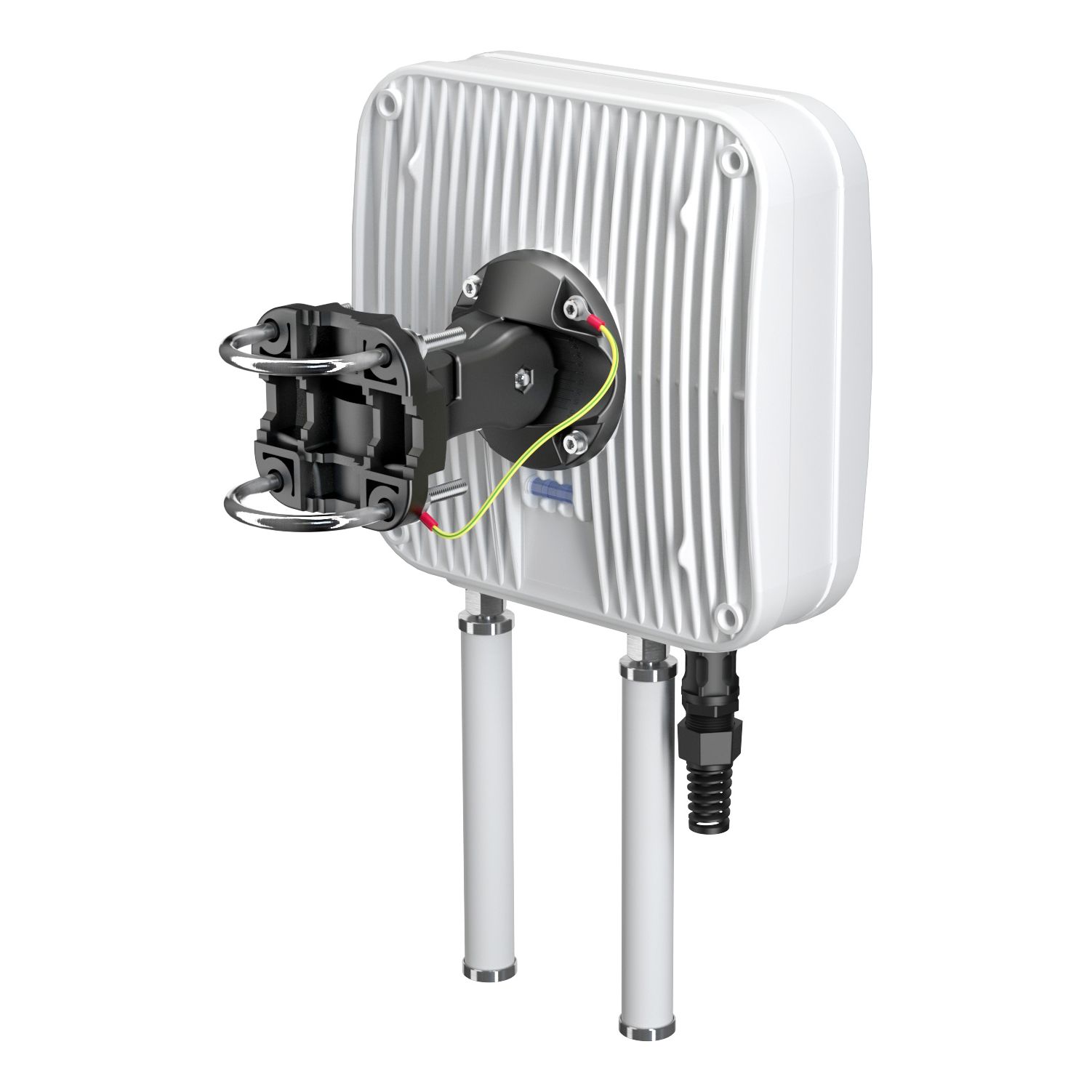

QuMax for RUTX11, IP67 Outdoor Enclosure w/ LTE-, WiFi, BT & GPS Antenna
- Integrated Outdoor Multi-Band High-Power LTE directional Antenna
- Outdoor WiFi Dual-Band 2.4 & 5 GHz Omni-Antenna
- Bluetooth Antenna
- GPS Antenna

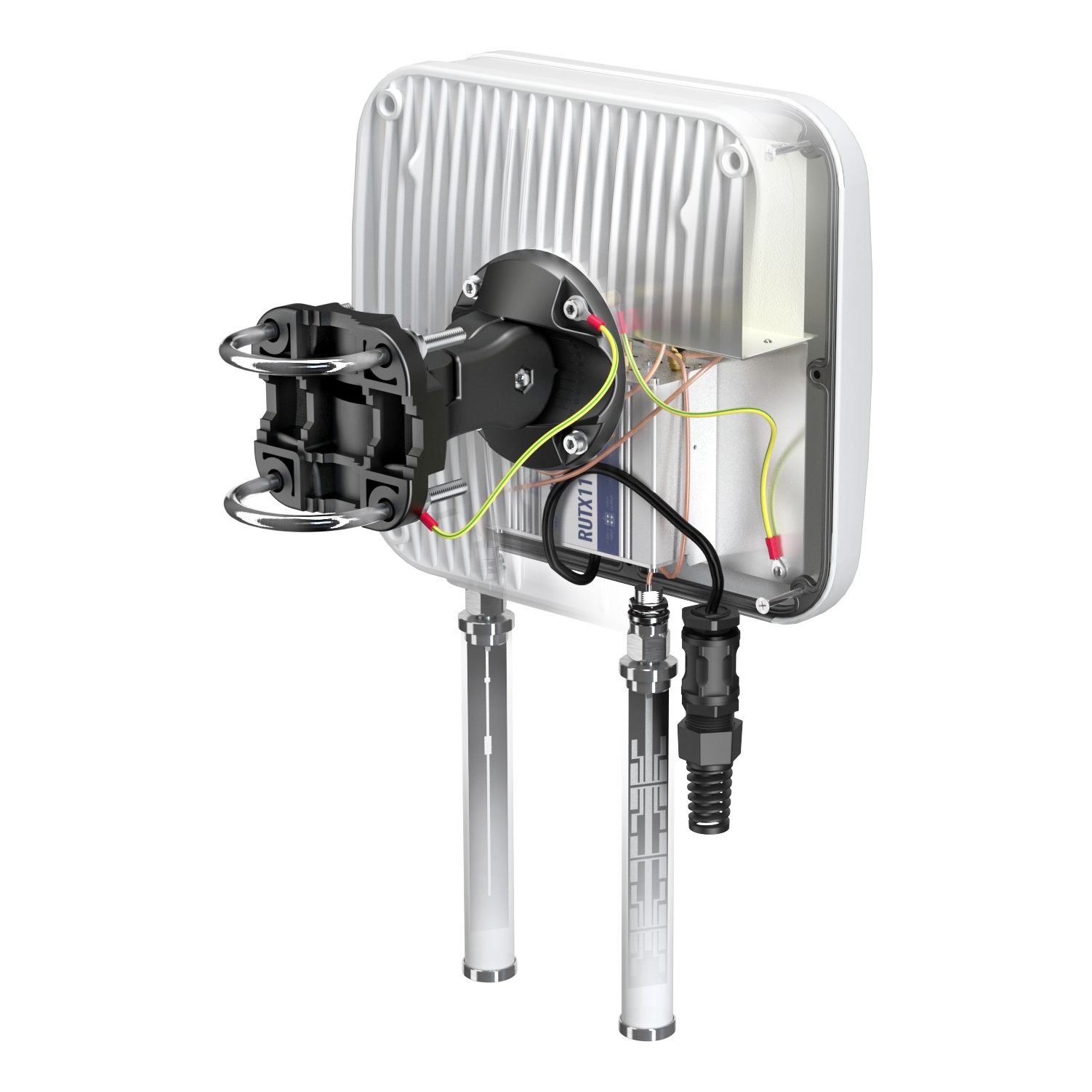

- Place to install Teltonika RUTX11 (All-in-One)
- Up to 6 dBi LTE Antenna Gain
- IP67
- Passive-PoE Support

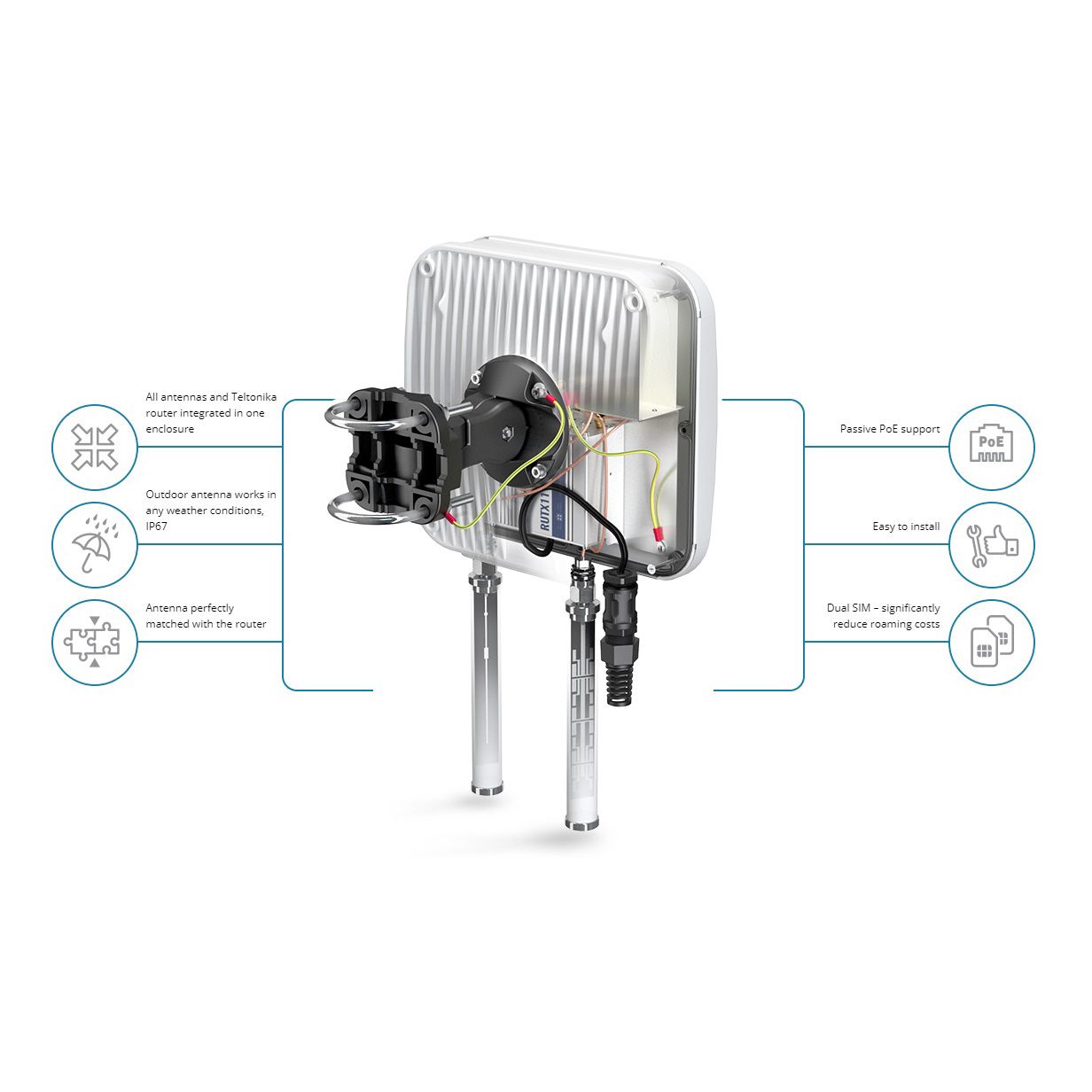

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTx11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna, Bluetooth antenna and outdoor Wi-Fi dual band 2.4 & 5 GHz omni antennas.
Available stock:
Article number:
AX11M
Manufacturer number:
QuMax für RUTx11, IP67 Outdoor Gehäuse mit LTE + WLAN (AC) +
EAN:
5907772035139
- Integrated Outdoor Multi-Band High-Power LTE directional Antenna
- Outdoor WiFi Dual-Band 2.4 & 5 GHz Omni-Antenna
- Bluetooth Antenna
- GPS Antenna
- Place to install Teltonika RUTX11 (All-in-One)
- Up to 6 dBi LTE Antenna Gain
- IP67
- Passive-PoE Support
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTx11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna, Bluetooth antenna and outdoor Wi-Fi dual band 2.4 & 5 GHz omni antennas.
Technical properties
Antenna Gain dBi:
6 dBi / 7 dBi
Band:
2.40 - 2.50 GHz / 4.70 - 6.00 GHz
Beamwidth:
360° / 25° ±5°
Dimensions:
272 x 276 x 96 mm
Impedance:
50 Ohms
LTE Antenna Gain DBI:
4 dBi / 5 dBi / 6 dBi
LTE Beamwidth:
90° / 90° ±30°
LTE Frequency:
0.694 - 0.96 GHz / 1.7 - 2.2 GHz / 2.2 - 2.7 GHz
LTE Polarization:
Vertical
LTE VSWR:
<1.50, max. <2.00 / 1.30, max. <1.60
Material:
ABS, Aluminium, PTFE, Fiberglass
Operating Conditions:
-40°C - +75°C
Polarization:
Vertical
Safety Class:
IP67
VSWR:
<1.70, max < 2.00
