LTE Cat12 Dual LTE Module + SIM Router, 5x 1Gbit, Wave2 802.11ac, GPS, BT LE
- 2x 4G (LTE) Cat 12 modules working simultaneously can provide speeds up to 600 Mbps
- 5x Gigabit Ethernet with speeds up to 1000 Mbps
- Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
- Dual-SIM with auto Failover, Backup WAN and other SW features
- Teltonika Remote Management System compatible
- Easy to use, secure and feature rich OpenWrt based Operating System
Powerful Dual LTE Cat 12 router is designed for mission critical applications. Two simultaneously operational LTE CAT 12 modems can provide speeds up to 600 Mbps with load balancing feature. 5 x Gigabit Ethernet ports, Wave-2 802.11ac Dual Band WiFi, Bluetooth LE and USB interfaces with RutOS software and security features make this device irreplaceable in applications where loosing connection is not an option.
Available stock:
Article number:
RUTX14
Manufacturer number:
RUTX14000000
Manufacturer page:
TELTONIKA
EAN:
4779027312965
- 2x 4G (LTE) Cat 12 modules working simultaneously can provide speeds up to 600 Mbps
- 5x Gigabit Ethernet with speeds up to 1000 Mbps
- Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
- Dual-SIM with auto Failover, Backup WAN and other SW features
- Teltonika Remote Management System compatible
- Easy to use, secure and feature rich OpenWrt based Operating System
Powerful Dual LTE Cat 12 router is designed for mission critical applications. Two simultaneously operational LTE CAT 12 modems can provide speeds up to 600 Mbps with load balancing feature. 5 x Gigabit Ethernet ports, Wave-2 802.11ac Dual Band WiFi, Bluetooth LE and USB interfaces with RutOS software and security features make this device irreplaceable in applications where loosing connection is not an option.
Technical properties

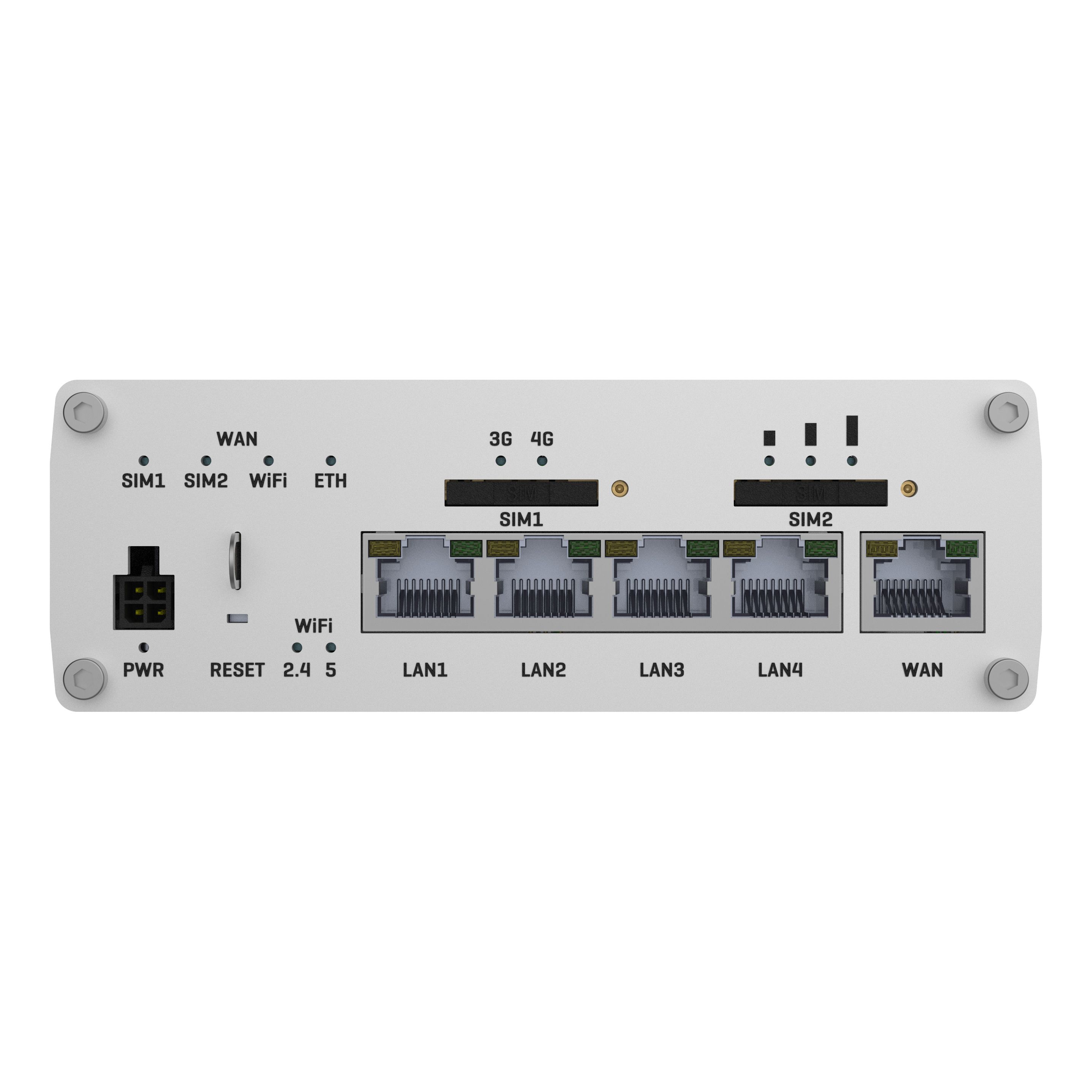

1 GBit Ports:
5
Antenna Connector:

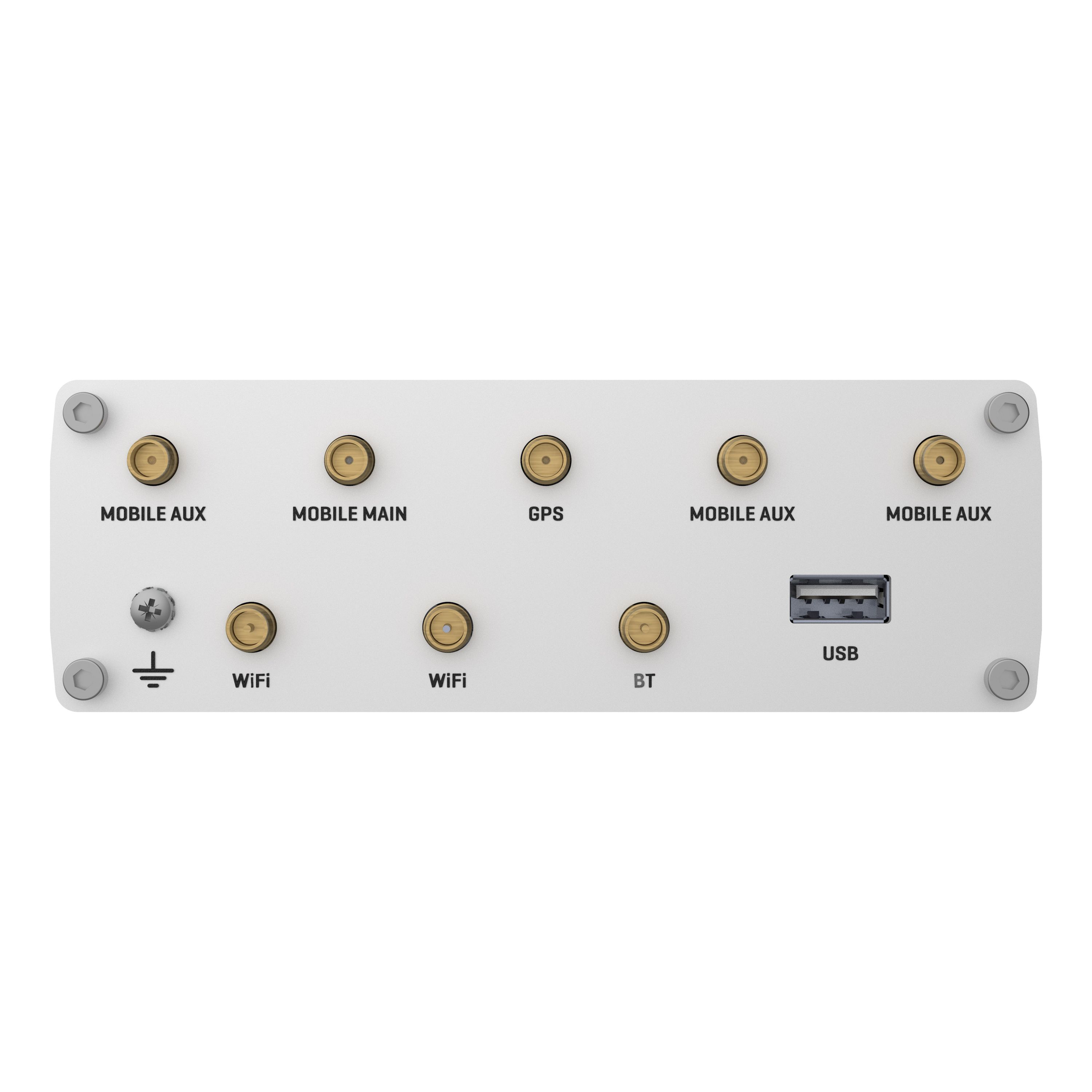

4 x SMA for Mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS
Bluetooth:
4.0 LE
CPU:
Quad Core ARM Cortex A7 717 MHz CPU
Case material:
Aluminum Alloy
Design:
Desktop
Dimensions:
132 x 44 x 95 mm
Frequency:
2.4 GHz & 5 GHz
GPS:
Yes
LTE Category:
Cat 12
LTE Support:
Yes
Mobile Standard:
3G/4G
Network Ports:
5-Port
Number of Ports:
1 - 7
Operating Conditions:
-40°C - +75°C
Operating System:
RutOS
Port Speed, RJ45:
10 Mbit/100 Mbit/1 Gbit
Power Consumption max.:
22 W
Power Jack:
4 pin industrial DC power socket
Power Supply:
9 - 50V DC, 4-pin Connector
SFP Ports:
-
SIM Slots:
2
Storage Type internal:
256 MB Flash, 256 MB DDR3 RAM
WAN Connection Type:
LTE / 4G
WLAN:
Yes
WLAN Standard:
IEEE 802.11 b/g/n/ac
