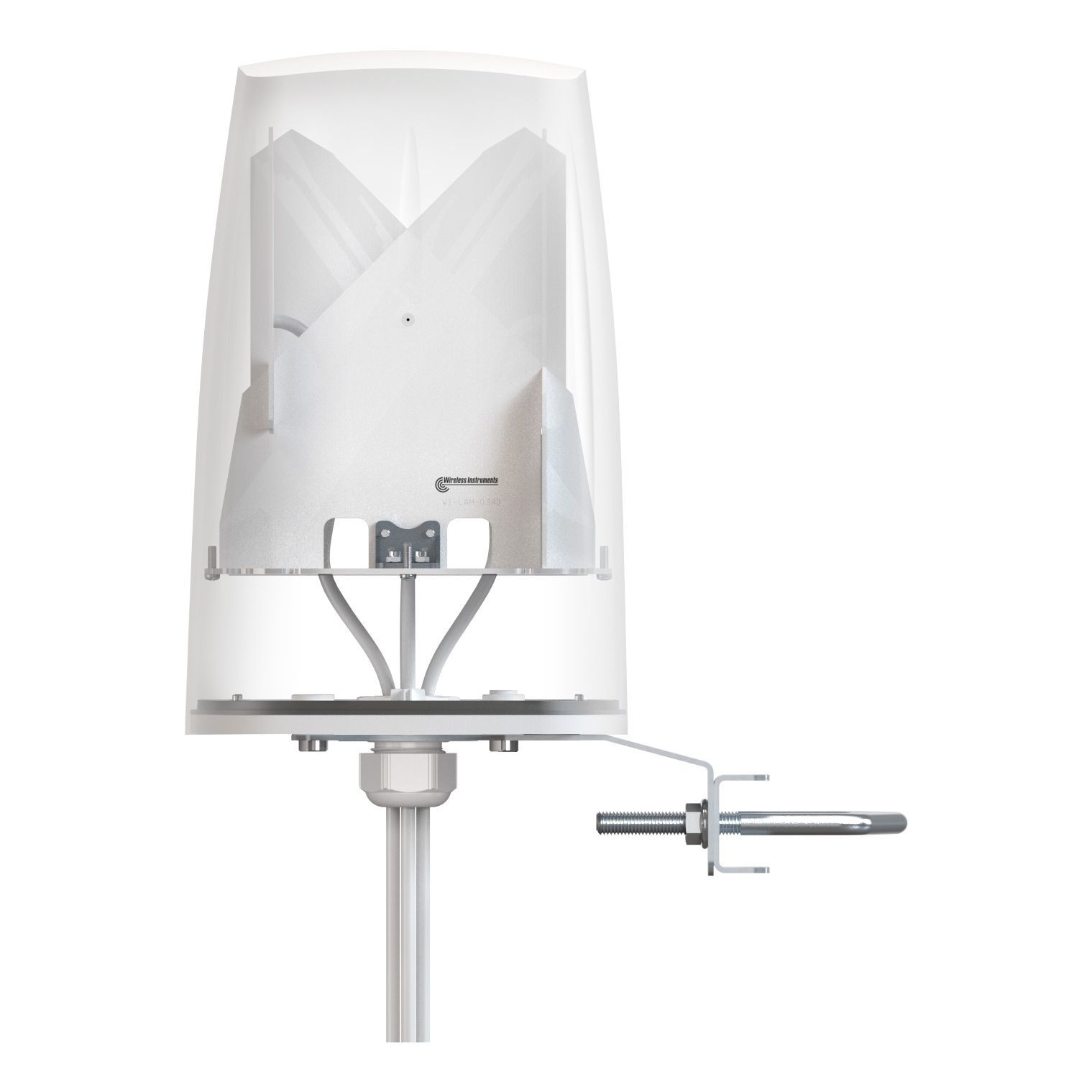

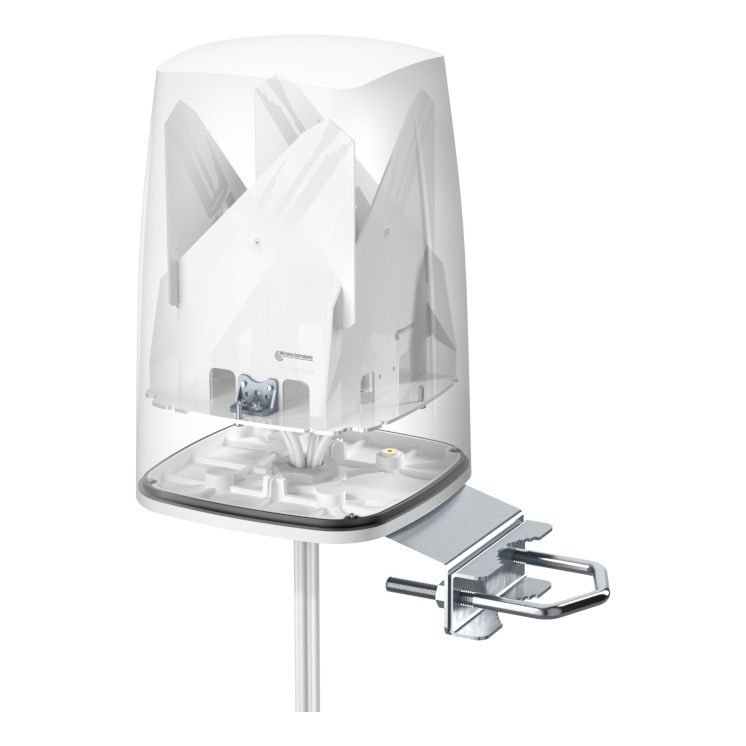

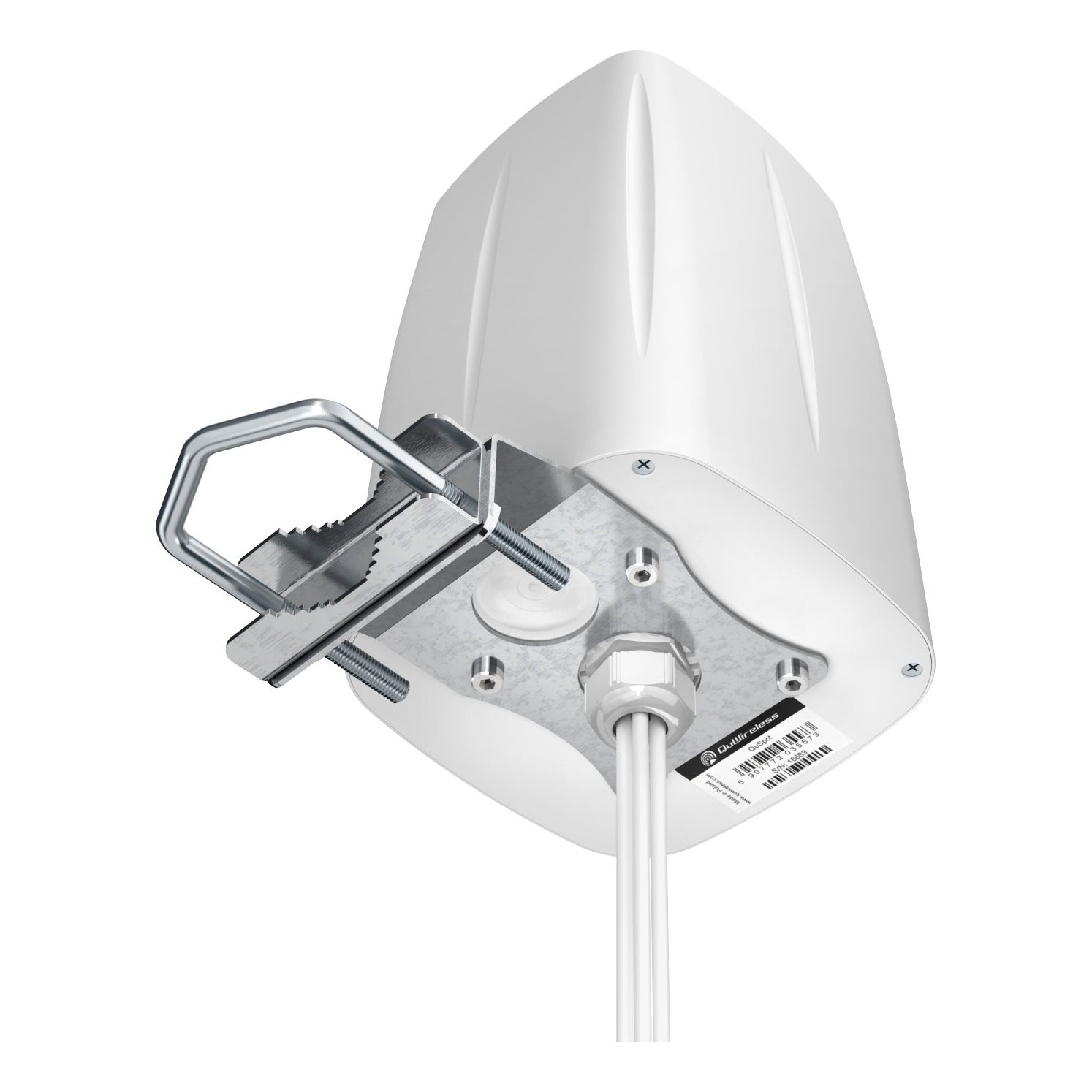

QuOmni omnidirectional Ultra Wideband 5G/LTE Antenna, MIMO 4x4
QuOmni 5G/LTE omnidirectional MIMO 4x4 is ultra wideband LTE Outdoor antenna. It´s primary designed for LTE/5G/3G/2G devices which require high efficiency connections. The antenna covers many LTE bands including the new Extended LTE Band 71, frequencies: 617 - 6000MHz. The mounting bracket allows the antenna to be installed on the buildings (on the pole or on the wall) as the client antenna or on the moving points like trains, buses, lorries, yachts, boats to receive Internet by LTE/5G/3G/2G. It's ideal solution to use with all industrial and domestic 4x4 LTE modems and routers like: Teltonika, DIGI, Mikrotik, Robustel, Cisco, etc.
Available stock:
Article number:
AO5G4-G
Manufacturer number:
QuOmni 5G/LTE Global MIMO4x4, 5m
- 5G / LTE
- Wide Band 600 - 6000 MHz
- Band 71
- 4x4 MIMO
- up to 4.5 dBi
- Omni-Directional
- 5m Connection Cable
- IP67
- -40°C - +80°C
- combtible Router:
- RUTX12
- RUTX14
- RUTX50
- TRB500
QuOmni 5G/LTE omnidirectional MIMO 4x4 is ultra wideband LTE Outdoor antenna. It´s primary designed for LTE/5G/3G/2G devices which require high efficiency connections. The antenna covers many LTE bands including the new Extended LTE Band 71, frequencies: 617 - 6000MHz. The mounting bracket allows the antenna to be installed on the buildings (on the pole or on the wall) as the client antenna or on the moving points like trains, buses, lorries, yachts, boats to receive Internet by LTE/5G/3G/2G. It's ideal solution to use with all industrial and domestic 4x4 LTE modems and routers like: Teltonika, DIGI, Mikrotik, Robustel, Cisco, etc.
Technical properties
Antenna Connector:
SMA
Dimensions:
160 x 160 x 240 mm
Impedance:
50 Ohms
LTE Antenna Gain DBI:
617 - 960 MHz: 3 dBi / 1.7 - 2.2 GHz: 4 dBi / 3.3 - 4.7 GHz: 4.5 dBi / 5.2 - 6.0 GHz: 2.5 dBi
LTE Bands:
1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, ...
LTE Beamwidth:
360° / 35° ±5°
LTE Frequency:
617 - 960 MHz / 1.7 - 2.7 GHz / 3.3 - 4.7 GHz / 5.2 - 6.0 GHz
LTE Polarization:
Vertical
LTE VSWR:
<1.80, max <2.00
Material:
ABS, Aluminium, PTFE
Operating Conditions:
-40°C - +80°C
Safety Class:
IP67
