QuMax for RUTX11, IP67 Outdoor Enclosure w/ LTE Omni-, WiFi, BT & GPS Antenna
- Integrated Outdoor Multi-Band High-Power LTE Omni-Antenna
- Outdoor WiFi Dual-Band 2.4 & 5 GHz Omni-Antenna
- Bluetooth Antenna
- GPS Antenna

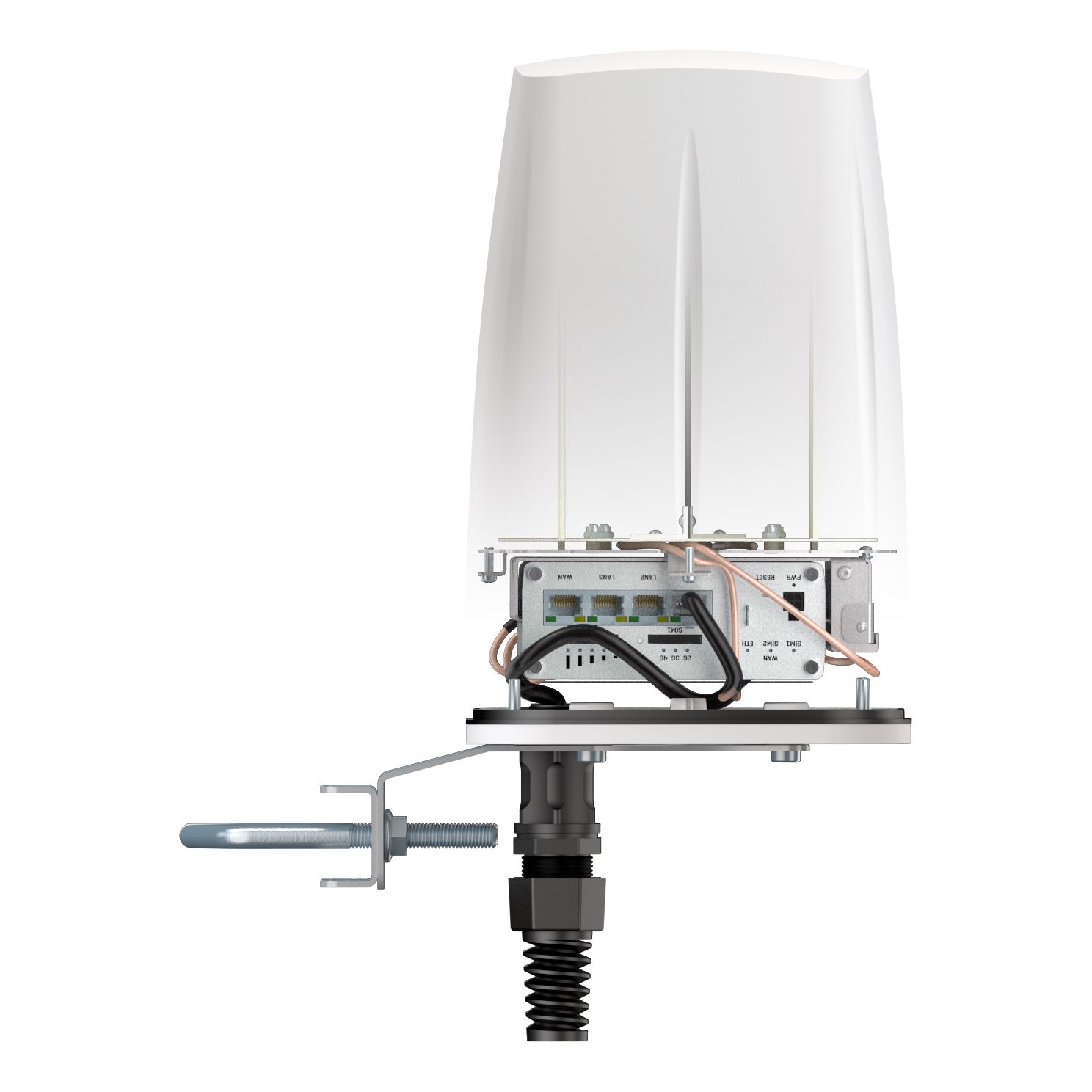

- Place to install Teltonika RUTX11 (All-in-One)
- Up to 4 dBi LTE Antenna Gain
- IP67
- Passive-PoE Support

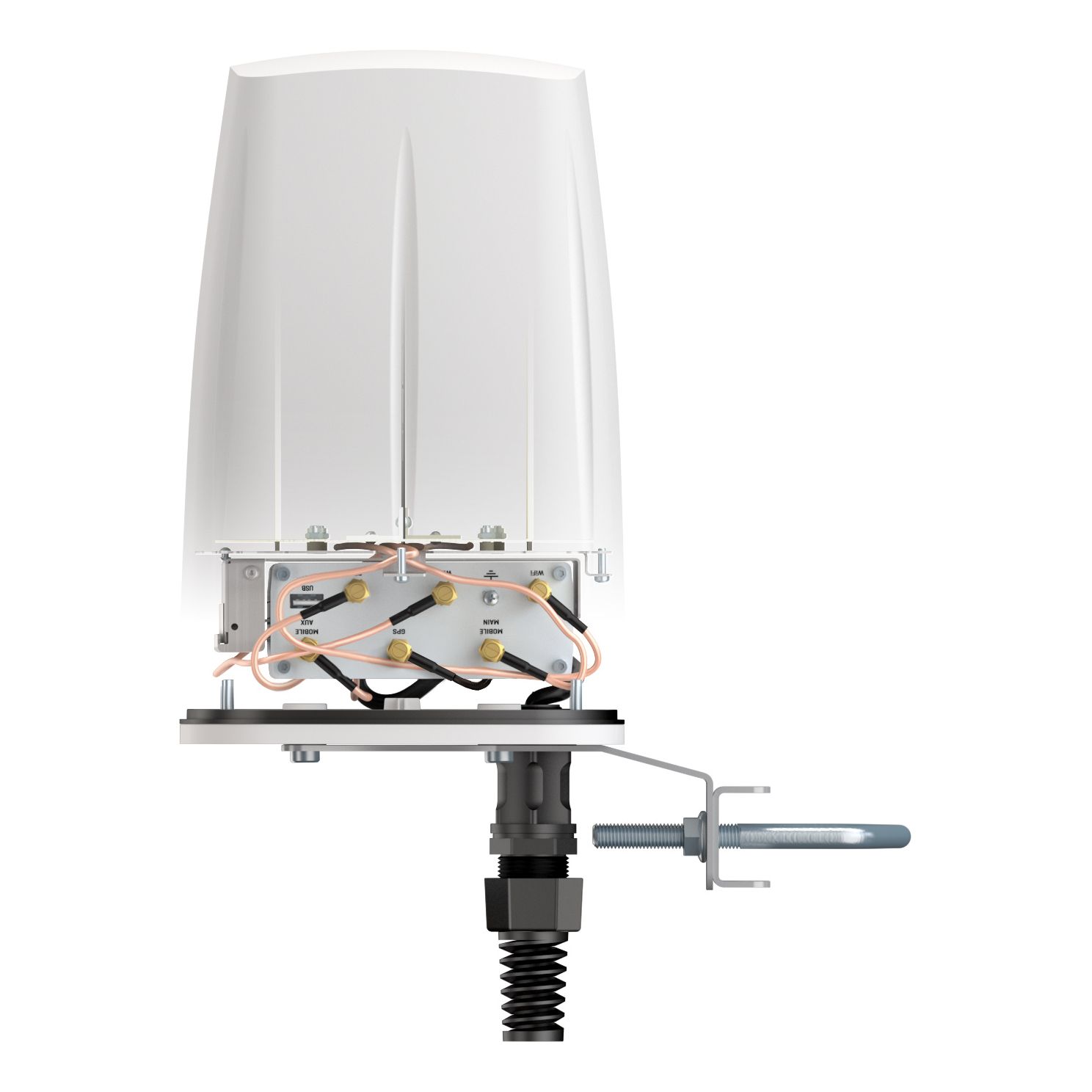

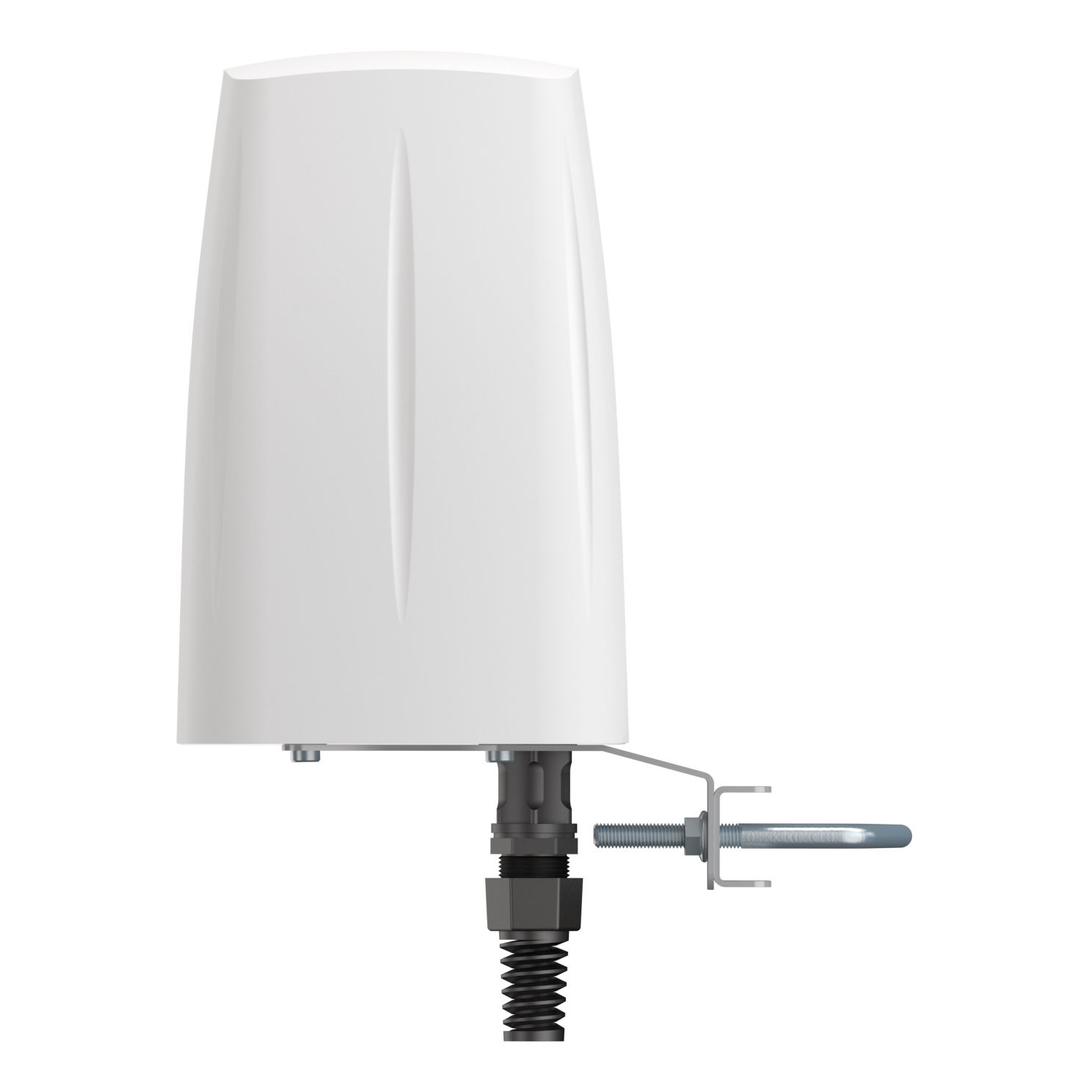

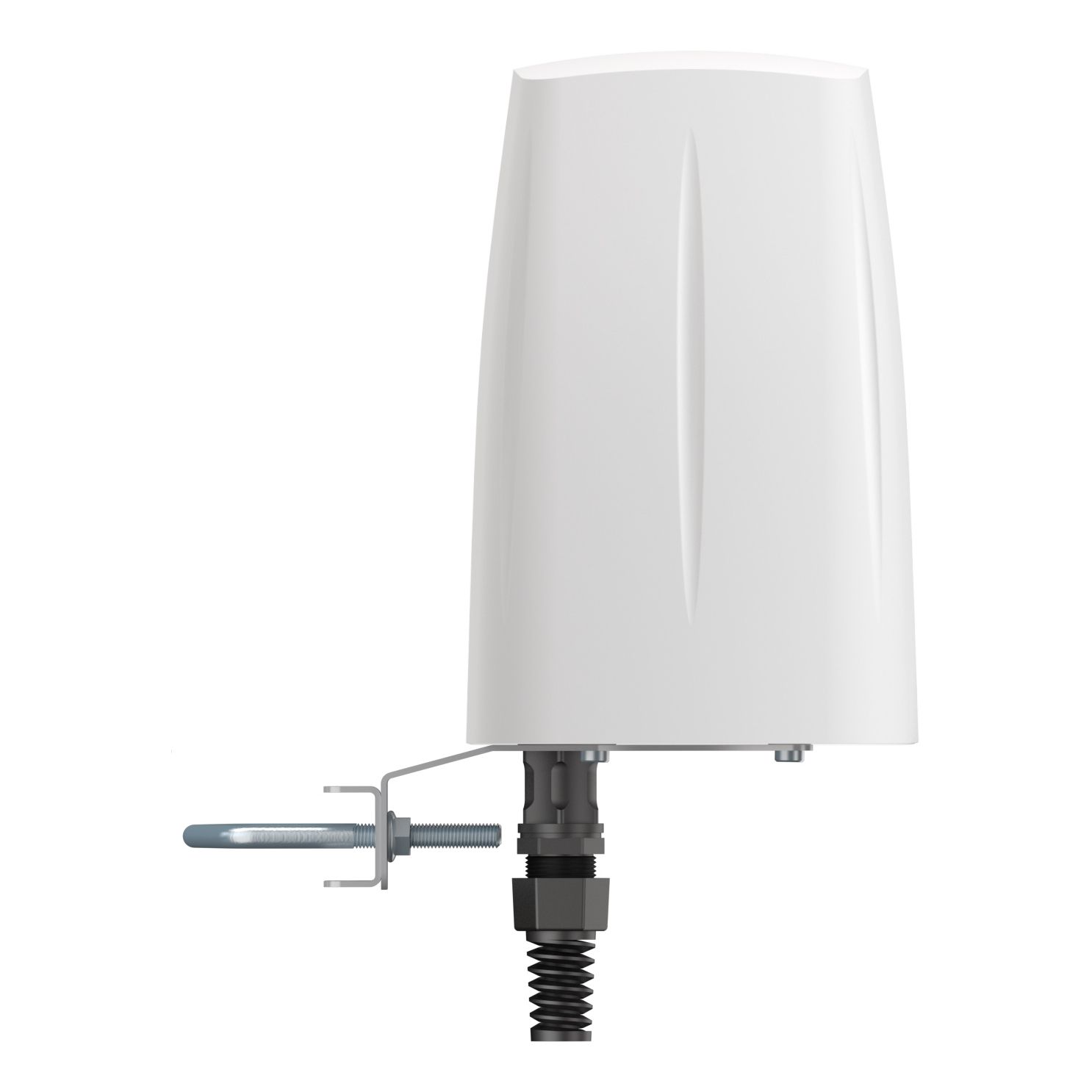

QuSpot omni LTE antenna for Teltonika RUTx11 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi dualband 2.4 & 5 GHz omni antenna and GPS antenna and Bluetooth antenna. If you use RUTx11 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Available stock:
Article number:
AX11S
Manufacturer number:
QuSpot für RUTx11, IP67 Outdoor Gehäuse mit LTE + WLAN (AC)
EAN:
5907772035061
- Integrated Outdoor Multi-Band High-Power LTE Omni-Antenna
- Outdoor WiFi Dual-Band 2.4 & 5 GHz Omni-Antenna
- Bluetooth Antenna
- GPS Antenna
- Place to install Teltonika RUTX11 (All-in-One)
- Up to 4 dBi LTE Antenna Gain
- IP67
- Passive-PoE Support
QuSpot omni LTE antenna for Teltonika RUTx11 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi dualband 2.4 & 5 GHz omni antenna and GPS antenna and Bluetooth antenna. If you use RUTx11 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Technical properties
Antenna Gain dBi:
6 dBi / 7 dBi
Band:
2.40 - 2.50 GHz / 4.40 - 6.00 GHz
Beamwidth:
360°/ 25° ±5°
Dimensions:
160 x 160 x 240 mm
Impedance:
50 Ohms
LTE Antenna Gain DBI:
2 dBi / 4 dBi
LTE Beamwidth:
360° / 35° ±5°
LTE Frequency:
0.694 - 0.96 GHz / 1.7 - 2.2 GHz / 2.2 - 2.7 GHz
LTE Polarization:
Vertical
LTE VSWR:
<1.70, max. <2.00 / 1.60, max. <2.0
Material:
ABS, Aluminium, PTFE
Operating Conditions:
-40°C - +75°C
Polarization:
Vertical
Safety Class:
IP67
VSWR:
<1.70, max. <2.00
Downloads
Datenblatt_en.pdf
