Industrial LTE Cat 4 Gateway Board, Digital I/O, USB, RMS Support
Software:
- Operating system Linux OS with Yocto SDK (offering high software customisation)
- Network NAT, Firewall (port forward, traffic rules, custom rules), DDNS ( >25 service providers supported)
- Remote management RMS Support, FOTA support, SSH, CLI, SMS Utilities (status/configuration)
- Status watchdogs Ping reboot, periodic reboot
- Additional features Internet connectivity over USB virtual network interface

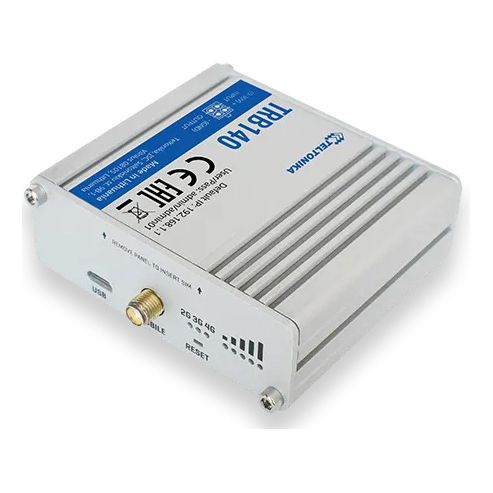

Industrial LTE Cat 4 Gateway Board TRB140 is equipped with a single Ethernet port, Digital Inputs/Outputs and a micro-USB port. TRB140 compact design makes this Gateway perfect for an application where a sole gadget must be granted reliable Internet connectivity. TRB140 is engineered to be used in Industrial applications, therefore, it has a wide range of software features such as SMS control, Firewall, OpenVPN, IPsec, RMS and FOTA support.
Available stock:
Article number:
TRB140
Manufacturer number:
TRB140003000
Manufacturer page:
TELTONIKA
EAN:
4779027312408
- Mobile: LTE (Cat4)/3G/2G
- SIM slot: Mini SIM (2FF)
- Antenna connector: 1 x SMA for LTE
- Ethernet: 1 x 10/100/1000 Mbps
- Input/Output: 2 x Digital/Analog Inputs/Outputs (configurable)
- CPU: ARM Cortex-A7 1.2 GHz CPU
- RAM: 128 MBytes (50 MBytes available for userspace)
- Flash: 512 MBytes (70 MBytes available for userspace)
- Input voltage range: 9 - 30 VDC
- Power connector: 4 pin industrial DC power socket
- Configuration interface: Virtual NIC via Micro-USB connector
- LED Indicators: Power, signal, network and data status LEDs
- Operating temperature: -40° C to 75° C
- Dimensions: 60 mm x 70 mm x 18 mm
- Weight: 155.8 g
Software:
- Operating system Linux OS with Yocto SDK (offering high software customisation)
- Network NAT, Firewall (port forward, traffic rules, custom rules), DDNS ( >25 service providers supported)
- Remote management RMS Support, FOTA support, SSH, CLI, SMS Utilities (status/configuration)
- Status watchdogs Ping reboot, periodic reboot
- Additional features Internet connectivity over USB virtual network interface
Industrial LTE Cat 4 Gateway Board TRB140 is equipped with a single Ethernet port, Digital Inputs/Outputs and a micro-USB port. TRB140 compact design makes this Gateway perfect for an application where a sole gadget must be granted reliable Internet connectivity. TRB140 is engineered to be used in Industrial applications, therefore, it has a wide range of software features such as SMS control, Firewall, OpenVPN, IPsec, RMS and FOTA support.
Technical properties
1 GBit Ports:
1
Antenna Connector:
SMA
CPU:
ARM Cortex-A7 1,2 GHz
Digital Input / Output:
2x Configurable Digital Inputs/Outputs
Dimensions:
60 x 70 x 18 mm
Interfaces:
Gigabit Ethernet / LTE
LEDs:
Power, signal, network and data status LEDs
LTE Category:
Cat 4
Main Speed:
1 Gbit Copper
Management Port:
virtual NIC via MicroUSB
Mobile Standard:
2G/3G/4G
Operating Conditions:
-40°C - +75°C
Operating System:
Linux OS w/ Yocto SDK
PoE in:
Yes
Port Speed, RJ45:
10 Mbit/100 Mbit/1 Gbit
Power Consumption max.:
<5.0 W
Power Jack:
4-Pin industrial DC socket
Power Supply:
9 - 30V DC
SIM Slots:
1x mini SIM
Safety Class:
IP30
Serial Interface Type:
-
Size of RAM:
128 MB
Storage Type internal:
512 Mb FLASH
WLAN:
No
