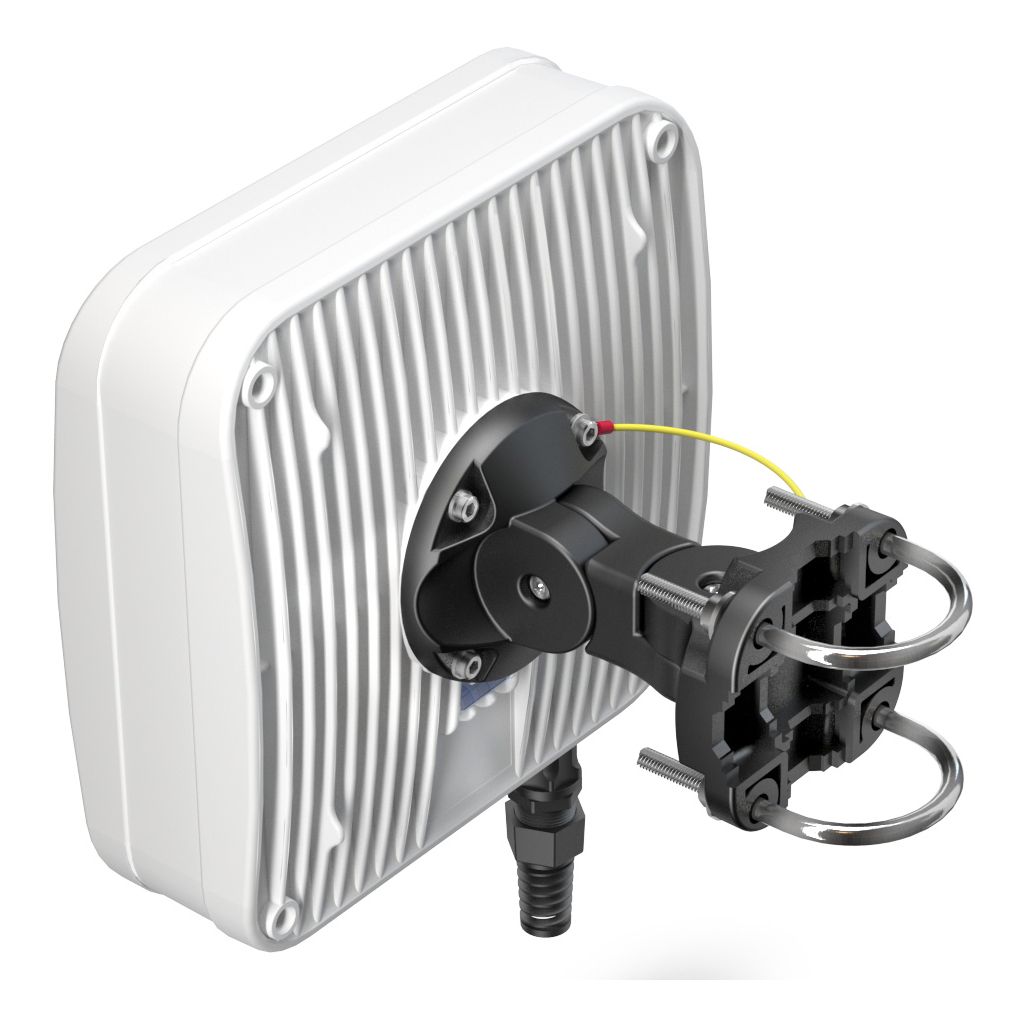

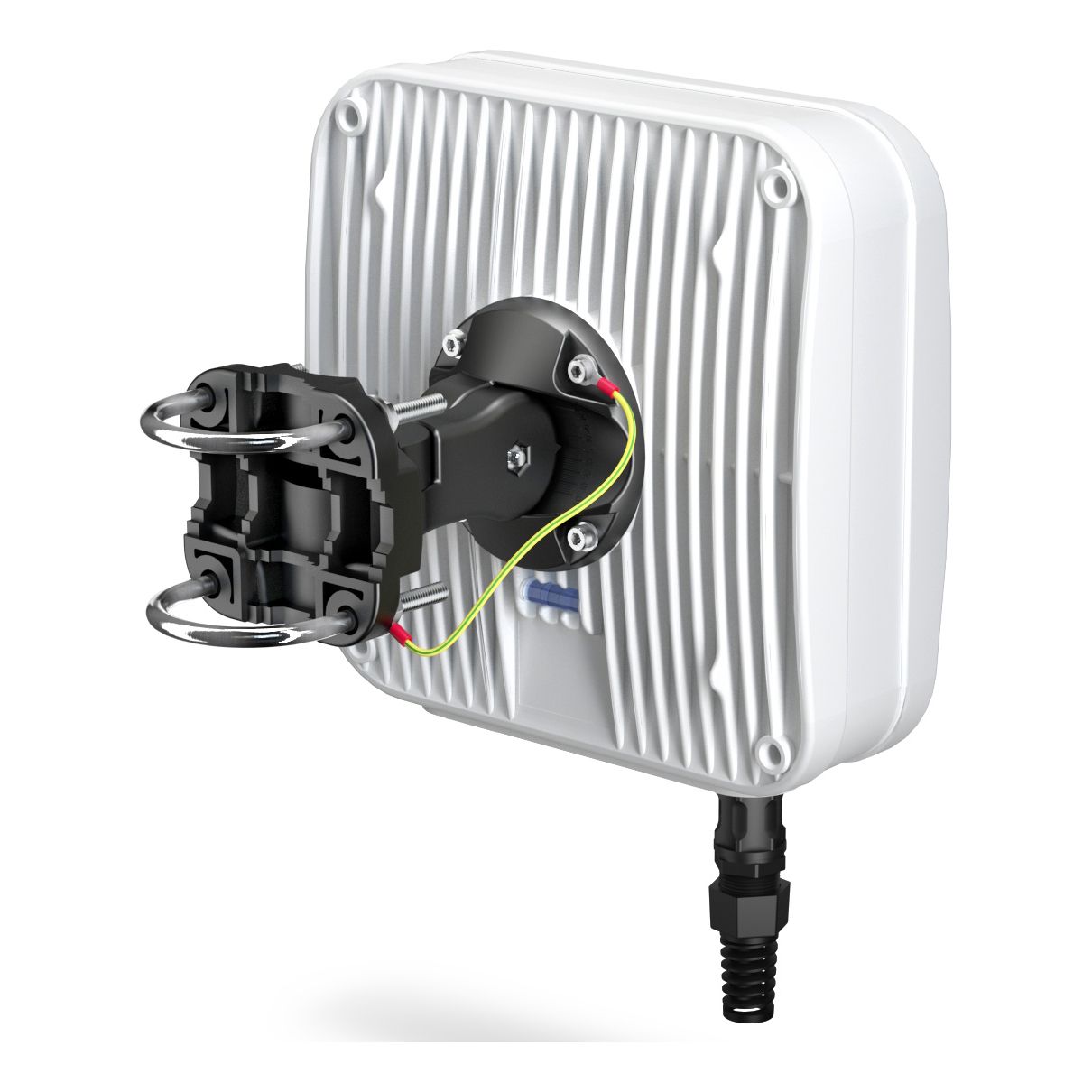

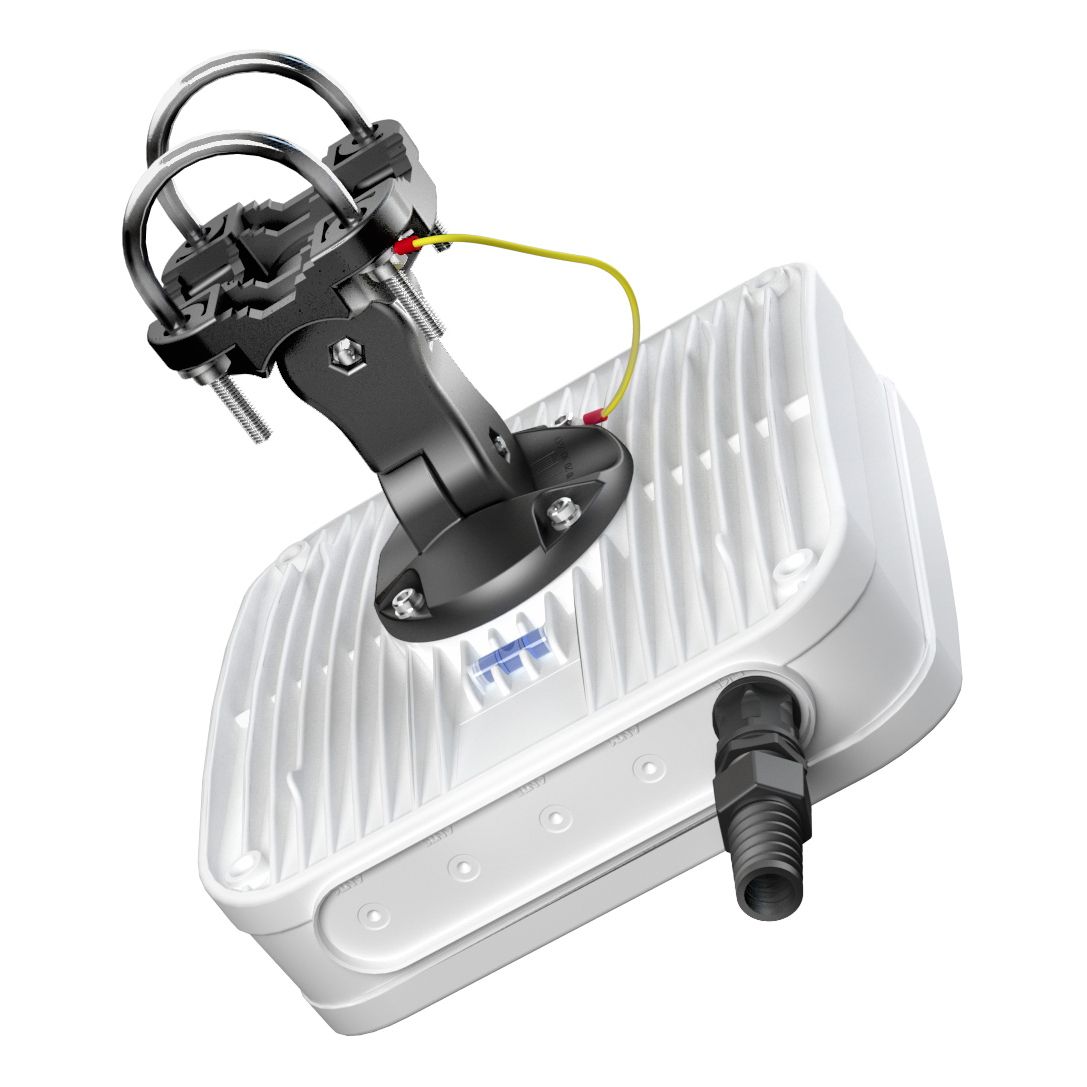

QuMax for TRB140, IP67 Outdoor Enclosure w/ LTE directional Antenna

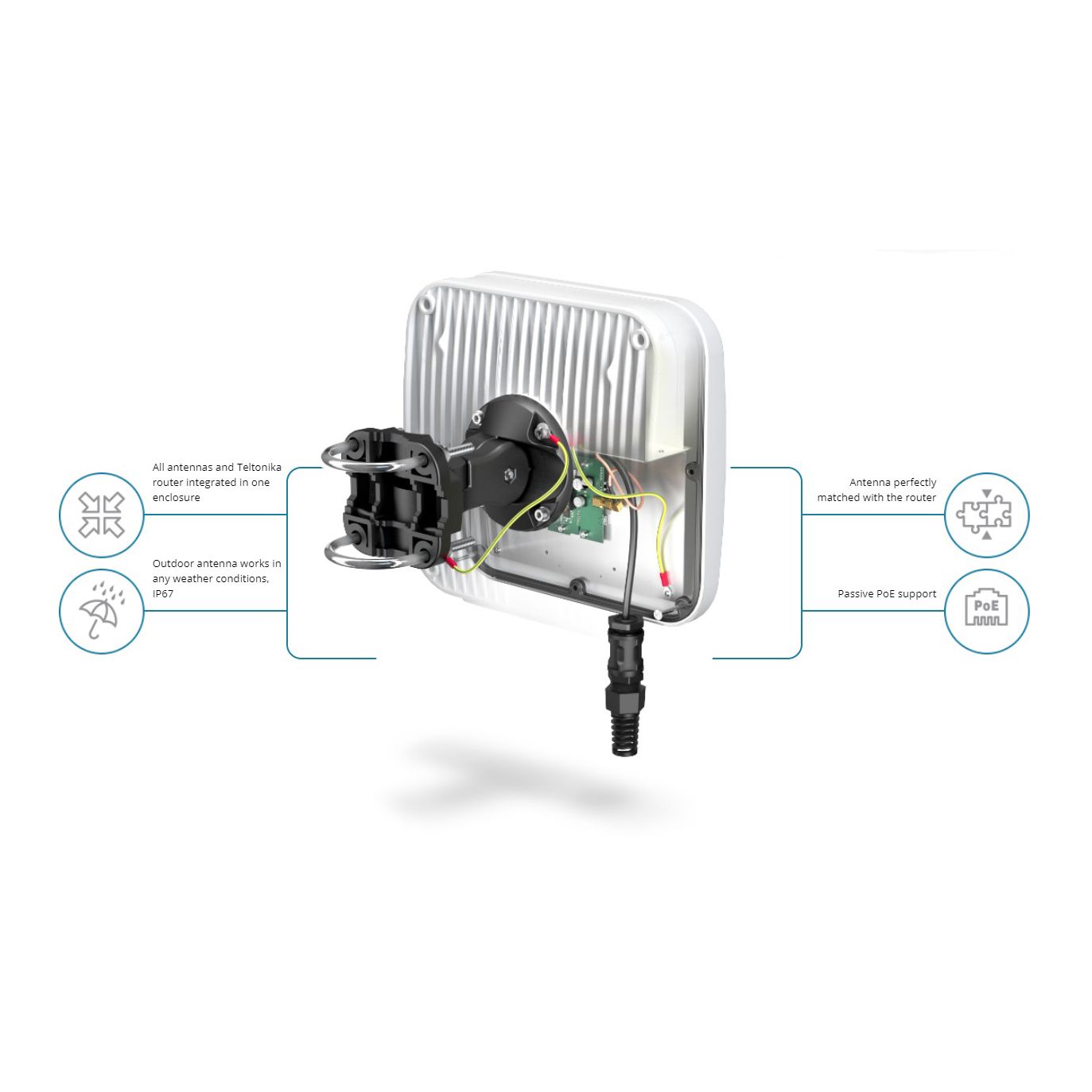

- Integrated Outdoor Multi-Band High-Power LTE directional Antenna

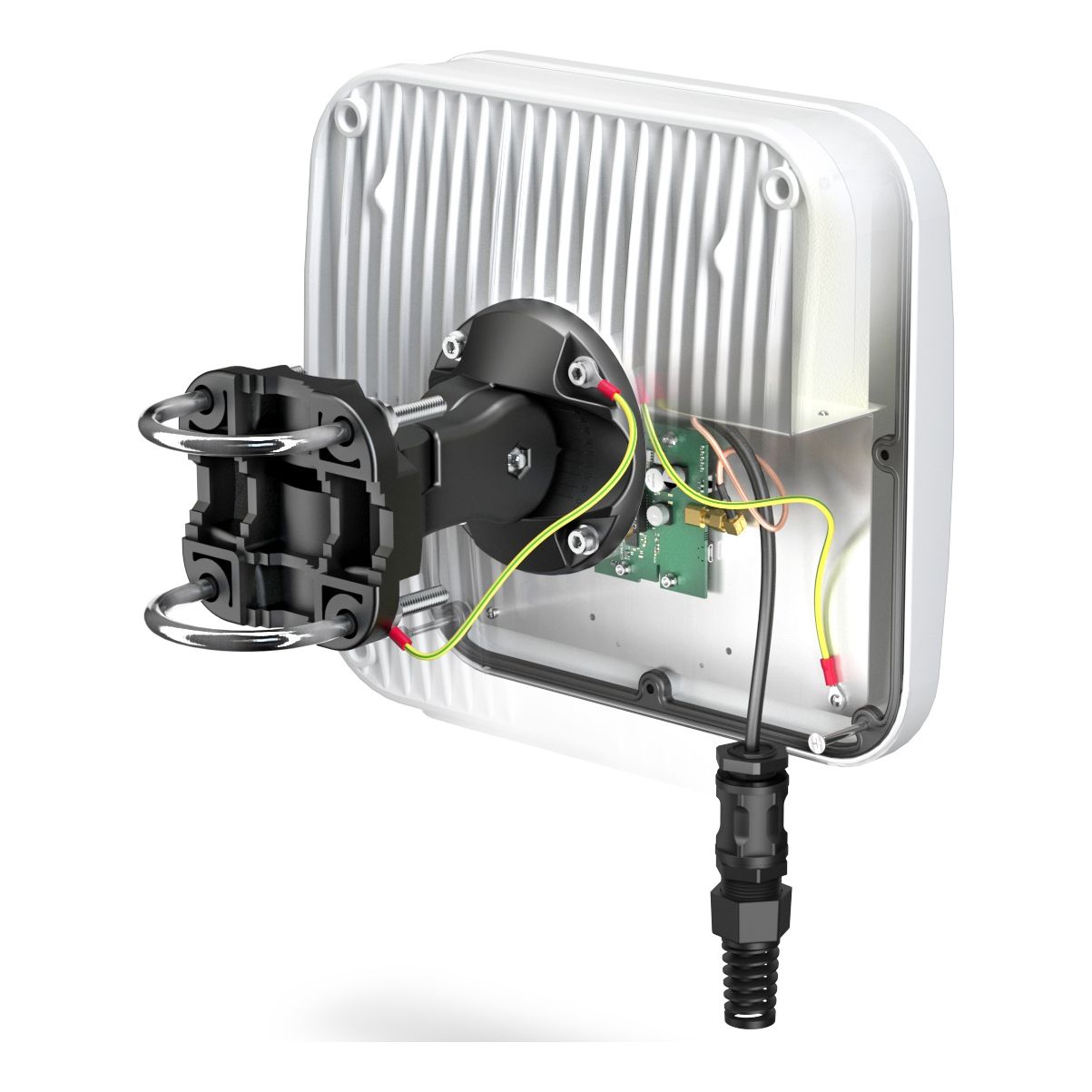

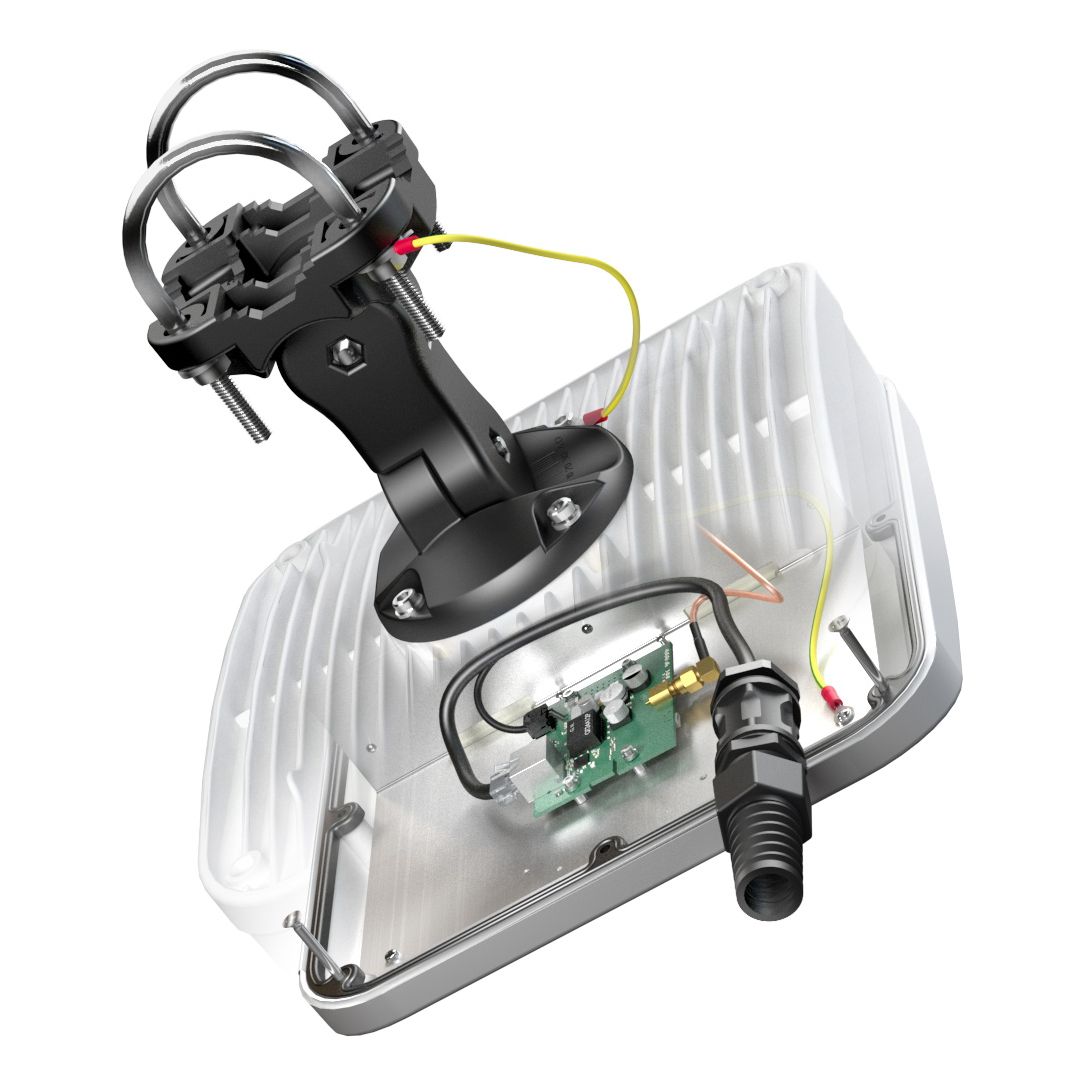

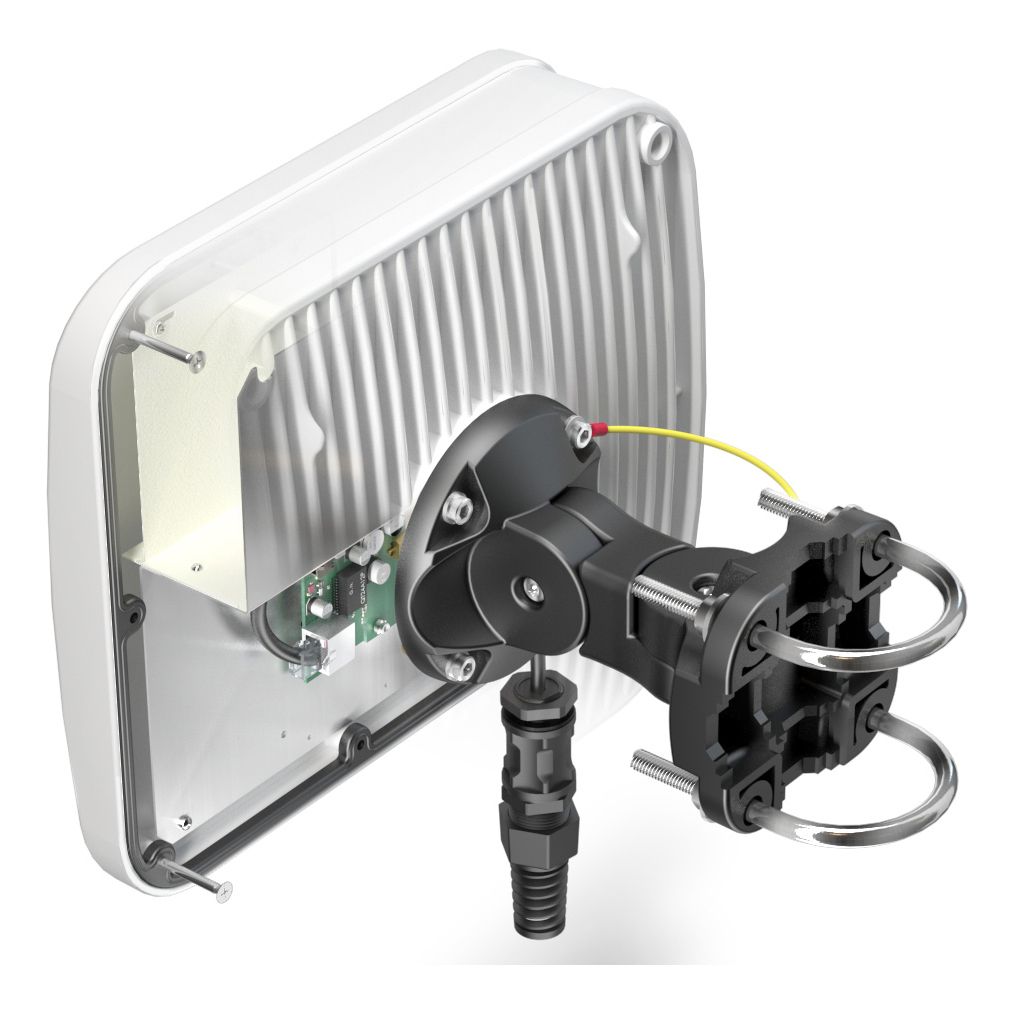

- Place to install Teltonika TRB140 (All-in-One)
- Up to 6 dBi LTE Antenna Gain
- IP67
- Passive-PoE Support
QuMax offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika TRB140 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment.
Available stock:
Article number:
A140M
Manufacturer number:
QuMax für TRB140, IP67 Outdoor Gehäuse mit LTE Antenne
EAN:
5907772035078
- Integrated Outdoor Multi-Band High-Power LTE directional Antenna
- Place to install Teltonika TRB140 (All-in-One)
- Up to 6 dBi LTE Antenna Gain
- IP67
- Passive-PoE Support
QuMax offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika TRB140 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment.
Technical properties
Dimensions:
272 x 276 x 96 mm
Impedance:
50 Ohms
LTE Antenna Gain DBI:
4 dBi / 5 dBi / 6 dBi
LTE Beamwidth:
90° / 90° ±30°
LTE Frequency:
0.694 - 0.96 GHz / 1.7 - 2.2 GHz / 2.2 - 2.7 GHz
LTE Polarization:
Vertical
LTE VSWR:
<1.50, max. <2.00 / 1.30, max. <1.69
Material:
ABS, Aluminium, PTFE, Fiberglass
Operating Conditions:
-40°C - +75°C
Safety Class:
IP67
Downloads
Datenblatt_en.pdf
