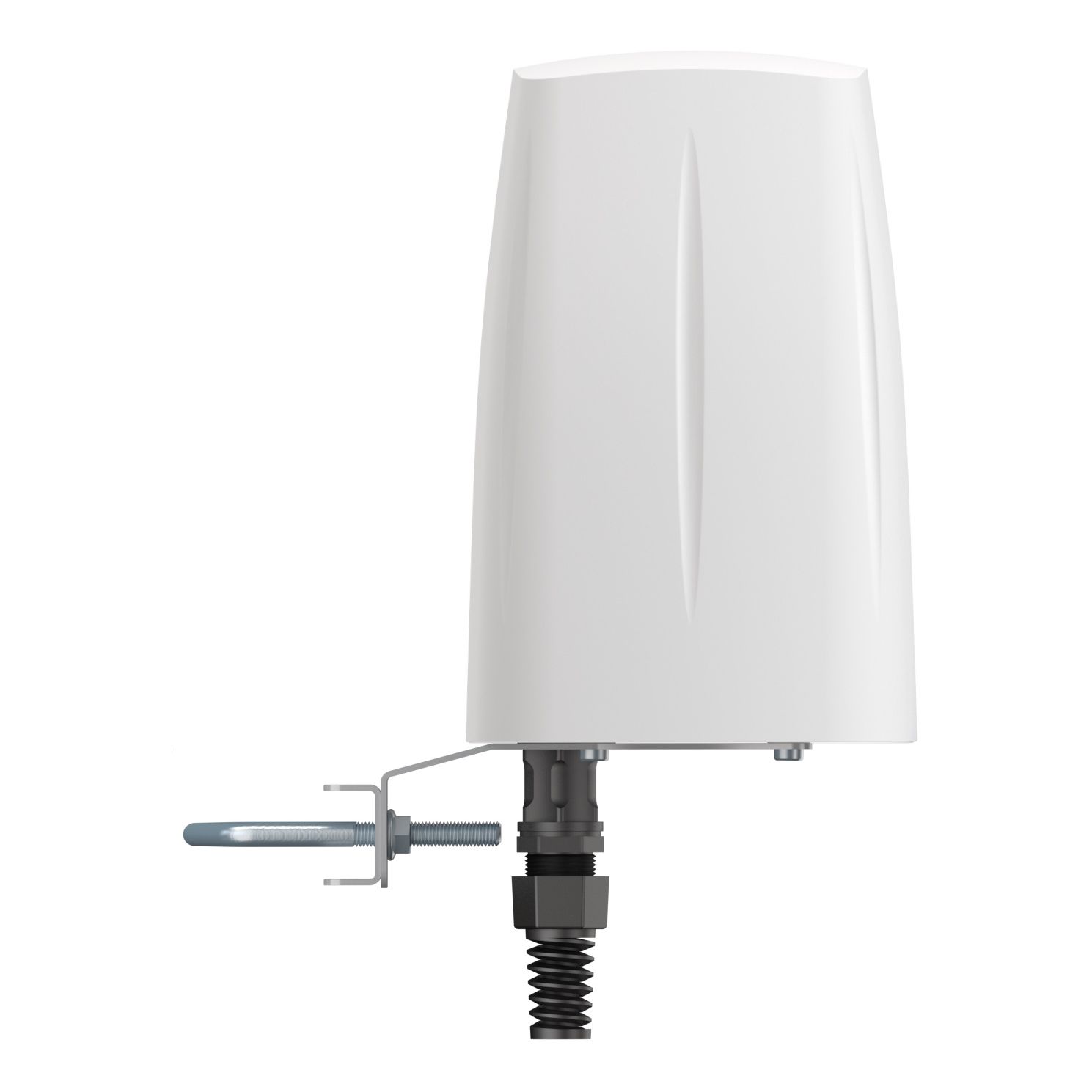

QuSpot for w/o housingTRB140, IP67 Outdoor Enclosure w/ LTE Omni-Antenna
- Integrated Outdoor Multi-Band High-Power LTE Omni-Antenna

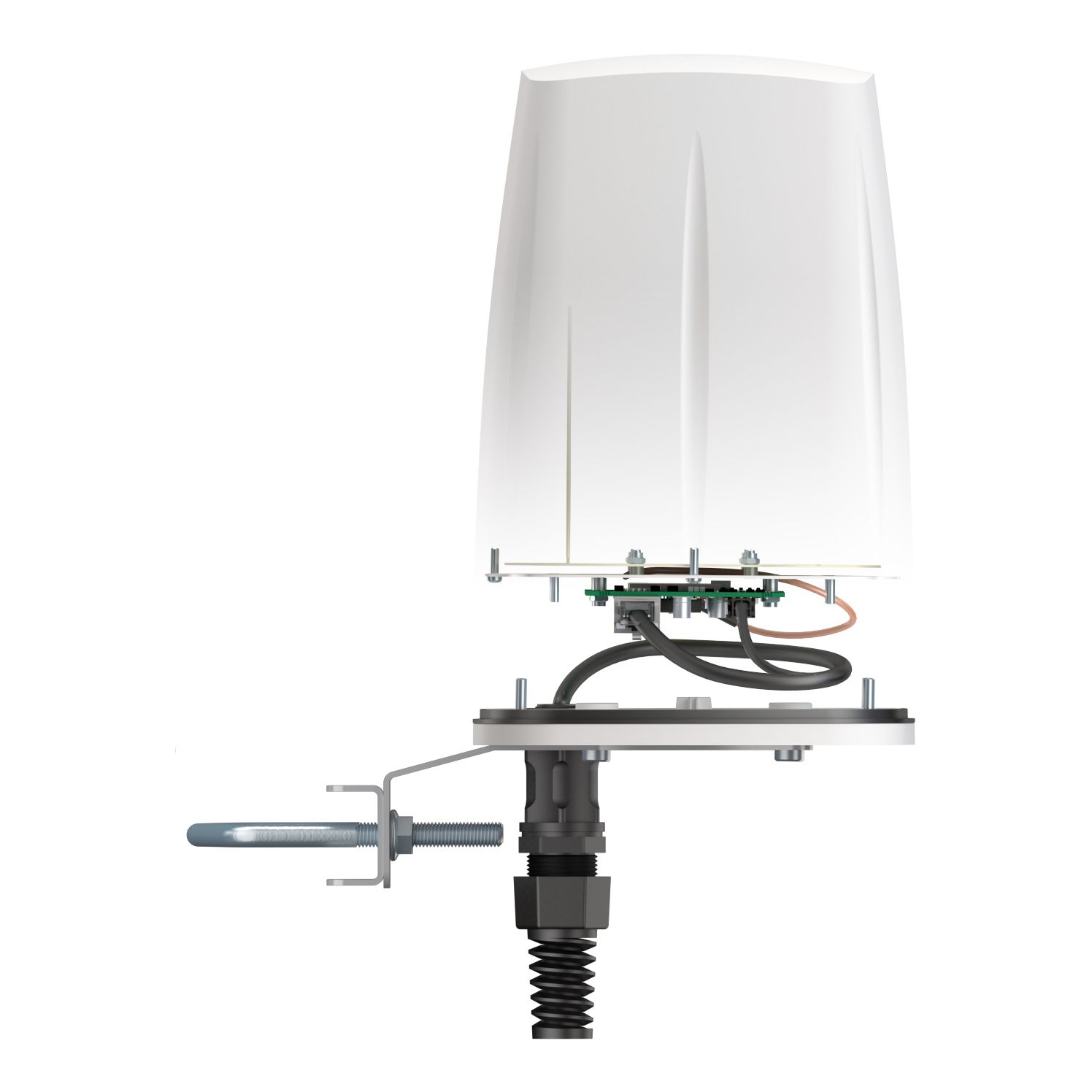

- Place to install Teltonika TRB140 (All-in-One)
- Up to 4 dBi LTE Antenna Gain
- IP67
- Passive-PoE Support
QuSpot omni LTE antenna for Teltonika TRB140 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. If you use TRB140 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Available stock:
Article number:
A140S
Manufacturer number:
QuSpot für TRB140, IP67 Outdoor Gehäuse mit LTE Antenne
EAN:
5907772035009
- Integrated Outdoor Multi-Band High-Power LTE Omni-Antenna
- Place to install Teltonika TRB140 (All-in-One)
- Up to 4 dBi LTE Antenna Gain
- IP67
- Passive-PoE Support
QuSpot omni LTE antenna for Teltonika TRB140 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. If you use TRB140 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Technical properties
Dimensions:
160 x 160 x 240 mm
Impedance:
50 Ohms
LTE Antenna Gain DBI:
2 dBi / 4 dBi
LTE Beamwidth:
360° / 360° ±5°
LTE Frequency:
0.694 - 0.96 GHz / 1.7 - 2.2 GHz / 2.2 - 2.7 GHz
LTE Polarization:
Vertical
LTE VSWR:
<1.70, max. <2.00 / 1.60, max. <2.00
Material:
ABS, Aluminium, PTFE
Operating Conditions:
-40°C - +75°C
Safety Class:
IP67
Downloads
Datenblatt_en.pdf
