LTE Cat6 Dual SIM Router, 4x 1Gbit, Wave-2 802.11ac, GPS, Bluetooth LE, RMS
- 4G (LTE) - Cat 6 with speeds up to 300 Mbps
- 4x Gigabit Ethernet with speeds up to 1000 Mbps
- Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
- Dual-SIM with auto Failover, Backup WAN and other SW features
- RMS (Teltonika Remote Management System) compatible
- RutOS easy to use, secure and feature rich Operating System
RUTX11 is the most feature rich among all the RUTX series devices. Wide range of internal hardware interfaces allows this device to be used in power hungry Industrial applications where speed and robustness is at the heart of solution. 4G (LTE) Cat 6 DL up to 300 Mbps in sync with 4x 1 Gbit Ethernet ports allows seamless data transfer experience.
Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition. Would that be Enterprise office of power hungry Digital signage with 8k HDTV solution, RUTX11 can handle it all. In addition Bluetooth LE allows sensors to be connected directly to router, thus minimizing overall solution ecosystem.
Software:
- Operating system: RutOS (OpenWrt based Linux OS)
- SIM switch: 2 SIM cards, auto-switch cases: data limit, roaming, no network, network denied, data connection fail
- Multiple PDN: Possibility to use different PDNs for multiple network access and services
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet
- Networking features: NAT, Static/Dynamic routing, Firewall, OpenVPN, IPSec, H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Unique networking features: VLAN, Mobile quota control, WEB Filter, Load Balancing, Network Backup, Auto Failover
- Connection monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Authetication: Pre-shared key, digital certificates, X.509 certificates
- Keep settings: Update FW without losing current configuration
- Monitoring & Management: WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS
- Supported languages: Busybox shell, Lua, C, C++
- Development tools: SDK package with build environment provided
Available stock:
Article number:
RUTX11
Manufacturer number:
RUTX1120B200
Manufacturer page:
TELTONIKA
EAN:
4779027312378
- 4G (LTE) - Cat 6 with speeds up to 300 Mbps
- 4x Gigabit Ethernet with speeds up to 1000 Mbps
- Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
- Dual-SIM with auto Failover, Backup WAN and other SW features
- RMS (Teltonika Remote Management System) compatible
- RutOS easy to use, secure and feature rich Operating System
RUTX11 is the most feature rich among all the RUTX series devices. Wide range of internal hardware interfaces allows this device to be used in power hungry Industrial applications where speed and robustness is at the heart of solution. 4G (LTE) Cat 6 DL up to 300 Mbps in sync with 4x 1 Gbit Ethernet ports allows seamless data transfer experience.
Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition. Would that be Enterprise office of power hungry Digital signage with 8k HDTV solution, RUTX11 can handle it all. In addition Bluetooth LE allows sensors to be connected directly to router, thus minimizing overall solution ecosystem.
Software:
- Operating system: RutOS (OpenWrt based Linux OS)
- SIM switch: 2 SIM cards, auto-switch cases: data limit, roaming, no network, network denied, data connection fail
- Multiple PDN: Possibility to use different PDNs for multiple network access and services
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet
- Networking features: NAT, Static/Dynamic routing, Firewall, OpenVPN, IPSec, H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Unique networking features: VLAN, Mobile quota control, WEB Filter, Load Balancing, Network Backup, Auto Failover
- Connection monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Authetication: Pre-shared key, digital certificates, X.509 certificates
- Keep settings: Update FW without losing current configuration
- Monitoring & Management: WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS
- Supported languages: Busybox shell, Lua, C, C++
- Development tools: SDK package with build environment provided
Technical properties
1 GBit Ports:
4

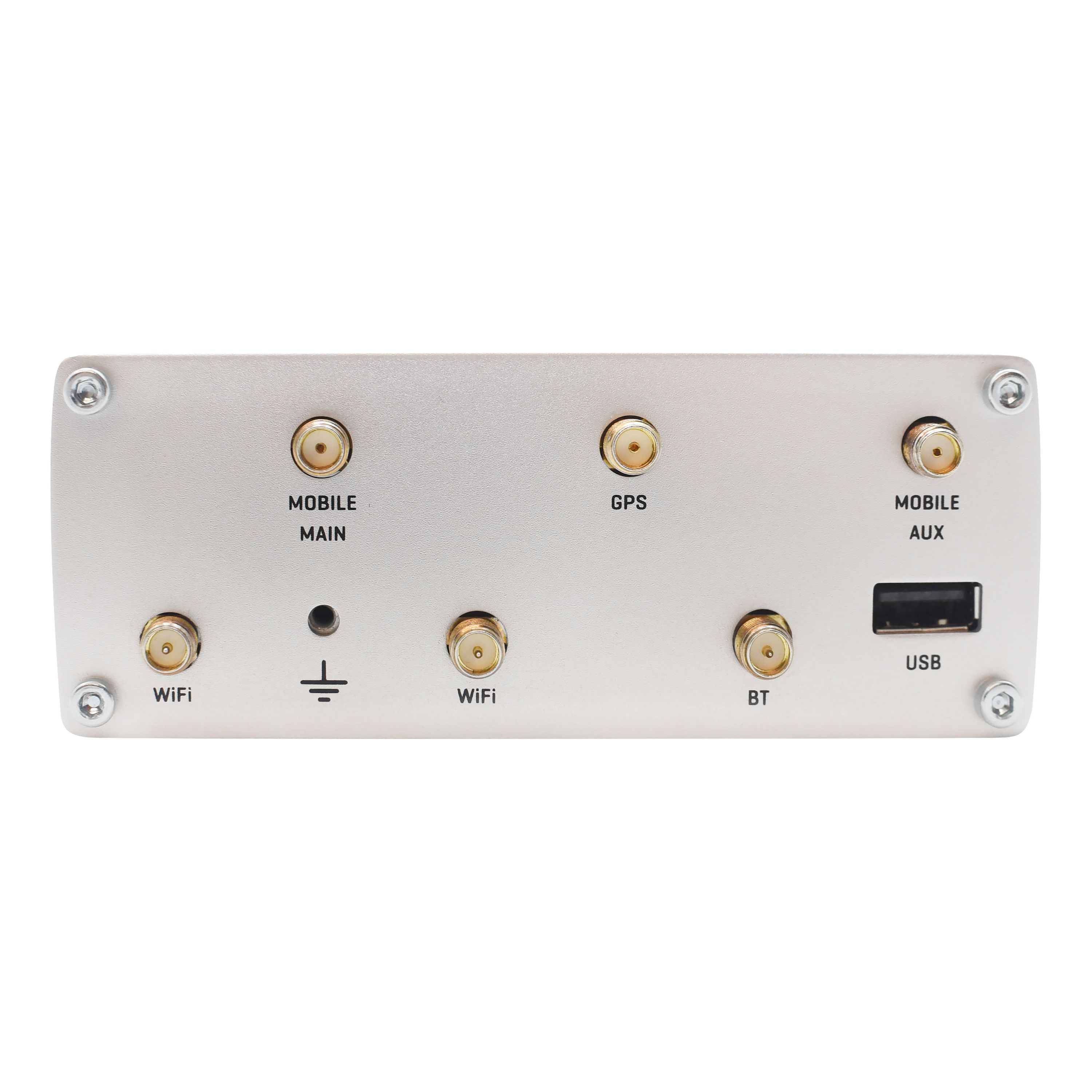

Antenna Connector:
2x Mobile SMA, 2x WiFi RP-SMA, 1x GPS SMA
Bluetooth:
4.0 LE
CPU:
Quad Core ARM Cortex A7 717 MHz CPU
Case material:
Aluminum Alloy
Design:
Desktop
Dimensions:
115 x 95 x 44 mm
Frequency:
2.4 GHz & 5 GHz
GPS:
Yes
LTE Category:
CAT 6
LTE Support:
Yes
Mobile Standard:
3G/4G
Network Ports:
4-Port
Number of Ports:
1 - 7
Operating Conditions:
-40°C - +75°C
Operating System:
RutOS
Port Speed, RJ45:
10 Mbit/100 Mbit/1 Gbit
Power Consumption max.:
16 W
Power Jack:
4 pin industrial DC power socket
Power Supply:
9 - 50V DC, 4-pin Connector
SFP Ports:
-
SIM Slots:
2
Storage Type internal:
256 MB Flash, 256 MB DDR3 RAM
WAN Connection Type:
LTE / 4G
WLAN:
Yes
WLAN Standard:
IEEE 802.11 b/g/n/ac
