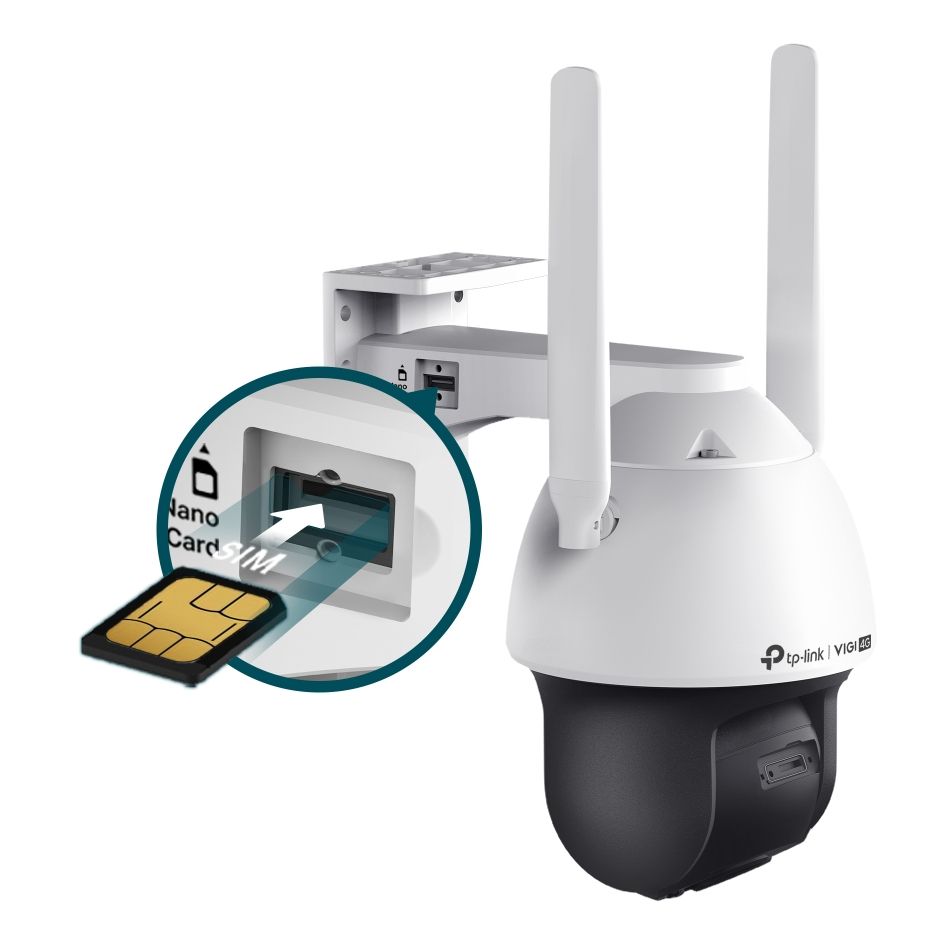

VIGI 4MP Outdoor Full-Color 4G Pan Tilt Network Camera, 4.0 mm
- 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness.
- 4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available.
- 360° Monitoring: Cover every corner and eliminate blind spots.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
- Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client.
- Onboard Storage: Support on-board storage up to 512 GB (SD card slot).*
Available stock:
Article number:
VIGI C540-4G(4MM)
Manufacturer number:
VIGI C540-4G(4mm)(EU)
Manufacturer page:
TP-LINK
EAN:
4895252504910
- 4G Cat4 150/50 Mbps
- LTE-FDD/LTE-TDD/HSPA+/UMTS,
- H.265+/H.265/H.264+/H.264
- 1/3" Progressive Scan CMOS
- Color/0.005 Lux@F1.6, 0 Lux with IR/White Light,
- 25fps/30fps ( 2560x1440,2304x1296, 2048x1280, 1920x1080)
- 12V DC
- 4 mm Fixed Lens
- Built-In Microphone
- Speaker
- micro-SD Slot
- IP66
- Features:
- Full-Color and IR Night Vision (Up to 30 m), Customized Patrol, Automatic Tracking, Active Defense, Two-Way Audio, On-Board Storage, Smart Detection (Human &Vehicle Classification)(Motion Detection, Area Intrusion Detection, Line-Crossing Detection, Camera Tampering Detection, Abandoned Object Detection, Object Removal Detection, Area Entrance Detection, Area Exiting Detection, Vehicle Detection , Human detection), SmartVid (Smart IR, WDR, 3D DNR, BLC), ONVIF, Remote Monitoring, VIGI App, VIGI Security Manager
- 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness.
- 4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available.
- 360° Monitoring: Cover every corner and eliminate blind spots.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
- Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client.
- Onboard Storage: Support on-board storage up to 512 GB (SD card slot).*
Technical properties
100 MBit Ports:
1
Alarm Input:
-
Alarm Output:
-
Angel of View diagonally:
94°
Angel of View horizontally:
80°
Angel of View vertically:
43°
Aperture:
f/1.6
Audio:
Yes
Audio Codec:
G.711 alaw
Audio Input:
-
Audio Output:
-
Backlight Compensation:
Yes
Camera Type:
PTZ
Certificate:
CE, RCM, BSMI, RoHS, NCC
DORI:
D: 80 m, O: 33 m, R: 16 m, I: 8 m
Day/Night Switch:
IR Cut Filter
Dimensions:
120 x 182 x 201 mm
Field of application:
Outdoor
Focal Length:
4.0 mm
IP / Analog:
IP
Illumination:
IR, white Light
Illumination Distance:
up to 30 m
Image Sensor:
1/3.06" CMOS
LTE Antenna Gain DBI:
0.84 dB / 0.74 dB
LTE Bands:
LTE-TDD/LTE-FDD/WCDMA
LTE Category:
4
LTE Frequency:
LTE-FDD: B 1/3/5/7/8/20/28, LTE-TDD: B 38/40/41, WCDMA: B 1/5/8
Lens Mount:
M12
Lens Type:
fix
Manufacturer Number:
VIGI C540-4G(4MM)
Material:
Plastic
Memory Slot / Card type:
MicroSD
Microphone:
built-in
Min. Illumination:
0.005 Lux
Min. Illumination ext.:
0.005 Lux; 0 Lux with IR/white light
Mobile Standard:
4G
Noise Reduction:
3D DNR
ONVIF:
Yes
Operating Conditions:
-30°C - +60°C
Operating Humidity:
<95%, non-condensing
Power Supply:
12V DC, 1A
Resolution:
4 MP
Resolution max. Pixels:
2560 x 1440
SIM Slots:
nano-SIM
Safety Class:
IP66
Shutter Speed:
1/3s - 1/10000s
Speaker:
built-in
Streaming:
Dual Stream
Video Frame Rate max.:
30 fps
Video compression:
H.265+/H.265/H.264+/H.264
WDR:
DWDR
