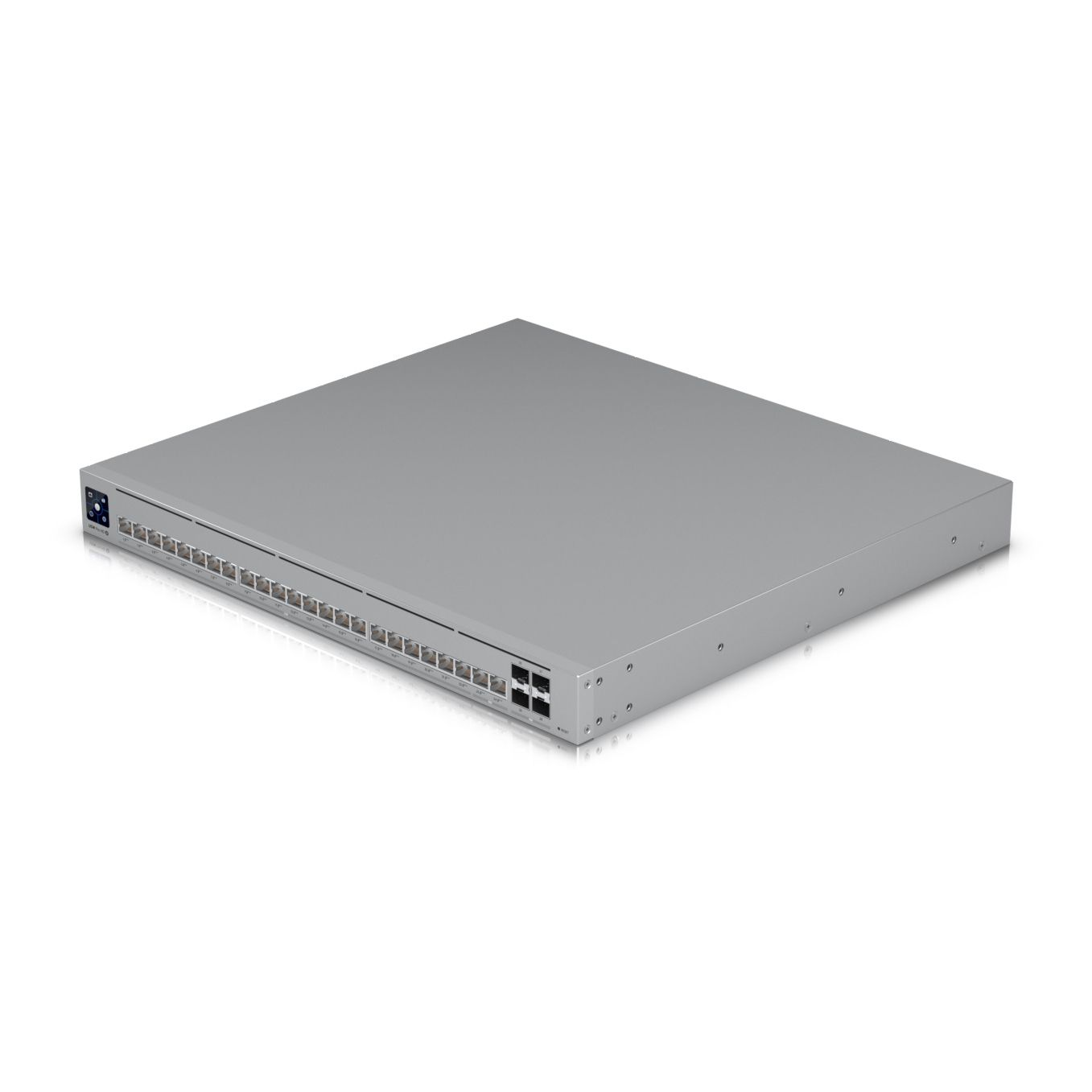

UniFi USW Pro HD PoE 802.3at/bt 24-Port Gigabit Switch w/ Layer3 Features, SFP+
Professional-grade, Layer 3 Etherlighting™ switch with 2x 10 GbE PoE++, 22x 2.5 GbE PoE++, and 4x 10G SFP+ ports.
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires UniFi RPS.
Available stock:
Article number:
USW-PRO-HD-24-POE
Manufacturer number:
USW-PRO-HD-24-POE
Manufacturer page:
UBIQUITI
EAN:
0810084696606
22x 2.5 GbE
2x 10 GbE PoE++ ports
4x 10G SFP+ ports
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
DC power backup ready**
600W total PoE availability
Professional-grade, Layer 3 Etherlighting™ switch with 2x 10 GbE PoE++, 22x 2.5 GbE PoE++, and 4x 10G SFP+ ports.
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires UniFi RPS.
Technical properties
2.5 Gbit Ports:
22
10 GBit Ports:
2
19-inch Mounting Bracket:
included
19-inch Rackmount:
Yes
Case material:
SGCC Steel
Certificate:
CE, FCC, IC
Dimensions:
442.4 x 400 x 44 mm
Display:
1.3" Touchscreen
Ext. Temperature Range:
No
Forwarding Rate:
171.12 Mpps
Height U:
1 U
Layer 2 Features:
IGMP snooping, STP / RSTP with priorities and port-level disable, Port isolation, Storm control, ...
Layer3 Features:
DHCP for locally-managed networks, DHCP relay, Inter-VLAN routing between networks on same switc ...
Managed:
Managed
Management:
Ethernet In-Band
Network Ports:
24-Port
Number of Ports:
24 - 32
Operating Conditions:
-5°C - +40°C
Operating Humidity:
10 - 90%, non-condensing
PoE Budget:
>=500 Watts
PoE Ports:
24
PoE Power Budget:
600 W
PoE Support:
Yes
Port Speed, RJ45:
2.5 Gbit
Power Consumption max.:
56 W / 660 W
Power Supply:
100 - 240 V AC, USP RPS DC
SFP+ Ports:
4
SFP Ports:
-
Switch Capacity:
230 Gbps
Total Non-Blocking Throughput:
115 Gbps
max. Power consumption per Port, PoE:
15.4 W
max. Power consumption per Port, PoE+:
30 W
