UniFi UP-AlarmHub

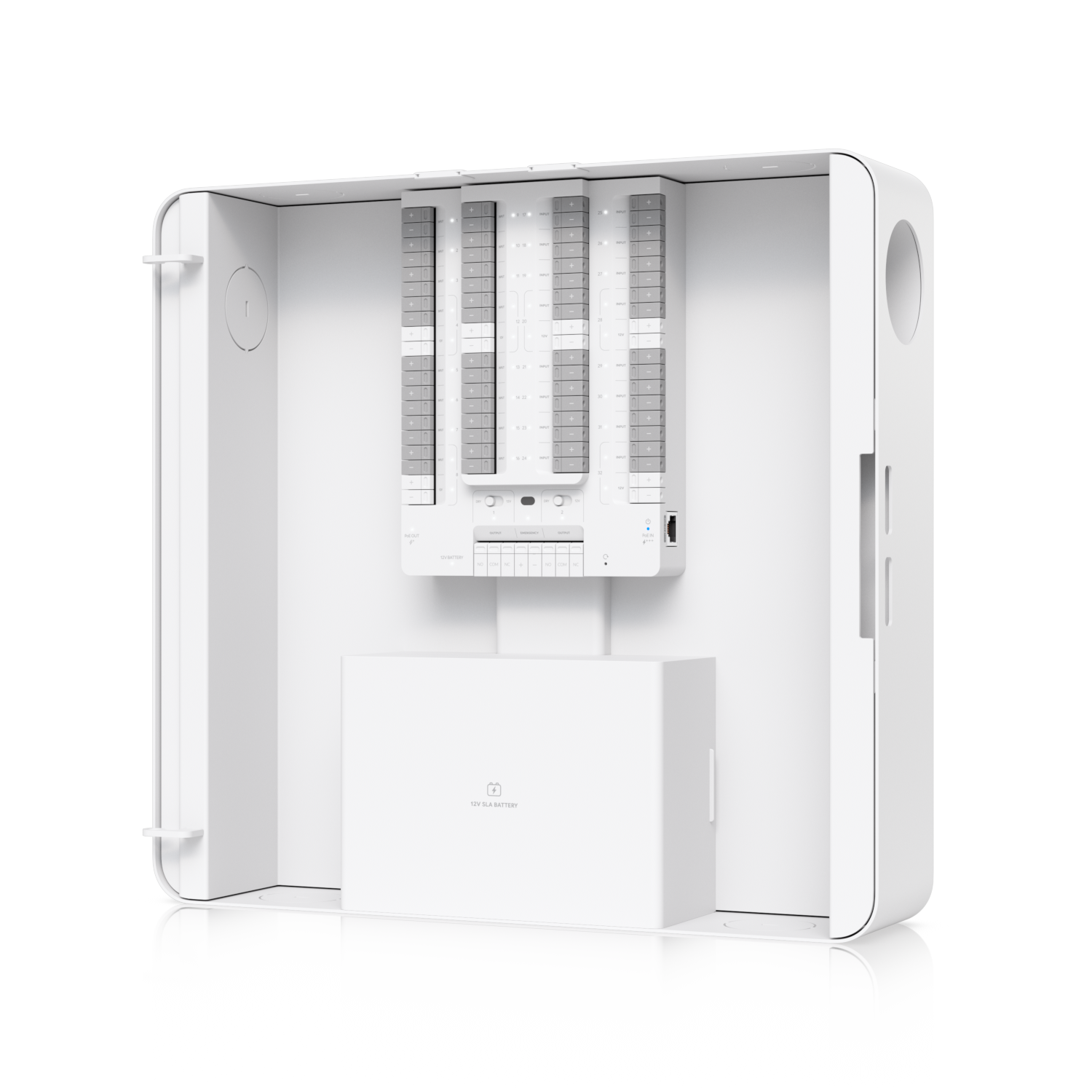

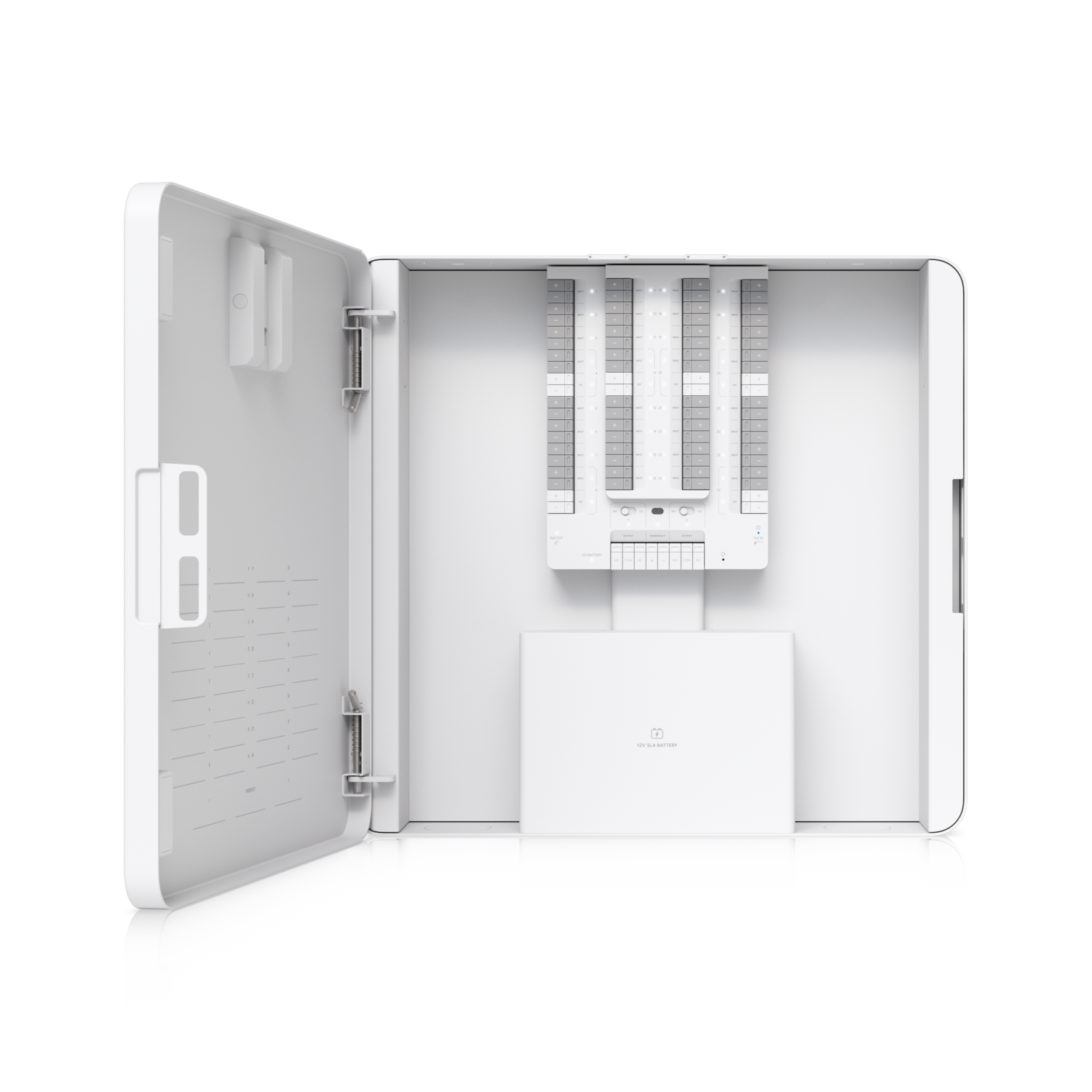

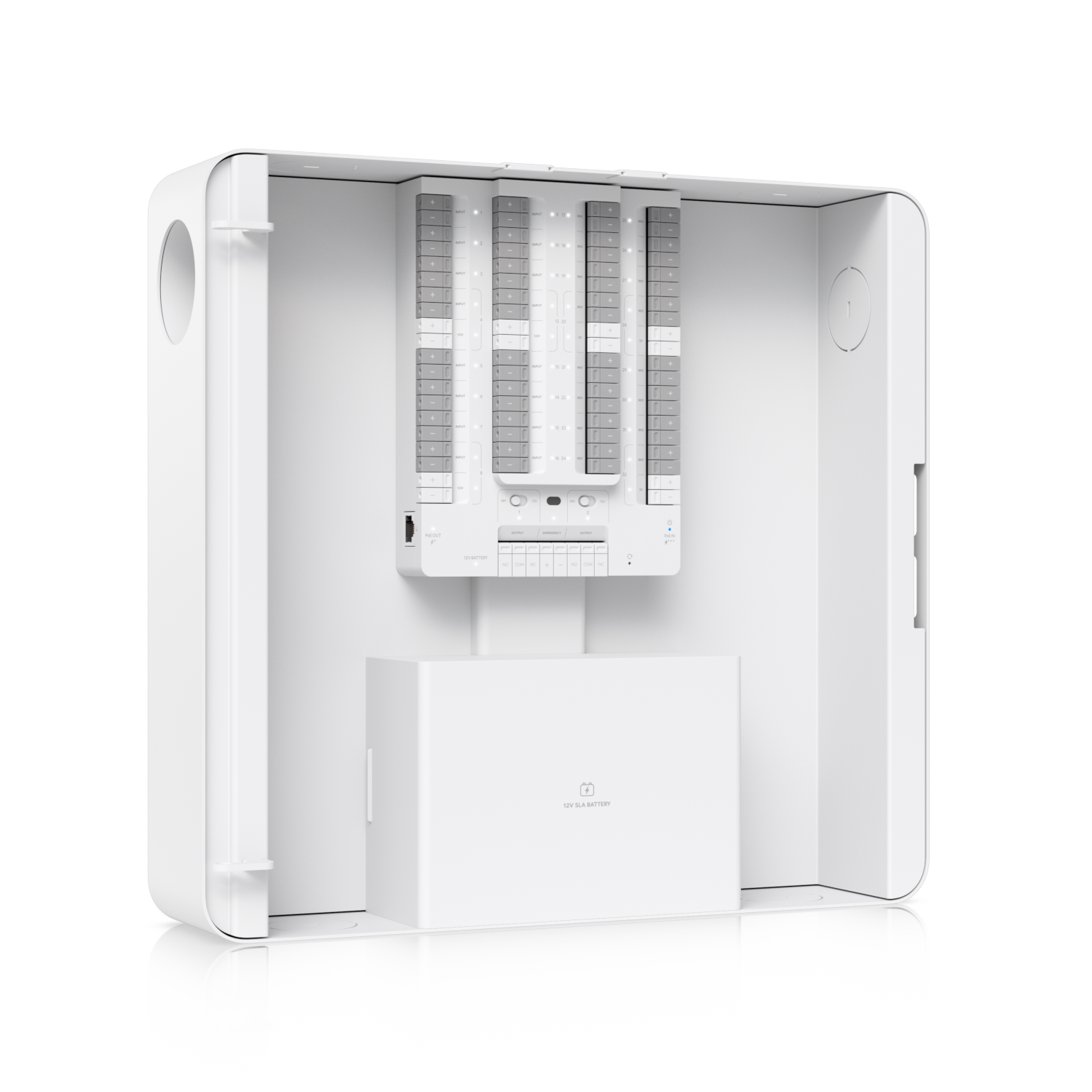

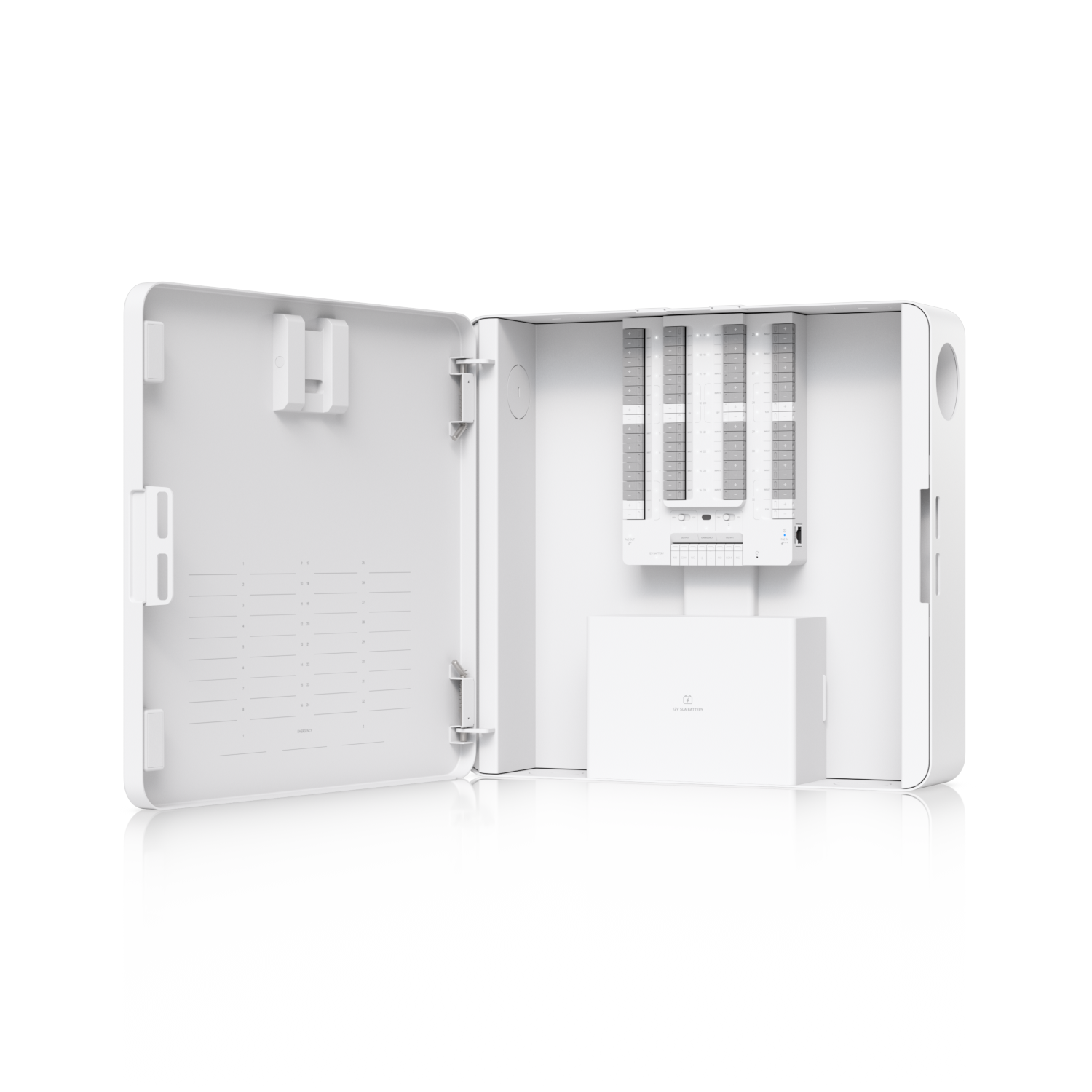

The Ubiquiti Alarm Hub Kit is a professional alarm control hub supporting up to 32 hardwired sensor zones. Its inputs are compatible with EOL resistors from 1 to 5.6 kΩ, with 1 kΩ resistors supported for installation. The unit also provides a dedicated emergency input, two selectable wet/dry output relays and six 12 V DC auxiliary outputs for powering connected alarm sensors.
Network connectivity and primary power are supplied through a 10/100 MbE RJ45 interface with PoE++ or PoE+++ input. An additional PoE+ output provides up to 30 W for a compatible network device. Depending on the incoming PoE standard, up to 42 W with PoE++ or 68 W with PoE+++ is available for connected equipment. An optional 12 V SLA battery can be installed to provide backup power.

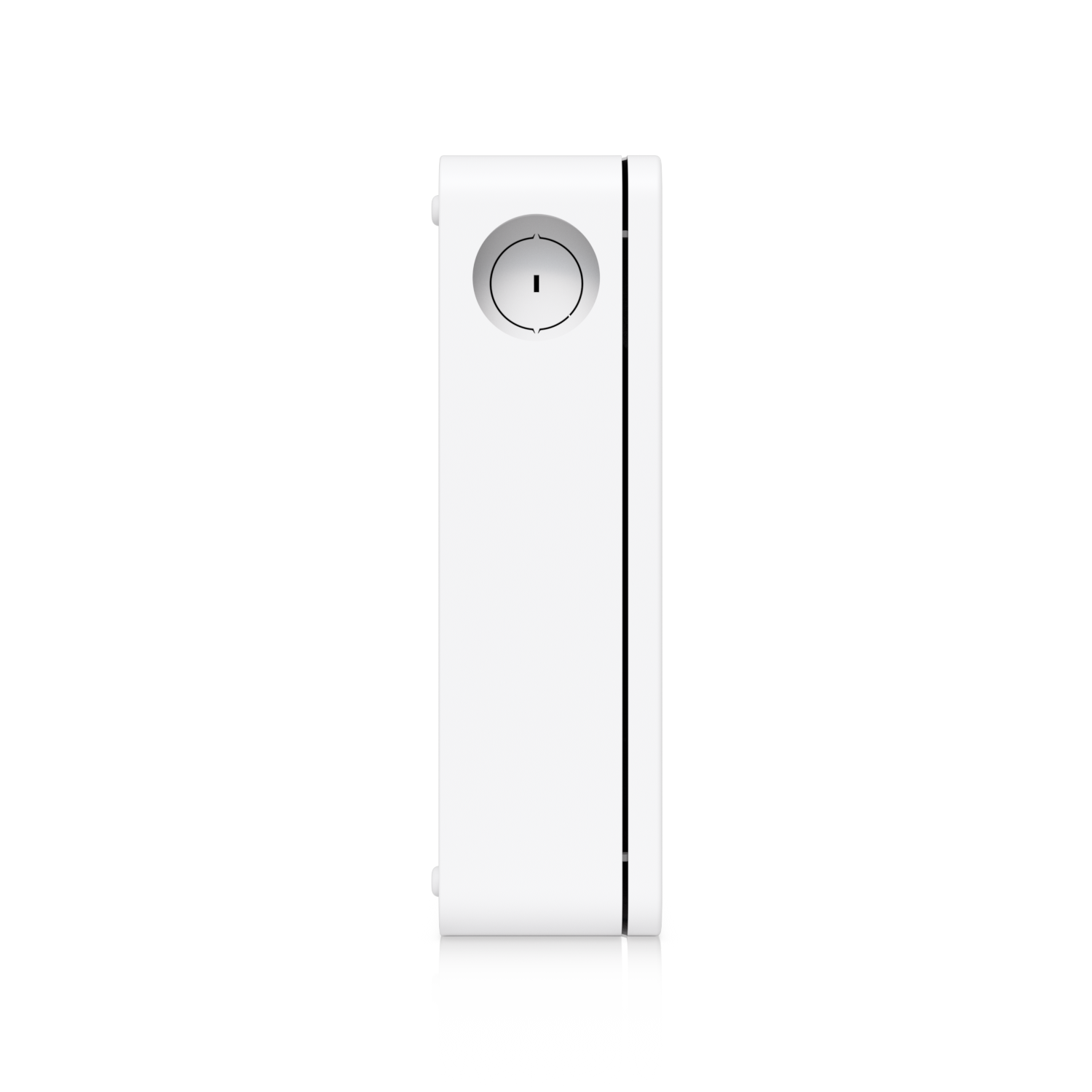

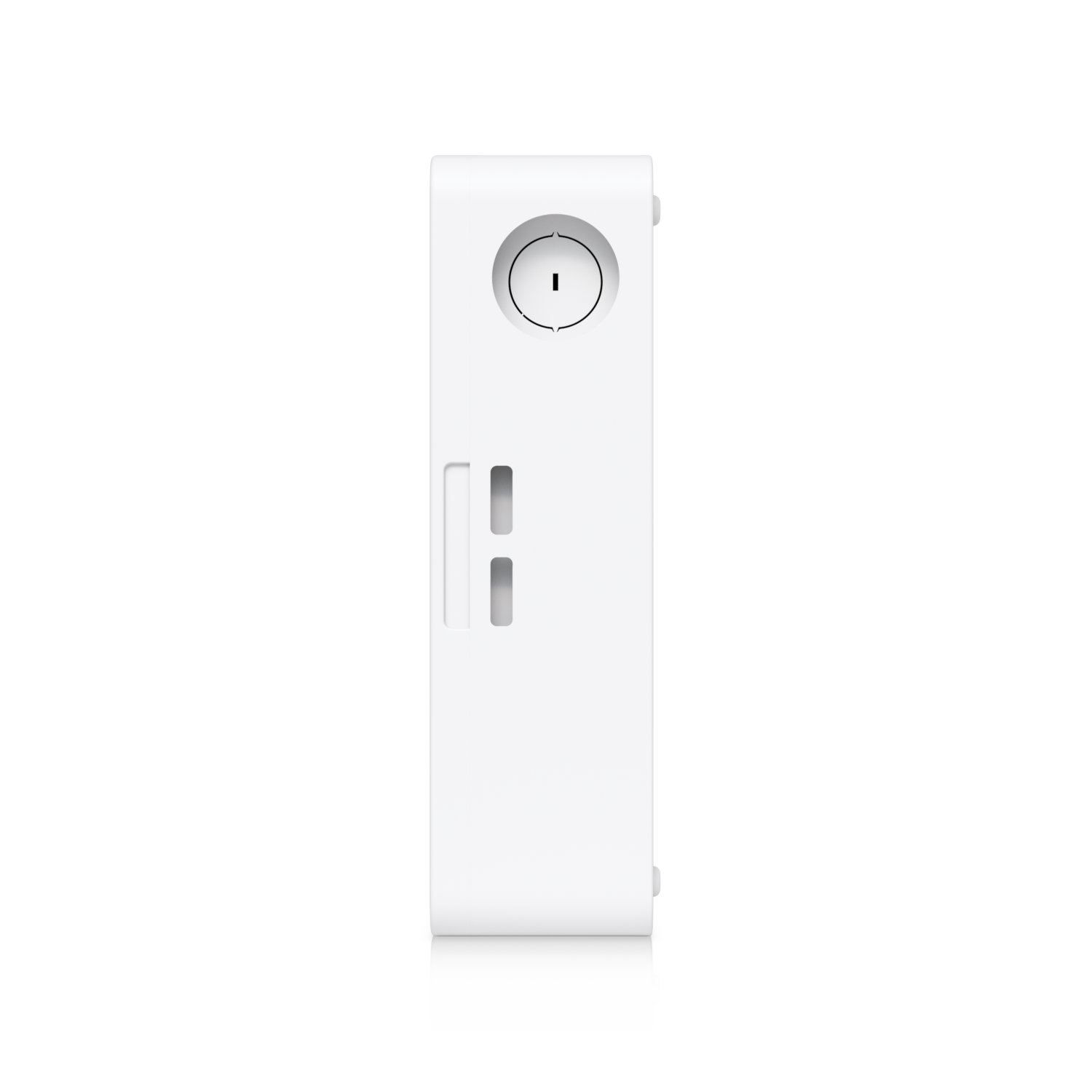

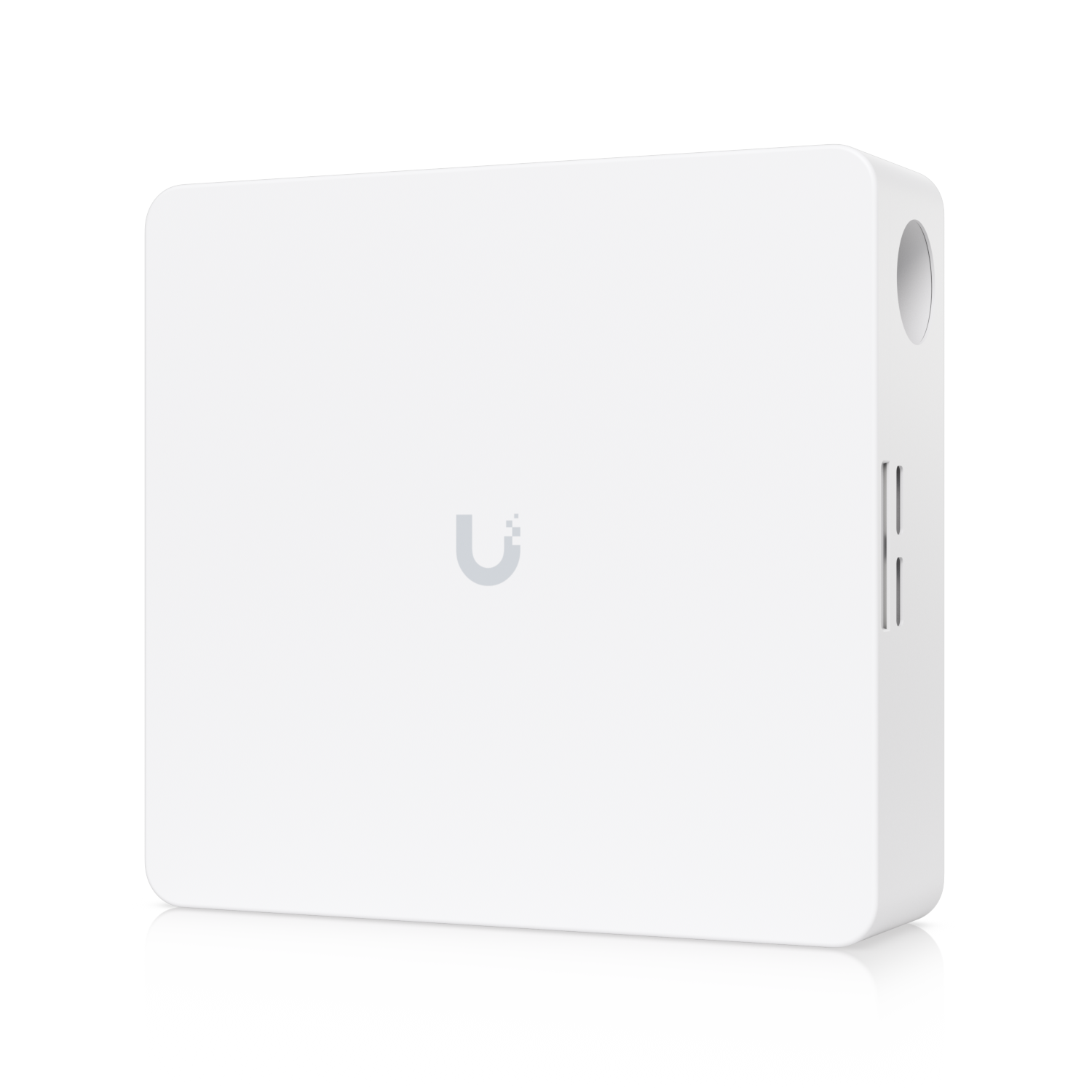

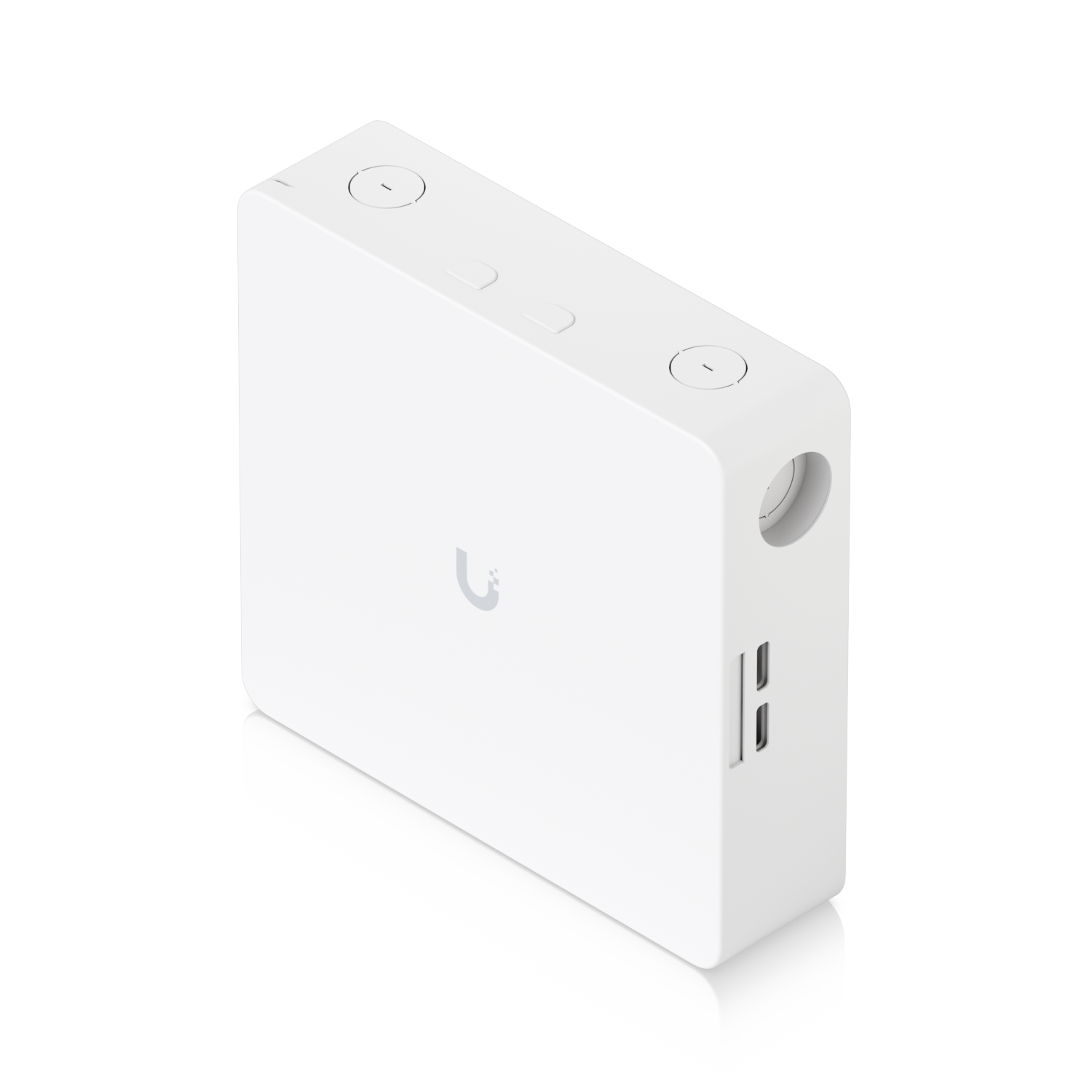

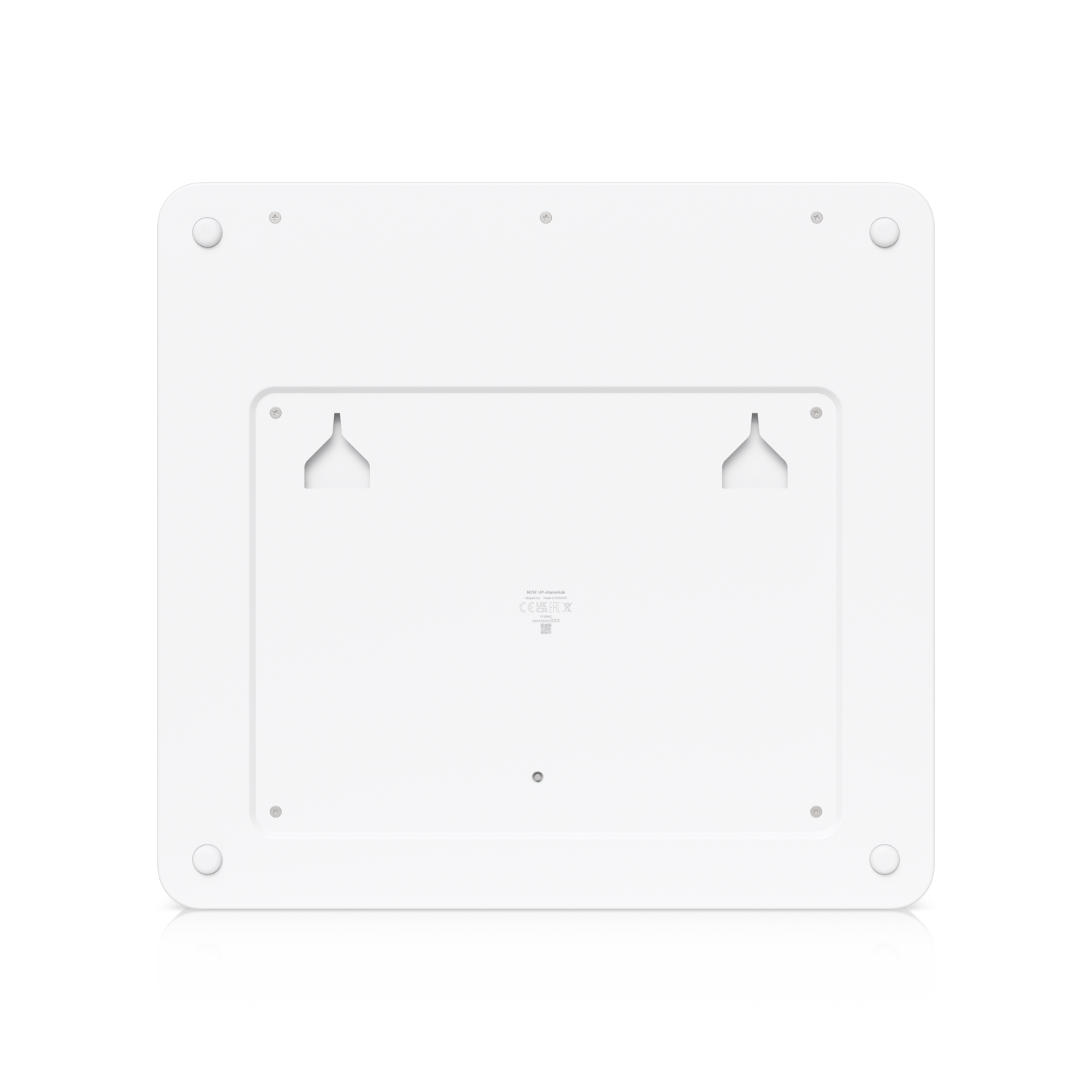

Designed for indoor wall mounting, the enclosure combines an SGCC steel housing with a polycarbonate cover. Central configuration and monitoring are handled through UniFi Protect version 7.0.88 or later. The UP-AlarmHub-Kit therefore provides a flexible platform for integrating and modernising hardwired alarm installations within the UniFi ecosystem.
- 32 inputs for hardwired alarm sensors
- Dedicated input for emergency and panic signalling
- Compatible with 1 to 5.6 kΩ EOL resistors
- Two configurable wet/dry output relays
- Six 12 V DC auxiliary sensor outputs
- Powered through PoE++ or PoE+++ input
- PoE+ output delivering up to 30 W
- Optional 12 V SLA backup battery
- Robust SGCC steel wall-mount enclosure
- Central management through UniFi Protect
The Ubiquiti Alarm Hub Kit UP-AlarmHub-Kit integrates existing or newly installed hardwired intrusion sensors into a centrally managed UniFi Protect environment. Its 32 input zones can connect door contacts, motion detectors, glass-break sensors and other dry-contact or EOL-supervised alarm devices. A dedicated emergency input is available for panic buttons or other priority alarm circuits.
The system is well suited to office buildings, retail premises, educational facilities, warehouses, production areas and other commercial indoor environments. Six 12 V auxiliary outputs provide power for connected sensors, while two configurable wet/dry relays can control external signalling devices or interface with additional security equipment. An optional SLA backup battery helps maintain operation if the primary power supply is interrupted.
The Ubiquiti Alarm Hub Kit is a professional alarm control hub supporting up to 32 hardwired sensor zones. Its inputs are compatible with EOL resistors from 1 to 5.6 kΩ, with 1 kΩ resistors supported for installation. The unit also provides a dedicated emergency input, two selectable wet/dry output relays and six 12 V DC auxiliary outputs for powering connected alarm sensors.
Network connectivity and primary power are supplied through a 10/100 MbE RJ45 interface with PoE++ or PoE+++ input. An additional PoE+ output provides up to 30 W for a compatible network device. Depending on the incoming PoE standard, up to 42 W with PoE++ or 68 W with PoE+++ is available for connected equipment. An optional 12 V SLA battery can be installed to provide backup power.
Designed for indoor wall mounting, the enclosure combines an SGCC steel housing with a polycarbonate cover. Central configuration and monitoring are handled through UniFi Protect version 7.0.88 or later. The UP-AlarmHub-Kit therefore provides a flexible platform for integrating and modernising hardwired alarm installations within the UniFi ecosystem.
