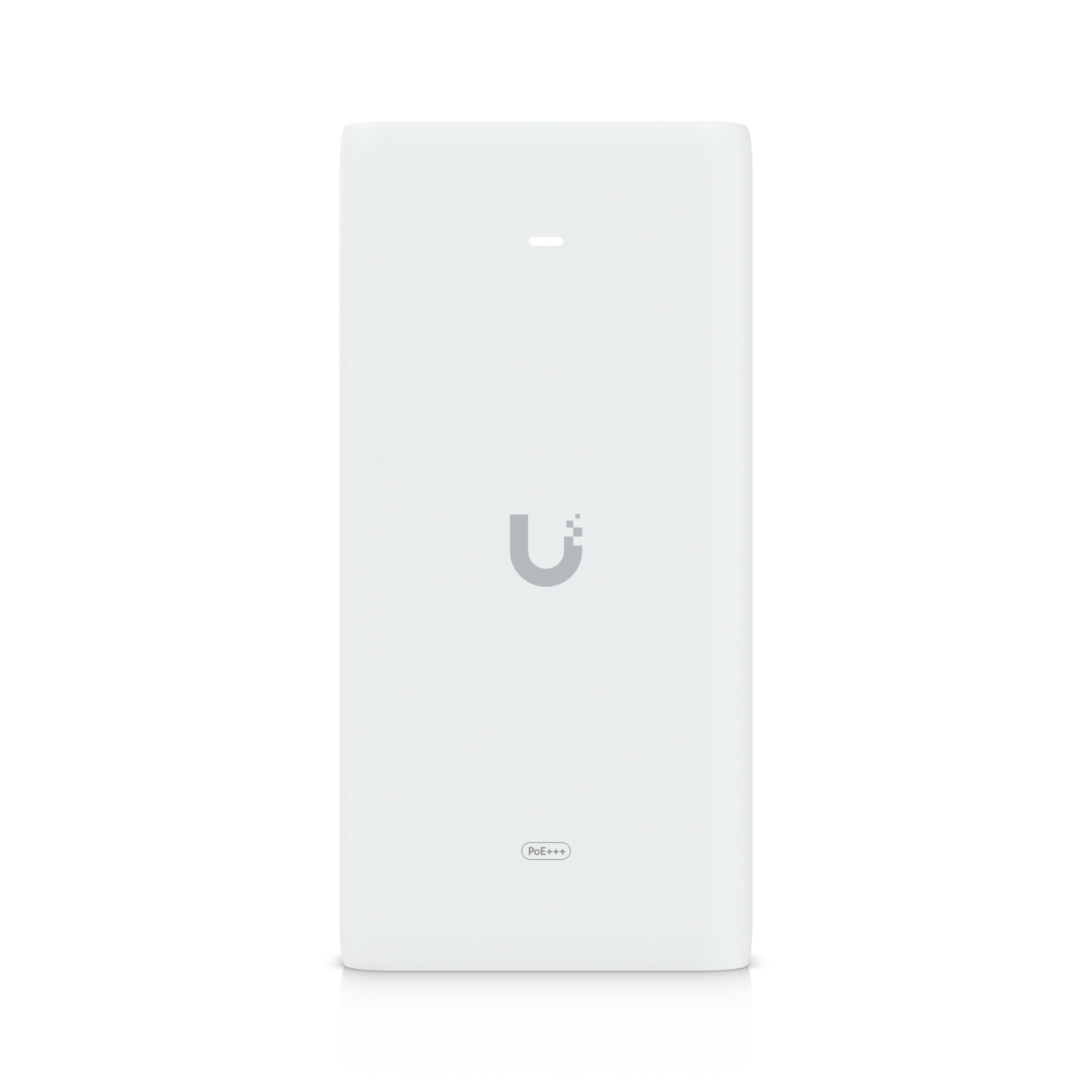

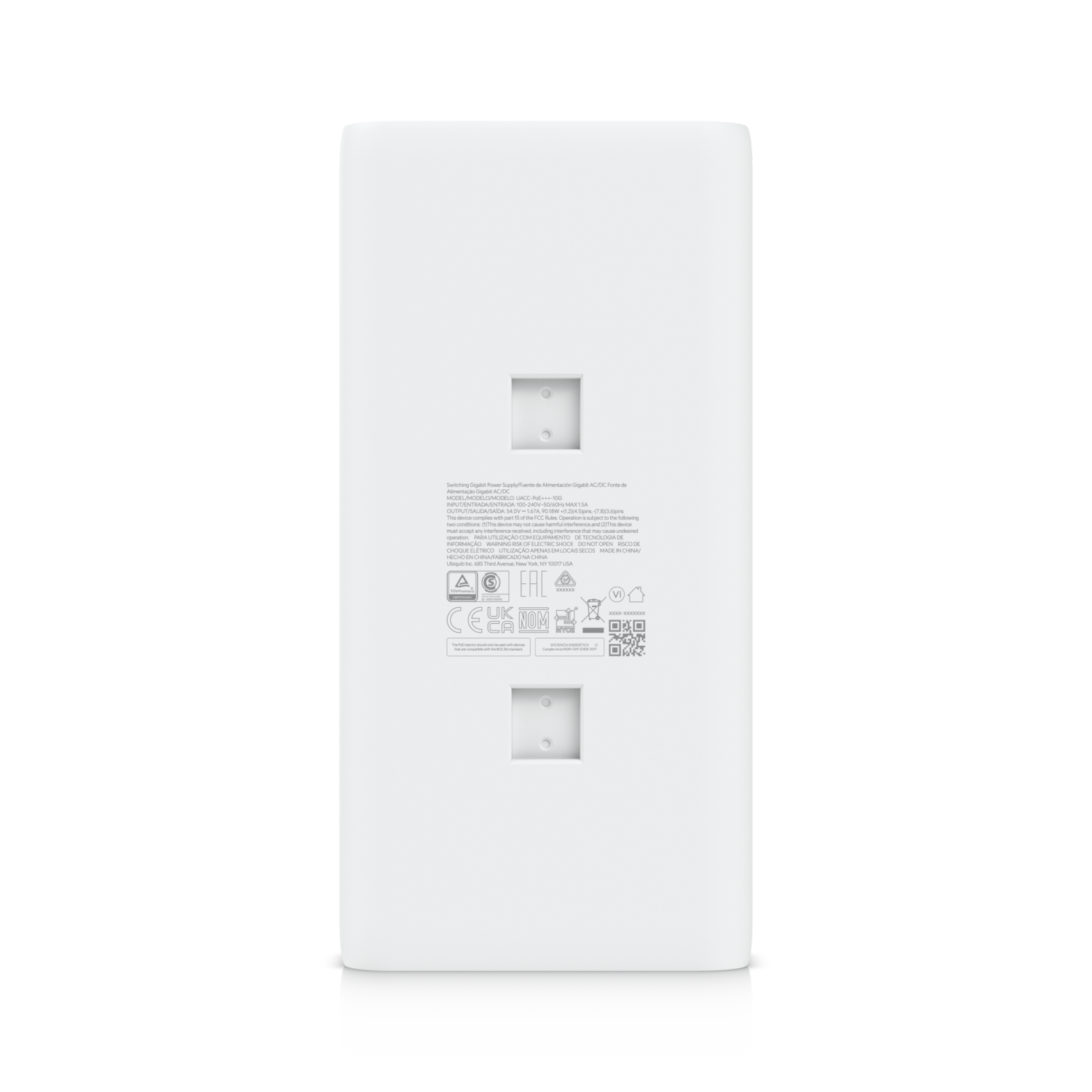

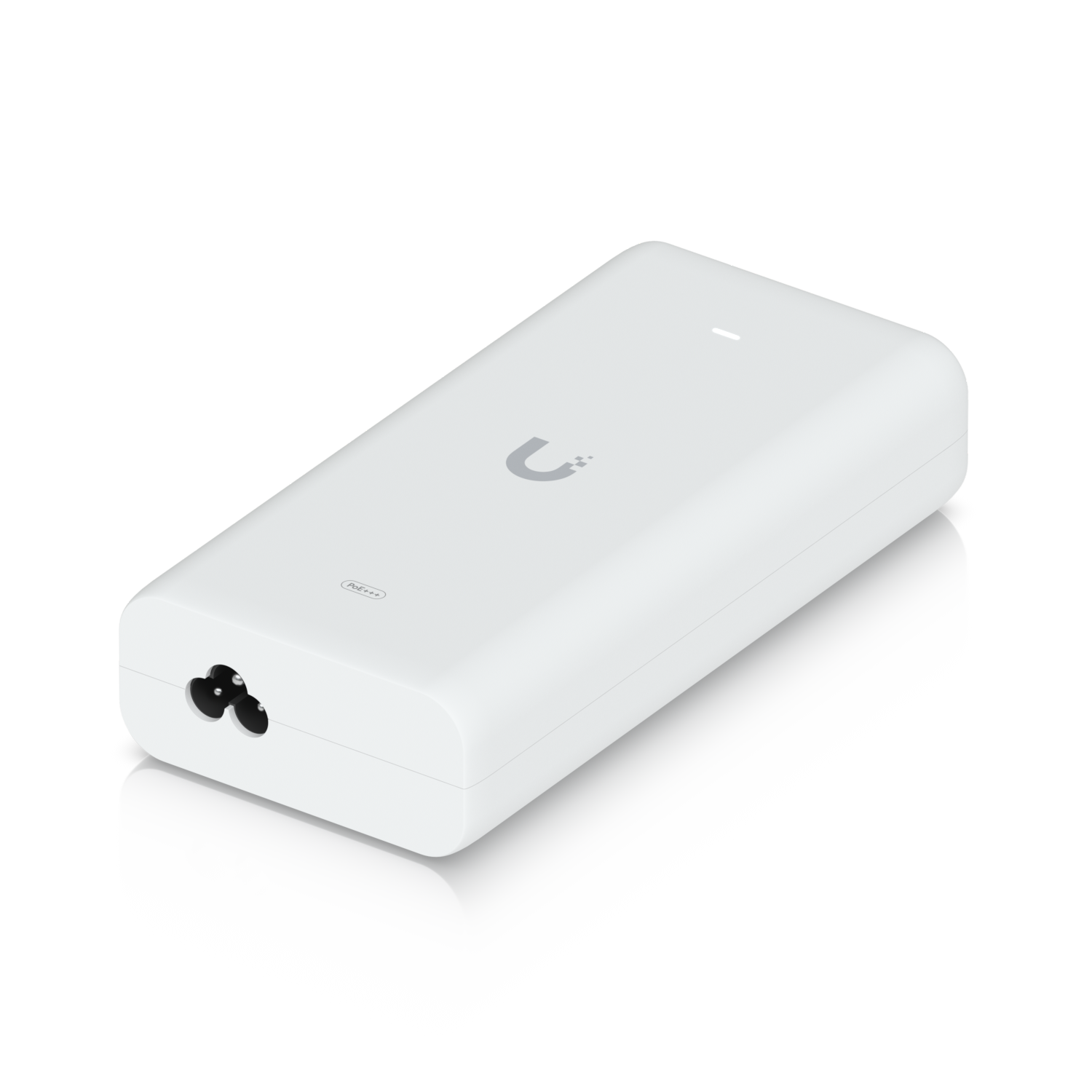

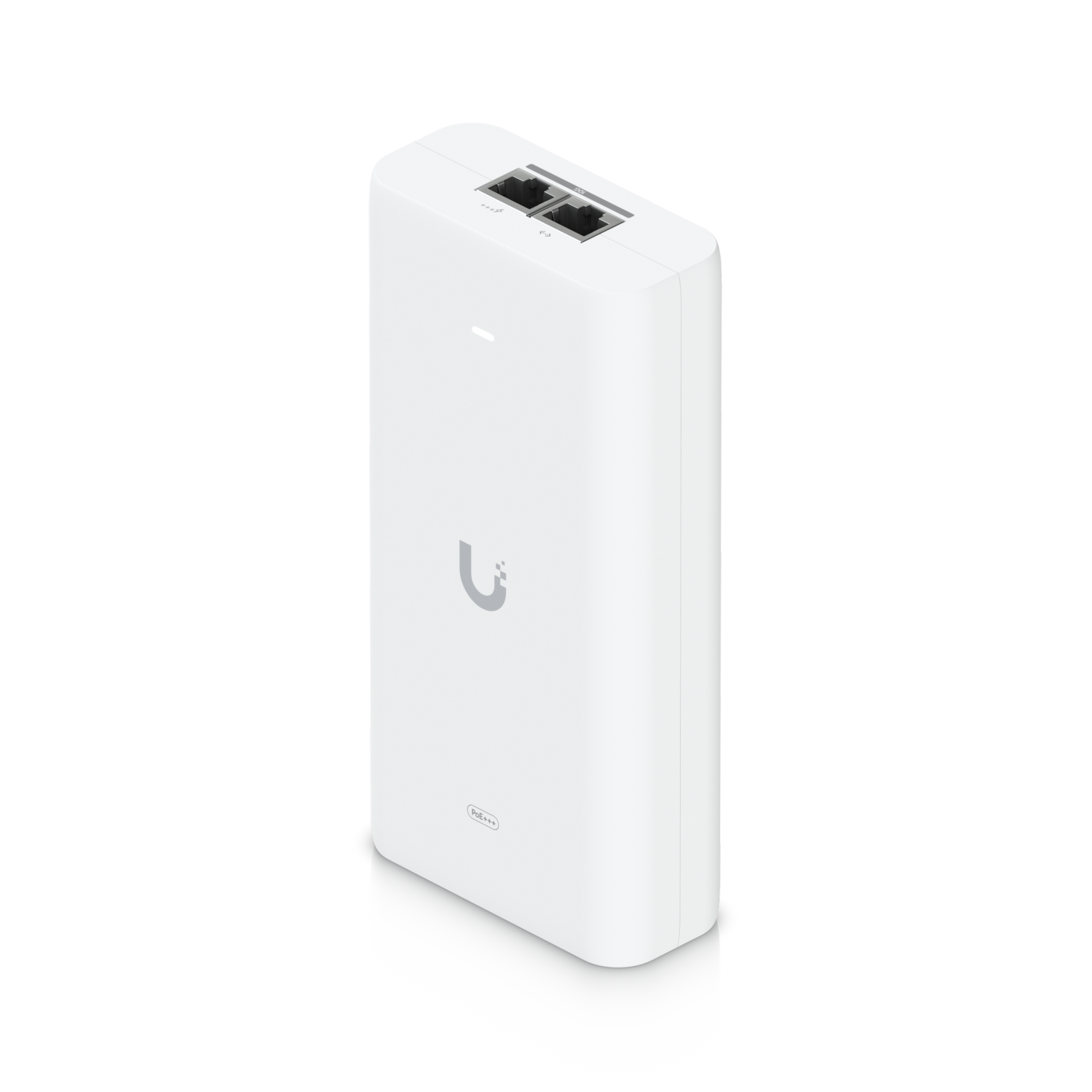

UniFi 10G PoE+++ Adapter (90W)
The Ubiquiti UACC-PoE+++-10G is a high-output PoE injector developed for UniFi devices requiring substantial power and high-speed Ethernet connectivity. It supplies up to 90 W at 54V DC and delivers power across all four twisted pairs. Its shielded RJ45 interfaces simultaneously support Multi-Gigabit data transmission at speeds of up to 10 Gbps.
Integrated protection against surges, peak pulses and overcurrent helps safeguard connected networking equipment. The adapter accepts a universal 100–240V AC input and provides an efficiency rating above 88%. A built-in status LED enables convenient operational monitoring. Wall mounting is supported as standard, while optional accessories enable DIN-rail or floating-mount installation.
PoE+++ adapter delivering up to 90 W
Multi-Gigabit data connectivity at up to 10 Gbps
54V DC output at 1.67 A

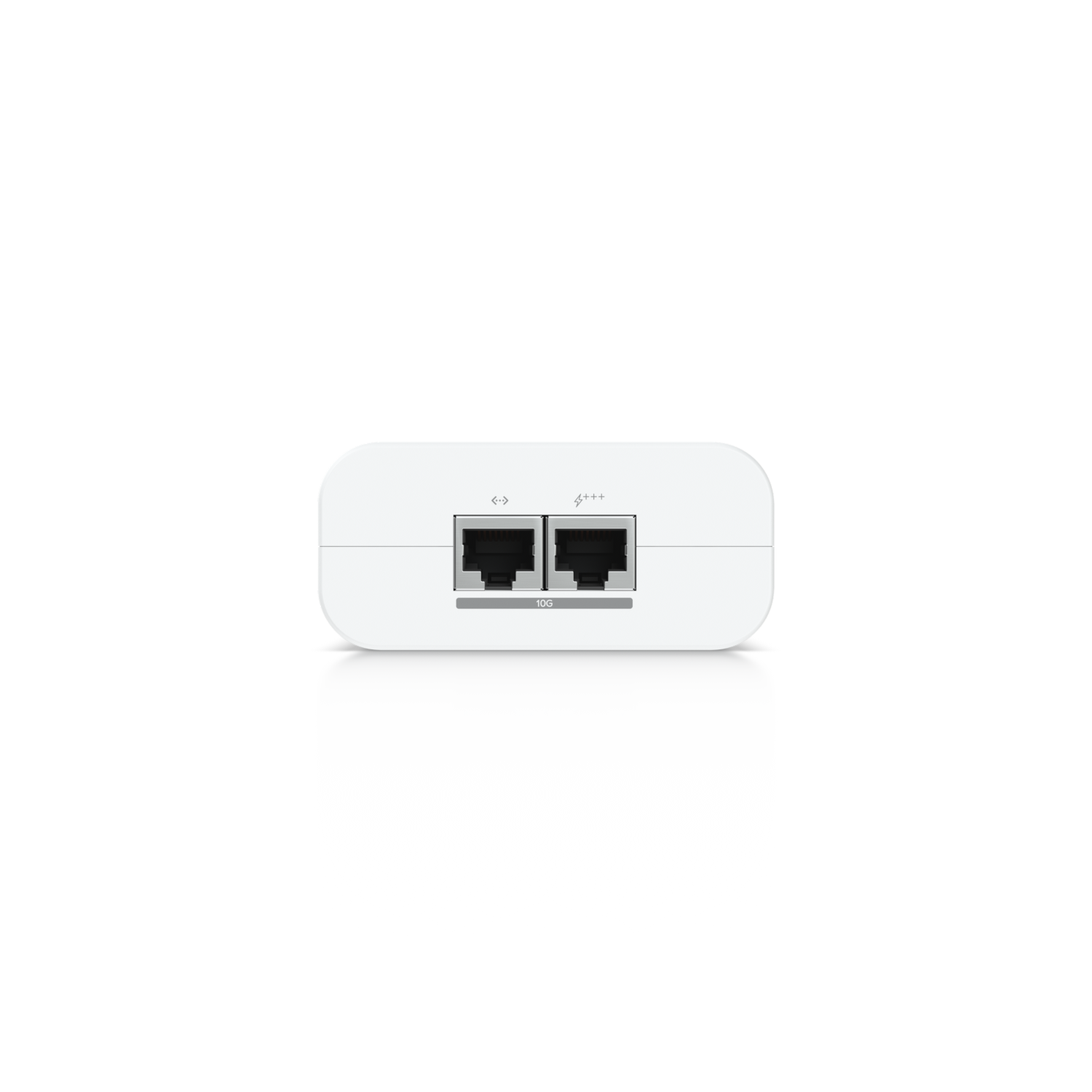

Four-pair powering through shielded RJ45 interfaces
Integrated surge, peak-pulse and overcurrent protection
Status LED for convenient operational monitoring

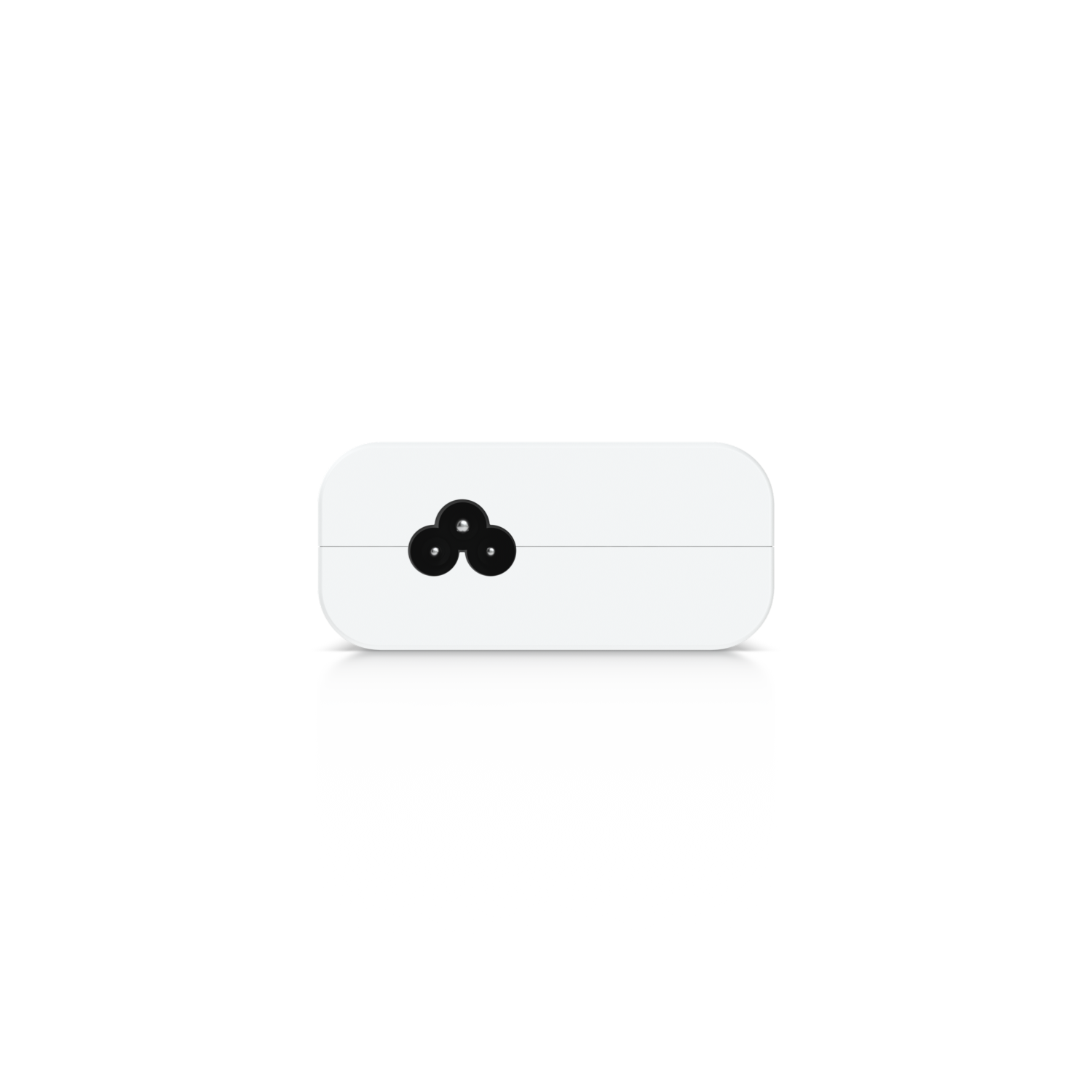

Universal 100–240V AC input range
Standard wall-mount installation support
Optional DIN-rail and floating-mount installation
NDAA compliant with international certifications
PoE+++ adapter delivering up to 90 W
Multi-Gigabit data connectivity at up to 10 Gbps
54V DC output at 1.67 A
Four-pair powering through shielded RJ45 interfaces
Integrated surge, peak-pulse and overcurrent protection
Status LED for convenient operational monitoring
Universal 100–240V AC input range
Standard wall-mount installation support
Optional DIN-rail and floating-mount installation
NDAA compliant with international certifications
The Ubiquiti UACC-PoE+++-10G is a high-output PoE injector developed for UniFi devices requiring substantial power and high-speed Ethernet connectivity. It supplies up to 90 W at 54V DC and delivers power across all four twisted pairs. Its shielded RJ45 interfaces simultaneously support Multi-Gigabit data transmission at speeds of up to 10 Gbps.
Integrated protection against surges, peak pulses and overcurrent helps safeguard connected networking equipment. The adapter accepts a universal 100–240V AC input and provides an efficiency rating above 88%. A built-in status LED enables convenient operational monitoring. Wall mounting is supported as standard, while optional accessories enable DIN-rail or floating-mount installation.
