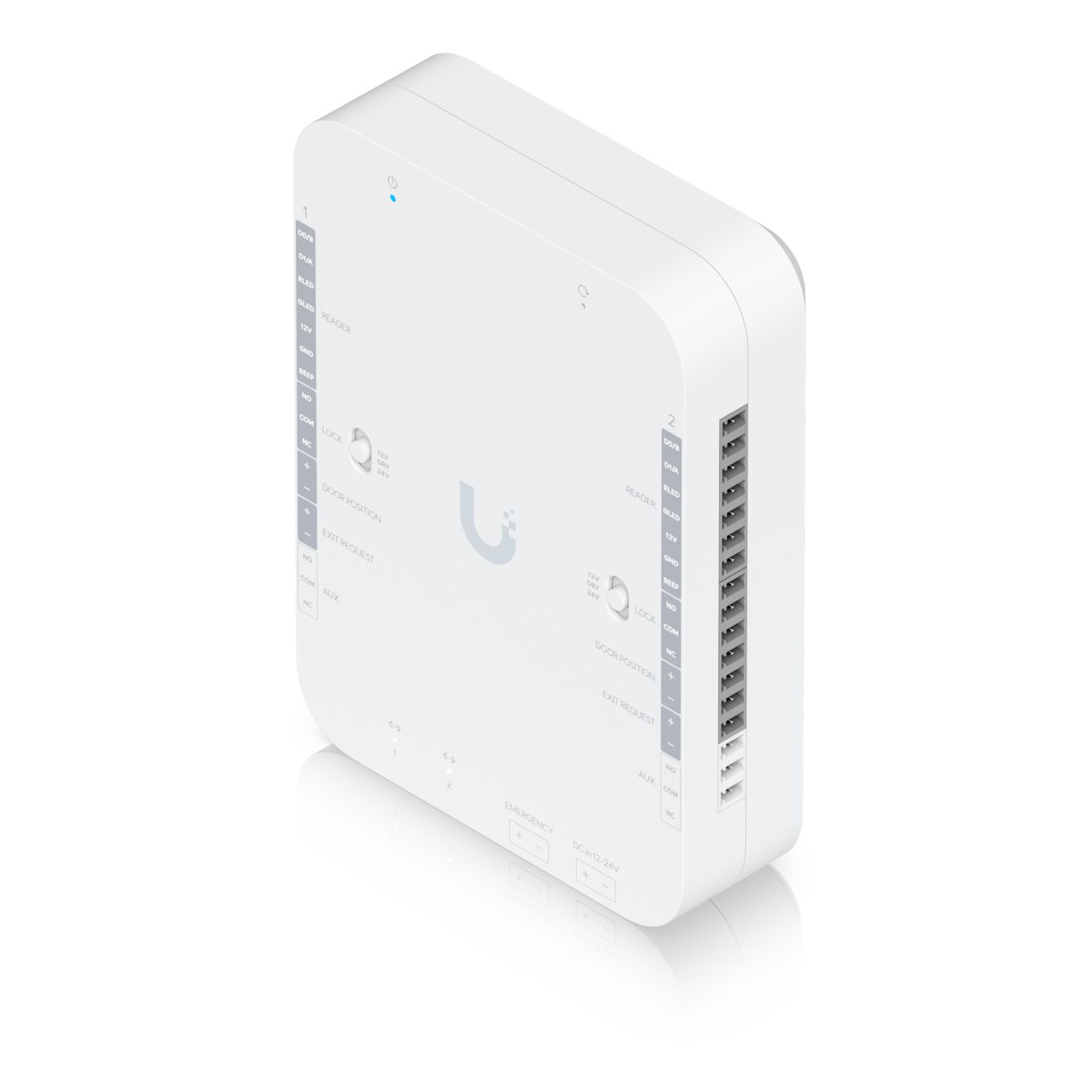

UniFi Retrofit Hub
DC-powered hub that supports Wiegand and OSDP readers and provides entry and exit control for up to two doors.
Available stock:
Article number:
UA-RETROFIT-HUB-2
Manufacturer number:
UA-RETROFIT-HUB-2
Manufacturer page:
UBIQUITI
EAN:
0810177161677
- For project prizes please fill in the following form:
- Link: https://bit.ly/3y7vq1u
- Link: https://bit.ly/3y7vq1u

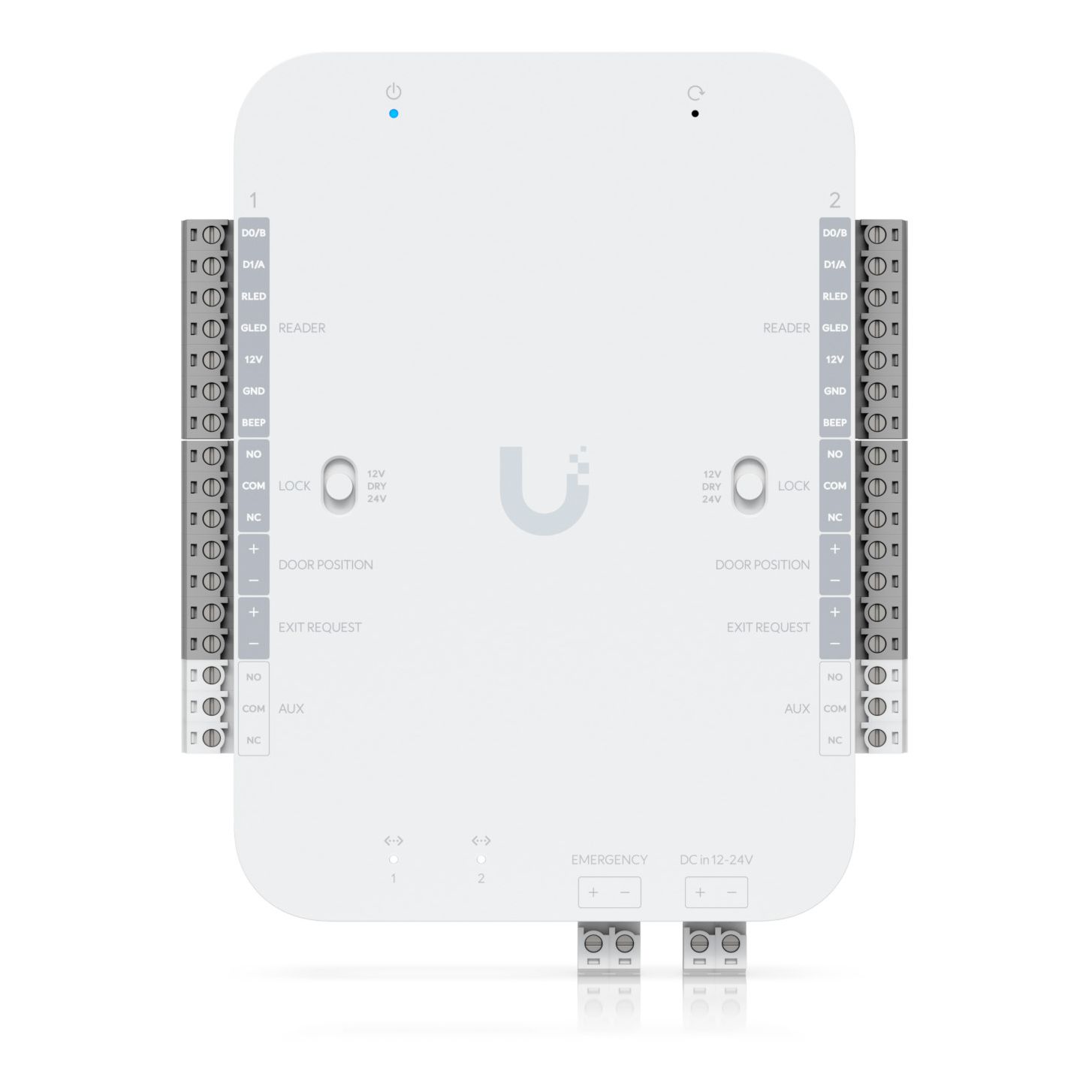

- Access control hub for up to 2 doors with complete entry/exit management (per door entrance + exit)
- Supports Wiegand & OSDP reader interfaces – compatible with third-party readers and UniFi Retrofit Readers
- DC operation 12–24 V (no PoE) with max. 50 W power consumption

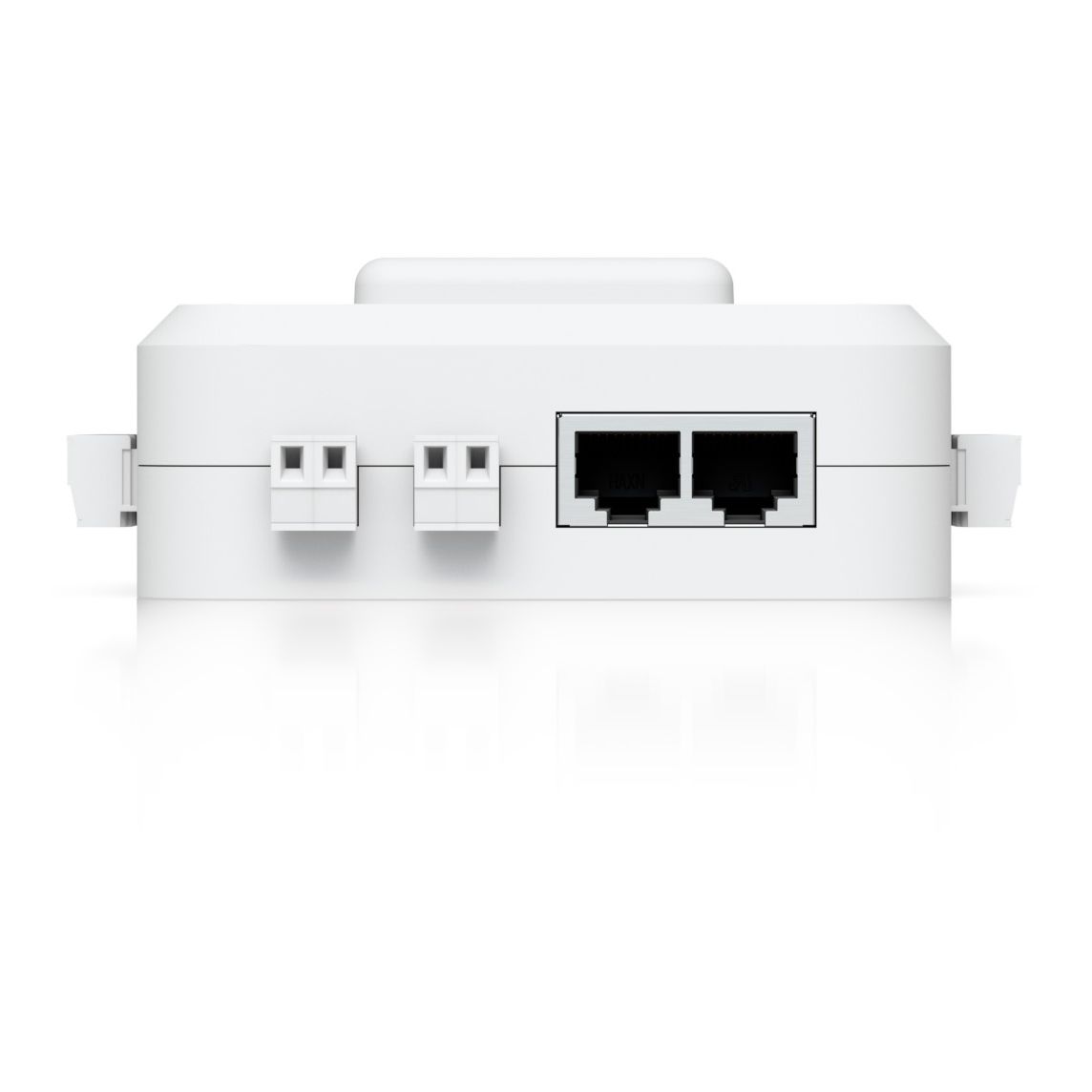

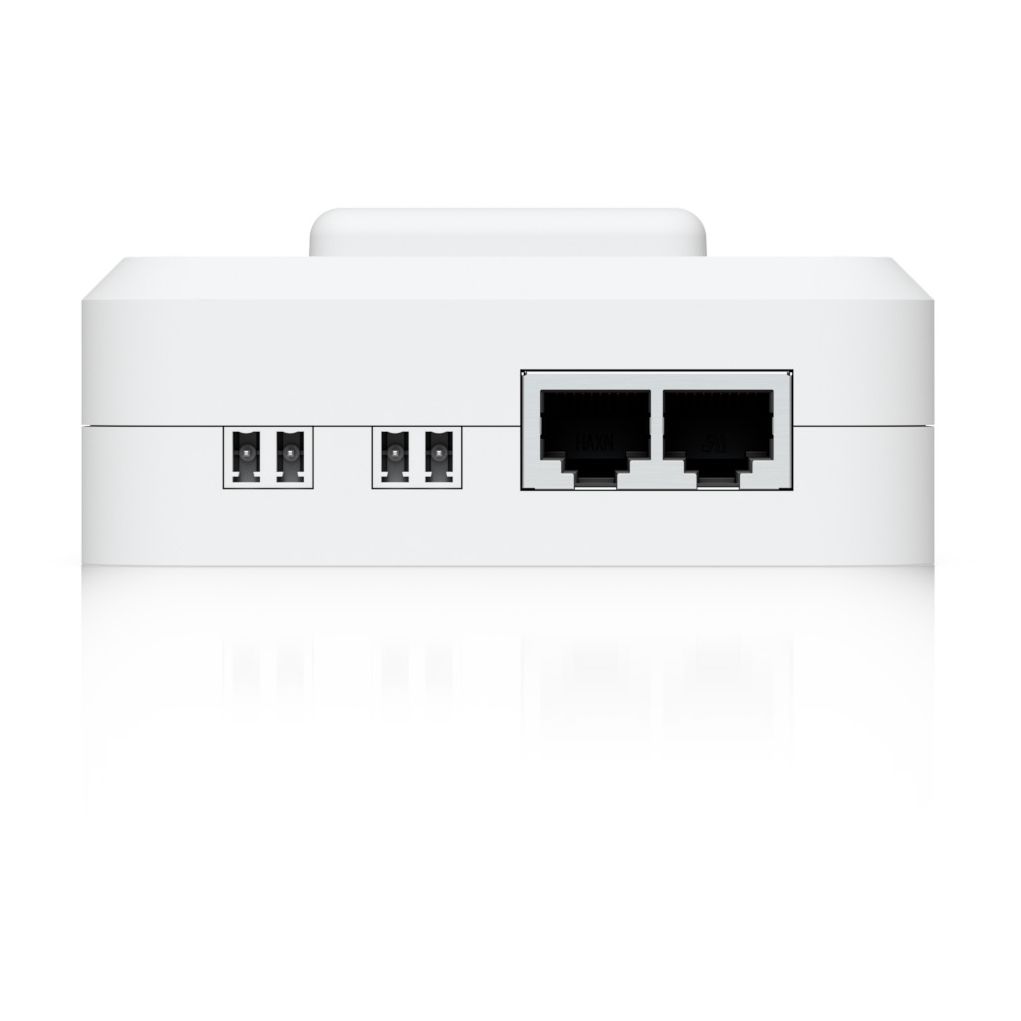

- 2x 10/100 MbE RJ45 for network backhaul and controller connection
- Inputs: Door position sensors, Request-to-Exit (REX), Emergency Alarm
- Relay outputs: Lock & AUX (NO/NC, up to 30 V DC, 1 A) with selectable mode 12 V / Dry / 24 V

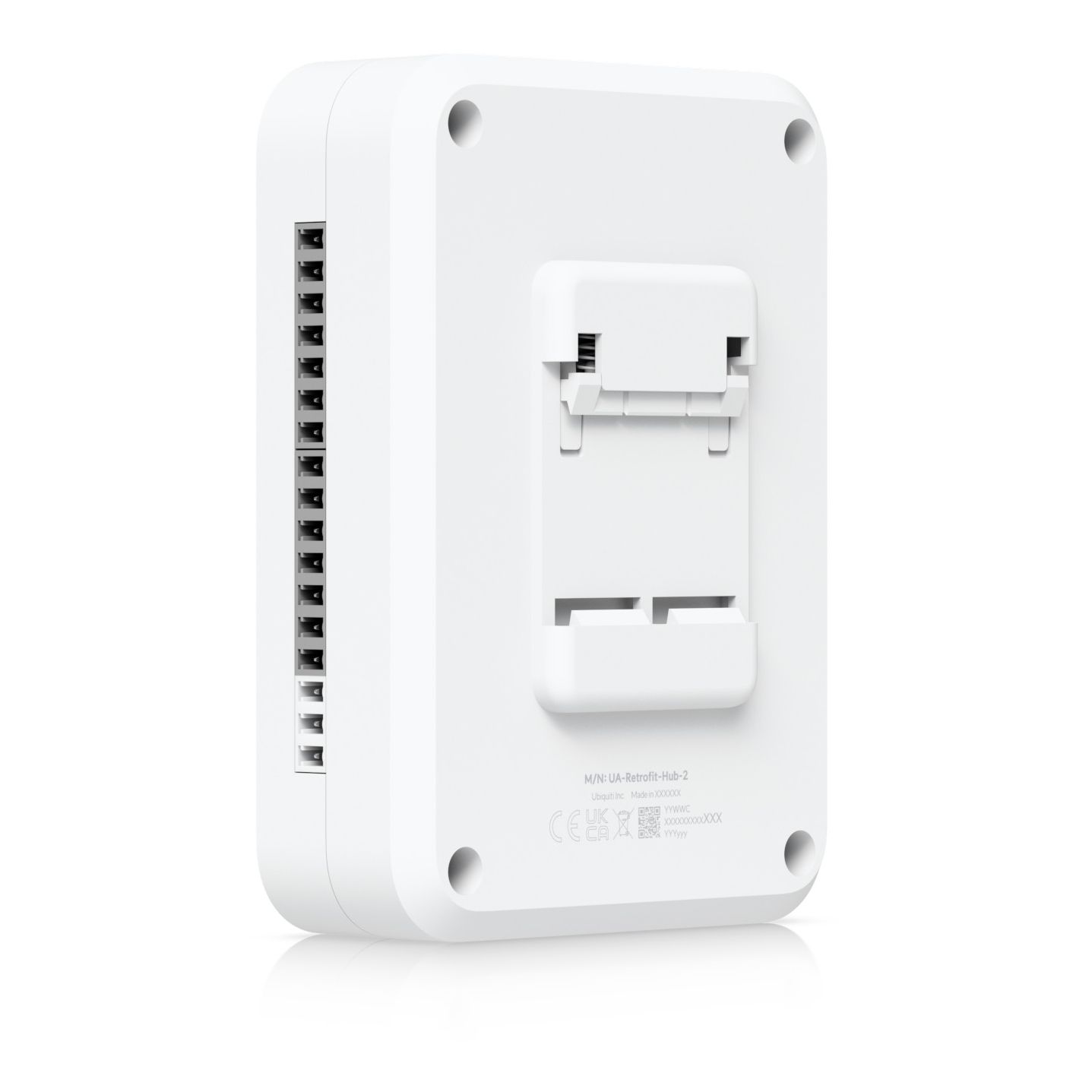

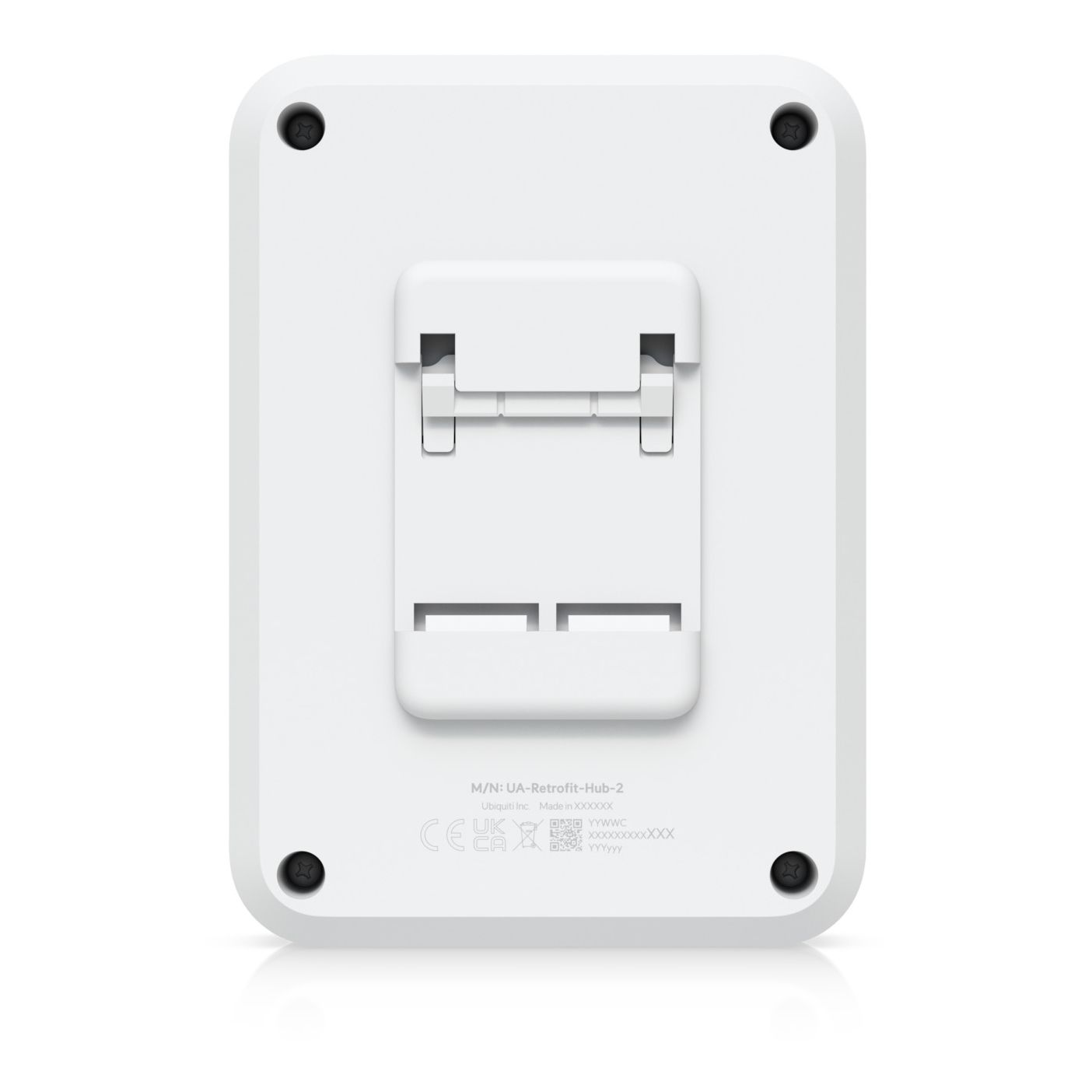

Max. number of users: up to 10,000 users (UniFi Access System) - DIN rail mounting incl. bracket for neat installation in the control cabinet
- Status LED & reset button for easy commissioning on site
- Indoor use with operating temperature –10 °C to 40 °C
- Central management via UniFi Access (UniFi OS) for door logic, schedules, and authorizations
DC-powered hub that supports Wiegand and OSDP readers and provides entry and exit control for up to two doors.
Technical properties
100 MBit Ports:
2
Application Field:
Indoor
Case material:
Polycarbonate
Certificate:
CE, FCC, IC
Dimensions:
2
Enterprise Product:
Yes
Input digital:
2x Third-party Wiegand Reader / UniFi Retrofit Reader, 2x Door exit request, 2x Door position, 1 ...
Mounting:
DIN-Rail
Operating Conditions:
-10°C - +40°C
Operating Humidity:
5 - 90%, non-condensing
Power Consumption max.:
50 W
Power Supply:
12 VDC, 24 VDC
