UniFi Access Magnetic Lock, 270kg

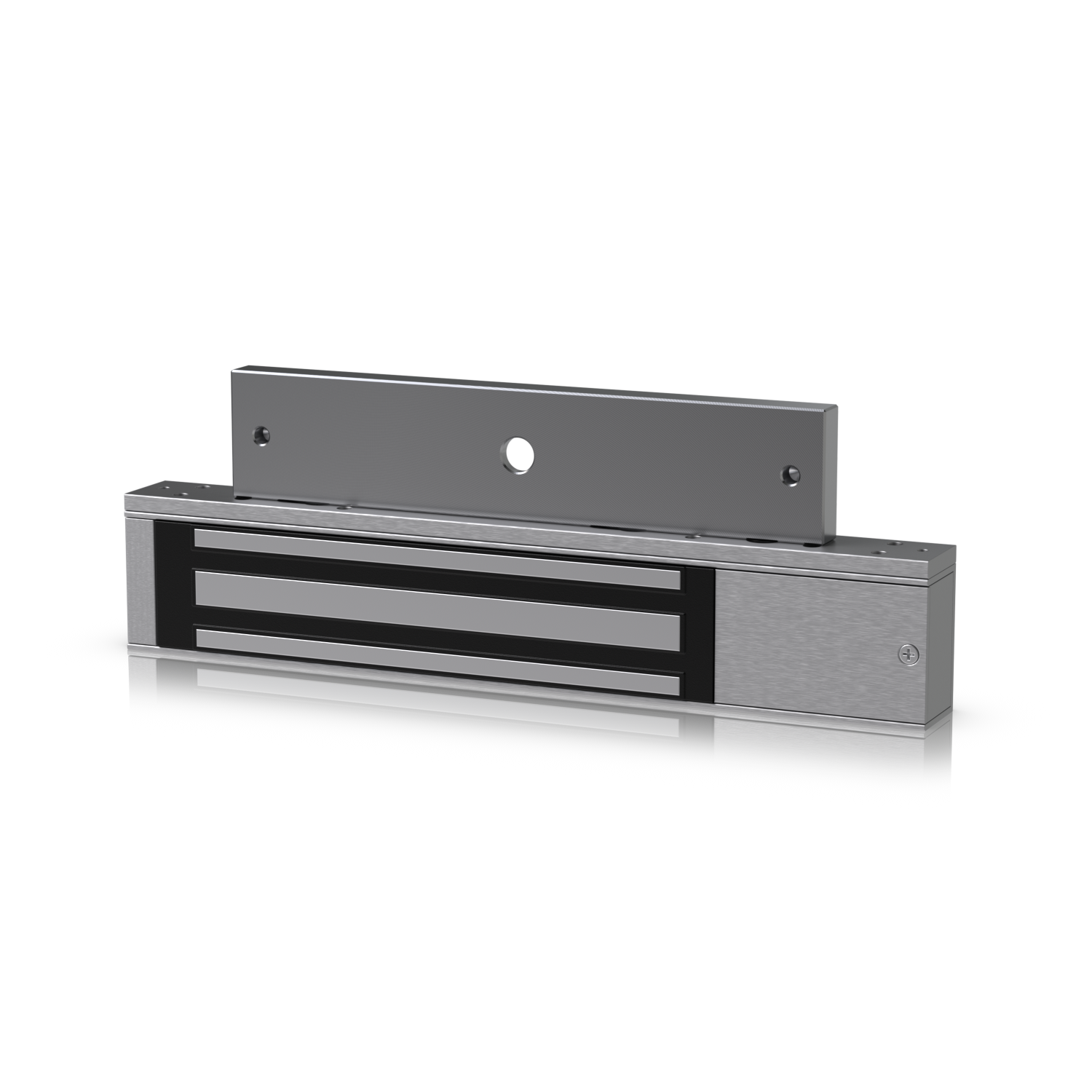

The Ubiquiti UACC-Lock-Magnetic-270kg is a fail-safe electromagnetic door lock developed for professional UniFi Access deployments. When powered, the magnetic lock generates up to 270 kg of holding force, securing the door through the lock body and the steel armature plate attached to the door. In accordance with its fail-safe design, the lock releases when power is removed.
The unit operates at 12V DC and draws 800mA ±10%. Four connection wires provide lock control and connectivity for the integrated door position sensor. A built-in LED indicates the current lock state, displaying red when locked and green when unlocked.

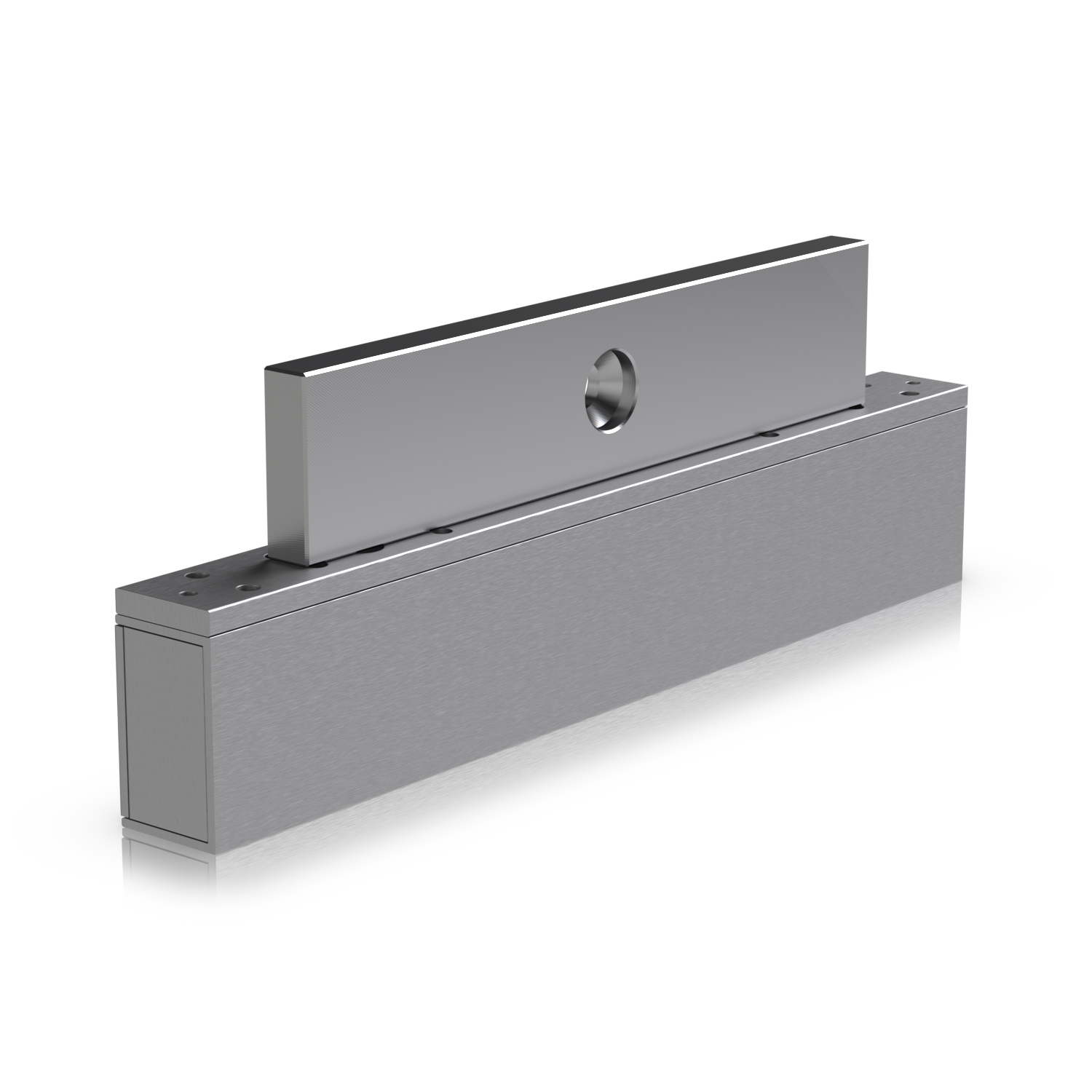

The aluminium lock body measures 250 × 42.5 × 26 mm and weighs 1 kg. Its 600 g steel armature measures 185.5 × 38.5 × 11 mm. The magnetic lock supports wooden, metal and glass doors, with compatible L, Z and U brackets covering different installation and door-opening configurations.
- Fail-safe magnetic lock for controlled UniFi Access installations
- High electromagnetic holding force up to 270 kg
- Suitable for wooden, metal and full-glass doors
- Supports inward- and outward-opening single doors
- Integrated door position sensor for status monitoring
- LED indication for locked and unlocked status
- Operates at 12V DC with 800mA current
- Aluminium lock body and mounting brackets
- Robust steel armature plate
- Operating temperature range from −10 to 60 °C
The Ubiquiti UACC-Lock-Magnetic-270kg is designed for electromagnetic locking of access-controlled single doors in offices, educational facilities, commercial properties and other professional buildings. It supports wooden, metal and full-glass doors and can be configured for inward- or outward-opening installations using the appropriate mounting bracket.
The lock connects to a compatible UniFi Access Hub for power, switching and door-status monitoring. Its integrated door position sensor enables the access-control system to detect whether the door is open or closed. A suitable U bracket is required for full-glass doors, while L and Z brackets support additional door configurations and opening directions.
The UACC-Lock-Magnetic-270kg uses a fail-safe locking mechanism, incorporates a door position sensor and connects to a compatible UniFi Access Hub.
The Ubiquiti UACC-Lock-Magnetic-270kg is a fail-safe electromagnetic door lock developed for professional UniFi Access deployments. When powered, the magnetic lock generates up to 270 kg of holding force, securing the door through the lock body and the steel armature plate attached to the door. In accordance with its fail-safe design, the lock releases when power is removed.
The unit operates at 12V DC and draws 800mA ±10%. Four connection wires provide lock control and connectivity for the integrated door position sensor. A built-in LED indicates the current lock state, displaying red when locked and green when unlocked.
The aluminium lock body measures 250 × 42.5 × 26 mm and weighs 1 kg. Its 600 g steel armature measures 185.5 × 38.5 × 11 mm. The magnetic lock supports wooden, metal and glass doors, with compatible L, Z and U brackets covering different installation and door-opening configurations.
