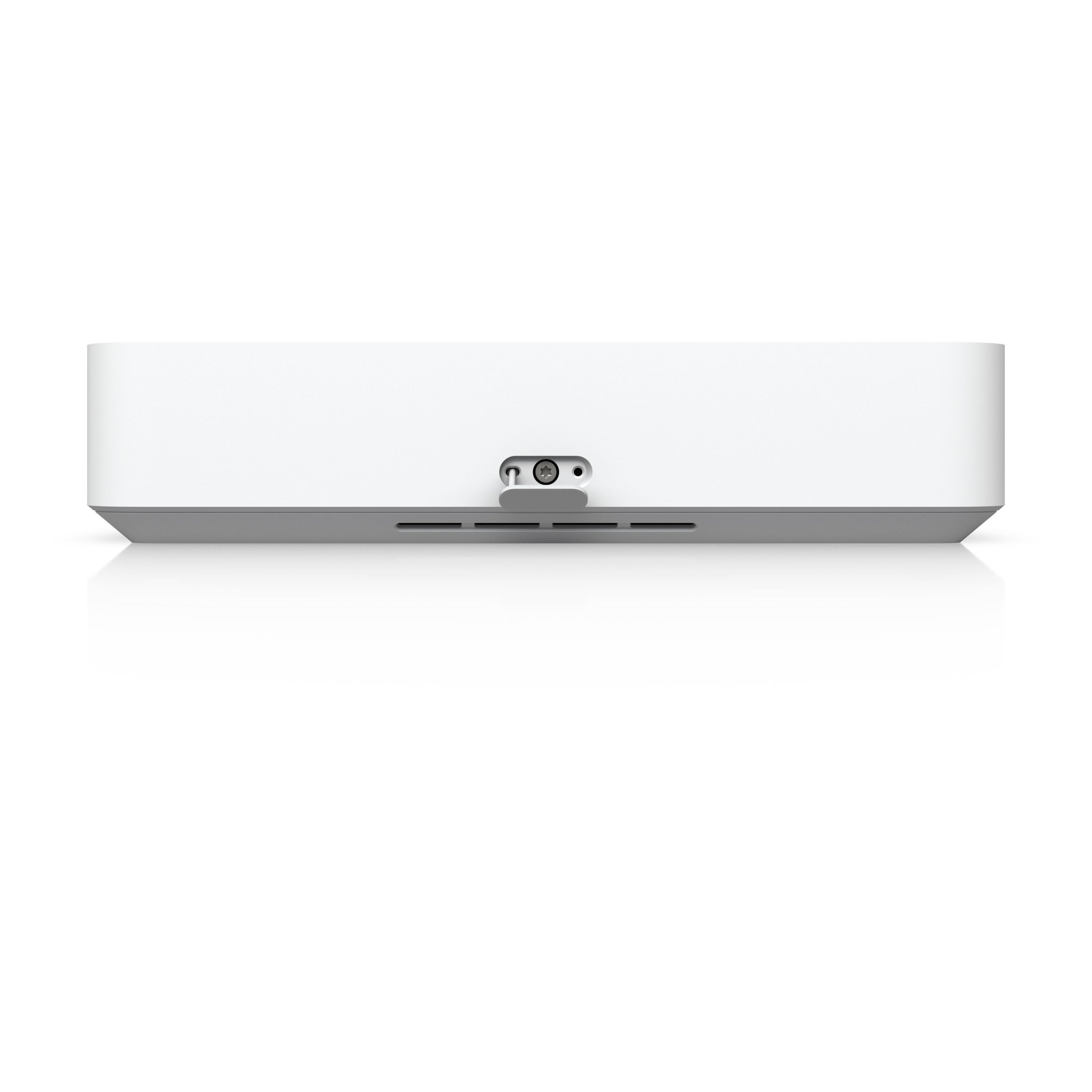

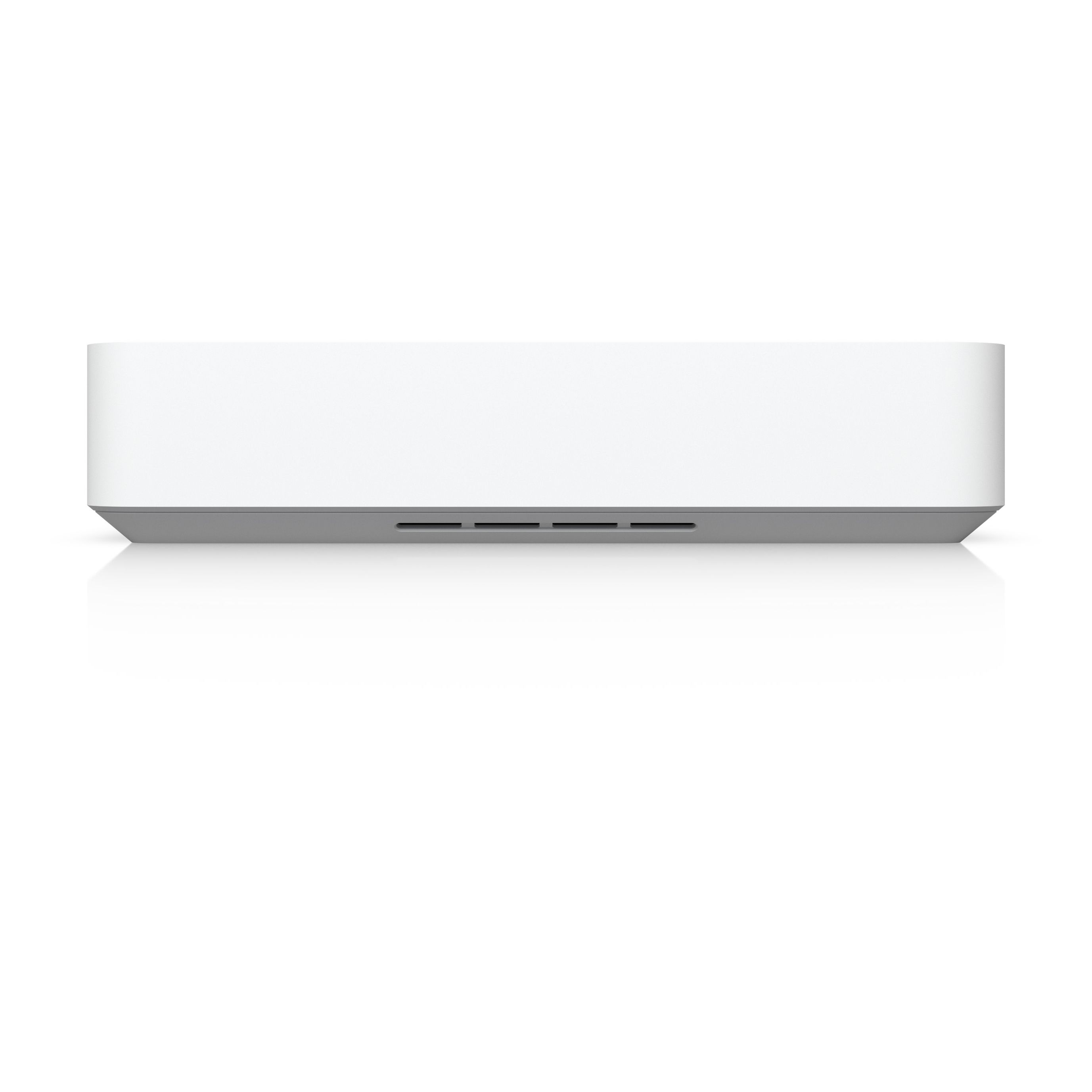

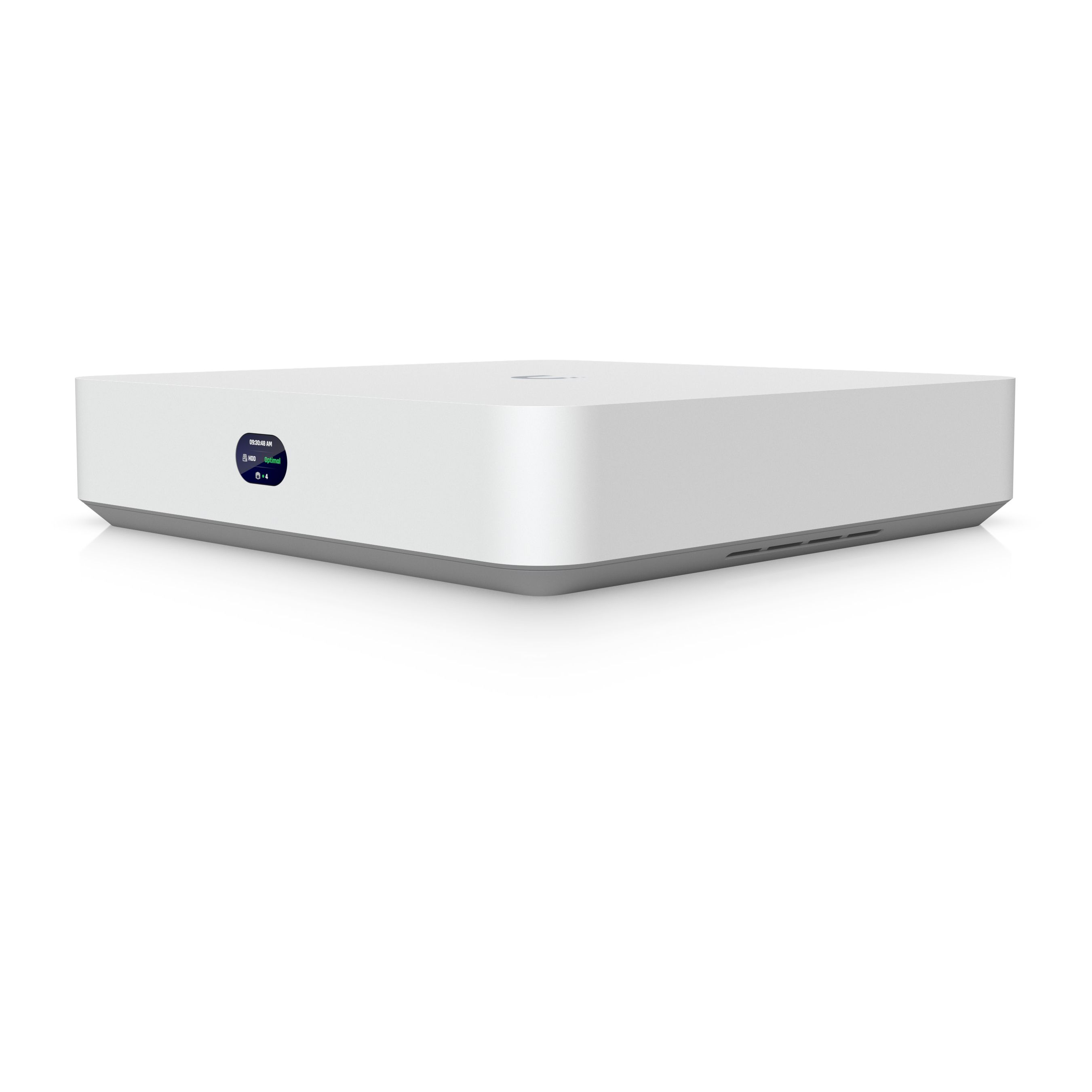

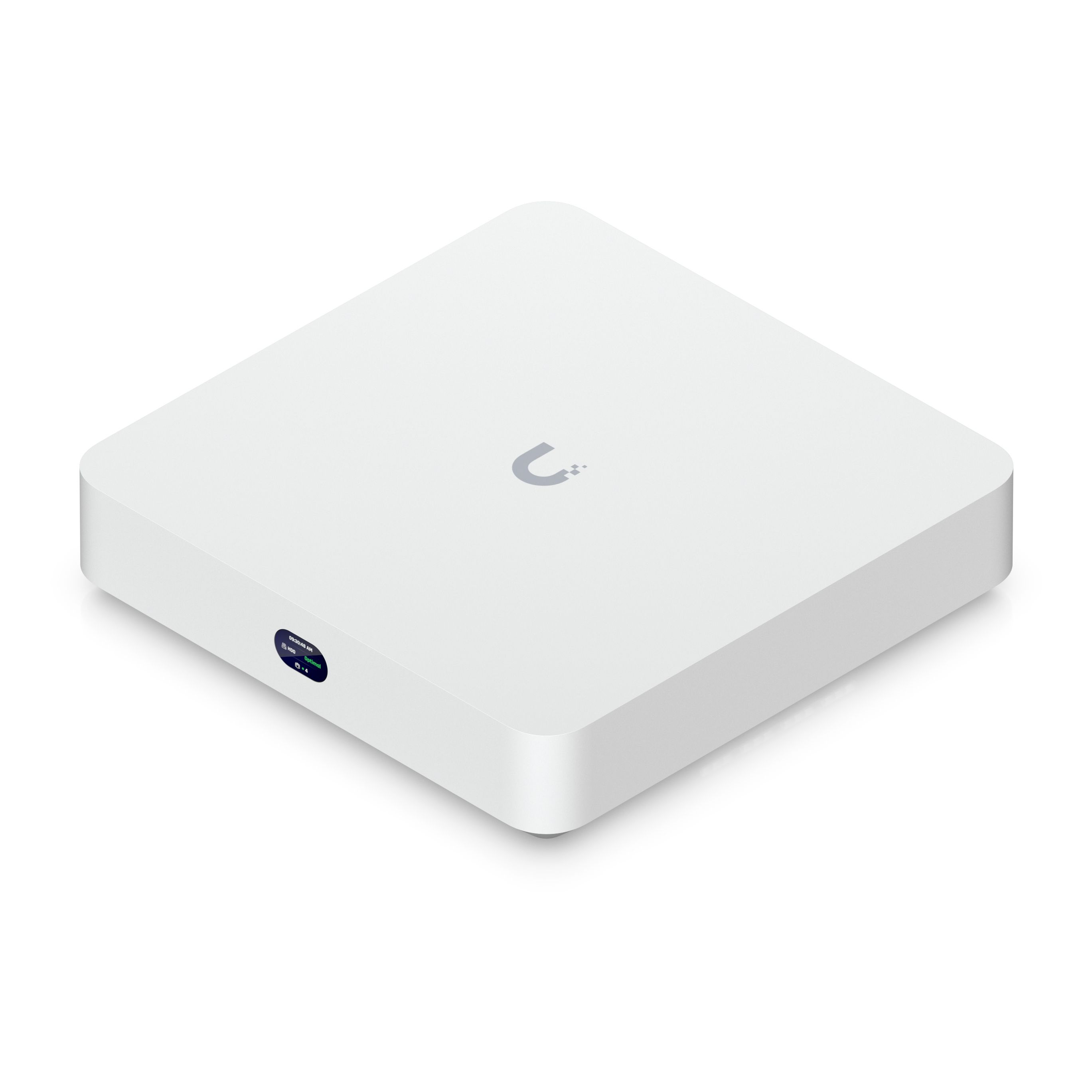

UniFi Protect Compact Network Video Rekorder Instant

Compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for 6x 4K cameras or 15x Full HD cameras.

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
Stk
Available stock:
Article number: UNVR-INSTANT
Manufacturer number: UNVR-INSTANT
Manufacturer page: UBIQUITI
EAN: 0810177163633

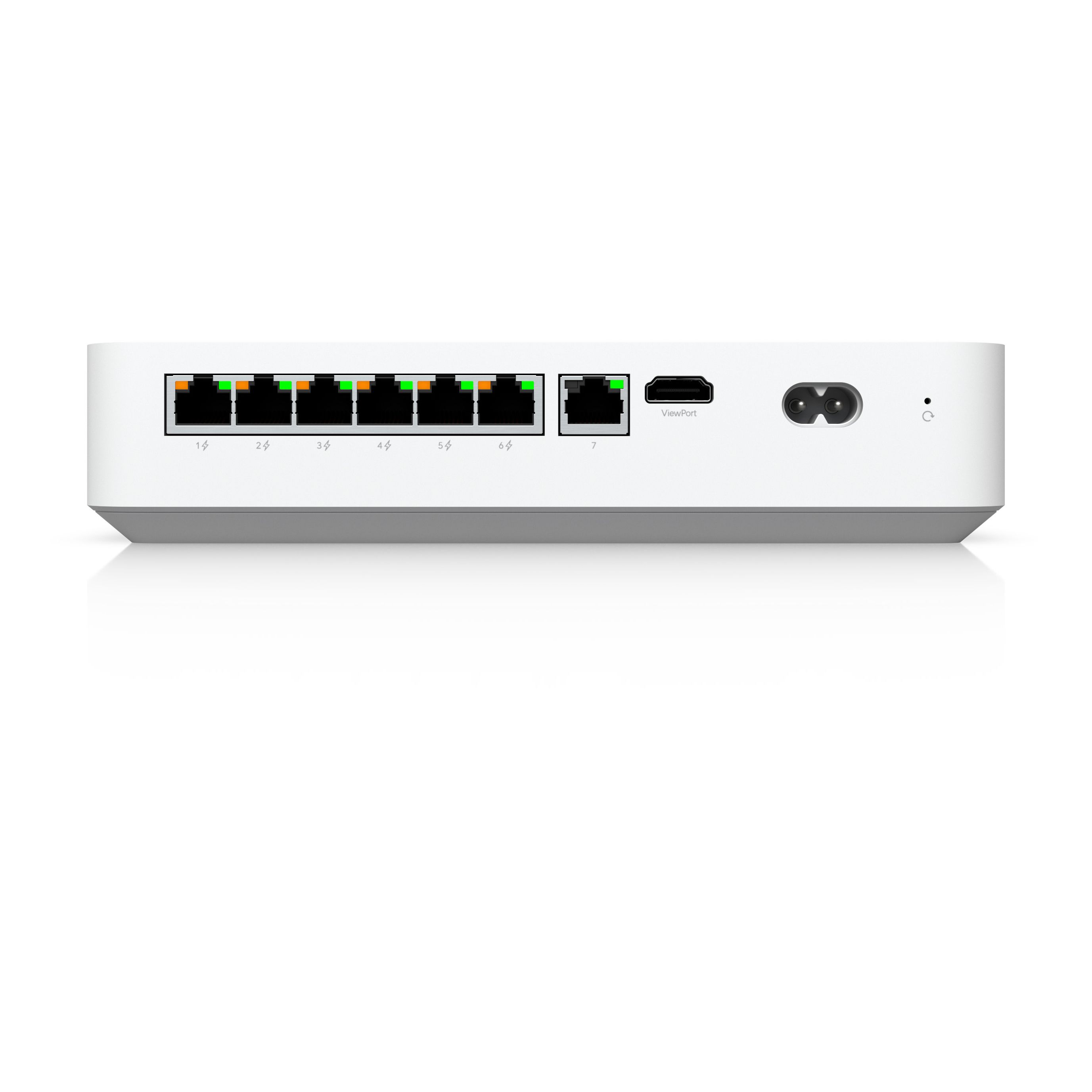

  • Integrated 6-port PoE switch
  • HDMI ViewPort output for direct monitoring
  • Support for up to 6x 4K cameras (or 8x 2K or 15x HD)
  • 1x 3.5″ HDD slot
  • Quad-core ARM Cortex-A55 processor @ 1.7 GHz & 4 GB RAM
  • Compact form factor & desktop design with wall and DIN rail mounting
  • Total PoE budget of 40 W, max. 15.4 W per port
  • Low power consumption (approx. 9 W)
  • Local storage & no licensing requirements (no additional software licenses required)
  • NDAA compliant and common certifications (CE, FCC, IC)

Compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for 6x 4K cameras or 15x Full HD cameras.

Technical properties
1 GBit Ports:
7
Basic Management Interfaces:
Ethernet, Bluetooth
Bluetooth:
Yes
CPU:
Quad-core ARM® Cortex®-A55 @ 1.7 GHz
Camera Channel:
15x HD, 8x 2K, 6x 4K
Case material:
Polycarbonate
Certificate:
FCC, IC, CE, Electrical Safety
Dimensions:
220 x 220 x 47 mm
Display Size:
1.14"
Form Factor:
Desktop
HDMI Video Out:
1
Hard Disk Support:
1 x 3.5” SATA
Hard Drive max.:
1
IP Channels:
15
Mounting:
Wall mountable, DIN Rail
Operating Conditions:
0°C - +40°C
Operating Humidity:
5 - 95%, non-condensing
PoE Power Budget:
40 W
PoE out:
6
Power Consumption:
9.0 W
Power Supply:
100 - 240V AC, 1.5A
Power Supply:
external
Product Line:
Unifi Protect
SATA Ports:
1
Size of RAM:
4 GB
max. Power consumption per Port, PoE:
15.4 W
