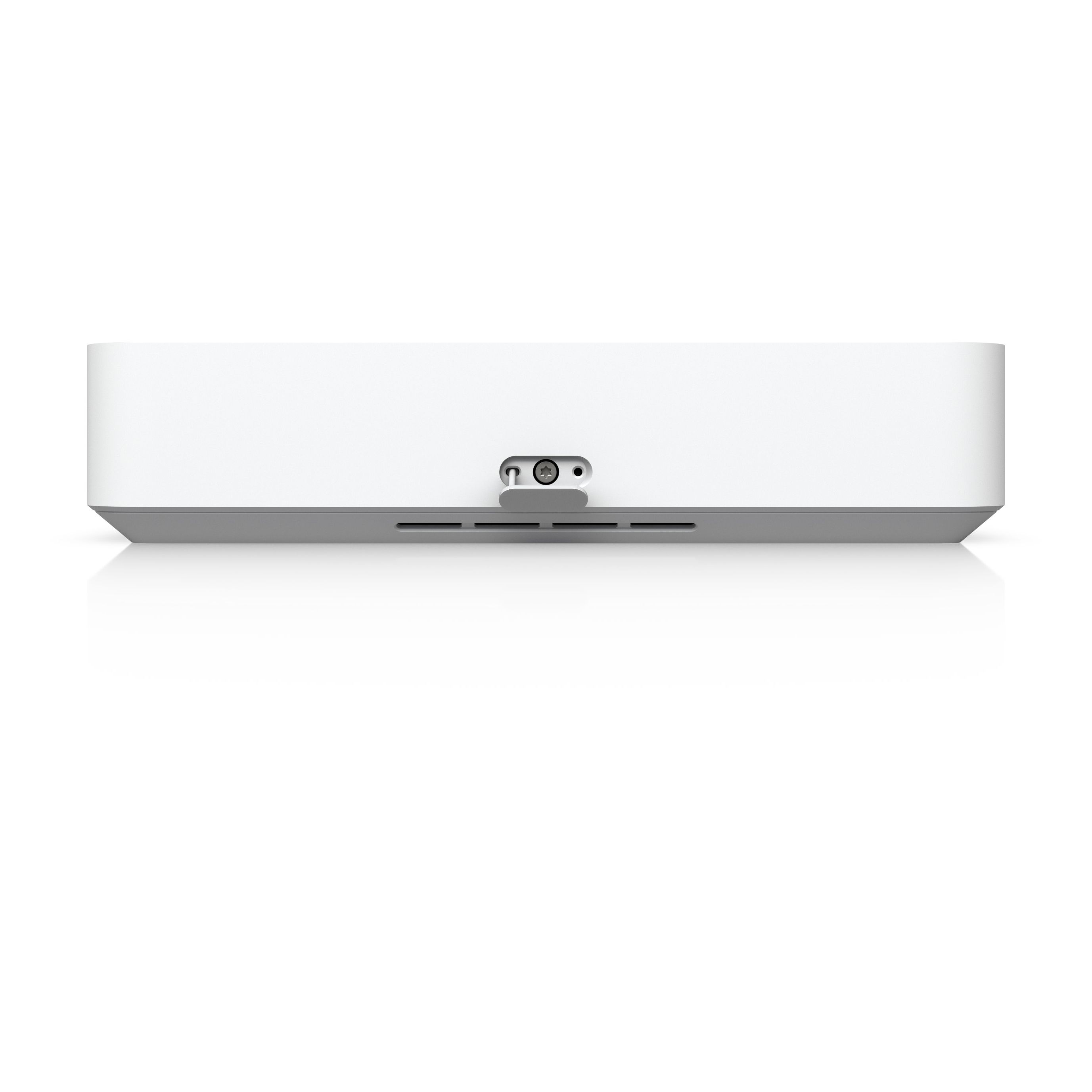

UniFi Protect Compact Network Video Rekorder Instant Kit

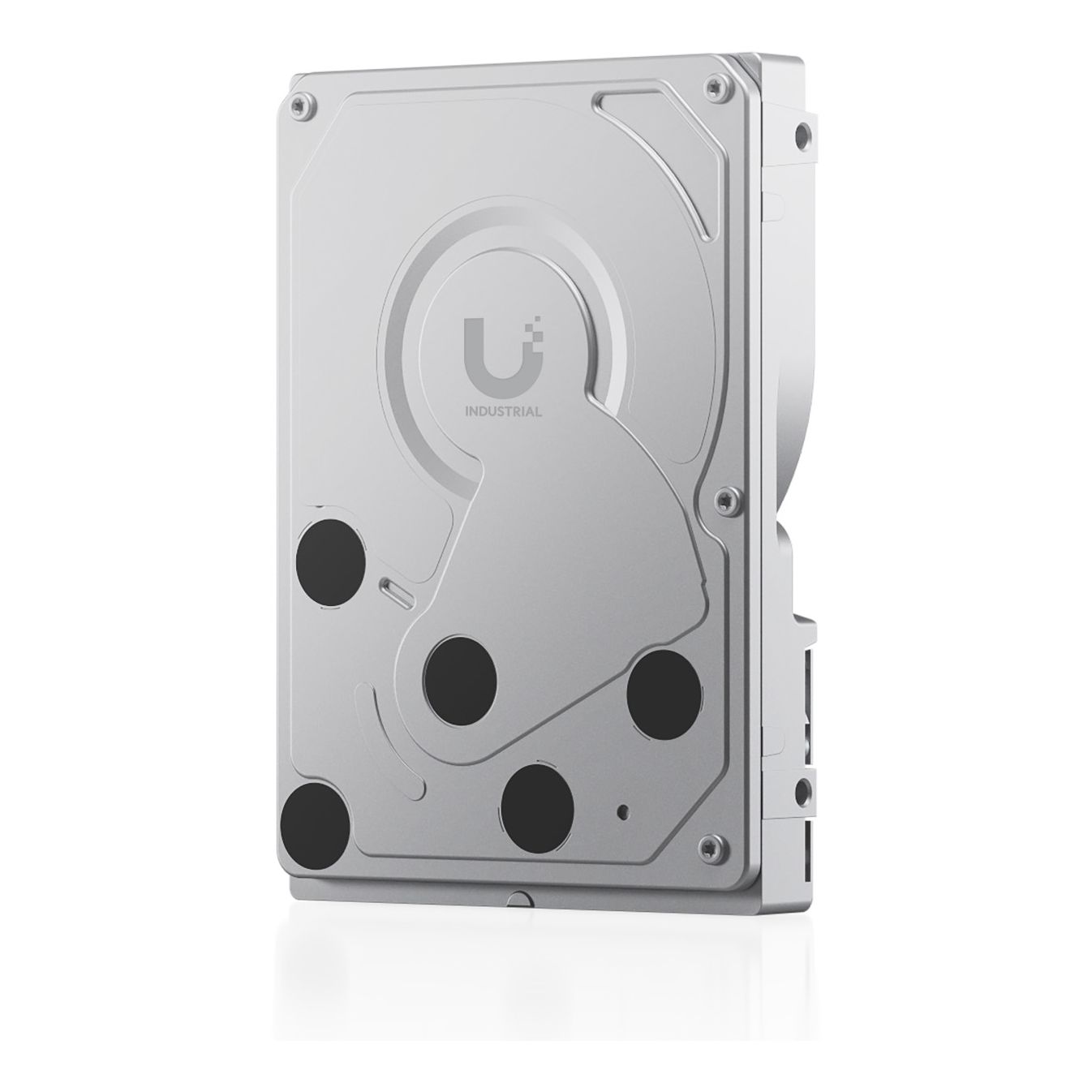

Compact UniFi Protect NVR Kit, includes 1x UniFi Protect NVR Instant with 4x G5 Turret Ultra cameras and 1x 1TB HDD, delivering an all-in-one solution for fast and effortless setup.
Available stock:
Article number:
UNVR-INSTANT-KIT
Manufacturer number:
UNVR-INSTANT-KIT
Manufacturer page:
UBIQUITI
EAN:
0810177164784

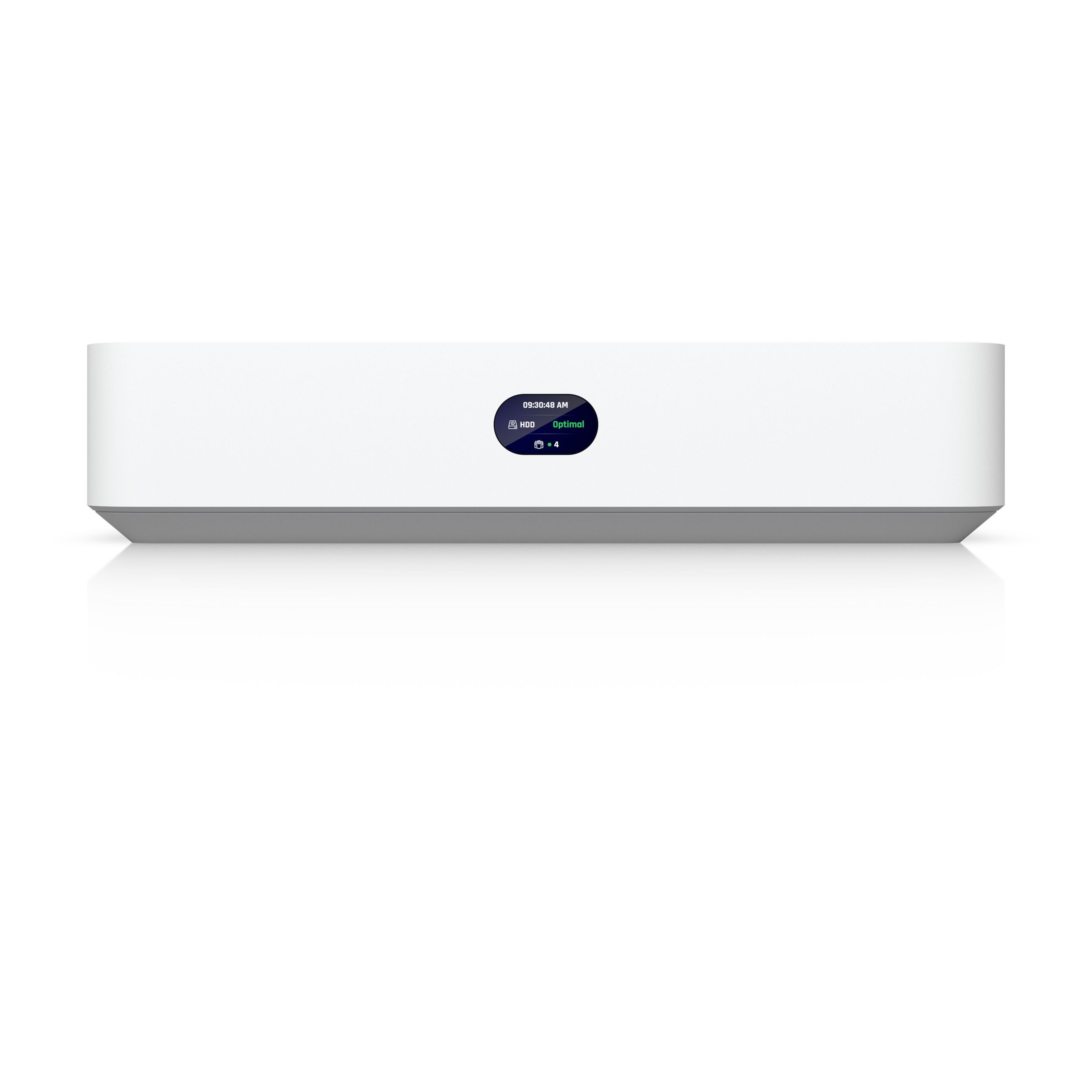

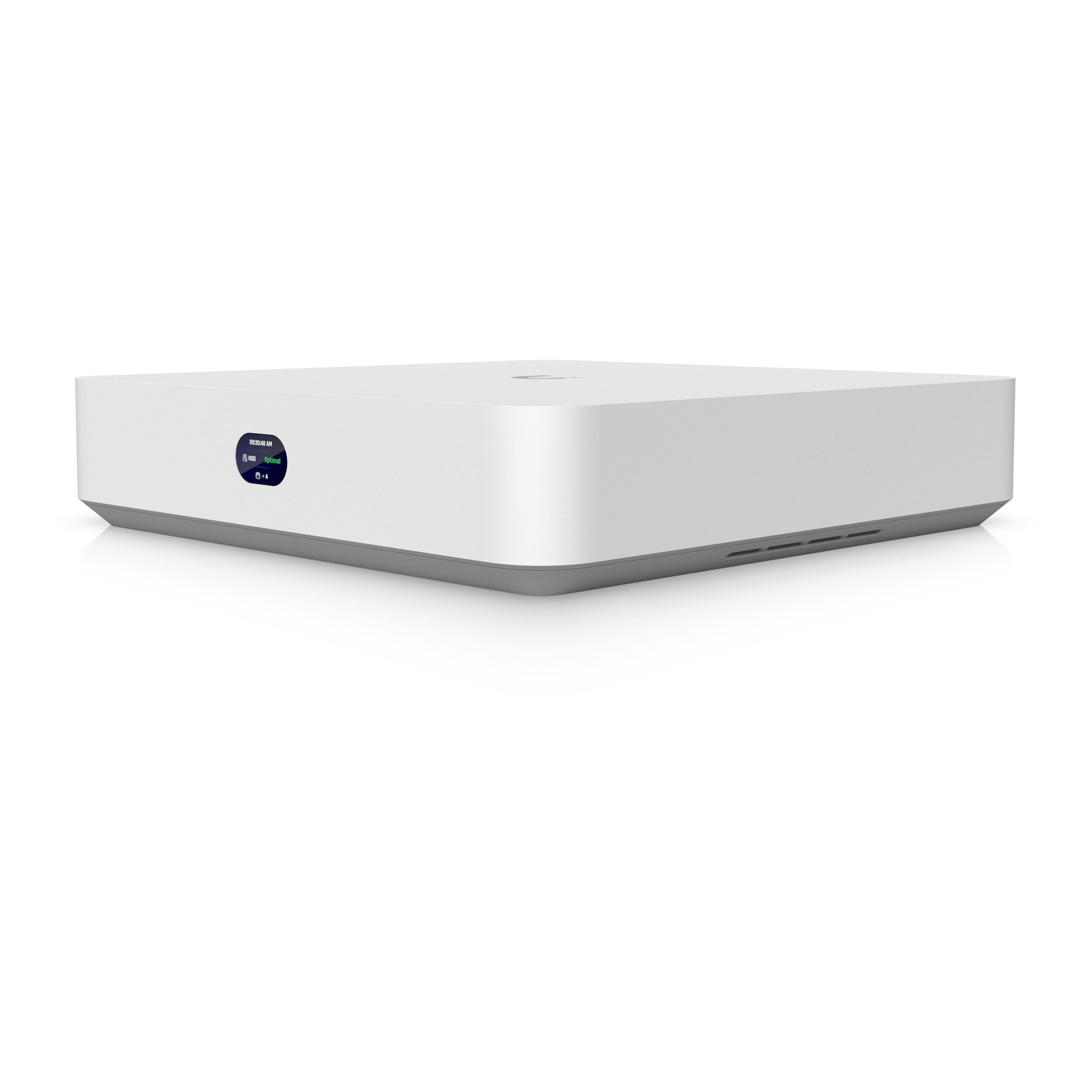

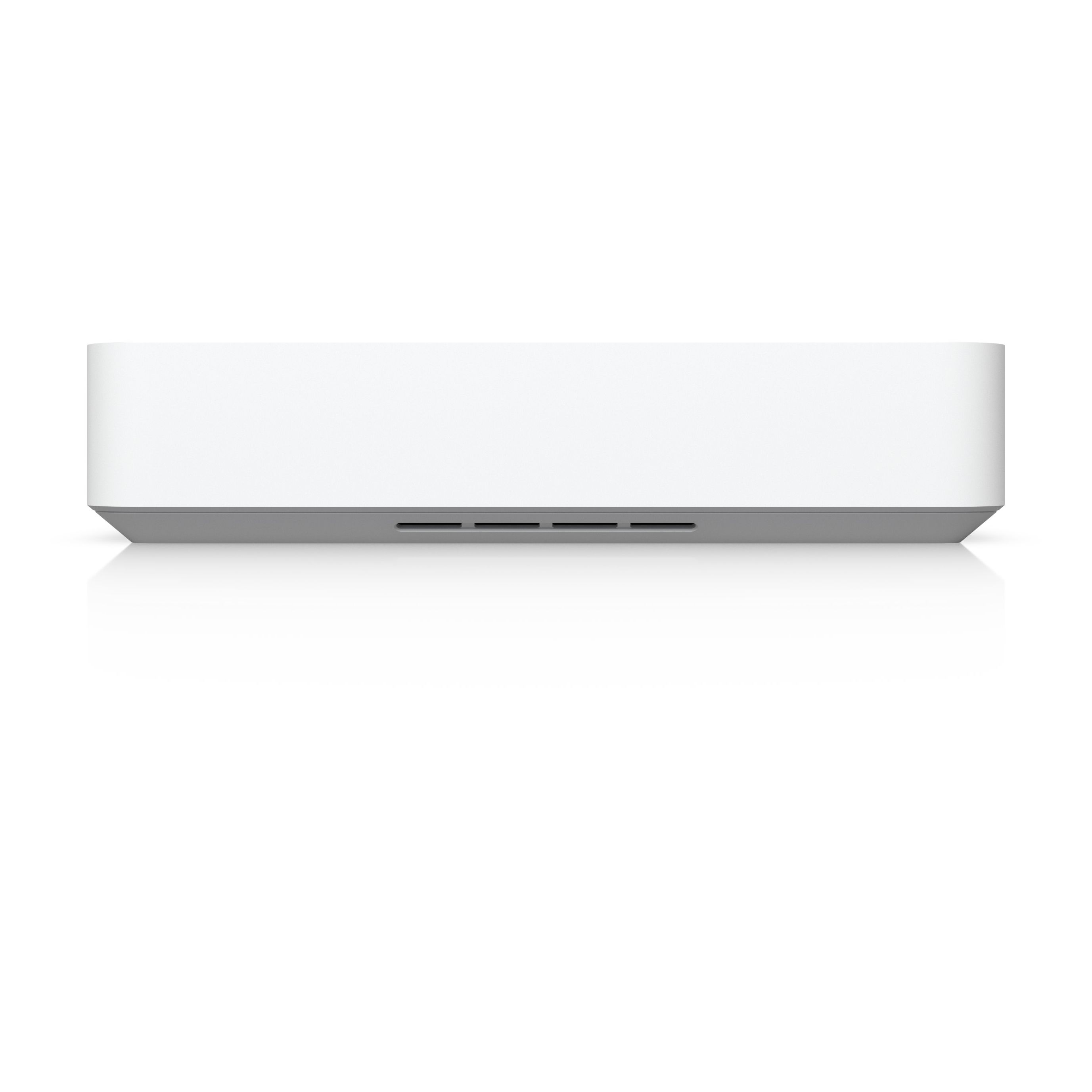

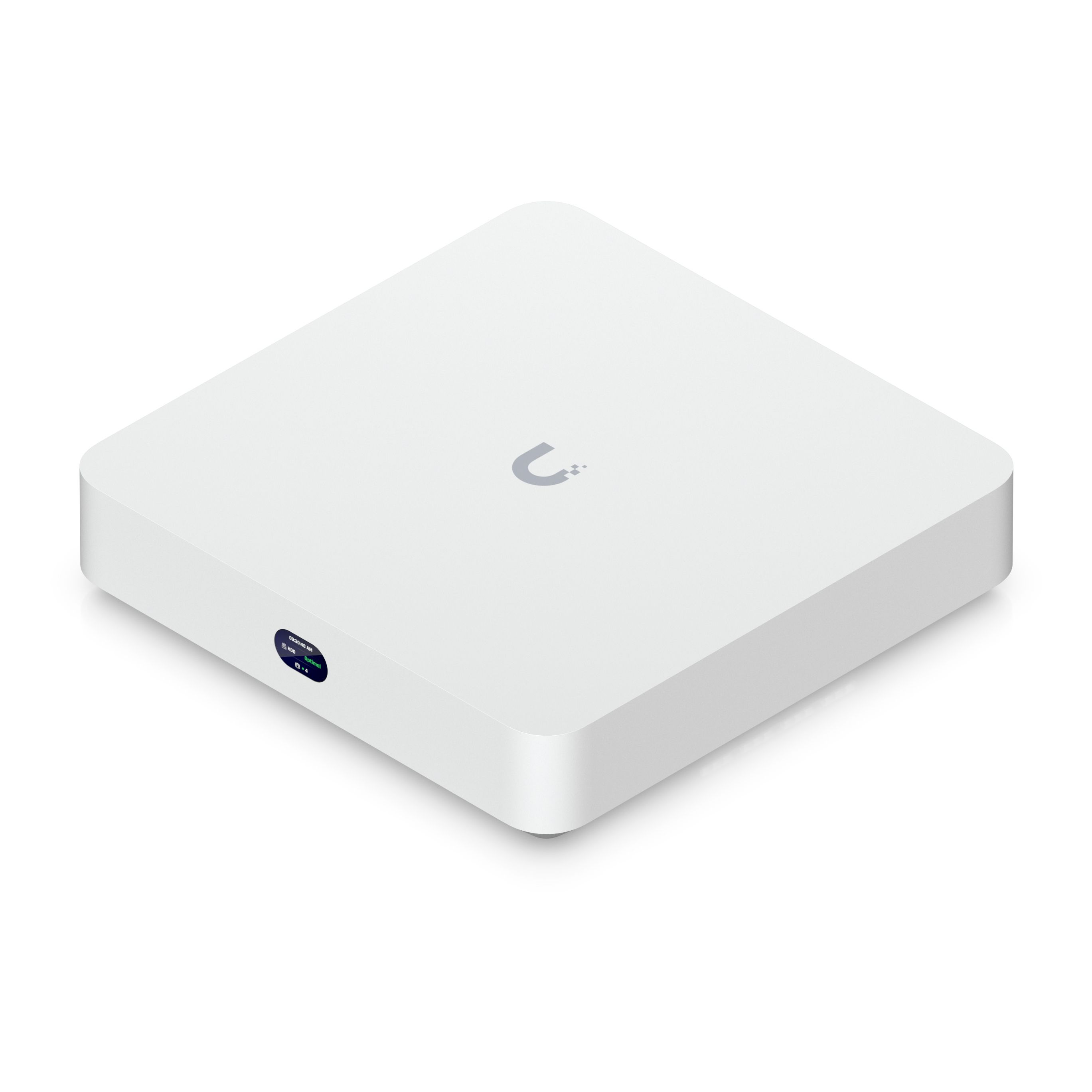

- UNVR-Instant:

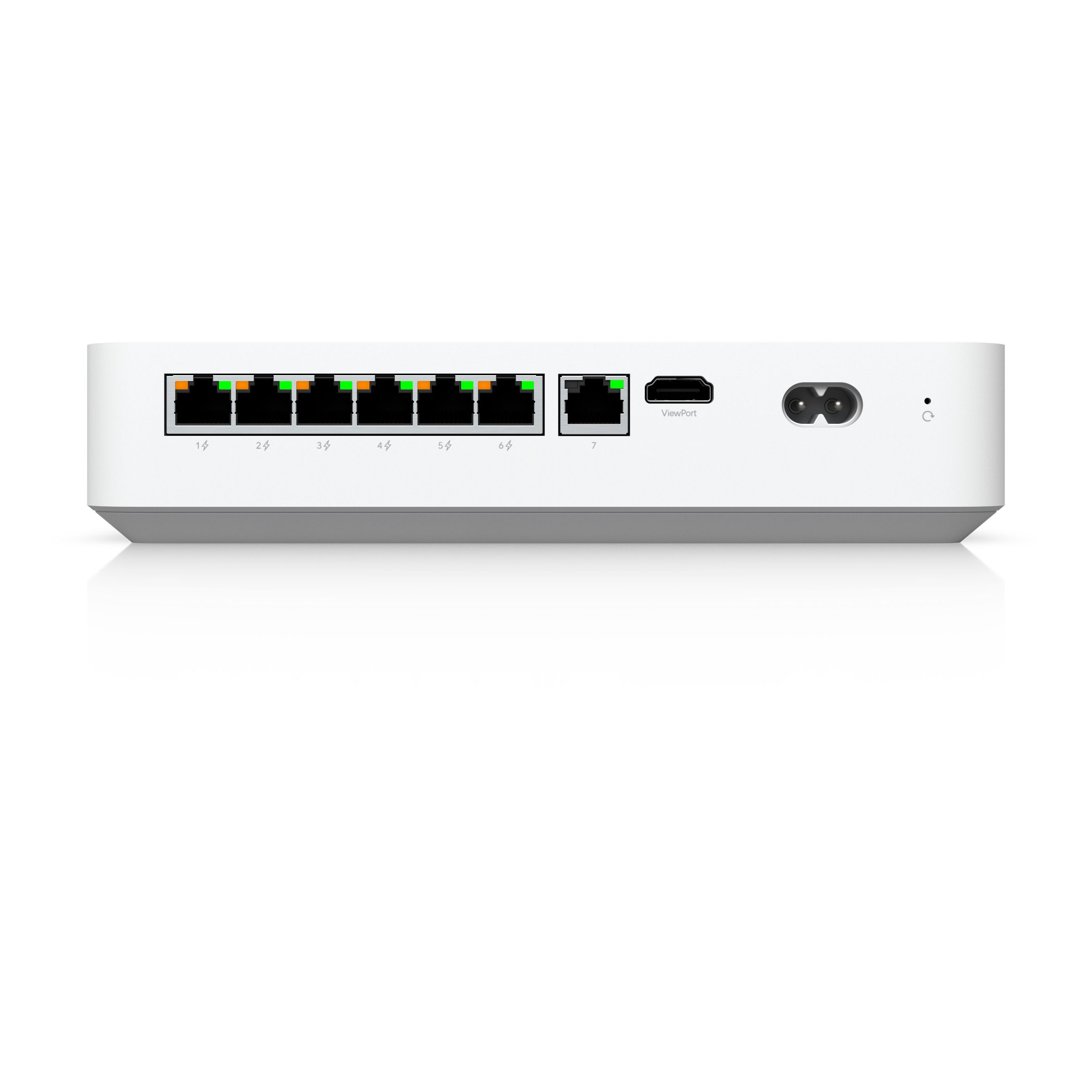

- Integrated 6-port PoE switch
- HDMI ViewPort output for direct monitoring
- Support for up to 6x 4K cameras (or 8x 2K or 15x HD)

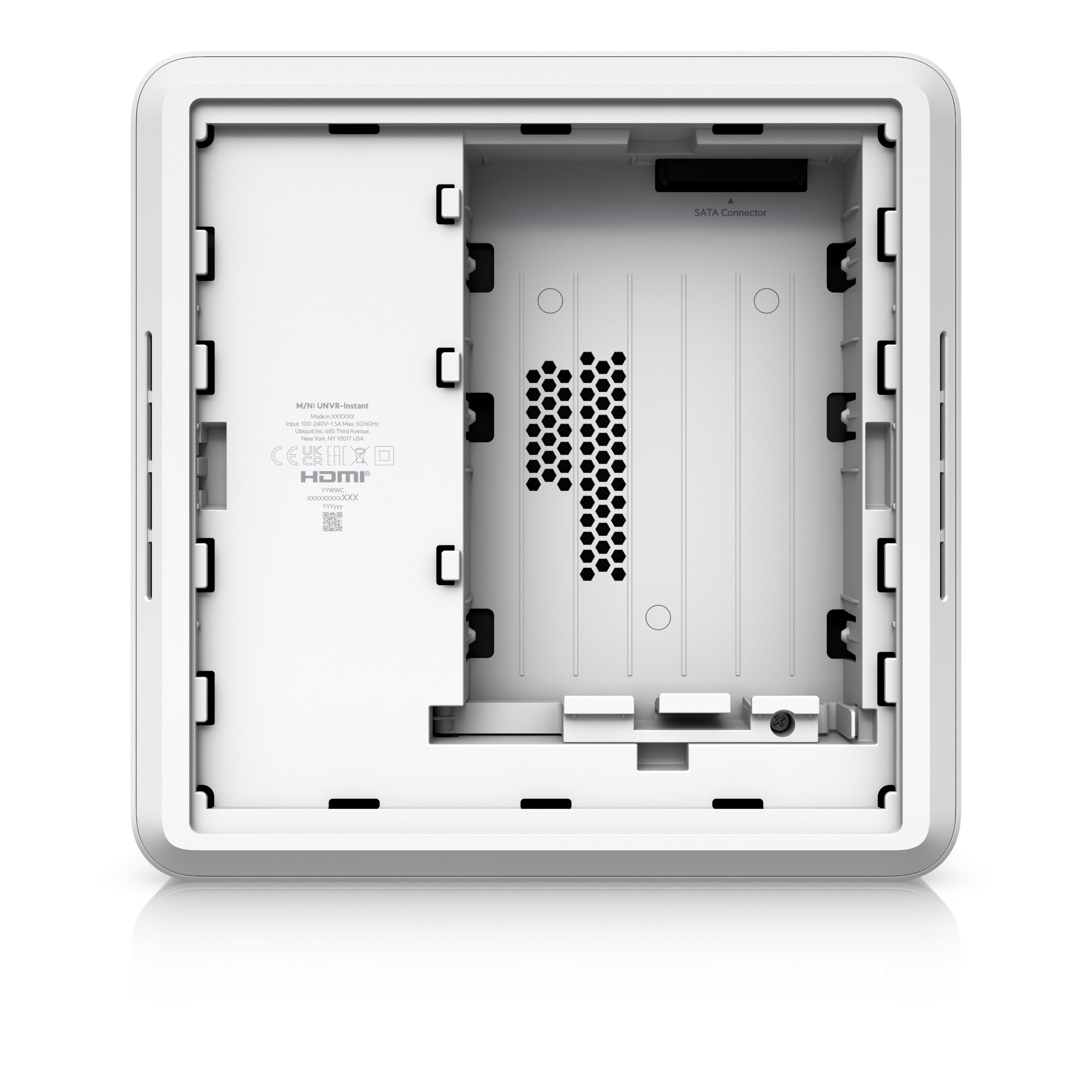

- 1x 3.5″ HDD slot
- Quad-core ARM Cortex-A55 processor @ 1.7 GHz & 4 GB RAM
- Compact form factor & desktop design with wall and DIN rail mounting
- Total PoE budget of 40 W, max. 15.4 W per port
- Low power consumption (approx. 9 W)
- Local storage & no licensing requirements (no additional software licenses required)
- NDAA compliant and common certifications (CE, FCC, IC)

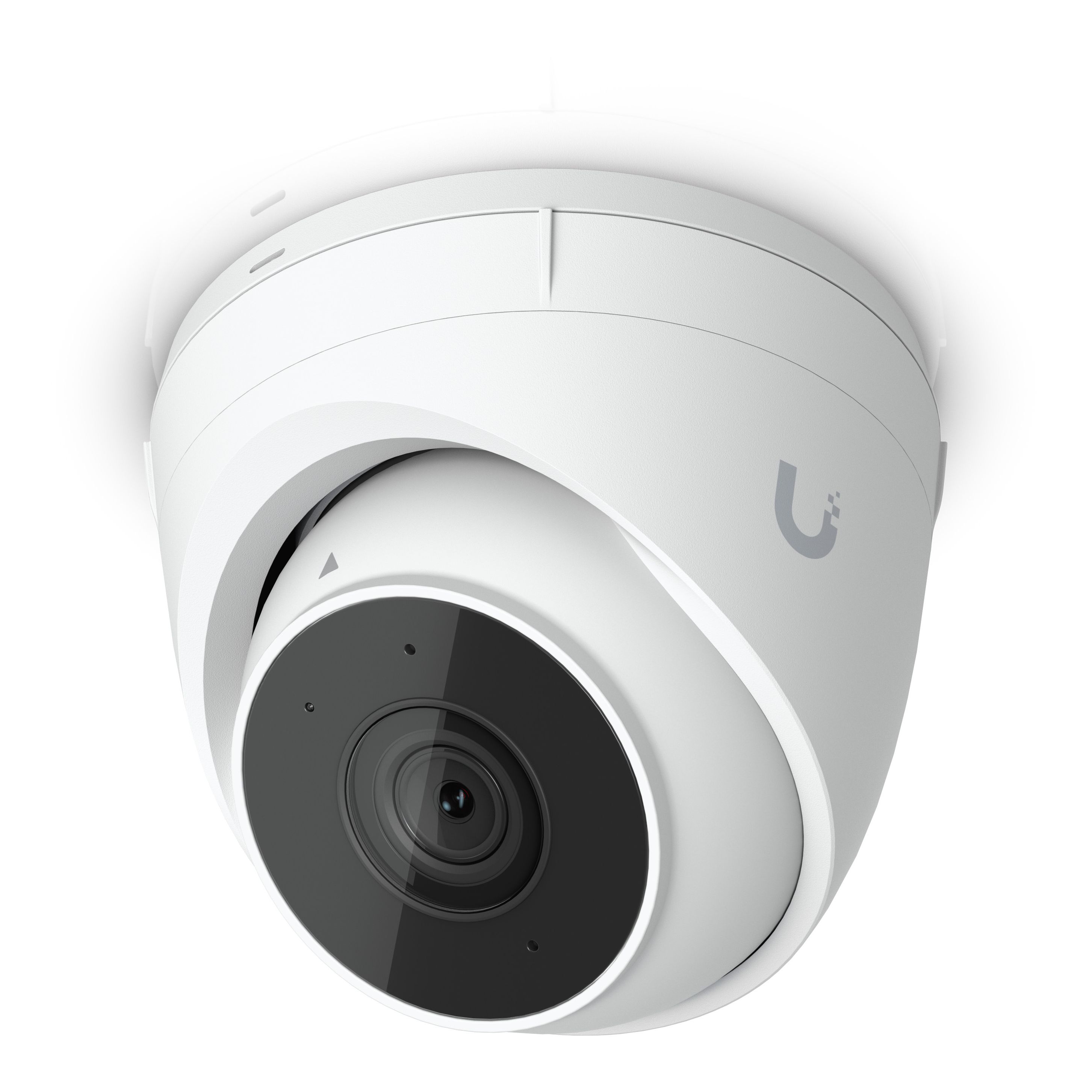

- UVC-G5-Turret Ultra:
2K (4MP) video resolution
Ultra-wide viewing angle (102.4°)
30 m (98 ft) IR night vision
AI event detections
Record audio with an integrated microphone
Connect and power using PoE
Weatherproof (outdoor exposed)
Compact UniFi Protect NVR Kit, includes 1x UniFi Protect NVR Instant with 4x G5 Turret Ultra cameras and 1x 1TB HDD, delivering an all-in-one solution for fast and effortless setup.
Technical properties
1 GBit Ports:
7
Basic Management Interfaces:
Ethernet, Bluetooth
Bluetooth:
Yes
CPU:
Quad-core ARM® Cortex®-A55 @ 1.7 GHz
Camera Channel:
15x HD, 8x 2K, 6x 4K
Case material:
Polycarbonate
Certificate:
FCC, IC, CE, Electrical Safety
Dimensions:
220 x 220 x 47 mm
Display Size:
1.14"
Form Factor:
Desktop
HDMI Video Out:
1
Hard Disk Support:
1 x 3.5” SATA
Hard Drive max.:
1
IP Channels:
15
Mounting:
Wall mountable, DIN Rail
Operating Conditions:
0°C - +40°C
Operating Humidity:
5 - 95%, non-condensing
PoE Power Budget:
40 W
PoE out:
6
Power Consumption:
9.0 W
Power Supply:
100 - 240V AC, 1.5A
Power Supply:
external
Product Line:
Unifi Protect
SATA Ports:
1
Size of RAM:
4 GB
max. Power consumption per Port, PoE:
15.4 W
