UniFi Pro XG 24 PoE 802.3at/bt 10/2.5 Gbit Switch, Layer3 Etherlighting™
Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with 16x 10 GbE, 8x 2.5 GbE, and 2x 25G SFP28 ports.
*Pair with UniFi Enterprise Patch Cable for optimal brightness.
**Requires UniFi RPS.
**Requires UniFi RPS.
Available stock:
Article number:
USW-PRO-XG-24-POE
Manufacturer number:
USW-PRO-XG-24-POE
Manufacturer page:
UBIQUITI
EAN:
0810177160762

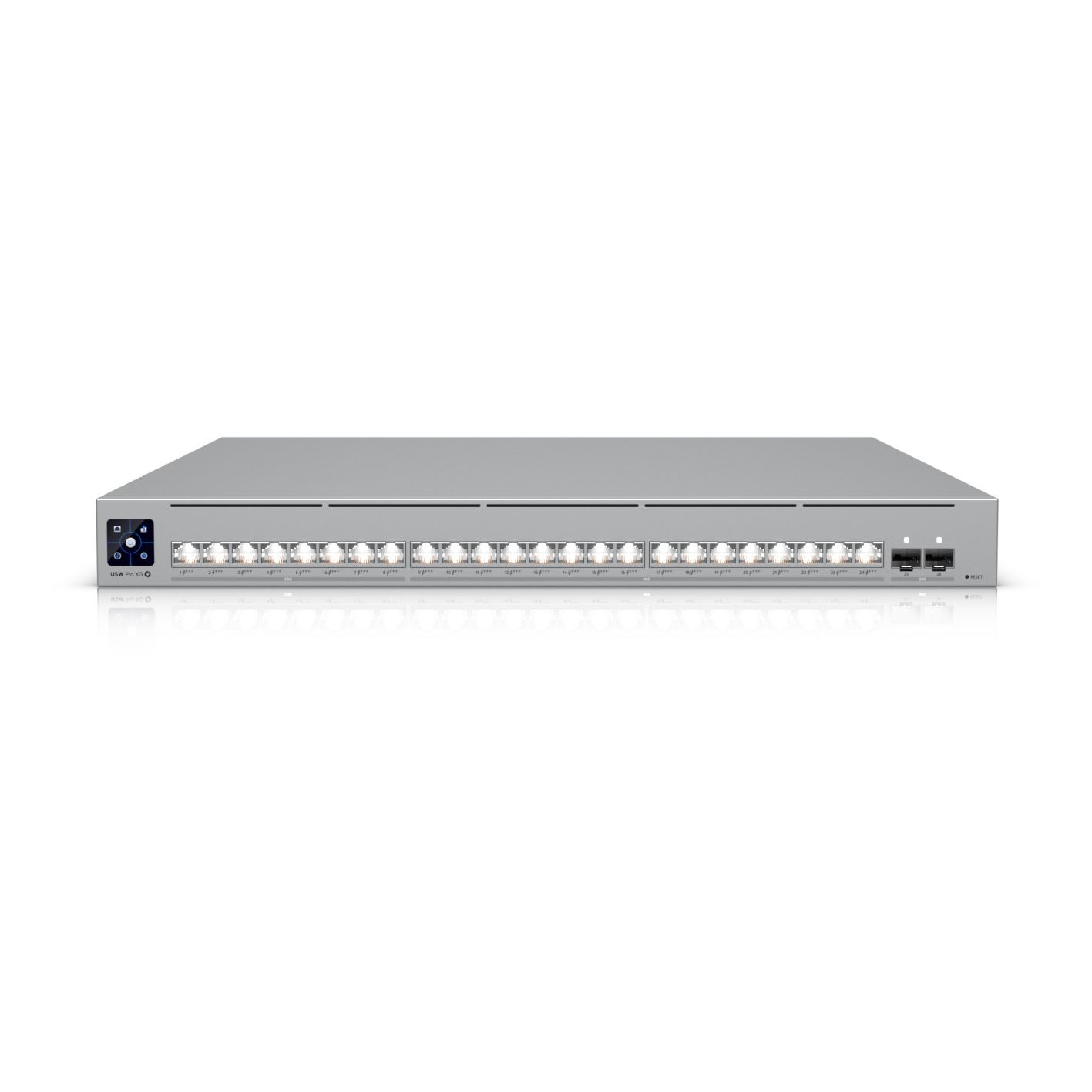

- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- 16x 10 GbE ports, all PoE+++ (90W capable)
- 8x 2.5 GbE ports, all PoE+++ (90W capable)
- 2x 25G SFP28 ports
- DC power backup ready**
- 720W total PoE availability
Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with 16x 10 GbE, 8x 2.5 GbE, and 2x 25G SFP28 ports.
*Pair with UniFi Enterprise Patch Cable for optimal brightness.
**Requires UniFi RPS.
**Requires UniFi RPS.
Technical properties
10 Gigabit Ports, PoE:
16
19-inch Mounting Bracket:
included
19-inch Rackmount:
Yes
Case material:
SGCC Steel
Certificate:
CE, FCC, IC
DHCP:
Yes
Design:
19" Rackmountable
Dimensions:
442 x 480 x 44 mm
Display:
1.3" Touchscreen
ESD/EMP Protection:
Air ± 30 kV / Contact ± 20 kV
Ext. Temperature Range:
No
Fanless:
No
Forwarding Rate:
342 Mpps
Height U:
1 U
IPv4 Routing:
256 K Routes
MAC Address Table:
128 K
Main Speed:
10 Gbit Copper
Managed:
Managed
Management:
Ethernet, AR
Network Ports:
24-Port
Number of Ports:
24 - 32
Operating Conditions:
-5°C - +40°C
Operating Humidity:
10 - 90%, non-condensing
Packet Buffer:
8 MB
PoE Budget:
>=500 Watts
PoE Ports:
24
PoE Power Budget:
720 W
PoE Standard:
IEEE 802.3 af/at/bt
PoE Support:
Yes
Port Speed, RJ45:
10 Gbit
Power Consumption max.:
150 W / 870 W
Power Supply:
100 - 240V AC, 50/60 Hz
Redudant Power Supply:
USP RPS
Redundant PSU:
Yes
SFP+ Ports:
-
SFP28 Ports:
2
SFP Ports:
-
Stackable:
Yes
Switch Capacity:
460 Gbps
Total Non-Blocking Throughput:
230 Gbps
Uplink Speed:
25 Gbit Fiber
max. Number of VLANs:
1000
max. Power consumption per Port, PoE:
15.4 W
max. Power consumption per Port, PoE+:
30 W
