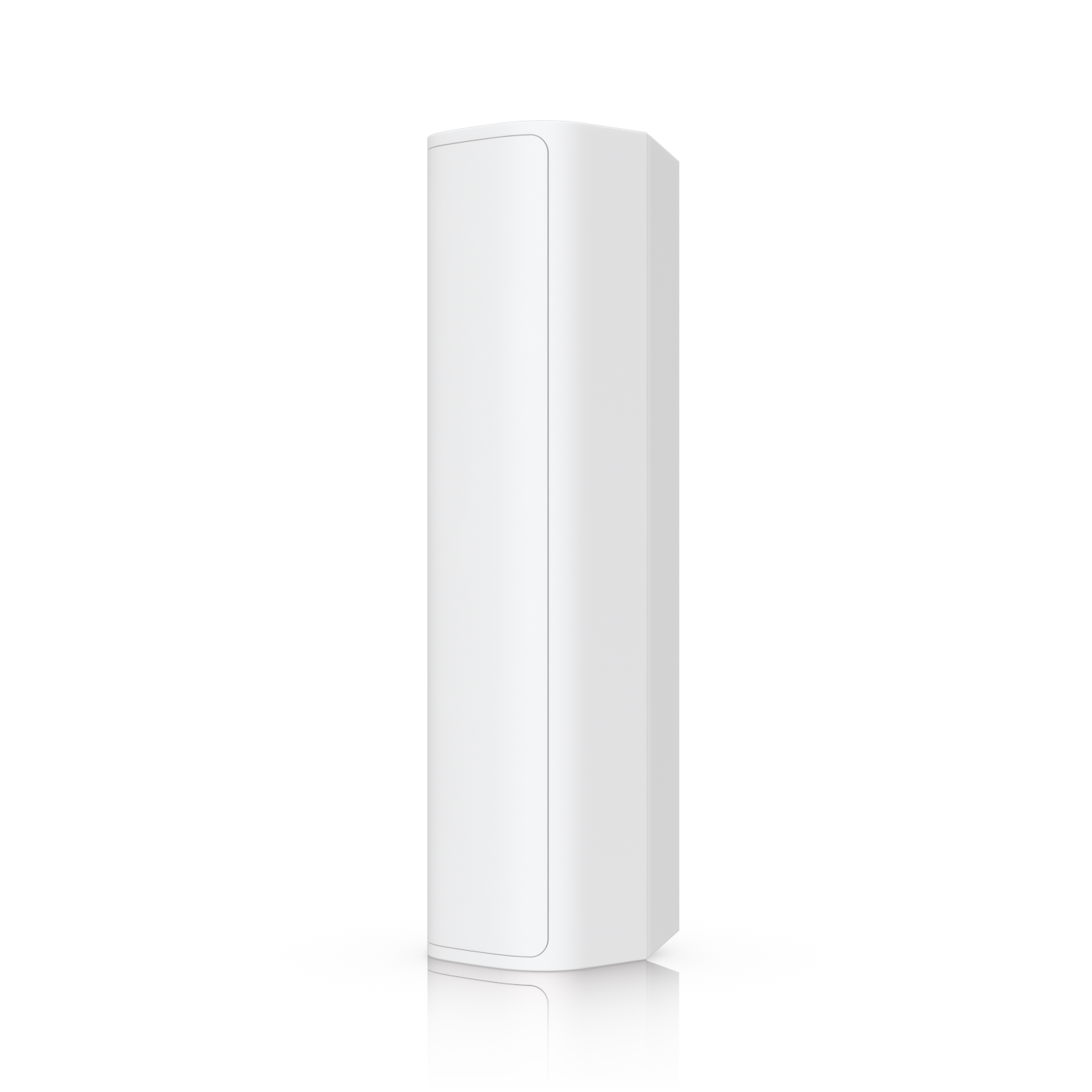

Ubiquiti Motion Sensor, 3-pack
The Ubiquiti UniFi Motion Sensor USL-Motion is a compact wireless motion sensor for the UniFi SuperLink ecosystem. Communication is handled via proprietary SuperLink wireless technology with a maximum range of up to 2 km. For the EU region, the specified operating frequency is 865.1 to 869.5 MHz; maximum transmit power is 14 dBm and SuperLink antenna gain is 1 dBi. The sensor is intended for integration with UniFi Protect and adds a wireless detection layer to existing UniFi security deployments.

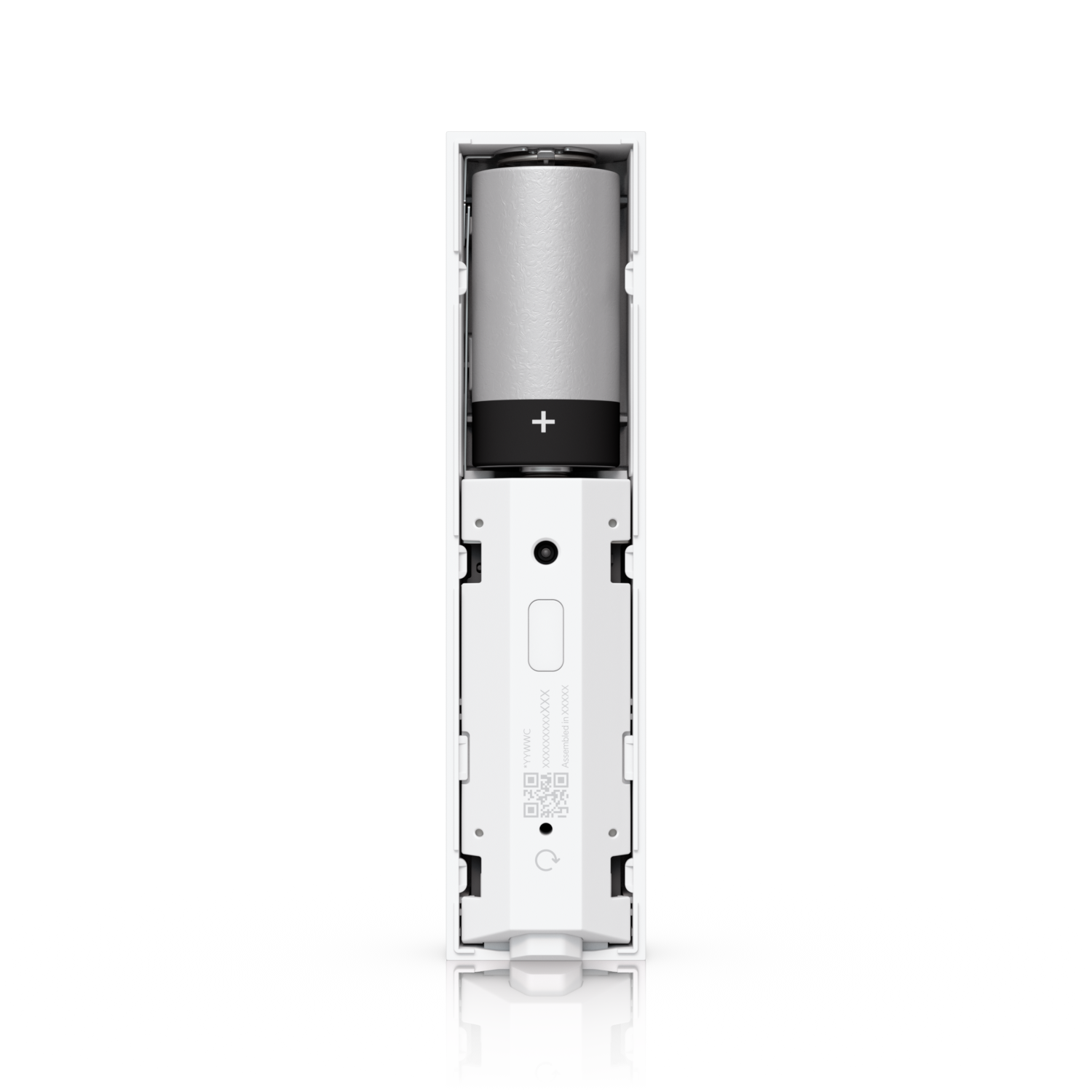

For motion detection, the USL-Motion includes a horizontal PIR sensor with a detection range of up to 1.5 m and a vertical PIR sensor with a detection range of up to 6 m with pet immunity. Power is supplied by a 3 V CR123A lithium battery, with maximum power consumption specified at 22.6 mW. According to the manufacturer, battery life is up to 6 years, depending on usage and environmental conditions.

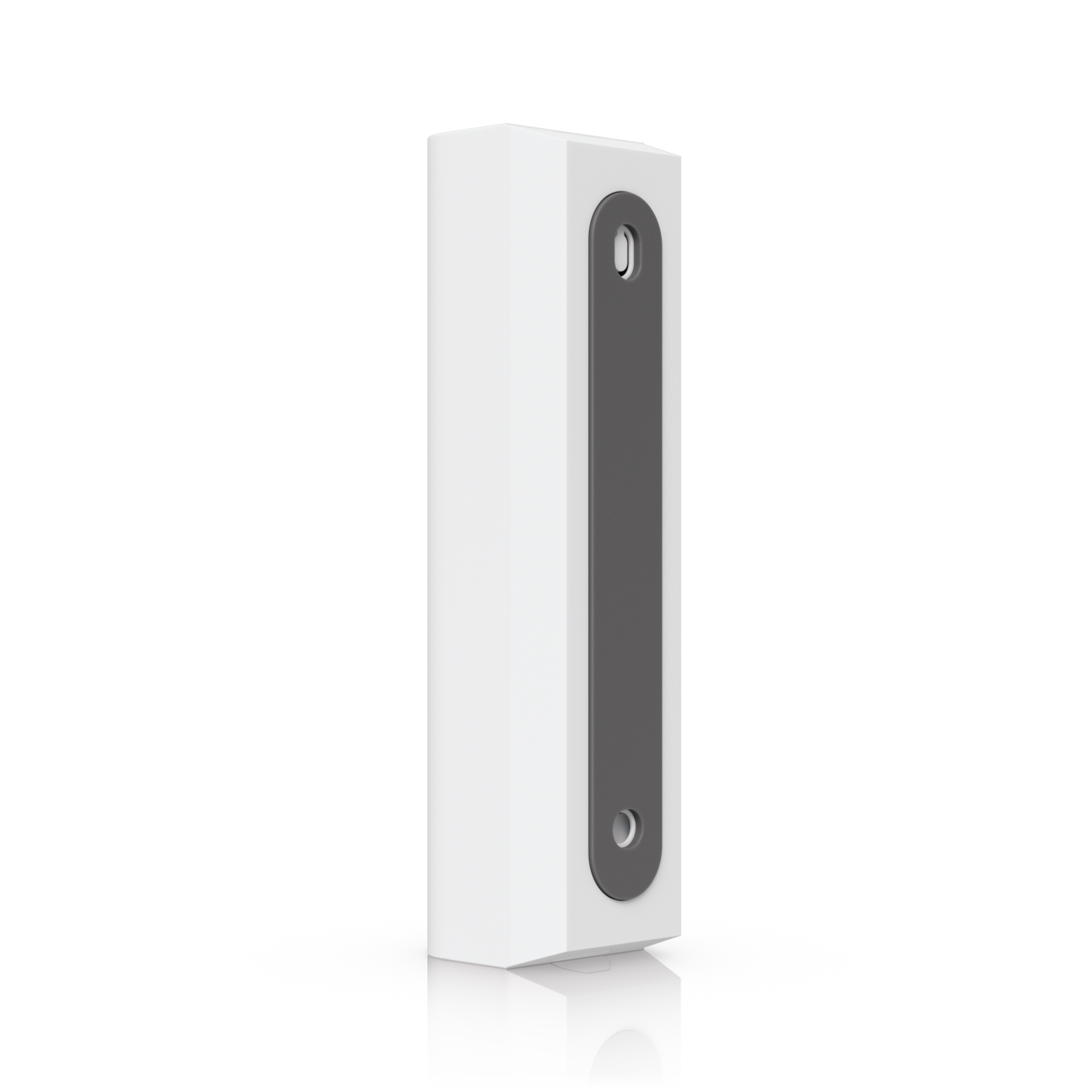

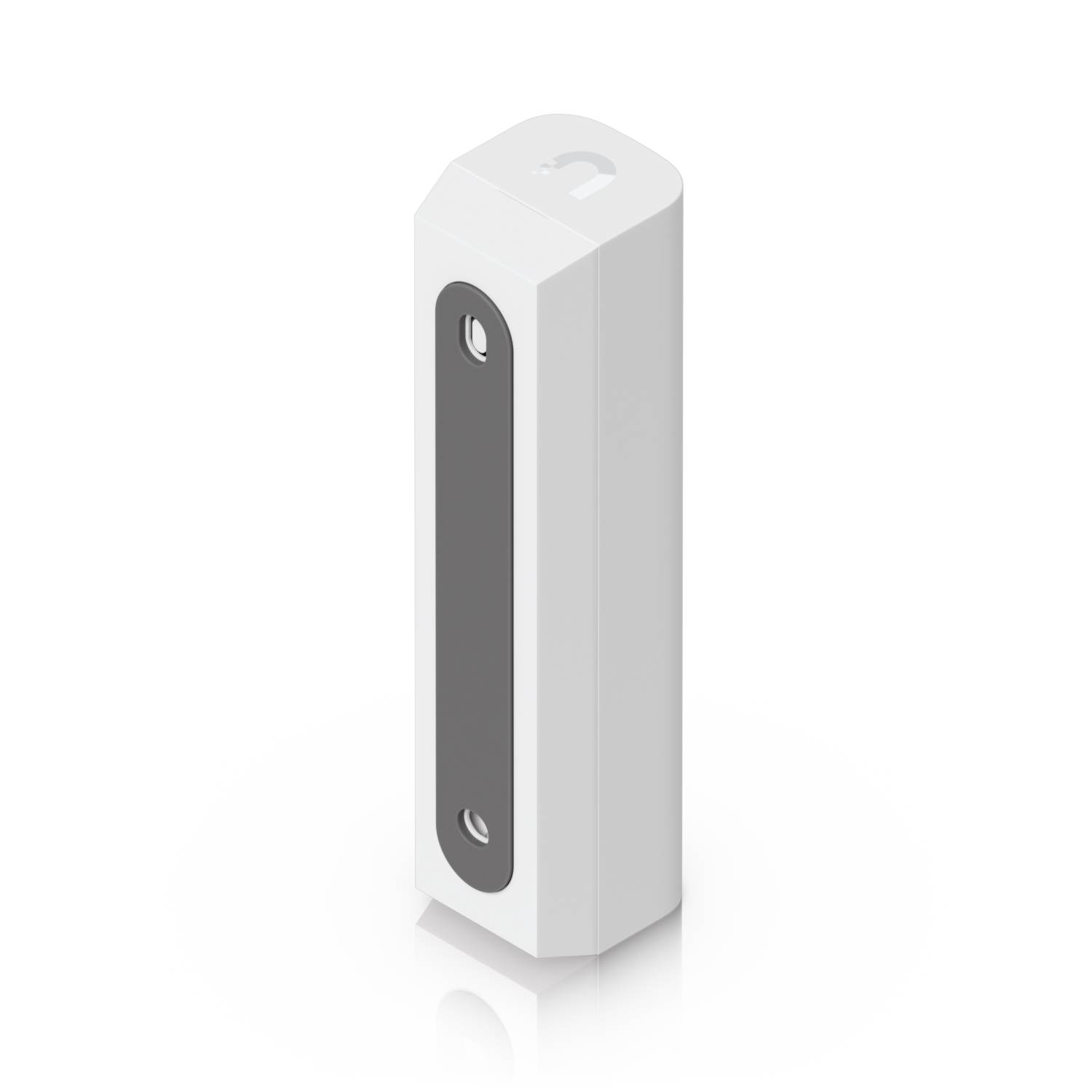

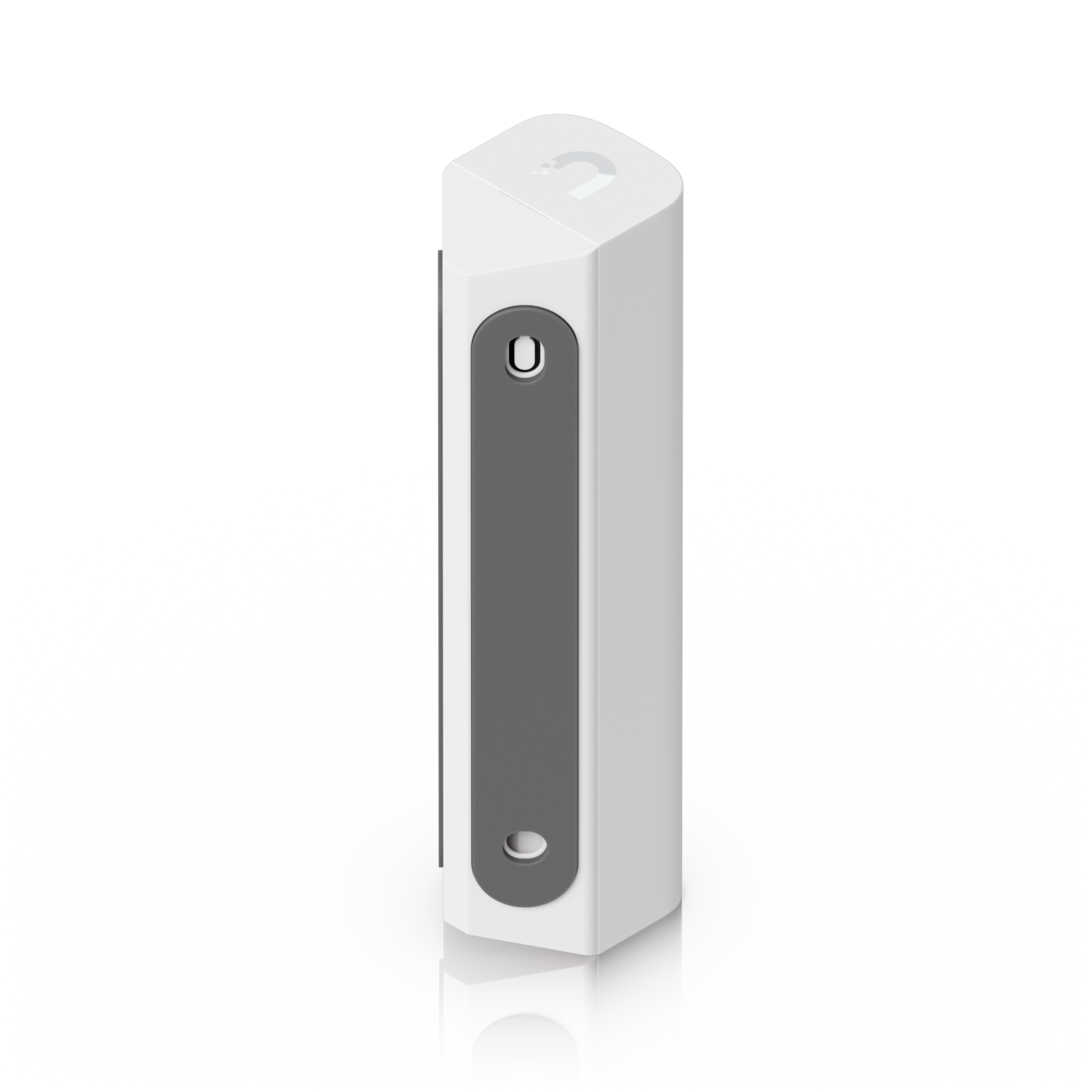

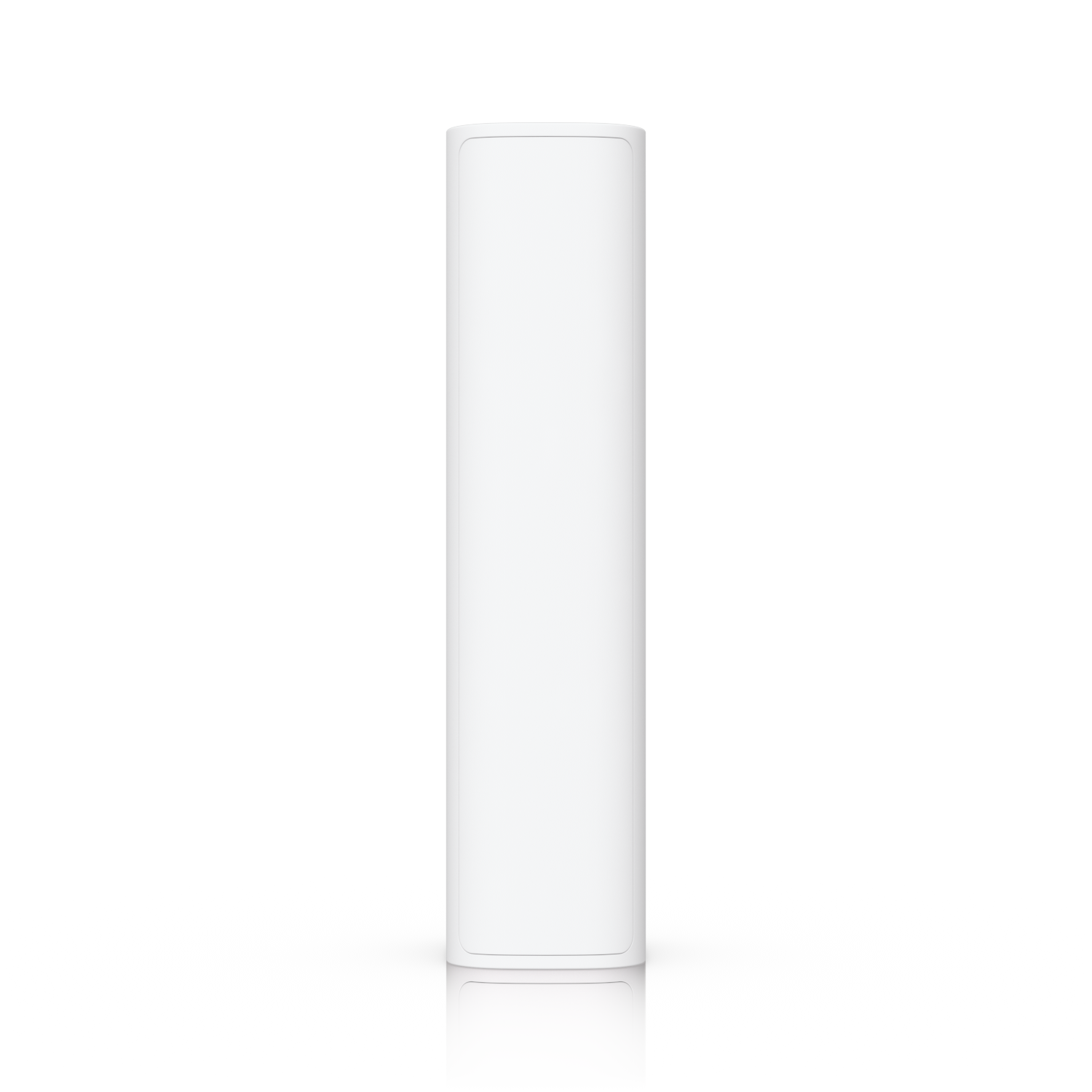

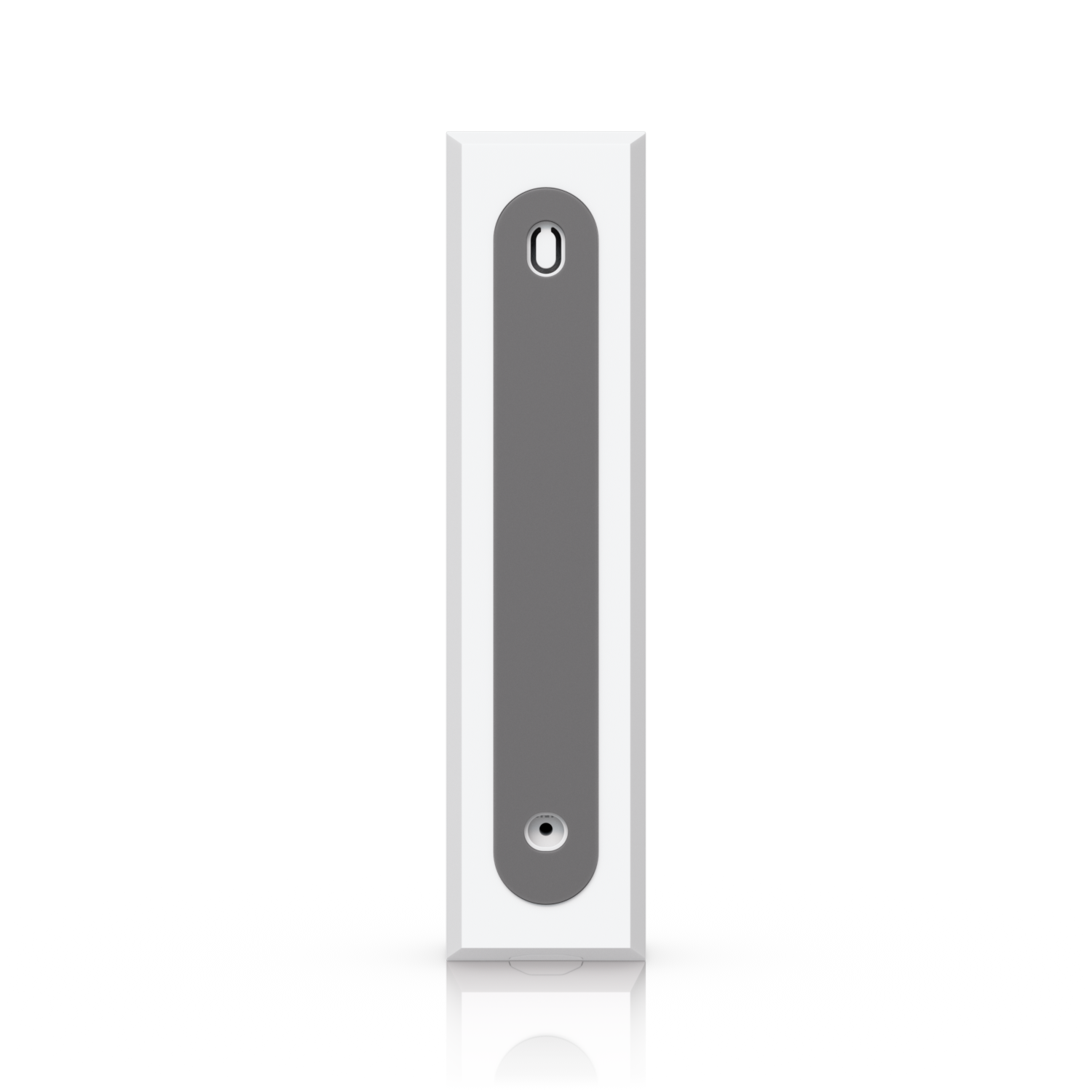

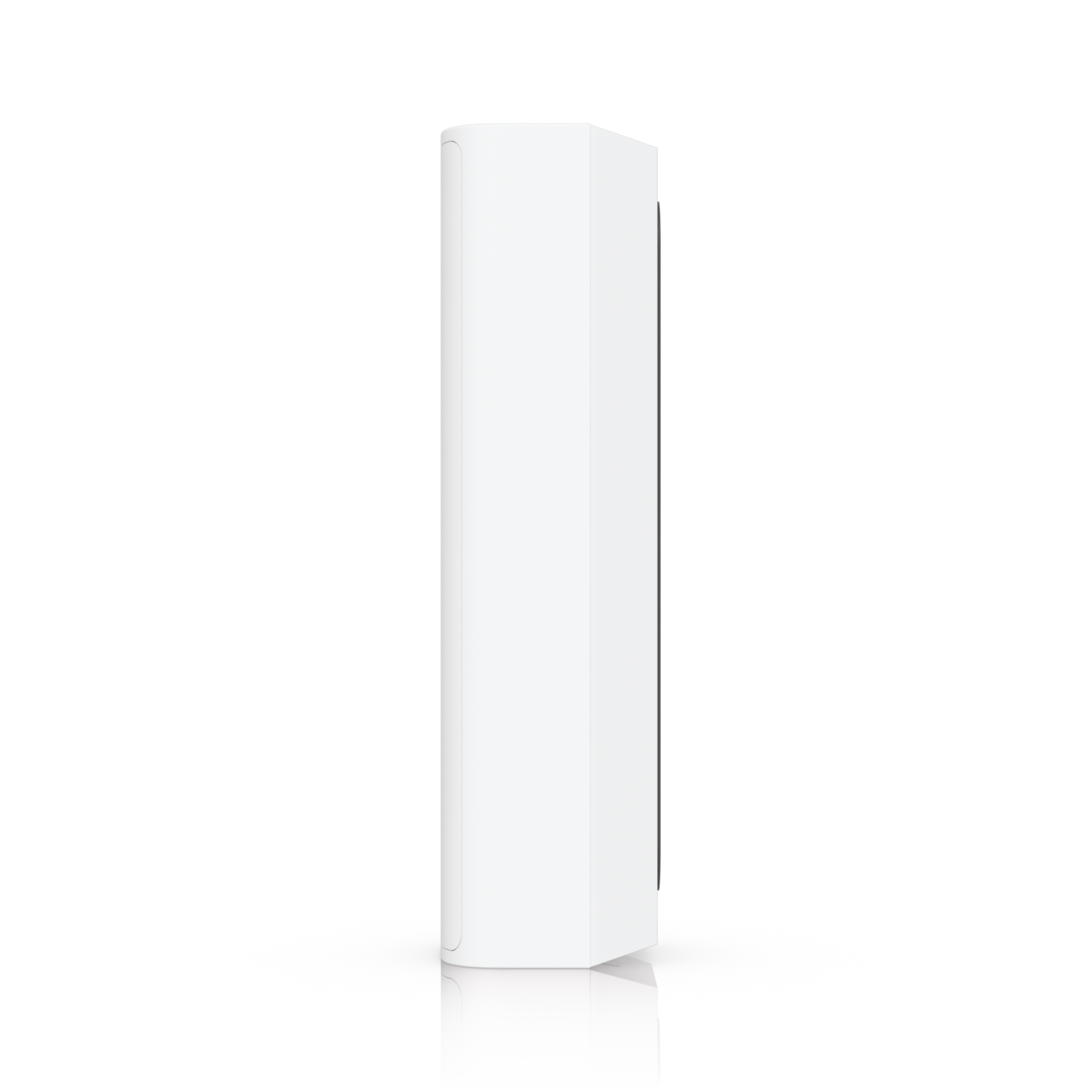

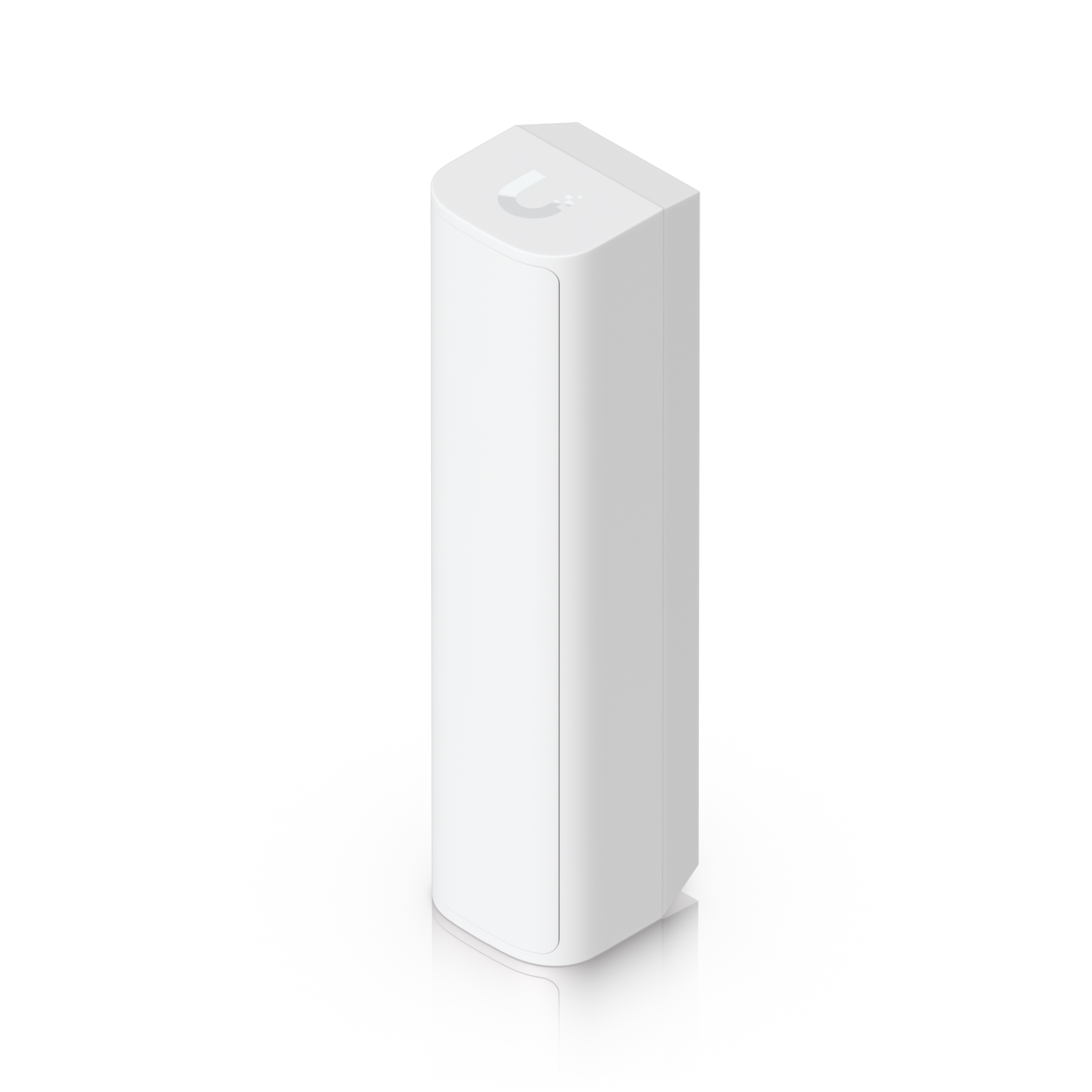

The enclosure is made from polycarbonate and high-density polyethylene, while the mount is made from polycarbonate. With a weight of 45 g and a compact form factor, the sensor can be installed discreetly in indoor areas. Hardware features include a status LED, a signal LED, a factory reset button, a function button and a tamper switch. The specified operating temperature range is 0 to 40 °C, with 10 to 90% non-condensing humidity. The sensor is FCC, IC and CE certified and is NDAA compliant.
- Wireless UniFi SuperLink motion sensor
- Proprietary SuperLink connectivity
- Wireless range up to 2 km
- Horizontal PIR sensor up to 1.5 m
- Vertical PIR sensor up to 6 m
- Vertical detection with pet immunity
- CR123A lithium battery with up to 6-year life
The Ubiquiti UniFi Motion Sensor USL-Motion is designed for wireless motion detection in UniFi Protect environments. It connects via SuperLink, making it suitable for areas where running data or power cabling to a sensor is not practical. Typical installation locations include entrances, corridors, utility rooms, storage areas, technical rooms, offices and indoor security zones. The combination of horizontal and vertical PIR sensing supports flexible detection scenarios, while pet immunity for vertical detection can help reduce false triggers caused by smaller pets.
With battery operation for up to 6 years and adhesive or screw mounting options, the sensor can be retrofitted easily into existing installations. Used with UniFi Protect, the USL-Motion is suitable for system integrators, IT departments, facility management teams, security installers and businesses looking to extend their UniFi surveillance system with additional motion events and automation triggers.
The Ubiquiti UniFi Motion Sensor USL-Motion is a compact wireless motion sensor for the UniFi SuperLink ecosystem. Communication is handled via proprietary SuperLink wireless technology with a maximum range of up to 2 km. For the EU region, the specified operating frequency is 865.1 to 869.5 MHz; maximum transmit power is 14 dBm and SuperLink antenna gain is 1 dBi. The sensor is intended for integration with UniFi Protect and adds a wireless detection layer to existing UniFi security deployments.
For motion detection, the USL-Motion includes a horizontal PIR sensor with a detection range of up to 1.5 m and a vertical PIR sensor with a detection range of up to 6 m with pet immunity. Power is supplied by a 3 V CR123A lithium battery, with maximum power consumption specified at 22.6 mW. According to the manufacturer, battery life is up to 6 years, depending on usage and environmental conditions.
The enclosure is made from polycarbonate and high-density polyethylene, while the mount is made from polycarbonate. With a weight of 45 g and a compact form factor, the sensor can be installed discreetly in indoor areas. Hardware features include a status LED, a signal LED, a factory reset button, a function button and a tamper switch. The specified operating temperature range is 0 to 40 °C, with 10 to 90% non-condensing humidity. The sensor is FCC, IC and CE certified and is NDAA compliant.
