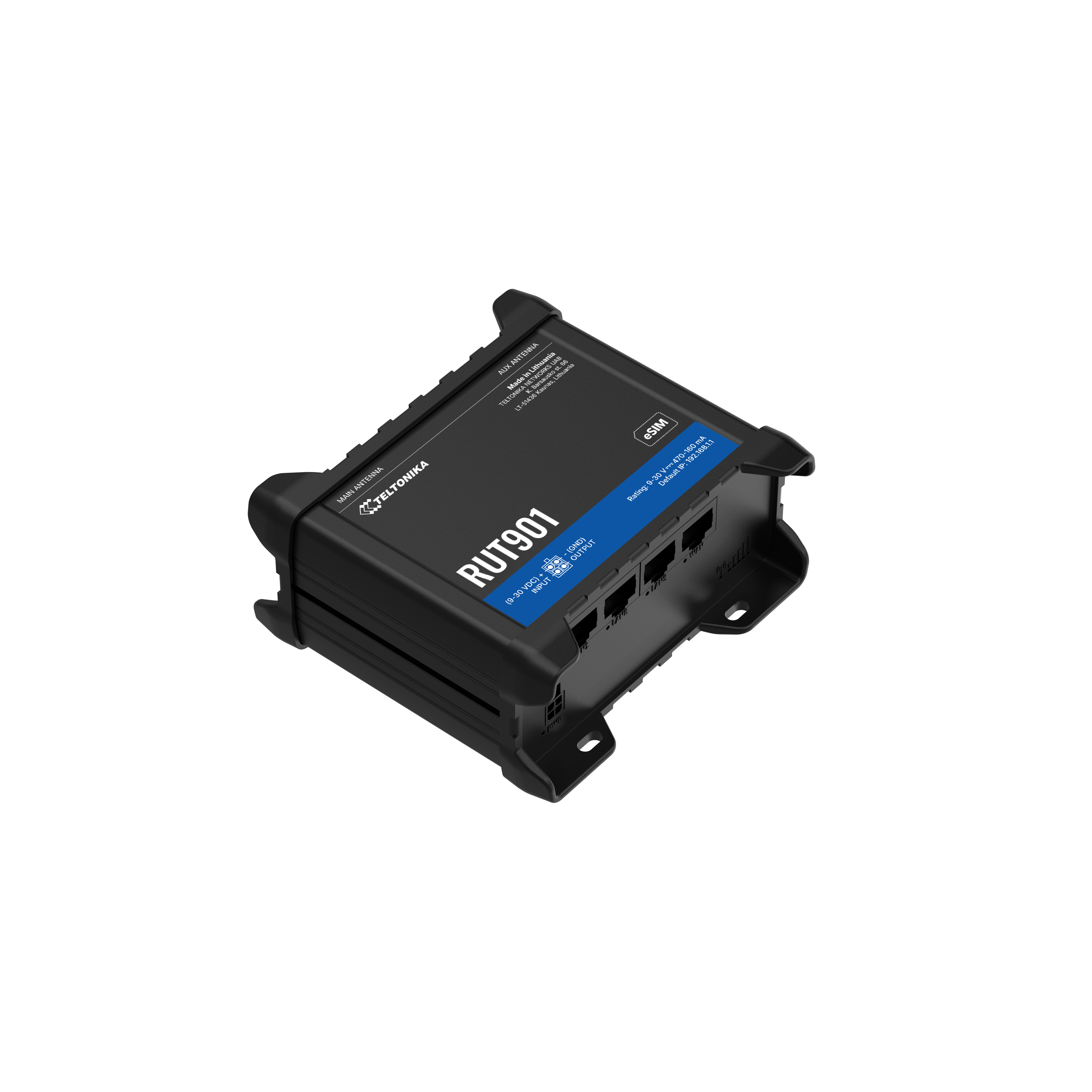

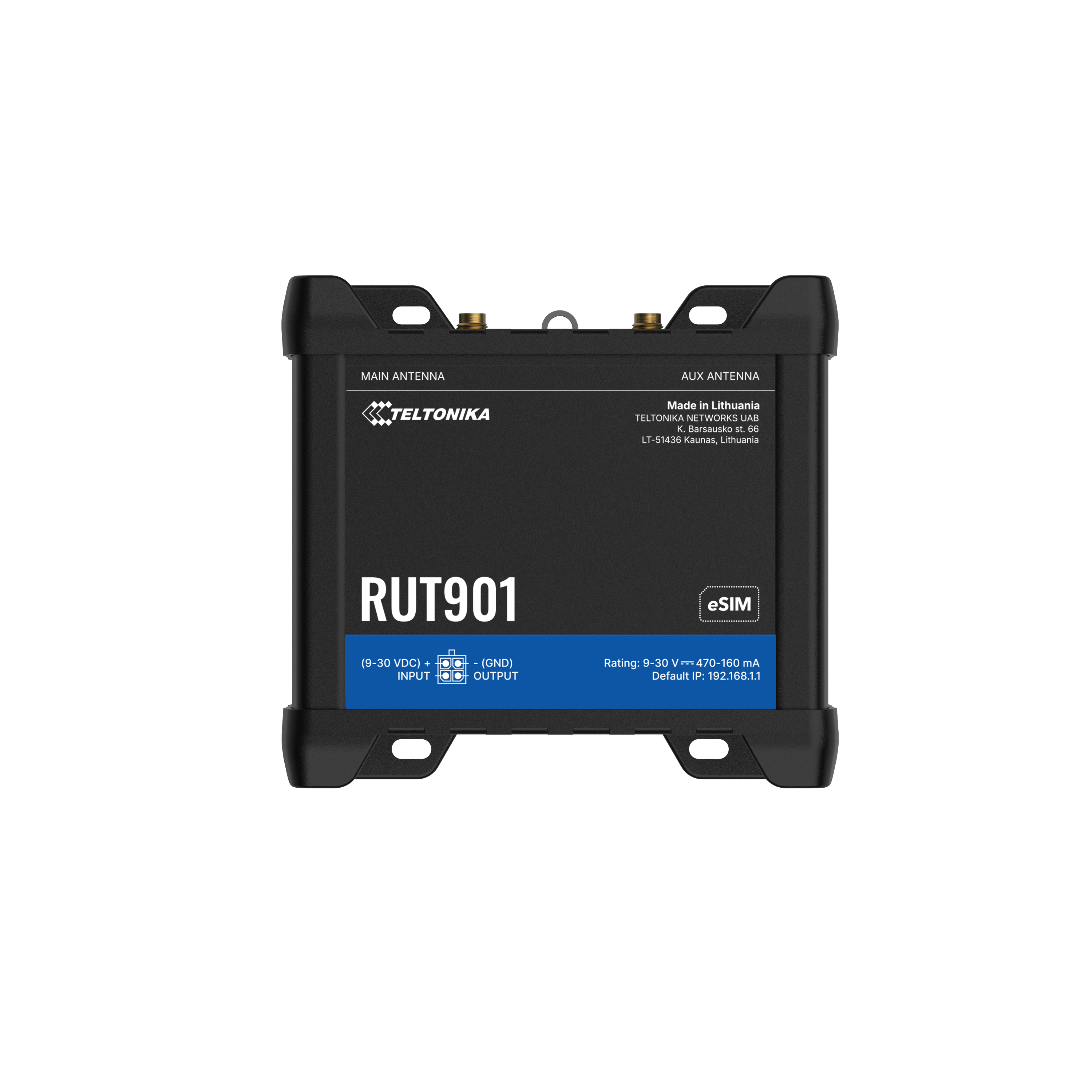

RUT901 - Industrie 4G/LTE Dual SIM Router, for IoT Applications
Cellular 4G router for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN.
- Connectivity: 4G LTE (Cat 4), 3G, 2G
- Dual-Sim: Auto-failover, backup WAN, and more switching scenarios
- Interfaces & Protocols: Serial interfaces (RS232 & RS485), MQTT, BACnet, OPC UA, I/Os, Ethernet, and more
- GNSS: NTRIP, location services and time synchronization
Available stock:
Article number:
RUT901000000
Manufacturer number:
RUT901000000
Manufacturer page:
TELTONIKA
EAN:
4779051840823
- 4G (LTE) – Cat 4 up to 150 Mbps
- 3G – Up to 42 Mbps
- 2G – Up to 236.8 kbps
- WiFi – IEEE 802.11b/g/n, Access Point (AP), Station (STA)
- Ethernet – 4 ports
- SMS
- WAN Failover
- Dual SIM
- RMS - Compatible with Teltonika Remote Management System
Cellular 4G router for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN.
- Connectivity: 4G LTE (Cat 4), 3G, 2G
- Dual-Sim: Auto-failover, backup WAN, and more switching scenarios
- Interfaces & Protocols: Serial interfaces (RS232 & RS485), MQTT, BACnet, OPC UA, I/Os, Ethernet, and more
- GNSS: NTRIP, location services and time synchronization
Technical properties
100 MBit Ports:
4
Antenna Connector:
2x Mobile SMA, 1x WiFi RP-SMA
CPU:
Mediatek, 580 MHz, MIPS 24KEc
Case material:
Aluminum Alloy
Category:
EU Power Supply
Certificate:
CE, UKCA, IMDA, Anatel, RCM, E-mark, ECE R118, CB, RoHS, REACH, NCC, ETA-WPC, MTCTE
Dimensions:
110 x 50 x 100 mm
Firewall Function:
OpenVPN, IPsec, GRE, PPTP, L2TP, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
Flash Memory:
16 MB SPI
Frequency:
2.4 GHz
GPS:
No
Input digital:
1
LTE Category:
Cat 4
LTE Support:
Yes
Manufacturer Number:
RUT901000000
Mobile Standard:
2G/3G/4G
Mounting:
DIN Rail, Wall Mount
Network Ports:
4-Port
Operating Conditions:
-40°C - +75°C
Operating Humidity:
10 - 90%, non-condensing
Operating System:
RutOS (OpenWrt based Linux OS)
Output digital:
1
Port Speed, RJ45:
10 Mbit/100 Mbit
Power Consumption max.:
<2.0W / 7.0W
Power Jack:
4-Pin industrial DC socket
Power Supply:
9 - 30V DC, PoE
SFP Ports:
-
SIM Slots:
2x mini SIM (2FF)
Safety Class:
IP30
Security:
WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto ...
Serial Interface Type:
-
Size of RAM:
128MB DDR2
WLAN Standard:
IEEE 802.11 b/g/n
eSIM:
No
