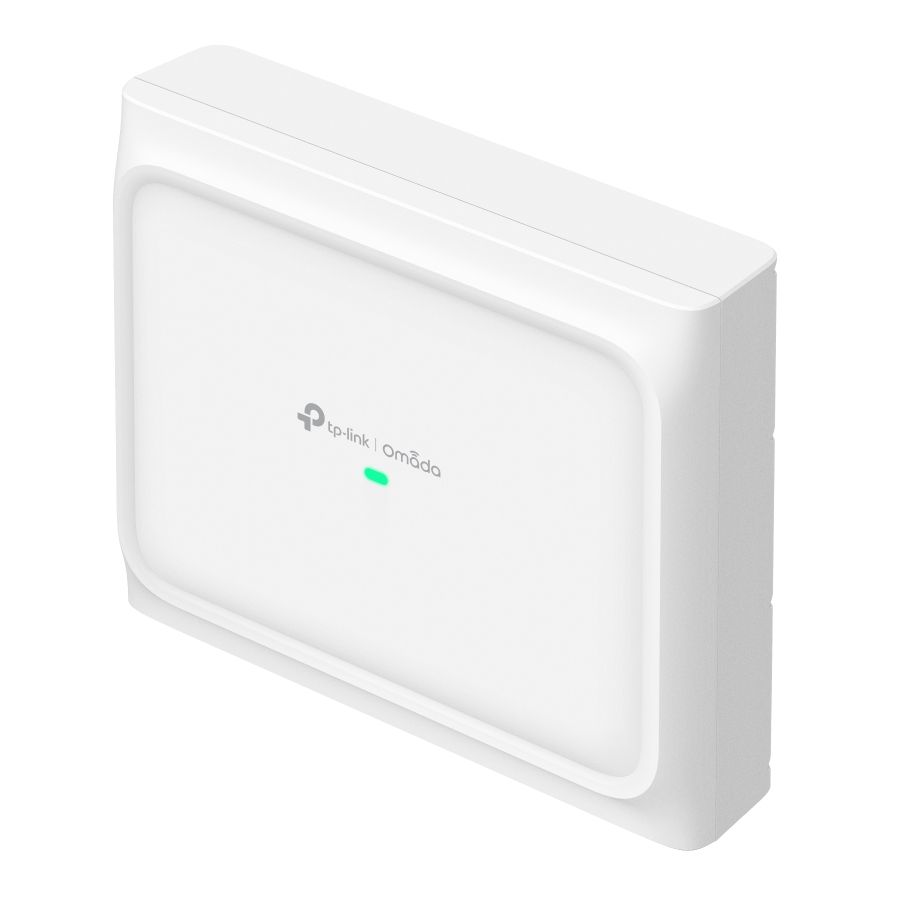

Omada BE9300 Indoor/Outdoor WiFi 7 Access Point
- Tri-band WiFi 7 with 6 spatial streams: Up to 9.3 Gbps (5765 Mbps at 6 GHz + 2882 Mbps at 5 GHz + 688 Mbps at 2.4 GHz).
- Low latency and low interference: Clear 6 GHz bandwidth, 320 MHz bandwidth, multi-link operation, and multi-RUs ensure high network performance.
- 2.5G PoE+ port: Unleash the full potential of WiFi 7 with a 2.5G PoE+ port.
- Higher network efficiency: Experience the maximum of WiFi 7 with smart antennas and powerful amplifiers.
- Convenient deployment: Supports 802.3at PoE for convenient installation and deployment.
- Ideal for outdoor areas: IP68 weatherproof housing for outdoor WiFi applications.
- Advanced features: Centralized management, mesh, and seamless roaming.
Available stock:
Article number:
EAP772-OUTDOOR
Manufacturer number:
EAP772-Outdoor(EU)
Manufacturer page:
TP-LINK
EAN:
1210002602280

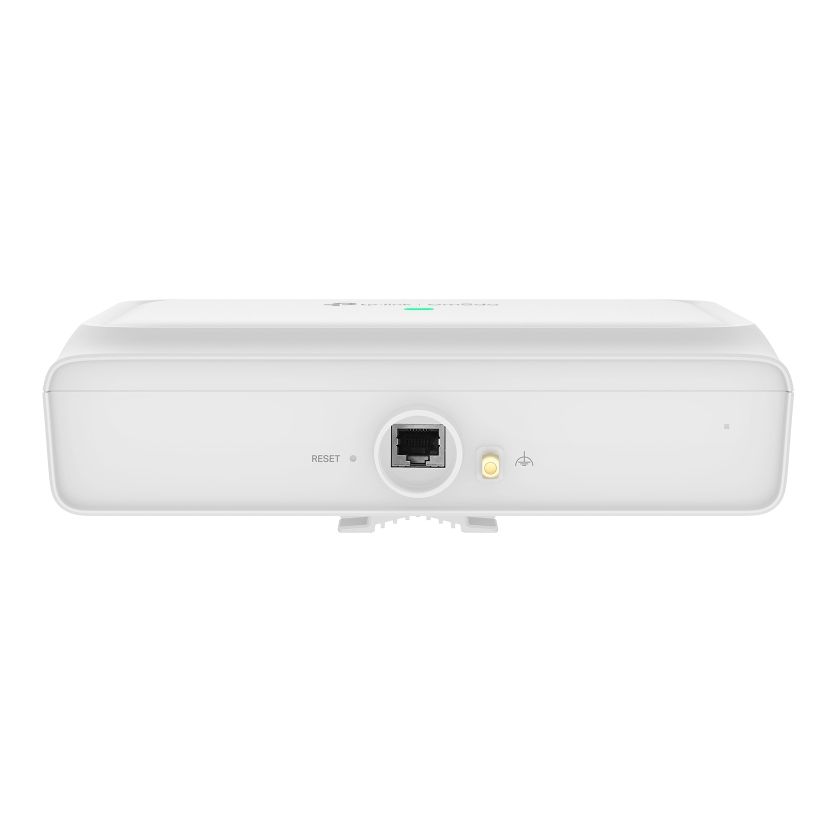

- 1×2.5G RJ45 Port
- 574Mbps at 2.4 GHz
- 4320 Mbps at 5 GHz
- 5760 Mbps at 6 GHz
- Features:
- 802.3at PoE and Passive PoE, IP68 Weatherproof, 6×Internal Antennas,GNSS, Bluetooth ,MU-MIMO, 320MHz Supported, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, MLO, 4K-QAM, Centralized Management by Omada SDN Controller, Omada App
- Tri-band WiFi 7 with 6 spatial streams: Up to 9.3 Gbps (5765 Mbps at 6 GHz + 2882 Mbps at 5 GHz + 688 Mbps at 2.4 GHz).
- Low latency and low interference: Clear 6 GHz bandwidth, 320 MHz bandwidth, multi-link operation, and multi-RUs ensure high network performance.
- 2.5G PoE+ port: Unleash the full potential of WiFi 7 with a 2.5G PoE+ port.
- Higher network efficiency: Experience the maximum of WiFi 7 with smart antennas and powerful amplifiers.
- Convenient deployment: Supports 802.3at PoE for convenient installation and deployment.
- Ideal for outdoor areas: IP68 weatherproof housing for outdoor WiFi applications.
- Advanced features: Centralized management, mesh, and seamless roaming.
Technical properties
2.5 Gbit Ports:
1
Antenna Gain DBI 2.4 GHz:
2x 4 dBi
Antenna Gain DBI 5 GHz:
2x 6 dBi
Bluetooth:
Bluetooth 5.2
Certificate:
CE, FCC, RoHS
Dimensions:
230 x 207.5 x 69.7 mm
Field of application:
Outdoor
Frequency:
2.4 GHz & 5 GHz & 6 GHz
GPS:
Yes
Management:
Omada App
Mounting:
Pole-Mount, Wall Mount
Operating Conditions:
-30°C - +70°C
Operating Humidity:
10 - 90%, non-condensing
PoE Standard:
IEEE 802.3 at
Power Supply:
PoE
SNMP:
v1, v2c
Safety Class:
IP68
Simultaneous Clients, max.:
380+
Transfer Rate 2.4 GHz:
688 Mbps
Transfer Rate 5 GHz:
2882 Mbps
Transfer Rate 6GHz:
5765 Mbps
WLAN Standard:
IEEE 802.11 a/b/g/n/ac/ax/be, WiFi 7
Wireless Clients:
380+
Downloads
Datenblatt_en.pdf
