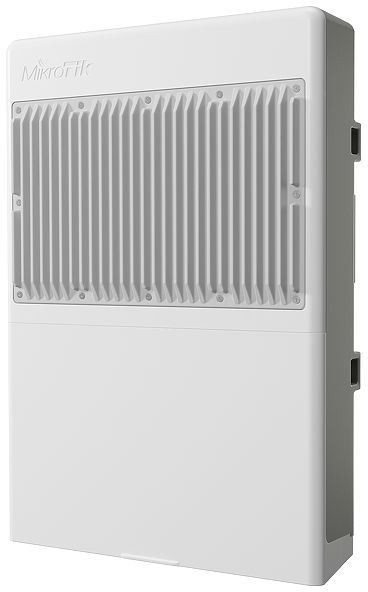

netPower 16P 18 Port Outdoor Switch, 16x Gb PoE Ports, 2x SFP+
- CRS318-16P-2S+OUT - netPower 16P
- 16x 10/100/100 Ethernet ports
- 2x SFP+ ports
- IEEE 802.3 af/at PoE
- MicroTik SwOS or Router OS
Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.

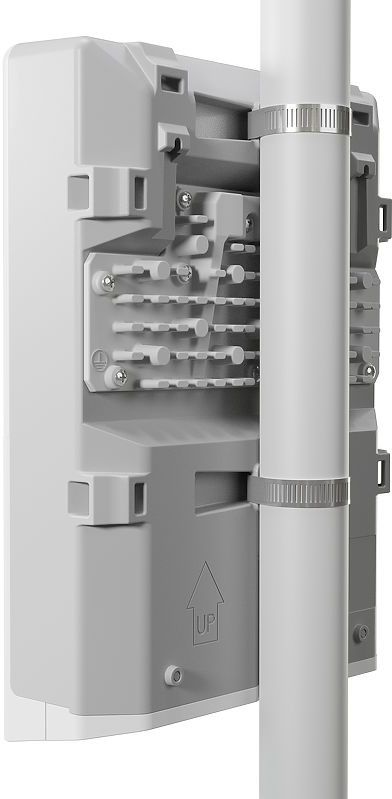

Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments from damp attics and shafts to towers, masts and poles with hose clamps.
netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.
Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, 48POW and 48V2A96W
Available stock:
Article number:
CRS318-16P-2S+OUT
Manufacturer number:
CRS318-16P-2S+OUT
Manufacturer page:
MIKROTIK
EAN:
4752224002174
- CRS318-16P-2S+OUT - netPower 16P
- 16x 10/100/100 Ethernet ports
- 2x SFP+ ports
- IEEE 802.3 af/at PoE
- MicroTik SwOS or Router OS
Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.
Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments from damp attics and shafts to towers, masts and poles with hose clamps.
netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.
Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, 48POW and 48V2A96W
Technical properties
1 GBit Ports:
16
CPU:
98DX226S
CPU Architecture:
ARM 32bit
CPU Temperature Monitor:
Yes
CPU core count:
1
CPU nominal frequency:
800 MHz
Certificate:
CE/RED, EAC, ROHS
Dimensions:
303 x 212 x 78 mm
Licence Level:
5
Main Speed:
1 Gbit Copper
Managed:
Managed
Network Ports:
18-Port
Number of Ports:
16 - 23
Operating Conditions:
-40°C - +70°C
Operating System:
RouterOS / SwitchOS
PoE Standard:
IEEE 802.3 af/at
PoE Support:
Yes
Power Consumption:
316 W
Power Jack:
2
Power Supply:
18 - 30V DC / 48 - 57V DC
SFP+ Ports:
2
Size of RAM:
256 MB
Storage Type internal:
16 MB Flash
Voltage Monitor:
Yes
max. Power consumption per Port, PoE:
1.1 A (< 30V) / 0.6 A (< 30V)
