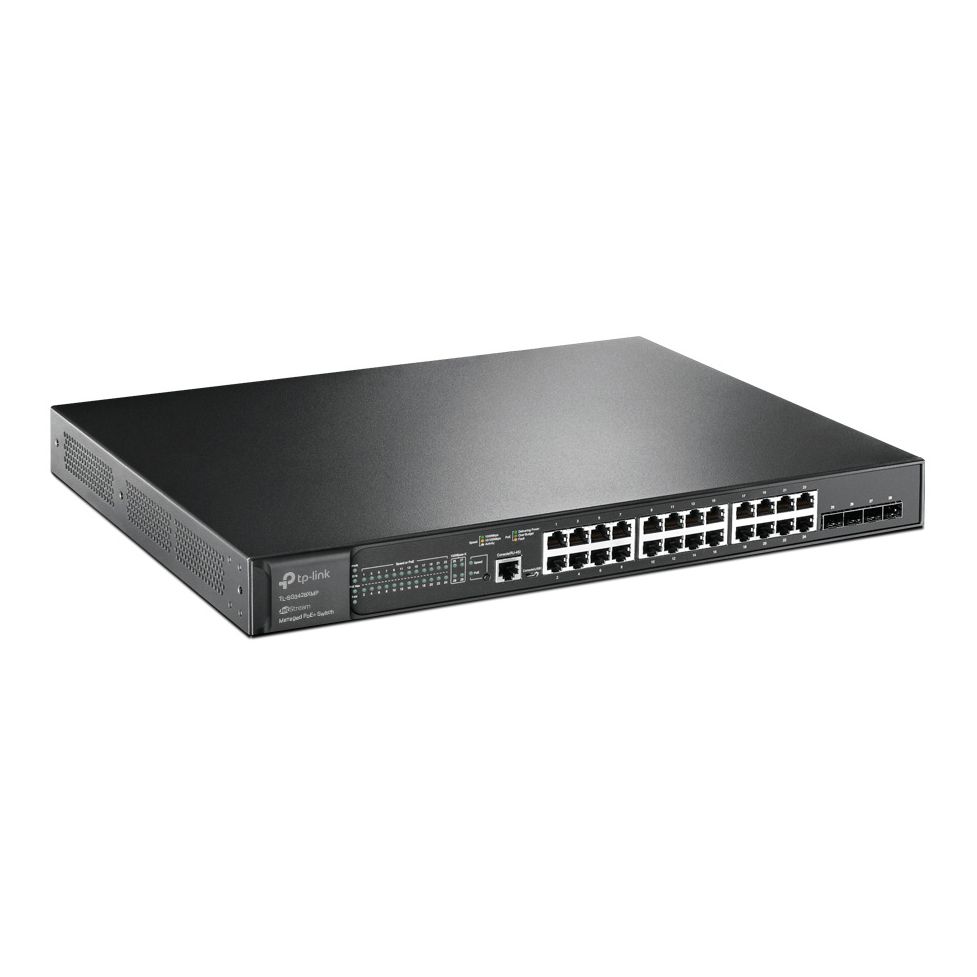

JetStream™ 24-Port Gigabit & 4-Port 10GE SFP+ L2+ Managed Switch, 24-Port PoE+
- 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Available stock:
Article number:
TL-SG3428XMP
Manufacturer number:
SG3428XMP(EU)
Manufacturer page:
TP-LINK
EAN:
1210002611619
- 24x Gigabit PoE+ Ports
- 4x 10G SFP+ Slots
- RJ45/Micro-USB Console Port
- 802.3at/af, 384 W PoE Power
- 1U 19-inch Rack-mountable Steel Case
- Features:
- Integration with Omada SDN Controller,Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
- 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Technical properties
1 GBit Ports, PoE:
24
19-inch Rackmount:
Yes
Certificate:
CE, FCC, RoHS
Console Ports:
1x RJ45, 1x MicroUSB
Dimensions:
440 x 330 x 44 mm
Fan:
2
Jumbo Frame:
9 KB
Layer3 IP Interfaces:
16
MAC Address Table:
16 K
Network Ports:
24-Port
Operating Conditions:
0°C - +45°C
Operating Humidity:
10 - 90%, non-condensing
Packet Buffer:
12 Mbit
Packet Forwarding Rate:
95.23 Mpps
PoE Power Budget:
384 W
PoE Standard:
IEEE 802.3 af/at
PoE Support:
Yes
Power Consumption:
34.4 W / 465.8 W
Power Supply:
100 - 240V AC / 50-60 HZ
Product Family:
POE+ Managed/Smart/ Easy Smart Switch
SFP+ Ports:
4
Switch Capacity:
128 Gbps
max. Power consumption per Port, PoE:
30 W
Downloads
Datenblatt_en.pdf
