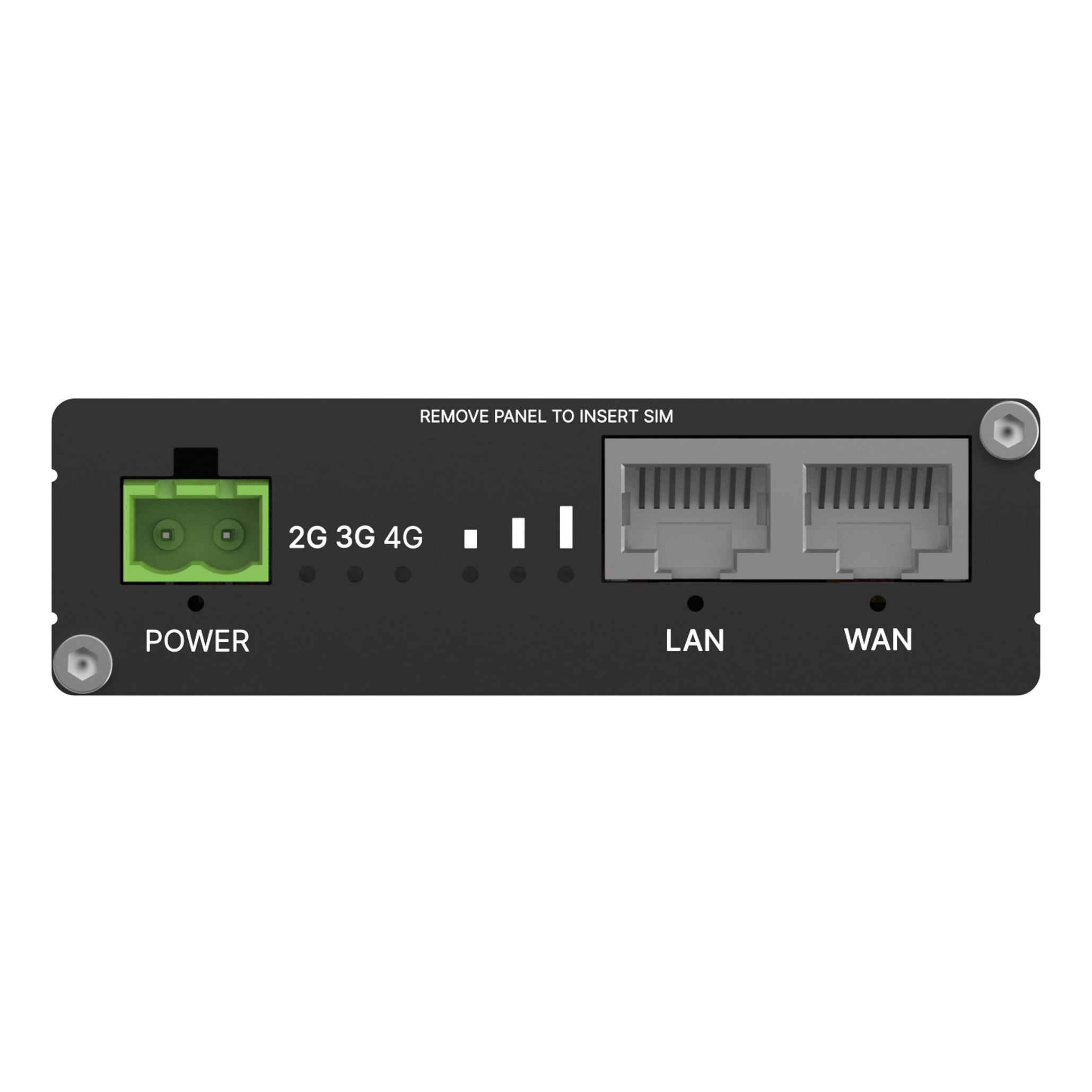

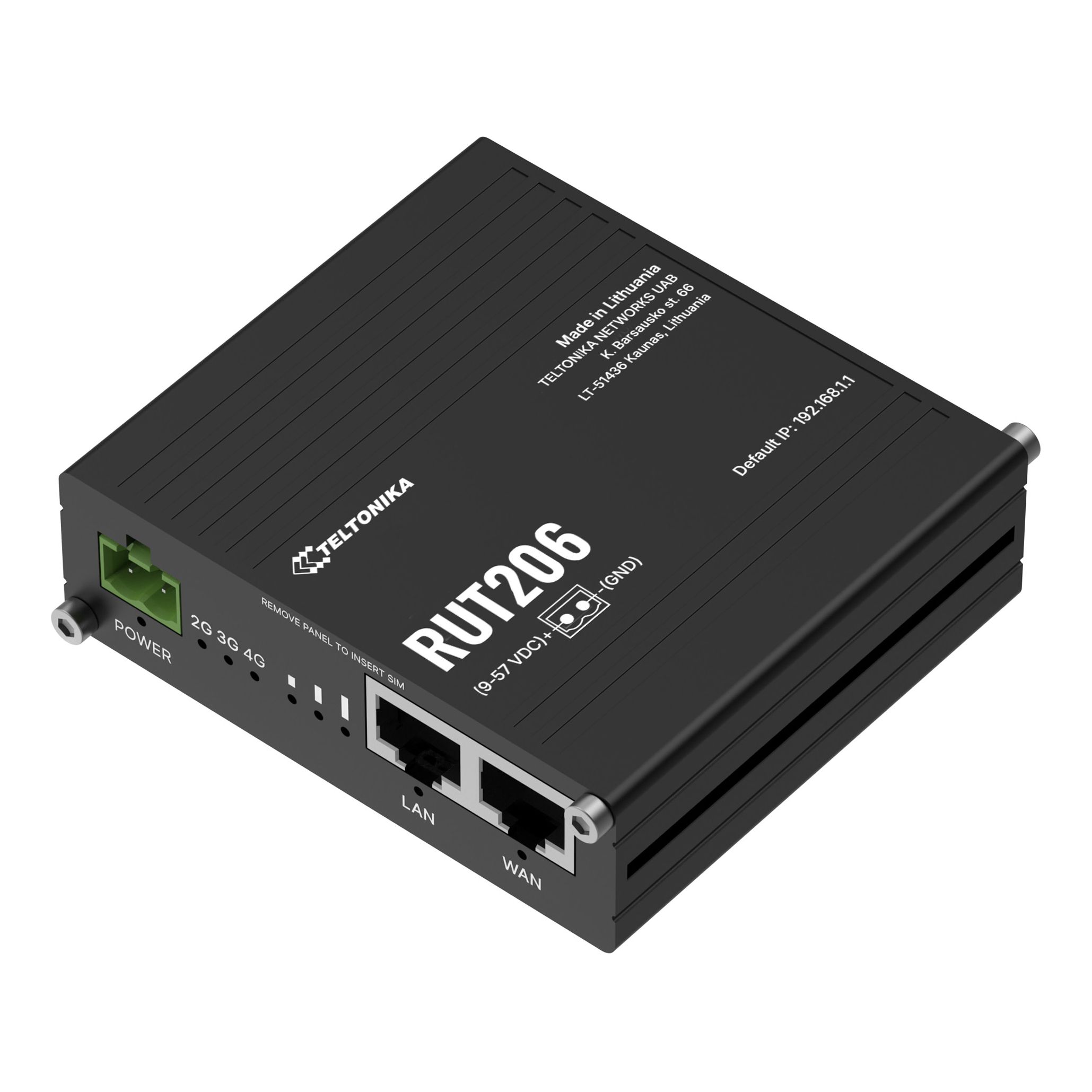

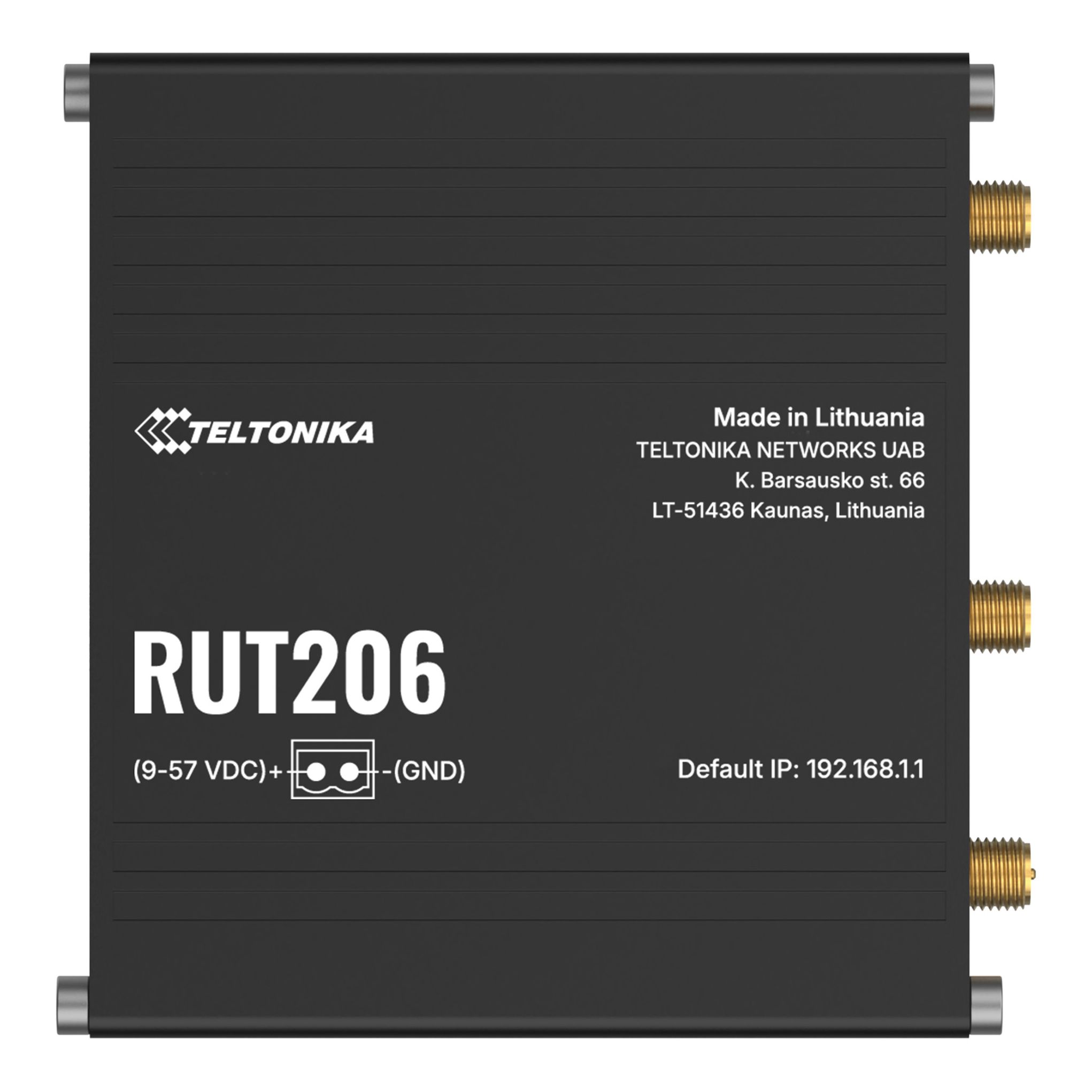

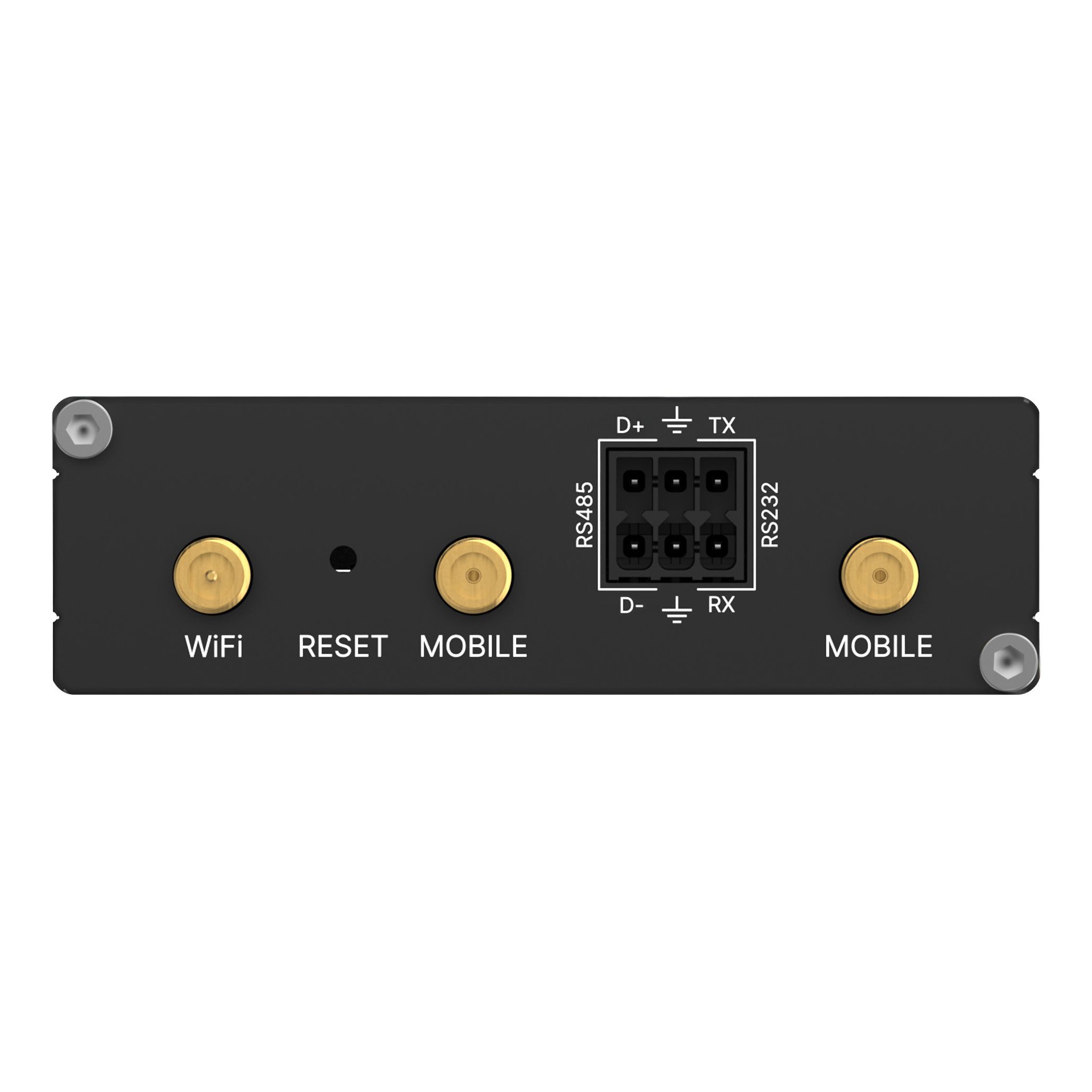

Industrial LTE Router for professional Applications, 4G CAT 4, RS232/485, PoE

The RUT206 is a compact industrial router that supports RS232 and RS485 serial interfaces, along with both active and passive PoE inputs. Its rugged design, 2-pin power input, and expandable data storage via a microSD slot make it an ideal choice for a range of IoT and M2M applications. This 4G Cat 4 router comes with RutOS open-source software and supports key industrial protocols like Modbus, DNP3 and DLMS.

Stk

Available stock:

Article number: RUT206

Manufacturer number: RUT206010000

Manufacturer page: TELTONIKA

EAN: 4779051842049

Features & Usage Description & Data Highlight Equipment

4G/LTE (Cat 4), 3G, 2G Connectivity
WiFi - Wireless Access Point with Hotspot functionality
RS232 & RS485 for serial communication
Active and Passive PoE inputs
WAN Failover - Automatic switching to available Backup connection
RMS for remote management, access & VPN services

Technical properties

100 MBit Ports:

Antenna Connector:

2x SMA, 1x RP-SMA

CPU:

Mediatek, 580 MHz, MIPS 24KEc

CPU nominal frequency:

580 MHz

Certificate:

CE, UKCA, CB, RCM, EAC, UCRF

Design:

DIN Rail

Digital Input / Output:

1 / 1

Dimensions:

83 x 25 x 83 mm

Firewall Function:

OpenVPN, IPsec, GRE, L2TP, PPTP

Flash Memory:

32 MB, NOR Flash

Frequency:

2.4 GHz

GPS:

GSM/GPRS/EDGE Support:

Yes

LTE Category:

Cat 4

LTE Support:

Yes

Mobile Standard:

2G/3G/4G

Mounting:

DIN-Rail

Network Ports:

2-Port

Number of Ports:

1 - 7

Operating Conditions:

-40°C - +75°C

Operating Humidity:

10 - 90%, non-condensing

Operating System:

RutOS

PoE Standard:

IEEE 802.3 af/Passive PoE

PoE in:

PoE out:

Port 1

Port Speed, RJ45:

10 Mbit/100 Mbit

Power Consumption max.:

<2W / 3.5W

Power Jack:

2-Pin industrial DC socket

Power Supply:

9 - 57V DC

SFP Ports:

SIM Slots:

2x mini SIM (2FF)

Safety Class:

IP30

Security:

WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto ...

Serial Interface Type:

RS-232, RS-485

Size of RAM:

128 MB DDR2

VPN Support:

OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc

WAN Connection Type:

LTE / 4G

WLAN:

Yes

WLAN 2.4 GHz Generation:

WiFi 4

WLAN Standard:

IEEE 802.11 b/g/n

Downloads

Datenblatt_en.pdf Broschuere_de.pdf
