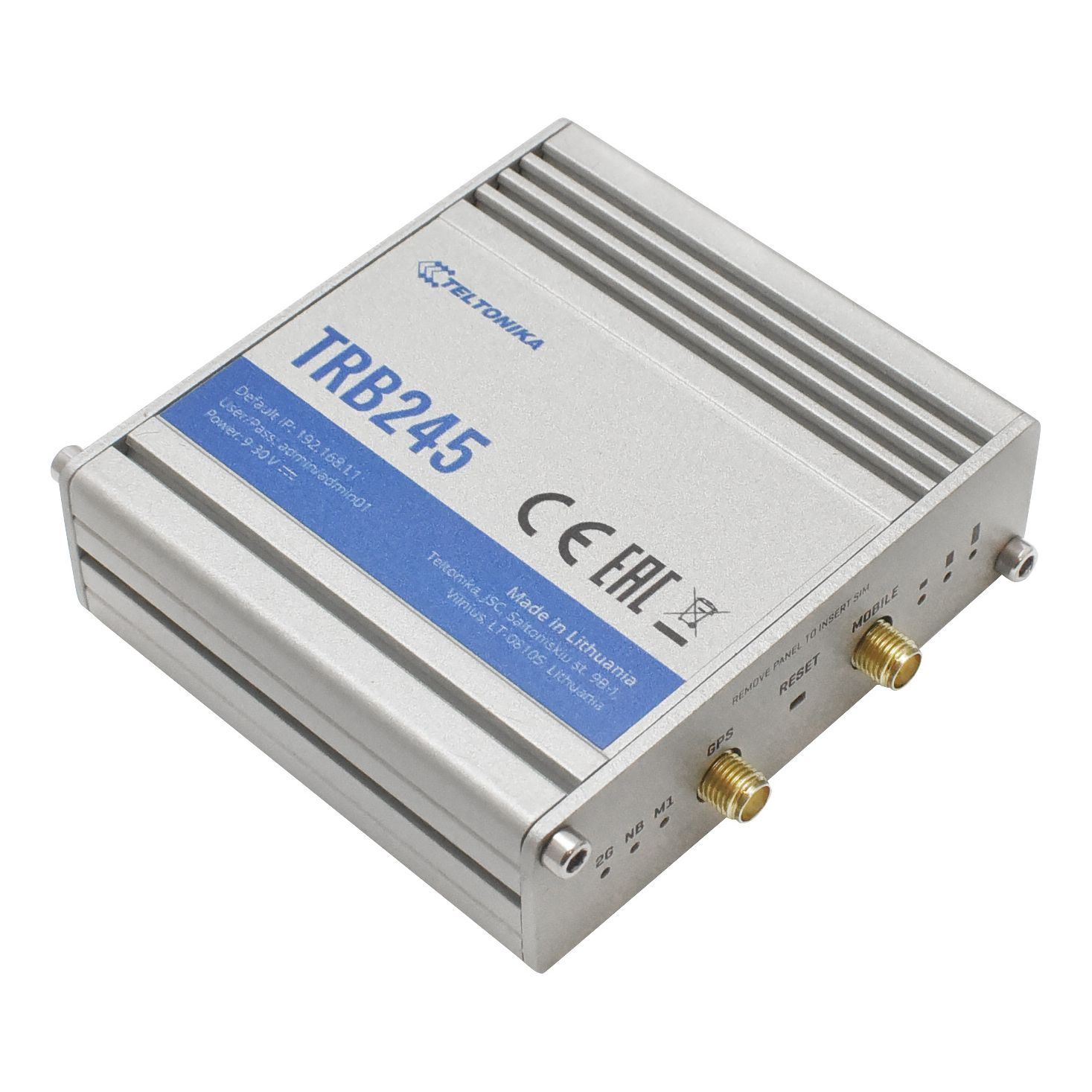

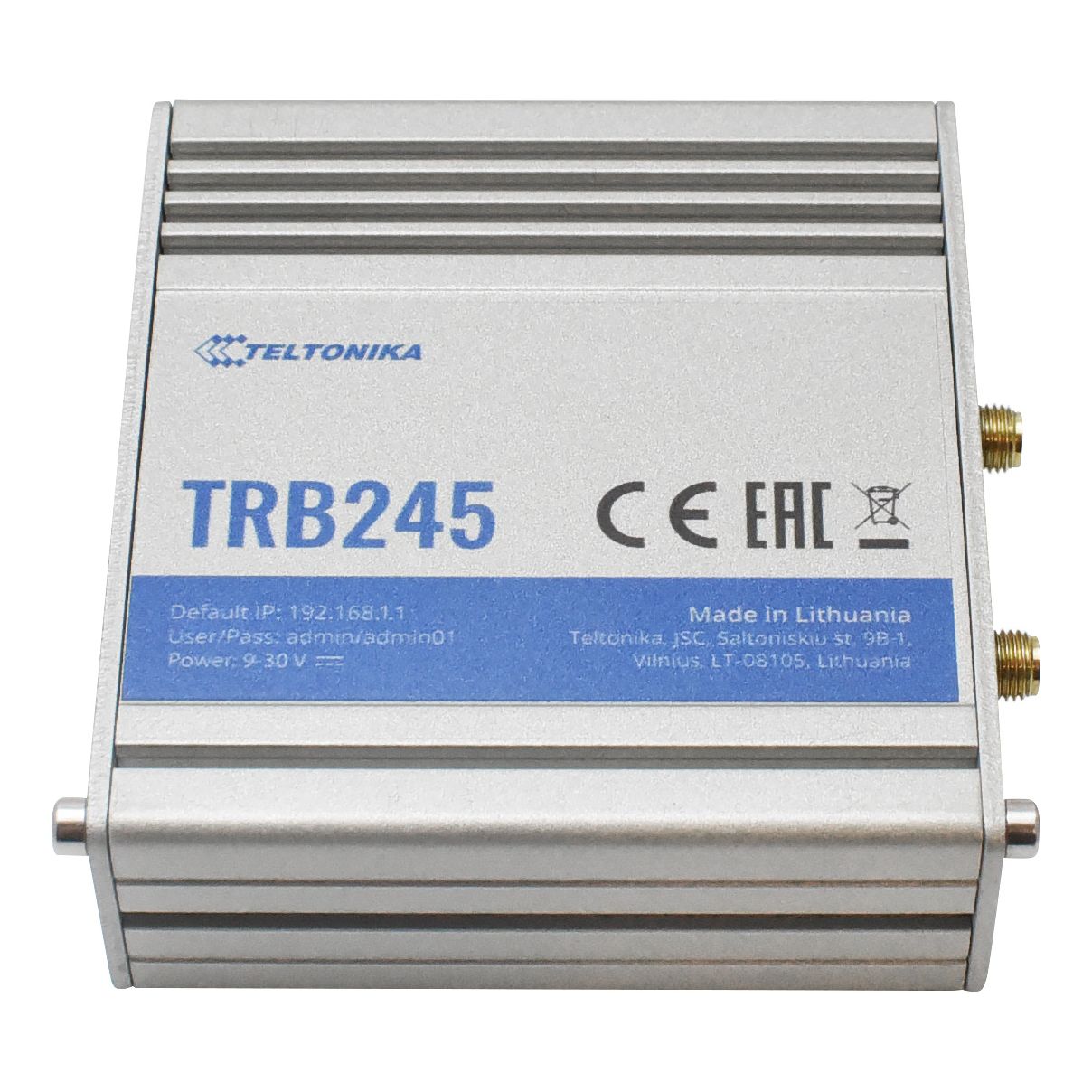

Industrial All-In-One M2M LTE CAT4 Gateway, Digital I/O, RMS Support
- Mobile: 4G/LTE (Cat 4), 3G, 2G
- CPU: Qualcomm, MIPS 24Kc, 650 MHz
- Memory: 16 MBytes Flash, 64 MBytes RAM
- Powering option: 16pin terminal, 9-30 VDC
- SIM: 2 x Internal SIM holders (2FF)
- Antenna connectors: 1 x SMA for mobile, 1 x SMA for GPS
- Ethernet: 1 x 10/100 Ethernet port
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- Inputs/Outputs: On 16pin socket: 3 x Digital input/Digital open collector output (configurable), 1 x Analog input
- Serial: 1 x RS232, 1 x RS485
- Status LEDs: 3 x Connection type, 3 x Signal strength, 2 x Ethernet, 1 x Power
- Operating temperature: -40 °C to 75 °C
- Housing: Aluminium housing with DIN rail mounting option
- Dimensions (W x H x D): 83 x 25 x 74 mm
- Weight: 165 g
Software:
- Operating system: RutOS (OpenWrt based Linux OS)
- Mobile features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet
- Monitoring and Management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
- Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
- Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
- NTP: NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
- GNSS: NMEA forwarding, AVL, Geofencing
- Modbus: TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT
- Serial: Console, Over IP, Modem, NTRIP, Modbus
- Administration: Multi user, Configuration profiles, Diagnostics, logs, Configuration backup
Industrial All-In-One M2M LTE Cat 4 Gateway equipped with multiple Inputs/Outputs, RS232, RS485 and Ethernet interfaces. All these features allow this device to be used universally in M2M applications.
Available stock:
Article number:
TRB245
Manufacturer number:
Teltonika ALL-IN-ONE industrial M2M LTE Cat 4 Gateway
Manufacturer page:
TELTONIKA
EAN:
4779027312750
- Mobile: 4G/LTE (Cat 4), 3G, 2G
- CPU: Qualcomm, MIPS 24Kc, 650 MHz
- Memory: 16 MBytes Flash, 64 MBytes RAM
- Powering option: 16pin terminal, 9-30 VDC
- SIM: 2 x Internal SIM holders (2FF)
- Antenna connectors: 1 x SMA for mobile, 1 x SMA for GPS
- Ethernet: 1 x 10/100 Ethernet port
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- Inputs/Outputs: On 16pin socket: 3 x Digital input/Digital open collector output (configurable), 1 x Analog input
- Serial: 1 x RS232, 1 x RS485
- Status LEDs: 3 x Connection type, 3 x Signal strength, 2 x Ethernet, 1 x Power
- Operating temperature: -40 °C to 75 °C
- Housing: Aluminium housing with DIN rail mounting option
- Dimensions (W x H x D): 83 x 25 x 74 mm
- Weight: 165 g
Software:
- Operating system: RutOS (OpenWrt based Linux OS)
- Mobile features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet
- Monitoring and Management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
- Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
- Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
- NTP: NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
- GNSS: NMEA forwarding, AVL, Geofencing
- Modbus: TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT
- Serial: Console, Over IP, Modem, NTRIP, Modbus
- Administration: Multi user, Configuration profiles, Diagnostics, logs, Configuration backup
Industrial All-In-One M2M LTE Cat 4 Gateway equipped with multiple Inputs/Outputs, RS232, RS485 and Ethernet interfaces. All these features allow this device to be used universally in M2M applications.
Technical properties
100 MBit Ports:
1
Antenna Connector:
2x SMA
CPU:
Qualcomm, MIPS 24Kc, 650 MHz
Case material:
Aluminum Alloy
Cellular Network:
4G/LTE (Cat 4), 3G, 2G
Dimensions:
83 x 25 x 74 mm
Input digital:
3
Interfaces:
Ethernet / LTE
LTE Category:
Cat 4
Main Speed:
100 Mbit
Management:
WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
Mobile Standard:
2G/3G/4G
Mounting:
DIN-Rail
Operating Conditions:
-40°C - +75°C
Operating System:
RutOS
Port Speed, RJ45:
10 Mbit/100 Mbit
Power Consumption max.:
<1.2W / <5.0W
Power Jack:
16-Pin Terminal
SIM Slots:
2
Serial Interface Type:
RS-232, RS-485
Size of RAM:
64 MB
Storage Type internal:
16 MB Flash
WLAN:
No
