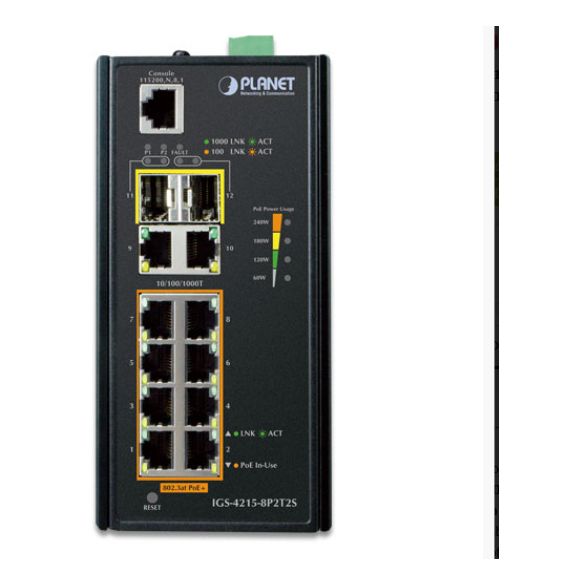

Industrial 8-Port Gbit PoE(at) + 2-Port Gbit + 2-Port SFP Switch
- Eight 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at/af PoE+ Injector (Port-1 to Port-8)
- Two 10/100/1000BASE-T Gigabit Ethernet RJ45 ports (Port-9 and Port-10)
- Two 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection (Port-11 and Port-12)
- One RJ45 console interface for basic management and setup
Power over Ethernet:
- Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 8 ports of IEEE 802.3af/802.3at devices powered
- 240-watt PoE budget
- Supports PoE power up to 36 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD classification detection
- PD alive-check
- PoE schedule
Industrial Case & Installation:
- IP30 aluminum case
- DIN-rail and wall-mount design

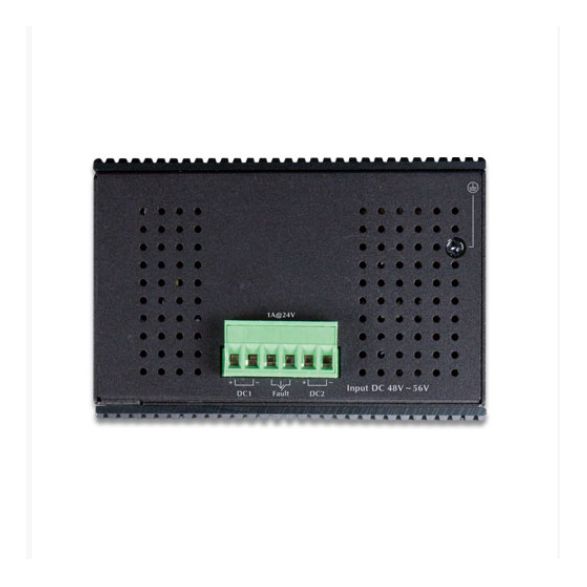

- 48~56V DC, redundant power with polarity reverse protect function
- Supports 6000V DC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
Switching:
- Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 8K MAC address table size
- 10K jumbo frame
- Automatic address learning and address aging
- Supports CSMA/CD protocol
Layer 2 Features:
- Supports VLAN
- IEEE 802.1Q tagged VLAN
- Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
- Protocol VLAN
- Voice VLAN- Private VLAN (Protected port)
- Management VLAN
- GVRP
- Supports Spanning Tree Protocol
- STP (Spanning Tree Protocol)
- RSTP (Rapid Spanning Tree Protocol)
- MSTP (Multiple Spanning Tree Protocol)
- STP BPDU Guard, BPDU Filtering and BPDU Forwarding
- Supports Link Aggregation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
- Maximum 4 trunk groups, up to 4 ports per trunk group
- Provides port mirror (many-to-1)
- Loop protection to avoid broadcast loops
Quality of Service:
- Ingress/Egress Rate Limit per port bandwidth control
- Traffic classification
- IEEE 802.1p CoS
- TOS/DSCP/IP precedence of IPv4/IPv6 packets
- Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast:
- Supports IPv4 IGMP snooping v2, v3
- Supports IPv6 MLD snooping v1, v2
- IGMP querier mode support
- IGMP snooping port filtering
- MLD snooping port filtering
Security:
- Storm Control support
- Broadcast/unknown unicast/unknown multicast
- Authentication
- IEEE 802.1X port-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers
- DHCP Option 82
- RADIUS/TACACS+ authentication
- Access Control List
- IPv4/IPv6 IP-based ACL
- IPv4/IPv6 IP-based ACE
- MAC-based ACL
- MAC-based ACE
- MAC Security
- Static MAC
- MAC filtering
- Port security for source MAC address entries filtering
- DHCP snooping to filter distrusted DHCP messages
- Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
- IP source guard prevents IP spoofing attacks
- DoS attack prevention
Management:
- IPv4 and IPv6 dual stack management
- Switch Management Interface
- IPv4/IPv6 Web switch management
- Console and telnet Command Line Interface
- SNMP v1, v2c, v3
- SSH and SSL secure access
- User privilege levels control
- Built-in Trivial File Transfer Protocol (TFTP) client
- Static and DHCP for IP address assignment
- System Maintenance
- Firmware upload/download via HTTP/TFTP
- Configuration upload/download through HTTP/TFTP
- Hardware reset button for system reboot or reset to factory default
- Dual images
- SNTP Network Time Protocol
- Cable diagnostics
- Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
- SNMP trap for interface Link Up and Link Down notification
- Event message logging to remote syslog server
- Four RMON groups (history, statistics, alarms and events)
- PLANET Smart Discovery Utility
Available stock:
Article number:
IGS-4215-8P2T2S
Manufacturer number:
IGS-4215-8P2T2S
Manufacturer page:
PLANET
EAN:
4711605282819
- Eight 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at/af PoE+ Injector (Port-1 to Port-8)
- Two 10/100/1000BASE-T Gigabit Ethernet RJ45 ports (Port-9 and Port-10)
- Two 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection (Port-11 and Port-12)
- One RJ45 console interface for basic management and setup
Power over Ethernet:
- Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 8 ports of IEEE 802.3af/802.3at devices powered
- 240-watt PoE budget
- Supports PoE power up to 36 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD classification detection
- PD alive-check
- PoE schedule
Industrial Case & Installation:
- IP30 aluminum case
- DIN-rail and wall-mount design
- 48~56V DC, redundant power with polarity reverse protect function
- Supports 6000V DC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
Switching:
- Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 8K MAC address table size
- 10K jumbo frame
- Automatic address learning and address aging
- Supports CSMA/CD protocol
Layer 2 Features:
- Supports VLAN
- IEEE 802.1Q tagged VLAN
- Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
- Protocol VLAN
- Voice VLAN- Private VLAN (Protected port)
- Management VLAN
- GVRP
- Supports Spanning Tree Protocol
- STP (Spanning Tree Protocol)
- RSTP (Rapid Spanning Tree Protocol)
- MSTP (Multiple Spanning Tree Protocol)
- STP BPDU Guard, BPDU Filtering and BPDU Forwarding
- Supports Link Aggregation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
- Maximum 4 trunk groups, up to 4 ports per trunk group
- Provides port mirror (many-to-1)
- Loop protection to avoid broadcast loops
Quality of Service:
- Ingress/Egress Rate Limit per port bandwidth control
- Traffic classification
- IEEE 802.1p CoS
- TOS/DSCP/IP precedence of IPv4/IPv6 packets
- Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast:
- Supports IPv4 IGMP snooping v2, v3
- Supports IPv6 MLD snooping v1, v2
- IGMP querier mode support
- IGMP snooping port filtering
- MLD snooping port filtering
Security:
- Storm Control support
- Broadcast/unknown unicast/unknown multicast
- Authentication
- IEEE 802.1X port-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers
- DHCP Option 82
- RADIUS/TACACS+ authentication
- Access Control List
- IPv4/IPv6 IP-based ACL
- IPv4/IPv6 IP-based ACE
- MAC-based ACL
- MAC-based ACE
- MAC Security
- Static MAC
- MAC filtering
- Port security for source MAC address entries filtering
- DHCP snooping to filter distrusted DHCP messages
- Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
- IP source guard prevents IP spoofing attacks
- DoS attack prevention
Management:
- IPv4 and IPv6 dual stack management
- Switch Management Interface
- IPv4/IPv6 Web switch management
- Console and telnet Command Line Interface
- SNMP v1, v2c, v3
- SSH and SSL secure access
- User privilege levels control
- Built-in Trivial File Transfer Protocol (TFTP) client
- Static and DHCP for IP address assignment
- System Maintenance
- Firmware upload/download via HTTP/TFTP
- Configuration upload/download through HTTP/TFTP
- Hardware reset button for system reboot or reset to factory default
- Dual images
- SNTP Network Time Protocol
- Cable diagnostics
- Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
- SNMP trap for interface Link Up and Link Down notification
- Event message logging to remote syslog server
- Four RMON groups (history, statistics, alarms and events)
- PLANET Smart Discovery Utility
Technical properties
1 GBit Ports:
10
Access Control List:
IPv4/IPv6 IP-based ACL/MAC-based ACLIPv4/IPv6 IP-based ACE/MAC-based ACE
Alarm I/O:
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC
Basic Management Interfaces:
Web browser, Console,Telnet, SNMP v1, v2c, v3Firmware upgrade by HTTP/TFTP protocol through Ethe ...
Case material:
aluminum metal case
Certificate:
FCC Part 15 Class A, CE
Design:
DIN Rail
Dimensions:
161 x 107 x 72 mm
ESD/EMP Protection:
6KV DC
Flow Control:
IEEE 802.3x pause frame for full-duplexBack pressure for half-duplex
IGMP Snooping:
IPv4 IGMP snooping v2, v3IGMP querierUp to 256 multicast groups
Jumbo Frame:
10 Kbytes
LEDs:
3 x LED for System and Power: Green: DC Power 1 Green: DC Power 2 Green: Power Fault2 x LED for ...
Layer2 Port Mirroring:
TX/RX/bothMany-to-1 monitor
Link Aggregation:
IEEE 802.3ad LACP and static trunkSupports 4 groups with 4 ports per trunk
MAC Address Table:
8K entries
MLD Snooping:
IPv6 MLD snooping v2, v3, up to 256 multicast groups
Main Speed:
1 Gbit Copper
Managed:
Unmanaged
Max. Number of PDs Class 2:
8
Max. Number of PDs Class 3:
8
Max. Number of PDs Class 4:
8
Mounting:
DIN-rail kit and wall-mount ear
Network Ports:
10-Port
Number of Ports:
8 - 15
Operating Conditions:
-40°C - +75°C
Operating Humidity:
5 - 95%, non-condensing
PoE Output Voltage / Power:
IEEE 802.3af Standard: Per port 48V~51V DC (depending on the power supply), max. 15.4 watts, IEE ...
PoE Power Budget:
240 Watts (depending on power input)
PoE Power Supply Type:
End-span
PoE Standard:
IEEE 802.3 af/at
PoE Support:
Yes
Power Consumption max.:
7.8 watts, 26BTU (Standby without PoE function) at DC 56V power input, 14 watts, 47BTU (Full loa ...
Power Pin Assignment:
1/2(+), 3/6(-)
Power Supply:
48-56V DC, 6A (max.)
Product Family:
Switch Industrial, DIN-Rail, PoE, IEEE802.3af/at
QoS:
8 mapping IDs to 8 level priority queues - Port number - 802.1p priority- DSCP/IP precedence of ...
Reset Button:
> 5 sec: Factory default
SFP Ports:
2 (Combo)
SNMP MIBs:
RFC 1213 MIB-IIRFC 1215 Generic TrapsRFC 1493 Bridge MIBRFC 2674 Bridge MIB ExtensionsRFC 2737 E ...
Safety Class:
IP30
Secure Management Interfaces:
SSH, SSL, SNMP v3
Security Layer2:
IEEE 802.1X port-based authenticationBuilt-in RADIUS client to cooperate with RADIUS serverRADIU ...
Serial Console Port:
1 x RS232-to-RJ45 serial port (115200,8, N, 1)
Shared Data Buffer:
4.1 Mbits
Spanning Tree Protocol:
IEEE 802.1D Spanning Tree Protocol (STP)IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)IEEE 802. ...
Stability Testing:
IEC 60068-2-32 (Free Fall)IEC 60068-2-27 (Shock)IEC 60068-2-6 (Vibration)
Standards & Protocols:
IEEE 802.3 10BASE-TIEEE 802.3u 100BASE-TX/100BASE-FXIEEE 802.3z Gigabit SX/LXIEEE 802.3ab Gigabi ...
Storage Humidity:
5 - 95%, non-condensing
Storage Temperature:
-40°C bis 85°C
Switch Architecture:
Store-and-Forward
Switch Fabric:
24Gbps / non-blocking
Switch Throughput @ 64 Bytes:
14.8Mpps @64 bytes
VLAN:
802.1Q tagged-based VLANUp to 256 VLAN groups, out of 4094 VLAN IDs802.1ad Q-in-Q tunneling (VLA ...
WIssenswertes zum Thema
