Industrial 10/100/1000T Gigabit Ethernet Switch, 5-Port umanaged, IP30, compact

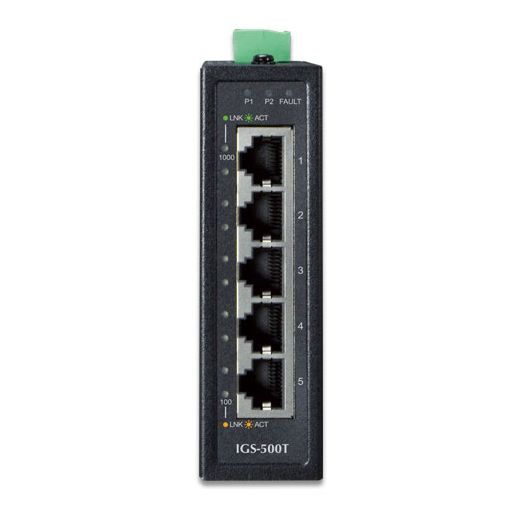

- 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
Layer 2 Features:
- Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard
- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
- Backplane (switching fabric): 10Gbps
- Integrated address look-up engine, supporting 4K absolute MAC addresses
- 9K jumbo packet size
- Automatic address learning and address aging
- CSMA/CD Protocol
Industrial Case and Installation:
- IP30 metal case
- DIN rail and wall-mount design
- 12 to 48V DC, redundant power with polarity reverse protect function and connective, removable terminal block for master and slave power; 24V AC power support
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
- Free fall, shock-proof and vibration-proof for industries
Available stock:
- 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
Layer 2 Features:
- Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard
- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
- Backplane (switching fabric): 10Gbps
- Integrated address look-up engine, supporting 4K absolute MAC addresses
- 9K jumbo packet size
- Automatic address learning and address aging
- CSMA/CD Protocol
Industrial Case and Installation:
- IP30 metal case
- DIN rail and wall-mount design
- 12 to 48V DC, redundant power with polarity reverse protect function and connective, removable terminal block for master and slave power; 24V AC power support
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
- Free fall, shock-proof and vibration-proof for industries
Technical properties
1 GBit Ports:
5
Alarm:
1x Relay Outpu
Case material:
Metal
Certificate:
FCC Part 15 Class A, CE
Design:
DIN Rail
Dimensions:
70 x 104 x 30 mm
ESD/EMP Protection:
6 kV
Flow Control:
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Jumbo Frame:
9K
LEDs:
System, Power, LNK/ACT
MAC Address Table:
4K
Main Speed:
1 Gbit Copper
Managed:
Unmanaged
Mounting:
DIN-Rail, wall-mount
Network Ports:
5-Port
Number of Ports:
1 - 7
Operating Conditions:
-40° - +75°C
Operating Humidity:
5 - 90%, non-condensing
PoE Support:
-
Power Consumption:
3.6 W / 12.25 BTU

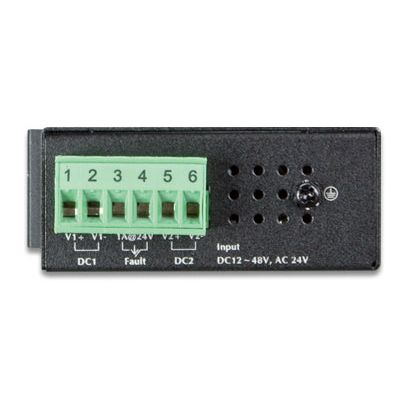

Power Jack:
6-pin Terminal Block
Power Supply:
12 - 48V DC, 24V AC
Safety Class:
IP30
Stability Testing:
IEC 60068-2-32 (free fall), IEC 60068-2-27 (shock), IEC 60068-2-6 (vibration)
Standards & Protocols:
IEEE 802.3, Etehrnet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3x Full ...
Switch Architecture:
Store-and-Forward
Switch Fabric:
10 Gbps
Switch Throughput @ 64 Bytes:
7.4 Mpps
