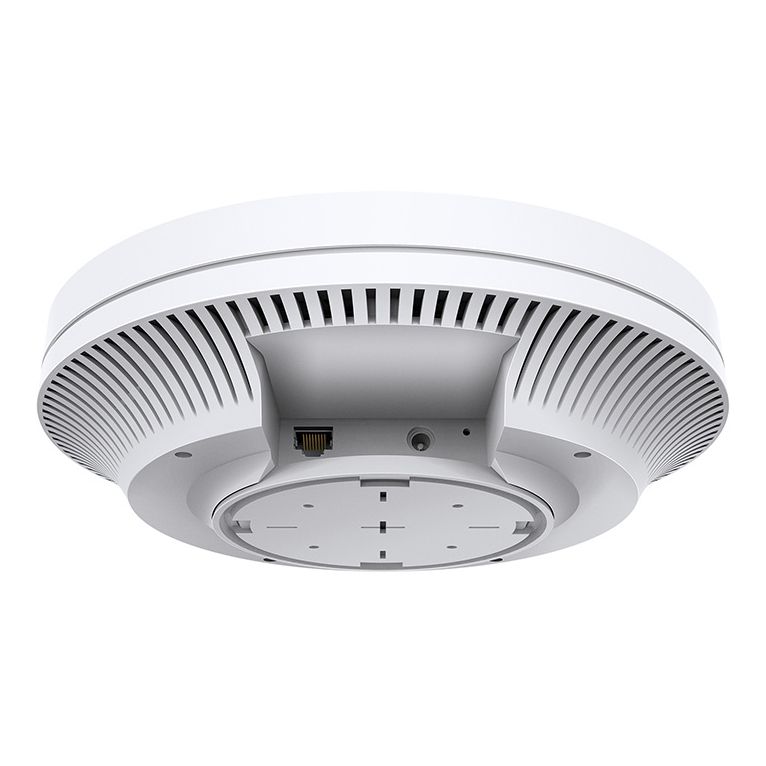

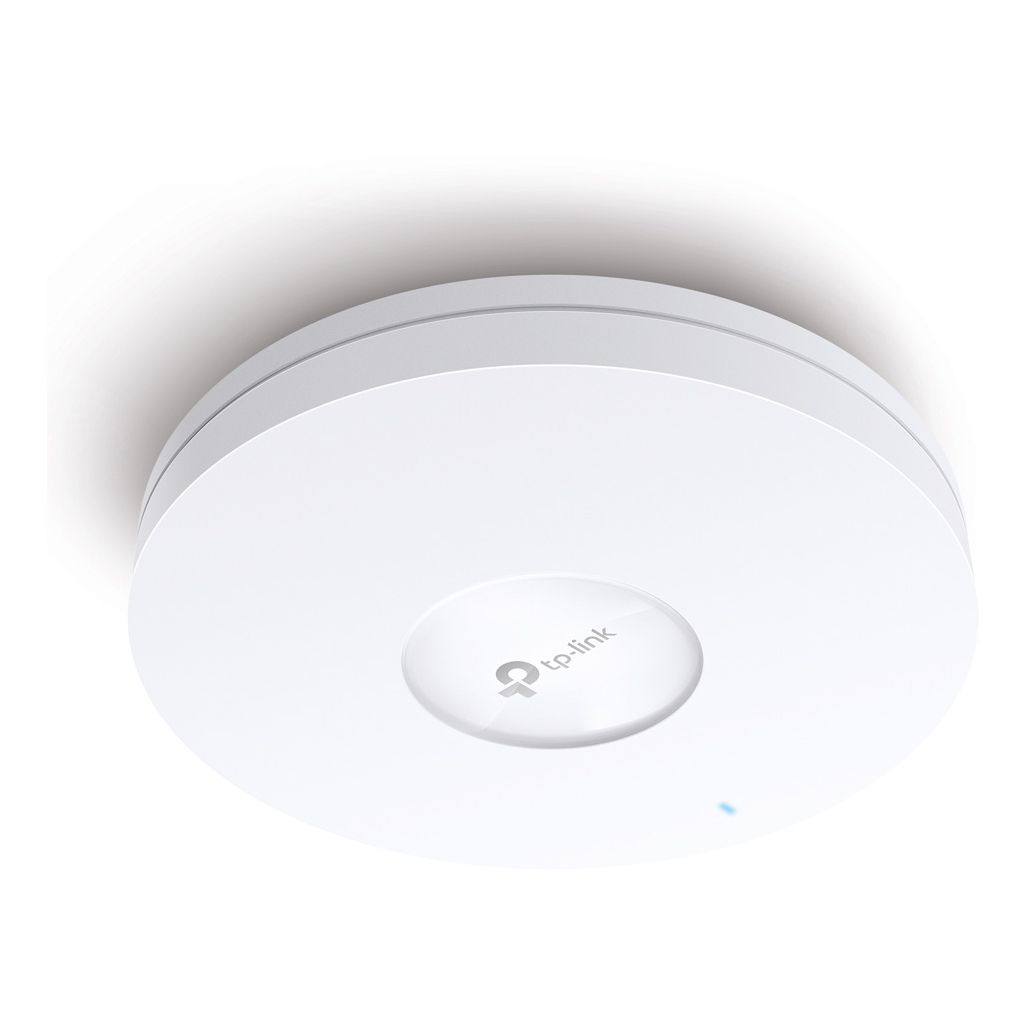

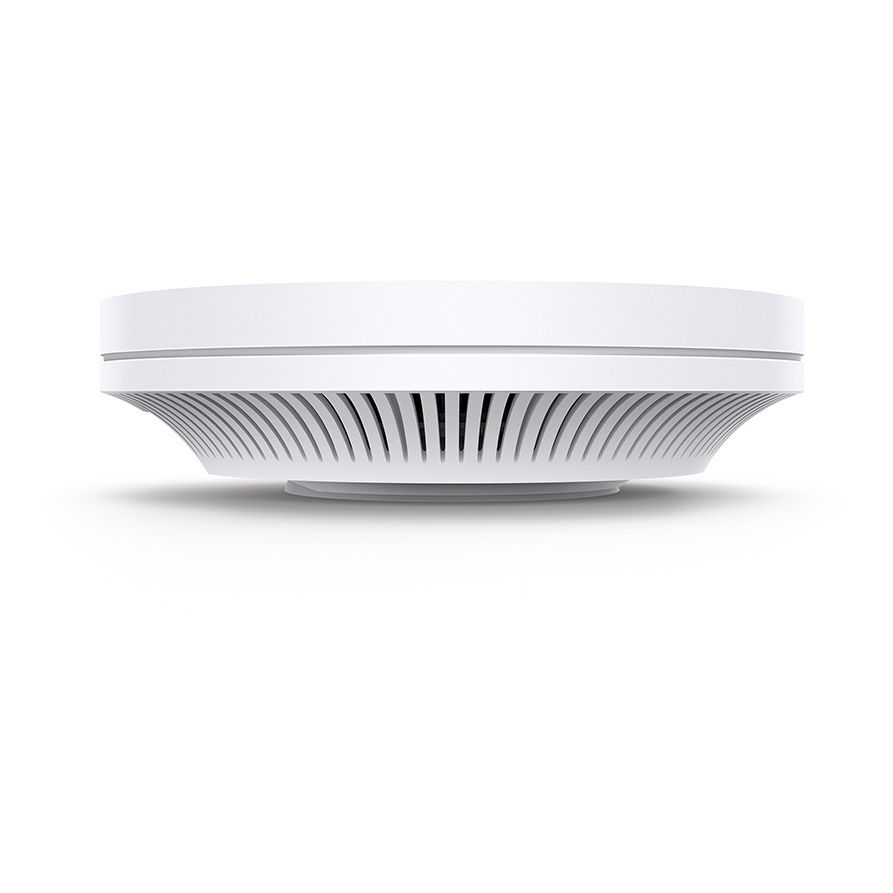

AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point
- Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.†
- High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.?
- PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Available stock:
Article number:
EAP660 HD
Manufacturer number:
EAP660 HD(EU)
Manufacturer page:
TP-LINK
EAN:
6935364089719
- 1x 2.5Gbps RJ45 Port
- 1148Mbps at 2.4 GHz + 2402 Mbps at 5 GHz
- Features:
- High Density connectivity(1000+ Clients), 802.3at POE and 12V DC, 8×Internal Antennas, MU-MIMO, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada App
- Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.†
- High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.?
- PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Technical properties
2.5 Gbit Ports:
1
Antenna (build in):
2.4 GHz: 4 x 4 dBi / 5 GHz: 4 x 5 dBi
Certificate:
CE, FCC, RoHS
Data Rate:
2.4 GHz: 1148 Mbps / 5 GHz: 2402 Mbps
Dimensions:
243 x 243 x 64 mm
Field of application:
Indoor
Frequency:
2.4 GHz & 5 GHz
Mounting:
Ceiling / Wall Mounting
Multiple SSIDs:
16
Operating Conditions:
0°C - +40°C
Operating Humidity:
10 - 90%, non-condensing
PoE Standard:
IEEE 802.3 at
PoE Support:
IEEE 802.3 at
Power Supply:
12V DC, 2A, PoE
Product Family:
Omada EAP Series
Security:
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3- Personal/Enterprise
WLAN Standard:
IEEE 802.11 ax/ac/n/g/b/a
Wireless Clients:
1000+
