5 GHz PtMP LTU™ Long-Range Client w/ Antenna
- PtMP CPE
- 1024 QAM
- 10/20/30/40/50 MHz channel bandwidth
- Central configuration management from AP side
- Frequency split
- Auto power adjustments
- Router mode support
- Range up to 30km
Functions in a PtMP environment with the LTU-Rocket as the basestation

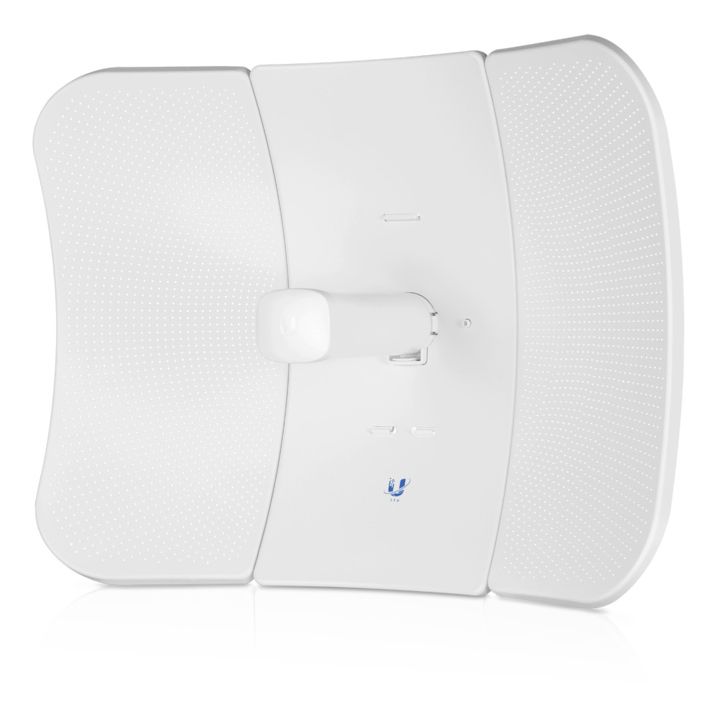

Incorporating innovative industrial design with advanced technology, the LTU LR is a Point-to-MultiPoint (PtMP) 5 GHz Radio with an integrated antenna designed for use as a PtMP CPE. LTU technology that breaks through the limitations of 802.11 Wi-Fi technology and supports 1024QAM for high performance and flexible bandwidth (10/20/30/40/50 MHz).
Designed for long-range applications, the LTU LR is a 5 GHz subscriber station that functions as a CPE (Customer Premises Equipment) in a Point-to-MultiPoint (PtMP) environment with the LTU Rocket® as the basestation.
Proprietary LTU Technology:
Based on Ubiquiti’s LTU technology, the LTU LR is not impeded by the limitations of standard 802.11 Wi-Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps* of real TCP/IP throughput and modulation rates of up to 4096QAM**.
CPE Modes:
The LTU LR supports both bridged and built-in hardware NAT router modes to suit your specific deployment.
Frequency Split:
The LTU LR can use different frequencies for TX and RX to avoid interference.
Improved Noise Immunity:
The LTU LR directs RF energy in a tighter beamwidth. With the focus in one direction, the LTU LR blocks or spatially filters out noise to improve noise immunity. This is especially important in an area crowded with other RF signals of the same or similar frequency.
Innovative Design:

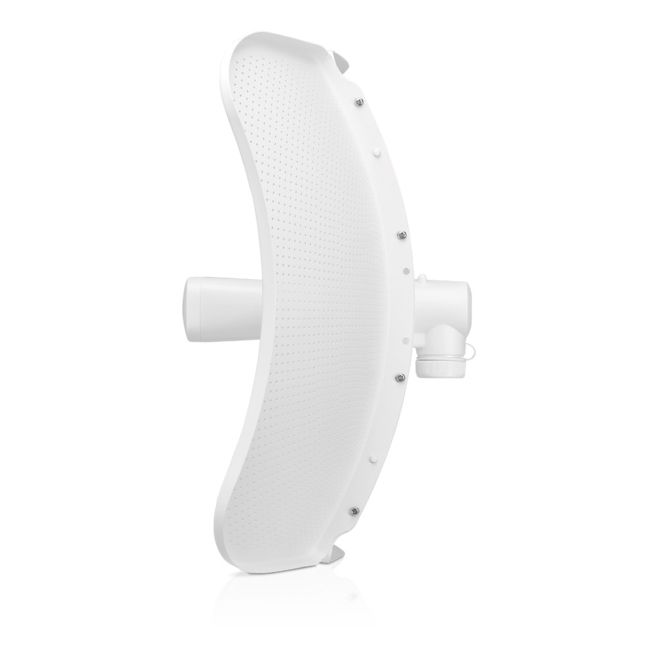

Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of a 26 dBi antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.
Quick Mounting and Alignment:

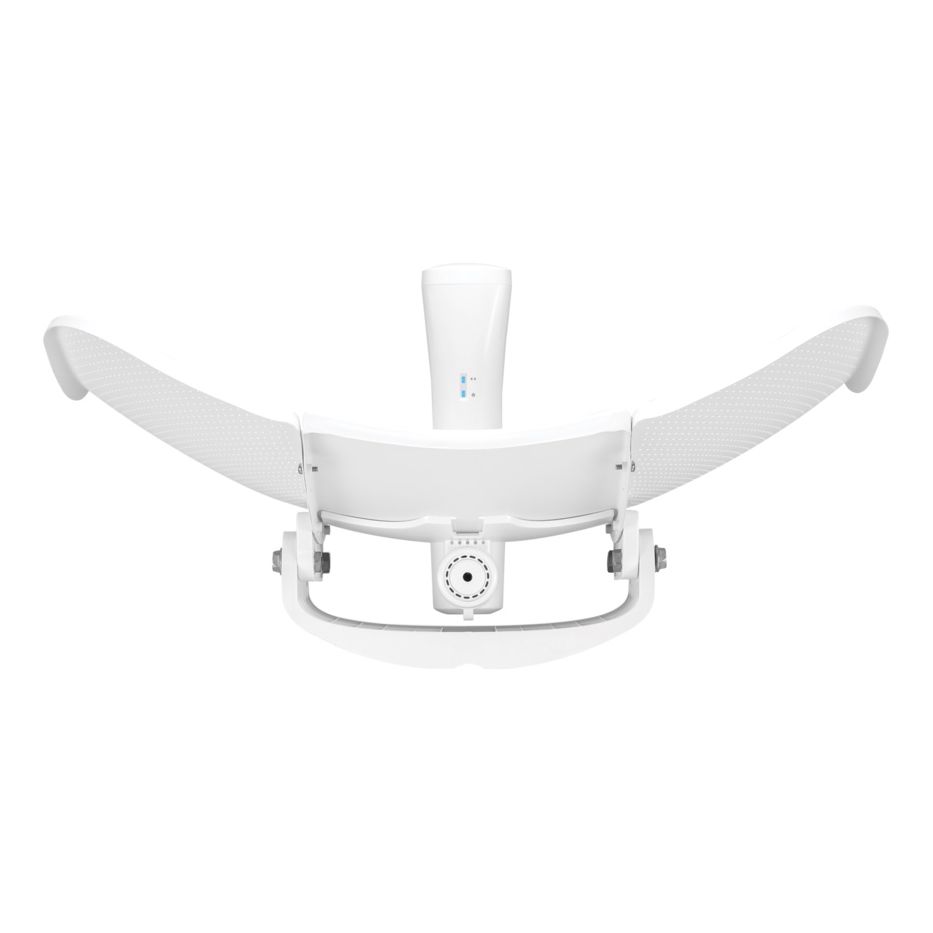

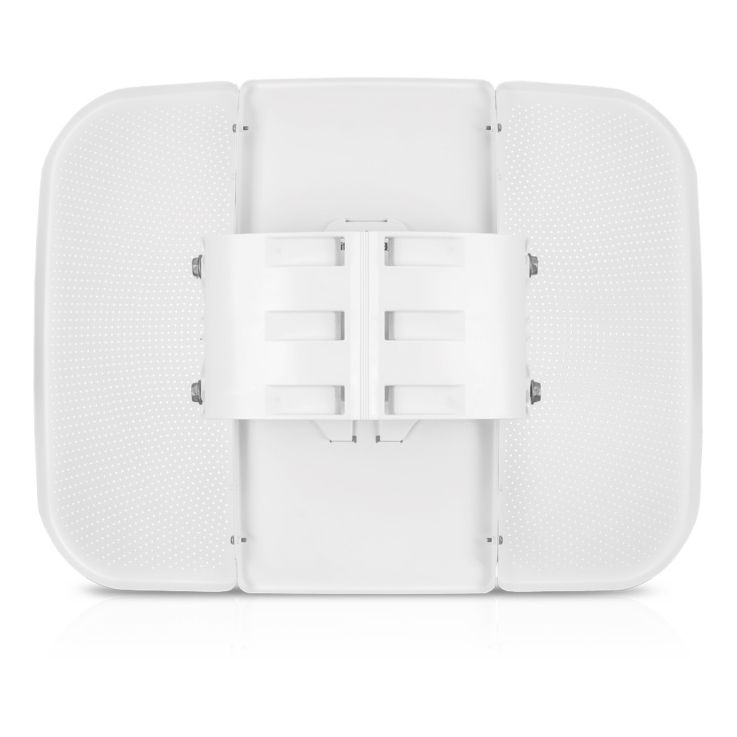

The LTU LR features a large reflector size and easy elevation adjustment (azimuth is adjusted by rotation around the pole).
* 1+ Gbps with future firmware upgrade.
** Available with future firmware upgrade.
Available stock:
- PtMP CPE
- 1024 QAM
- 10/20/30/40/50 MHz channel bandwidth
- Central configuration management from AP side
- Frequency split
- Auto power adjustments
- Router mode support
- Range up to 30km
Functions in a PtMP environment with the LTU-Rocket as the basestation
Incorporating innovative industrial design with advanced technology, the LTU LR is a Point-to-MultiPoint (PtMP) 5 GHz Radio with an integrated antenna designed for use as a PtMP CPE. LTU technology that breaks through the limitations of 802.11 Wi-Fi technology and supports 1024QAM for high performance and flexible bandwidth (10/20/30/40/50 MHz).
Designed for long-range applications, the LTU LR is a 5 GHz subscriber station that functions as a CPE (Customer Premises Equipment) in a Point-to-MultiPoint (PtMP) environment with the LTU Rocket® as the basestation.
Proprietary LTU Technology:
Based on Ubiquiti’s LTU technology, the LTU LR is not impeded by the limitations of standard 802.11 Wi-Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps* of real TCP/IP throughput and modulation rates of up to 4096QAM**.
CPE Modes:
The LTU LR supports both bridged and built-in hardware NAT router modes to suit your specific deployment.
Frequency Split:
The LTU LR can use different frequencies for TX and RX to avoid interference.
Improved Noise Immunity:
The LTU LR directs RF energy in a tighter beamwidth. With the focus in one direction, the LTU LR blocks or spatially filters out noise to improve noise immunity. This is especially important in an area crowded with other RF signals of the same or similar frequency.
Innovative Design:
Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of a 26 dBi antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.
Quick Mounting and Alignment:
The LTU LR features a large reflector size and easy elevation adjustment (azimuth is adjusted by rotation around the pole).
* 1+ Gbps with future firmware upgrade.
** Available with future firmware upgrade.
Technical properties
1 GBit Ports:
1
Antenna Gain dBi:
26 dBi
Band:
4800 - 6200 MHz / 5150 - 5850 MHz
Bluetooth:
Yes
Case material:
Outdoor UV Stabilized Plastic
Certificate:
CE, FCC, IC
Dimensions:
512.5 x 385.75 x 258.3 mm
ESD/EMP Protection:
± 24 kV Contact / Air for Ethernet
Field of application:
Outdoor
Frequency:
5 GHz
Max. TX Power:
22 dBm
Mounting:
Pole Mount
Operating Conditions:
-40°C - +60°C
Operating Humidity:
5 - 95%, non-condensing
Power Consumption:
8.5 W
Power Supply:
Passive-PoE
Power Supply:
24V 0.5 A Gigabit PoE Adapter
WLAN Standard:
LTU
Wind load resistance:
550 N @ 200 km/h
Wireless Clients:
50+
