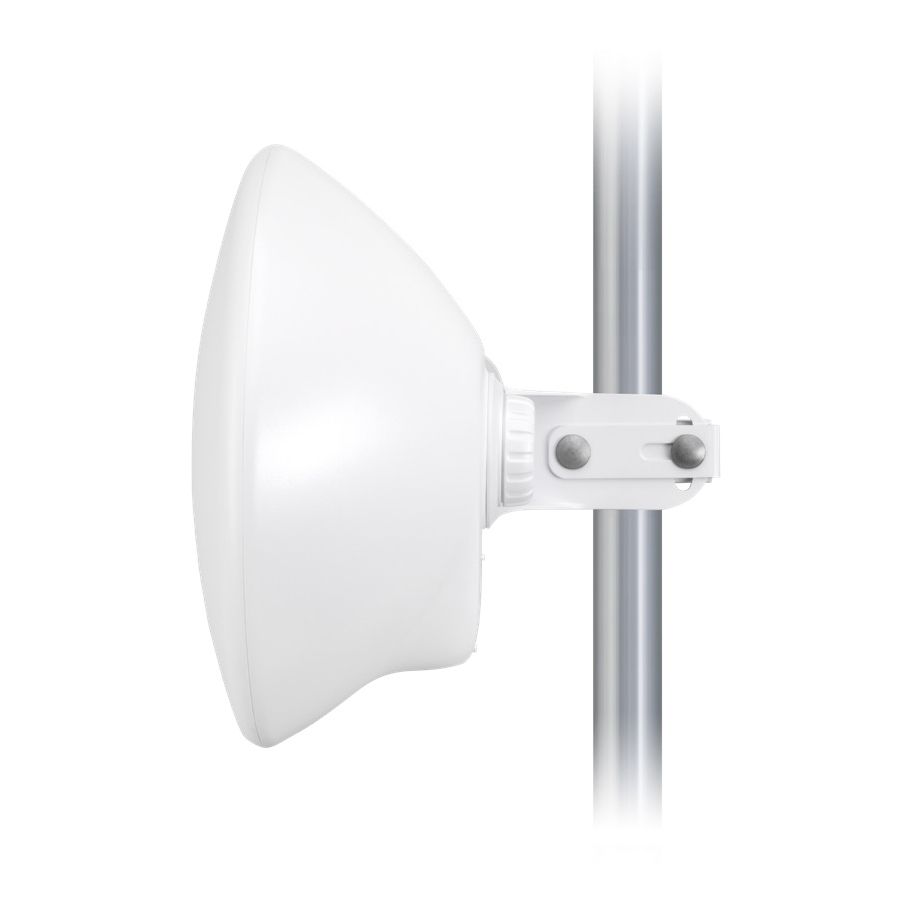

5 GHz PtMP LTU™ Client Radio w/ Advanced RF Performance, w/ 24 dBi Dish Antenna
- PtMP CPE
- 1024 QAM
- 10/20/30/40/50 MHz channel bandwidth
- Central configuration management from AP side
- Frequency split
- Automatic power adjustments
- Router mode support
Featuring an integrated 24 dBi dish antenna, the LTU Pro is a 5 GHz subscriber station that functions as a CPE (Customer Premises Equipment) in a Point-to-MultiPoint (PtMP) environment with the LTU Rocket® as the basestation.
Proprietary LTU Technology:
Based on Ubiquiti’s LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps1 of real TCP/IP throughput and modulation rates of up to 4096QAM2.
CPE Modes:
The LTU Pro supports both bridged and built-in hardware NAT router modes to suit your specific deployment.
Frequency Split:
The LTU Pro can use different frequencies for TX and RX to avoid interference.
Incorporating innovative industrial design with advanced technology, the LTU Pro is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. It features an integrated high-gain dish for long range and high performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.
Available stock:
- PtMP CPE
- 1024 QAM
- 10/20/30/40/50 MHz channel bandwidth
- Central configuration management from AP side
- Frequency split
- Automatic power adjustments
- Router mode support
Featuring an integrated 24 dBi dish antenna, the LTU Pro is a 5 GHz subscriber station that functions as a CPE (Customer Premises Equipment) in a Point-to-MultiPoint (PtMP) environment with the LTU Rocket® as the basestation.
Proprietary LTU Technology:
Based on Ubiquiti’s LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps1 of real TCP/IP throughput and modulation rates of up to 4096QAM2.
CPE Modes:
The LTU Pro supports both bridged and built-in hardware NAT router modes to suit your specific deployment.
Frequency Split:
The LTU Pro can use different frequencies for TX and RX to avoid interference.
Incorporating innovative industrial design with advanced technology, the LTU Pro is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. It features an integrated high-gain dish for long range and high performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.
Technical properties
1 GBit Ports:
1
Band:
2400 - 2483,5 MHz / 4800 - 6200 MHz
Beam Angle:
14°
Case material:
Outdoor UV Stabilized Plastic
Certificate:
CE, FCC, IC
Dimensions:
316.5 x 316.5 x 174.3 mm
ESD/EMP Protection:
± 24 kV Contact/Air
Field of application:
Outdoor
Frequency:
5 GHz
Front-to-Back Ratio:
27 db
Gain:
24 dBi
Max. TX Power:
22 dBm
Mounting:
Pole-Mount, Wall Mount
Operating Conditions:
-5°C - +40°C
Operating Humidity:
5 - 90%, non-condensing
PoE Standard:
IEEE 802.3 Passive PoE
PoE Support:
Passive-PoE
Power Consumption:
9.0 W
Power Supply:
24V, 0.5A Gigabit PoE Adapter
WLAN Standard:
LTU
Wind load resistance:
150 N @ 200 km/h
Wireless Clients:
50+
