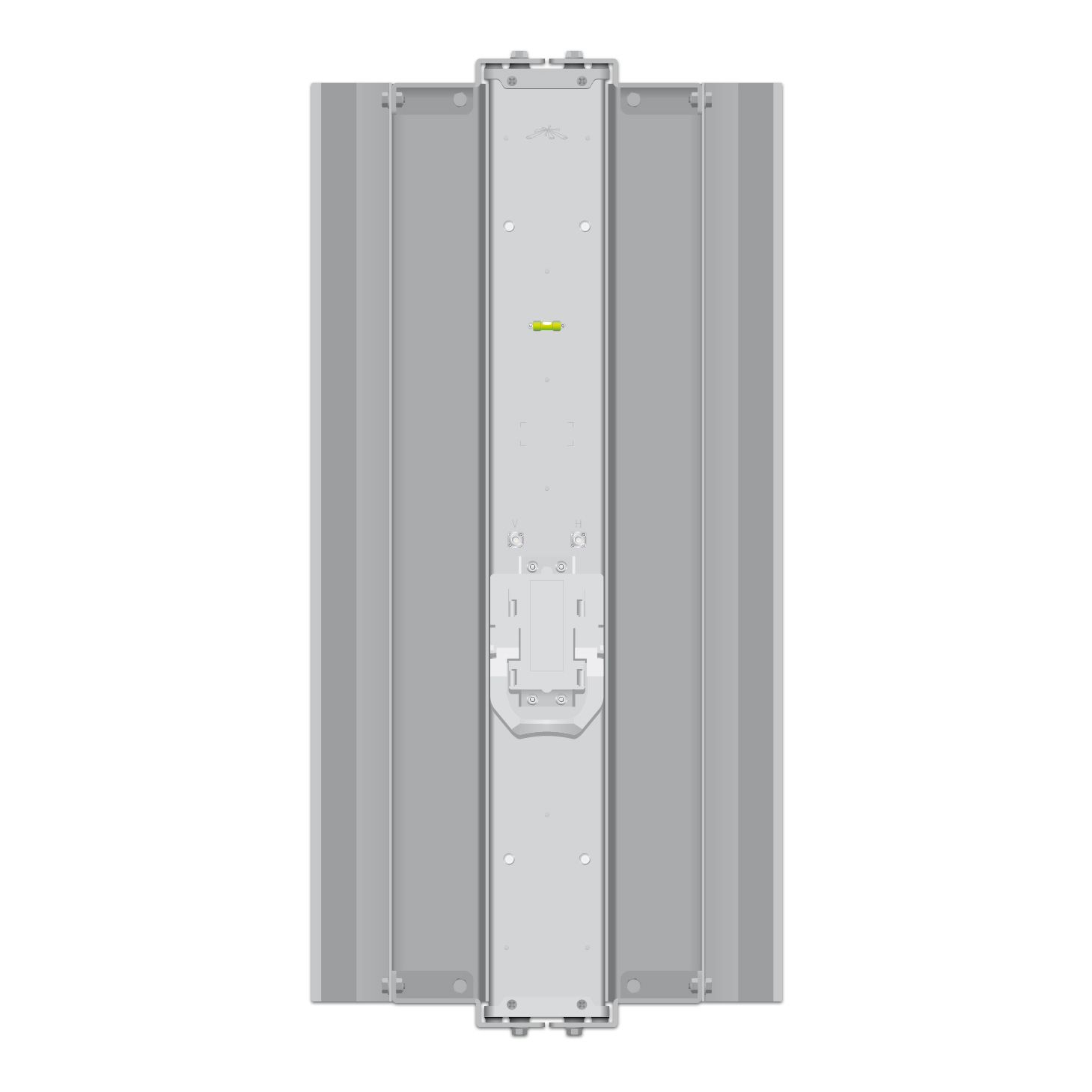

2.4 GHz Variable Beam BaseStation, 60-120°, Titanium,
- Carrier-Class 2x2 MIMO PtMP BaseStation
- Frequency Range: 2.3-2.6 GHz
- Gain: 15-17dBi
- Polarization: Dual Linear
- Beamwidth angles: 60/90/120 deg.
- Connectors: 2 x RSMA female
Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.
Breakthrough Design and Performance
The innovative airMAX® Sector Antennas feature carrier-class construction and 2x2, dual-polarity performance.
Reduced Interference, Higher Gain
Highly resistant to noise interference, the airMAX® Sector Antennas provide superior gain and beam performance for high-capacity, multipoint networks.
RF Isolation and Beamwidth Options
The versatile airMAX® Titanium Sector models feature advanced RF isolation and adjustable beamwidth options: 60°, 90° or 120°.
Industrial-Strength Construction
airMAX® Antennas are designed with robust mechanical design for outdoor application use.
Plug and Play Integration
Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.
Available stock:
Article number:
AM-V2G-TI
Manufacturer number:
AM-V2G-TI
Manufacturer page:
UBIQUITI
EAN:
0810354021008
- Carrier-Class 2x2 MIMO PtMP BaseStation
- Frequency Range: 2.3-2.6 GHz
- Gain: 15-17dBi
- Polarization: Dual Linear
- Beamwidth angles: 60/90/120 deg.
- Connectors: 2 x RSMA female
Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.
Breakthrough Design and Performance
The innovative airMAX® Sector Antennas feature carrier-class construction and 2x2, dual-polarity performance.
Reduced Interference, Higher Gain
Highly resistant to noise interference, the airMAX® Sector Antennas provide superior gain and beam performance for high-capacity, multipoint networks.
RF Isolation and Beamwidth Options
The versatile airMAX® Titanium Sector models feature advanced RF isolation and adjustable beamwidth options: 60°, 90° or 120°.
Industrial-Strength Construction
airMAX® Antennas are designed with robust mechanical design for outdoor application use.
Plug and Play Integration
Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.
Technical properties
Antenna Connector:
RSMA
Antenna Gain dBi:
17 dBi @ 60°, 16 dBi @ 90°, 15 dBi @ 120°
Band:
2.3 - 2,6 GHz
Beamwidth:
60° / 90°/ 120°
Certificate:
CE, FCC, IC
Cross-Pol. Isolation:
25dB Typical
Dimensions:
773 x 372.1 x 120 mm
Frequency:
2.4 GHz
Front-to-Back Ratio:
30 dB
Gain:
15 - 17 db
Max. VSWR:
1.5:1
Polarization:
Dual-Linear
Product Family:
Sektor Antenne
