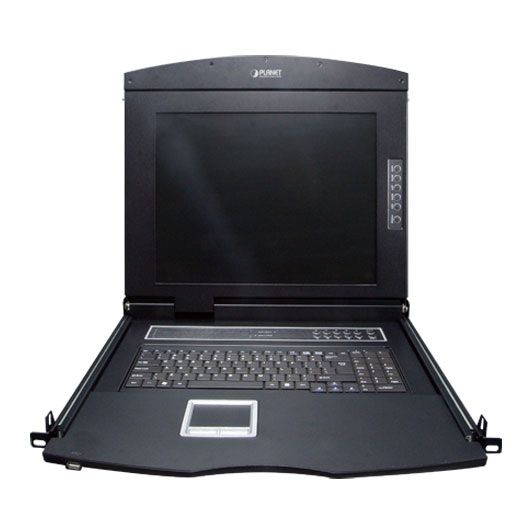

17" 8-Port Combo VGA LCD KVM Switch
Easy Switching, Efficient Management:
PLANET KVM-210-08M Combo VGA LCD KVM Switch features an integrated 17" LED-backlit LCD panel allowing access to and control up to 8 computers from a single console (keyboard, mouse and monitor). Simply use the supplied Combo VGA cable set to link the KVM-210-08M to the console ports of your KVM Switch, regardless of the connected port interface -- USB or PS/2.
Easy to Install:
With the uniquely separate rail design, it helps to install the KVM console easily. Moreover, when there is a need to maintain the console, the administrator can easily uninstall the device without affecting the server above or below.
Computer Switching:
There are three convenient methods to access any computer connected to the installation:
- Port select button
- Hotkeys on keyboard
- OSD (on screen display)
Security:
Two level password security only authorizes up to one user and an administrator with a separate profile for each user.
Powerful Mouse/Keyboard Support:
In the present computer applications, a mouse has become an indispensable device. The KVM-210-08M fully supports all models of PS/2 mice on the market. The KVM also supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the KVM for all kinds of servers, computers or their combination.
- Integrated 17” LCD monitor and keyboard/touchpad module within 1U chassis
- Standalone machine controls up to 8 sets of computers
- Up to 2 levels can be cascaded and up to 64 computers can be controlled
- Port Select Panel status LEDs give a clear indication of the active computers
- Supports high resolution up to 1280 x 1024
- Mouse touch board with two function buttons
- Full-size 100-key keyboard with integrated number pad
- Front panel with lock to prevent damage by accident
Security:
- Two-layer password security protection
Management:
- Auto scan mode for monitoring computers
- Requires no additional software or hardware
- Computer selection via Port Select Button, Hotkey and On Screen Display (OSD)
- Hot pluggable: Add or remove computers without having to power down the switch
- QVS (Quick View Setting): Quickly select your computer by naming or SN number
Compatibility:
- Multiplatform support -- Windows, Linux and Sun
- Supports Microsoft Intellimouse, Logitech Net Mouse and all other third party’s PS/2 mice
Easy Switching, Efficient Management:
PLANET KVM-210-08M Combo VGA LCD KVM Switch features an integrated 17" LED-backlit LCD panel allowing access to and control up to 8 computers from a single console (keyboard, mouse and monitor). Simply use the supplied Combo VGA cable set to link the KVM-210-08M to the console ports of your KVM Switch, regardless of the connected port interface -- USB or PS/2.
Easy to Install:
With the uniquely separate rail design, it helps to install the KVM console easily. Moreover, when there is a need to maintain the console, the administrator can easily uninstall the device without affecting the server above or below.
Computer Switching:
There are three convenient methods to access any computer connected to the installation:
- Port select button
- Hotkeys on keyboard
- OSD (on screen display)
Security:
Two level password security only authorizes up to one user and an administrator with a separate profile for each user.
Powerful Mouse/Keyboard Support:
In the present computer applications, a mouse has become an indispensable device. The KVM-210-08M fully supports all models of PS/2 mice on the market. The KVM also supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the KVM for all kinds of servers, computers or their combination.
