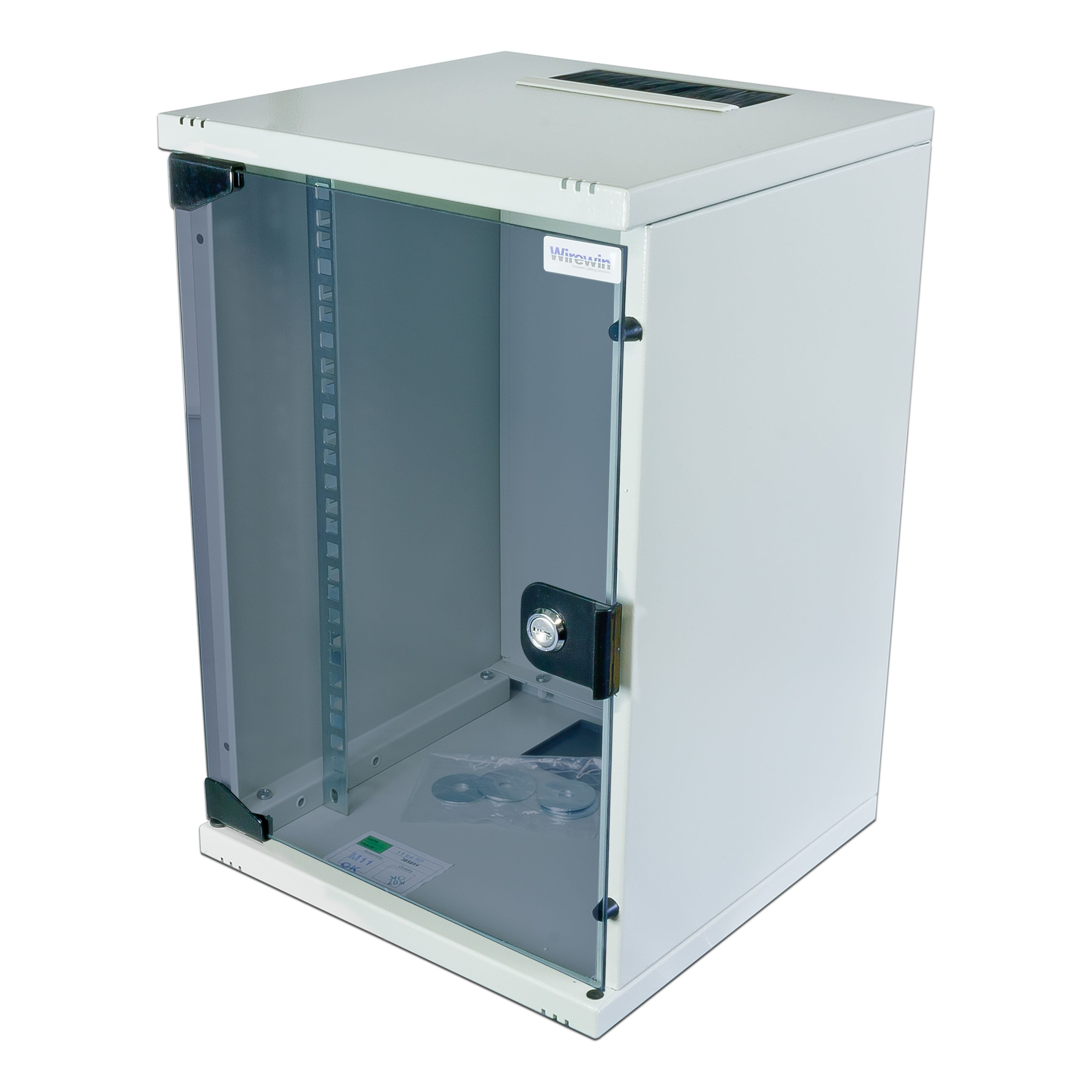

10" Wallmount Cabinet, one-piece, grey RAL7035

  • Material: Sheet steel
  • Width: 312 mm
  • Heights: 6U, 9U
  • Depths: 300 mm
  • Color options: RAL 7035 Grey

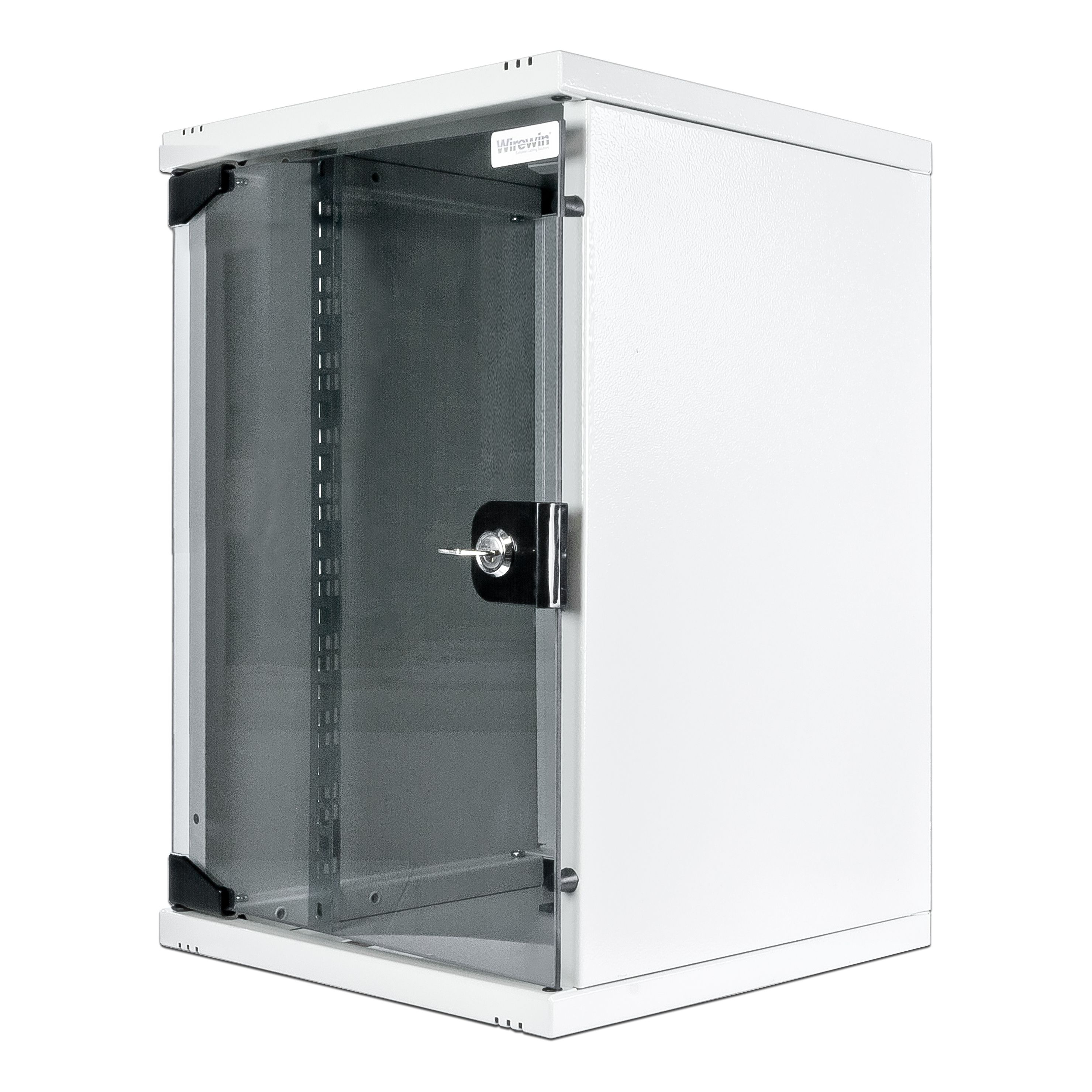

  • 4.00mm Glass front door (swing direction reversible) with single point locking barrel lock
  • Solid Metal door is available upon request

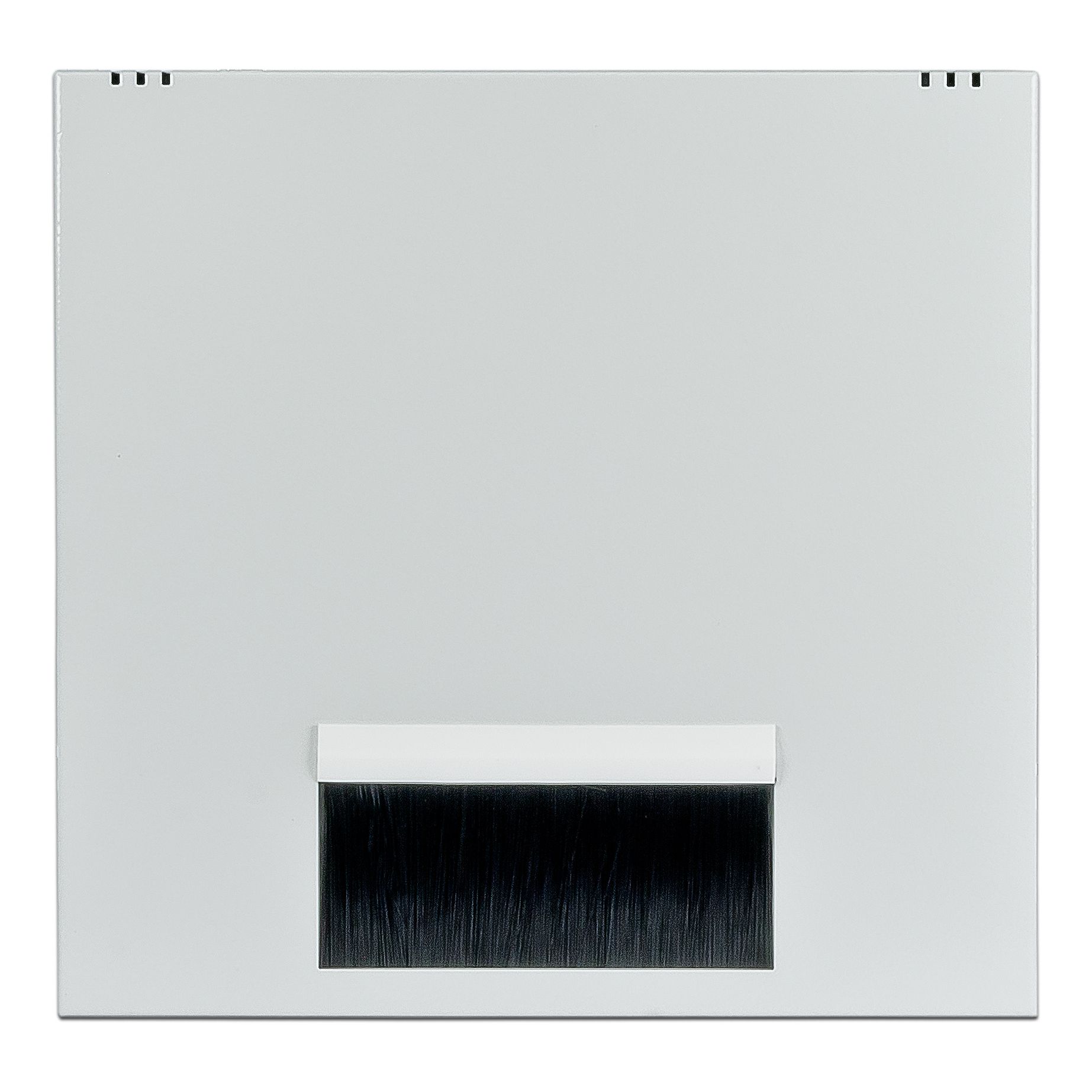

  • Brushed cable entry point with w:145mmxd:70mm

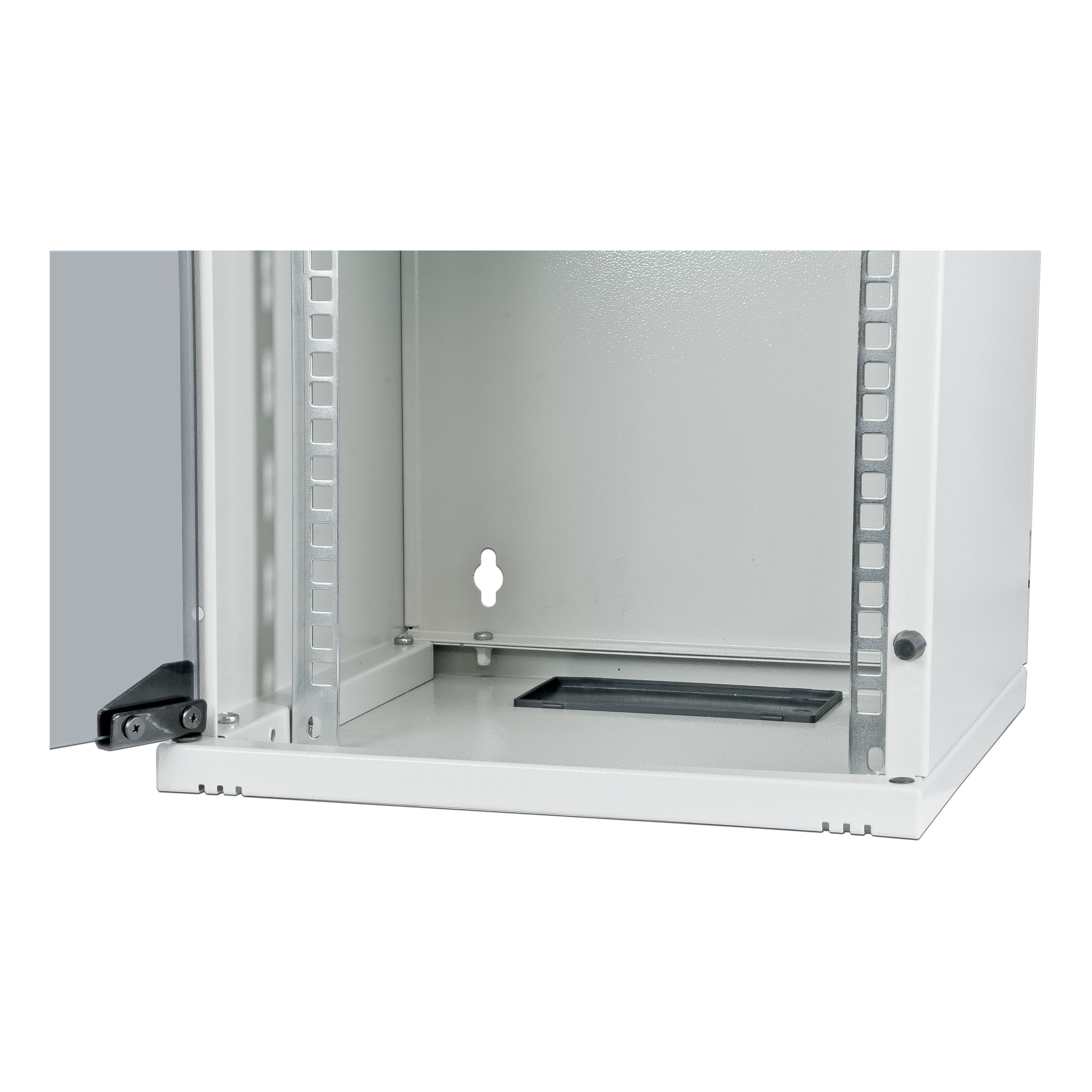

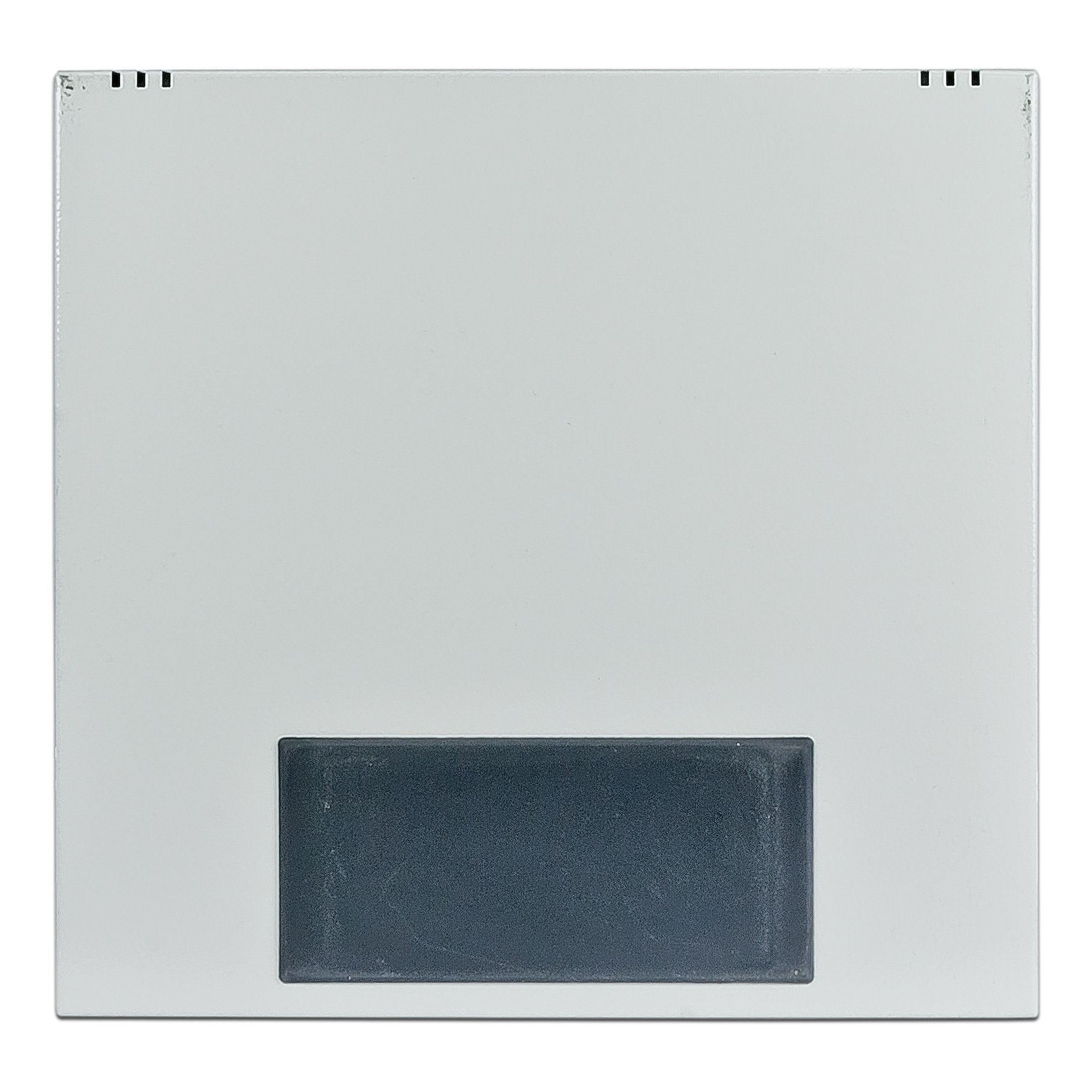

  • PVC Gland plate for cable entrance at the bottom w:145mmxd:70mm
  • Ventilation slots for active and passive ventilation on top (1 or 2 fans applicable)
  • Equipment mounting depth min.-max.: 200-250 mm

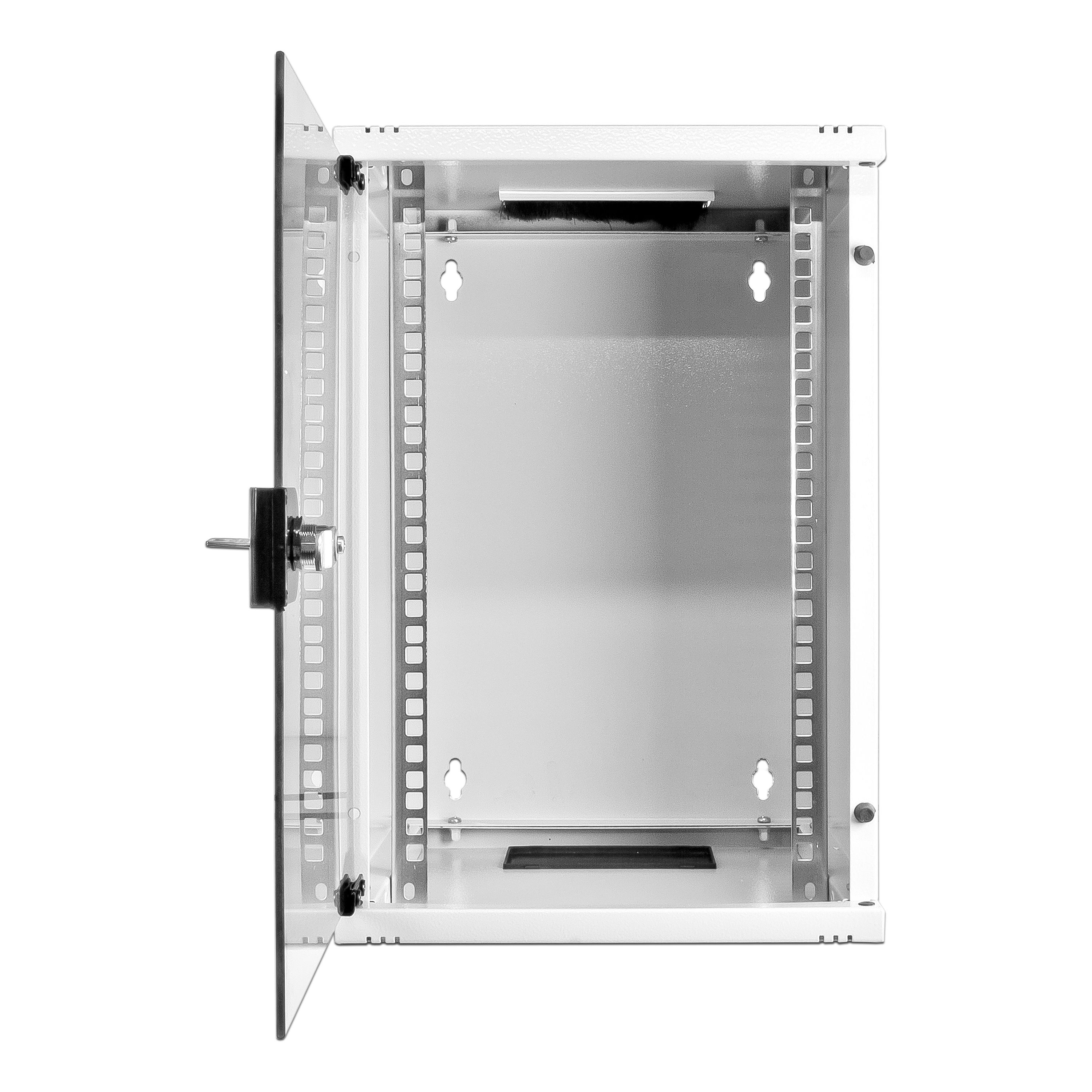

  • Includes front rackrail
  • Durable design
  • Most space efficiency
  • Offers a variety of features that make it easy to install your equipment
  • Load Capacity: 80 kg max
Select Farbe
Article number: WCAB 10 312X300X9U
Manufacturer number: WCAB 10 312X300X9U
Manufacturer page: WIREWIN
EAN: 9120072488214
More variants:
10" Wallmount Cabinet, one-piece, grey RAL7035
Product number
Höheneinheiten (HE)
Availability Quantity
WCAB 10 312X300X6U
WCAB 10 312X300X9U
  • Material: Sheet steel
  • Width: 312 mm
  • Heights: 6U, 9U
  • Depths: 300 mm
  • Color options: RAL 7035 Grey
  • 4.00mm Glass front door (swing direction reversible) with single point locking barrel lock
  • Solid Metal door is available upon request
  • Brushed cable entry point with w:145mmxd:70mm
  • PVC Gland plate for cable entrance at the bottom w:145mmxd:70mm
  • Ventilation slots for active and passive ventilation on top (1 or 2 fans applicable)
  • Equipment mounting depth min.-max.: 200-250 mm
  • Includes front rackrail
  • Durable design
  • Most space efficiency
  • Offers a variety of features that make it easy to install your equipment
  • Load Capacity: 80 kg max
  • Material: Sheet steel
  • Width: 312 mm
  • Heights: 6U, 9U
  • Depths: 300 mm
  • Color options: RAL 7035 Grey
  • 4.00mm Glass front door (swing direction reversible) with single point locking barrel lock
  • Solid Metal door is available upon request
  • Brushed cable entry point with w:145mmxd:70mm
  • PVC Gland plate for cable entrance at the bottom w:145mmxd:70mm
  • Ventilation slots for active and passive ventilation on top (1 or 2 fans applicable)
  • Equipment mounting depth min.-max.: 200-250 mm
  • Includes front rackrail
  • Durable design
  • Most space efficiency
  • Offers a variety of features that make it easy to install your equipment
  • Load Capacity: 80 kg max
Technical properties
Case material:
Sheet Steel, 4 mm Glass
Depth:
300
Dimensions:
312 x 300 x 463 mm
Farbe:
Grau
Height U:
9 U
Max. Workload:
80 kg
Width:
312
